Product Short Description

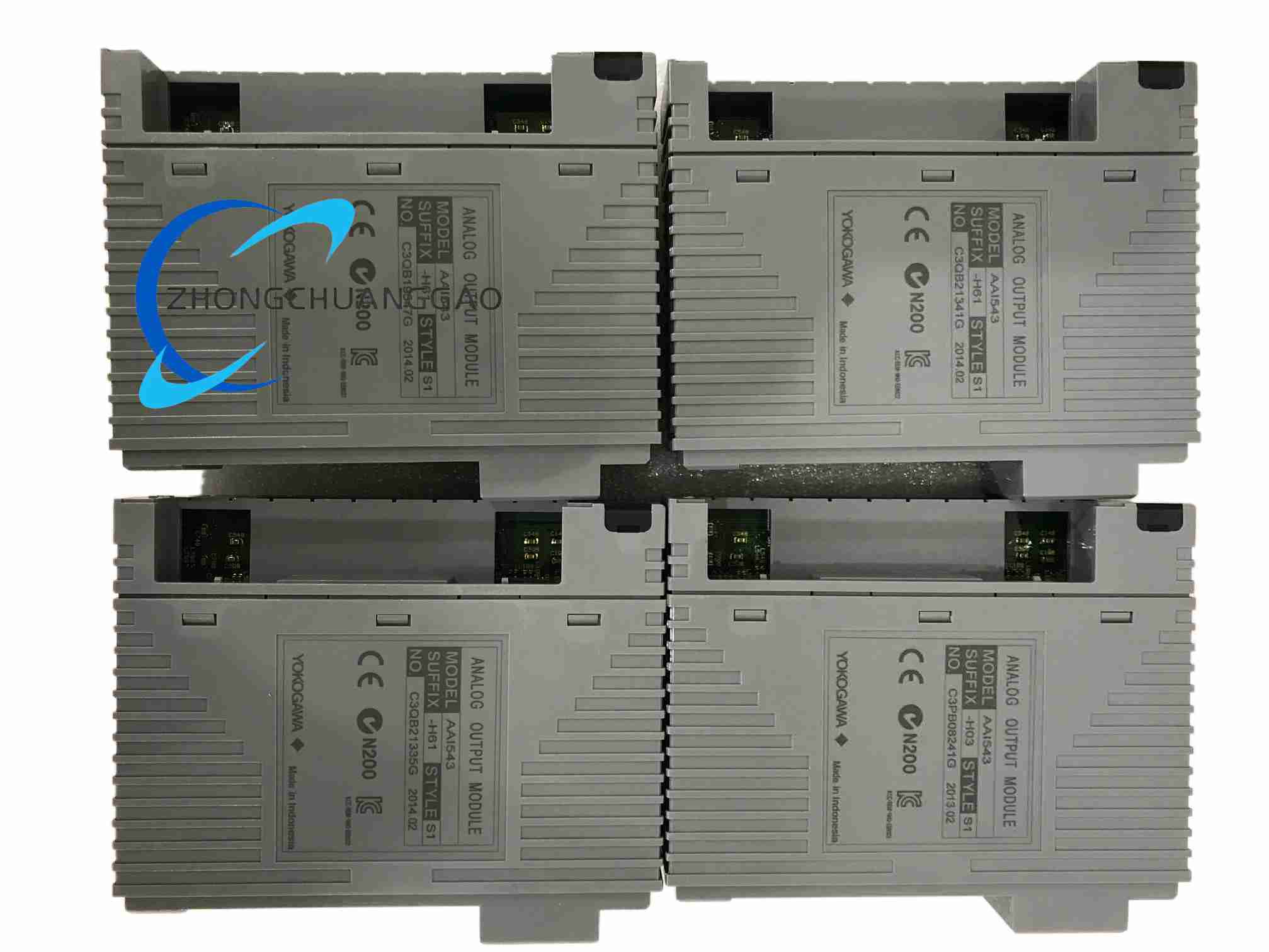

Product Overview: This is an advanced variant of the AAI543 series designed for CENTUM VP Integrated Production Control Systems. The suffix “/K4A00” specifies a KS cable interface adapter for connecting to terminal board AEA4D (model ATK4A-00). “-H61” indicates: H = HART communication; 6 = fast switch-over redundancy without explosion protection; 1 = ISA Standard G3 option for harsh/corrosive environments.
Description
Key Technical Specifications:
-
Output Channels: 16 isolated channels
-
Output Signal: 4 to 20 mA DC
-
Communication Protocol: HART (Highway Addressable Remote Transducer)
-
Redundancy: Fast switch-over supported in redundant configurations
-
Environmental Compliance: ISA Standard G3 option (anti-corrosion)
-
Power Supply: 24 V DC
-
Operating Temperature: -20 °C to +70 °C
-
Storage Temperature: -40 °C to +85 °C
-
Weight: 0.8 kg
Features:
-
HART digital communication overlaid on 4–20 mA analog signal
-
Fast switch-over redundancy ensures critical loop continuity with minimal interruption
-
ISA G3 coating protects against corrosive atmospheres (suitable for offshore, chemical, and heavy industrial sites)
-
KS cable interface adapter (/K4A00) streamlines connection to field termination
Applications: Ideal for mission-critical process control in oil & gas, chemical plants, and power stations where redundant HART-enabled analog output and harsh-environment durability are mandatory.
Installation & Usage Notes: Install in FIO node unit; connect using ATK4A-00 KS cable adapter to terminal board AEA4D. Confirm redundant pair configuration in CENTUM VP system builder.
