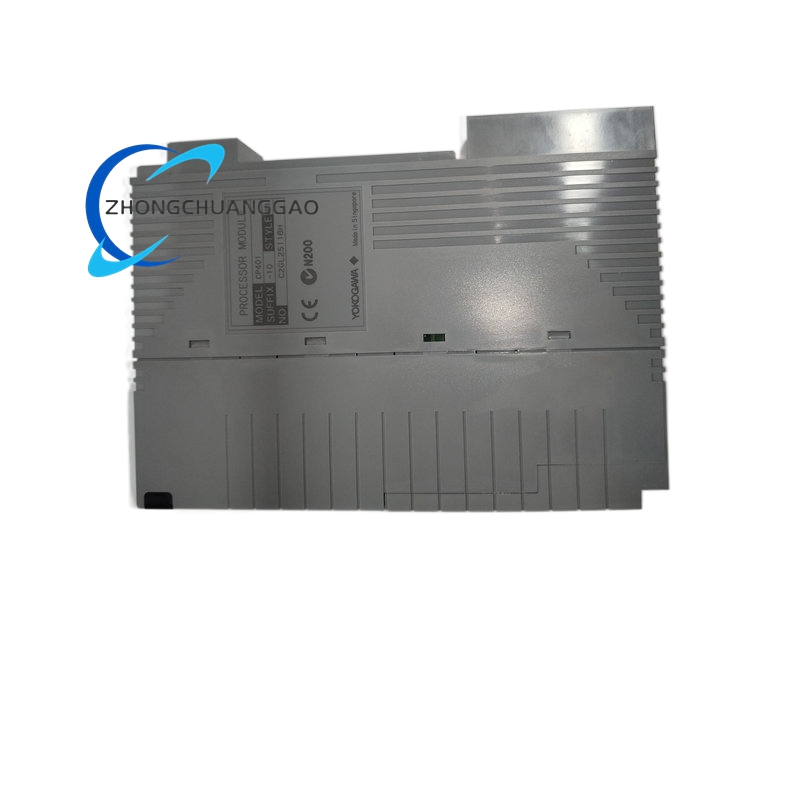

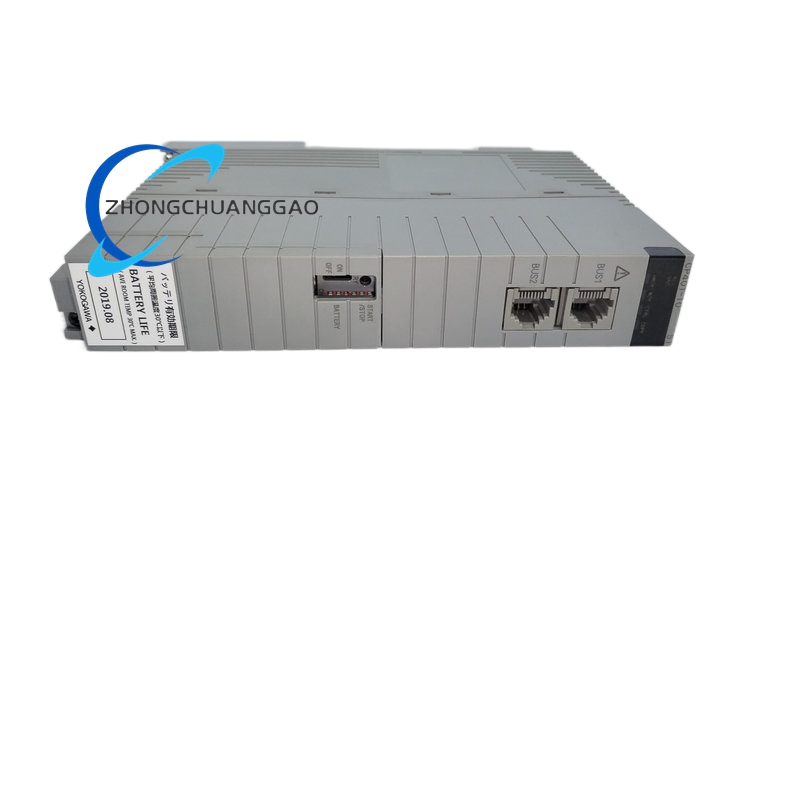

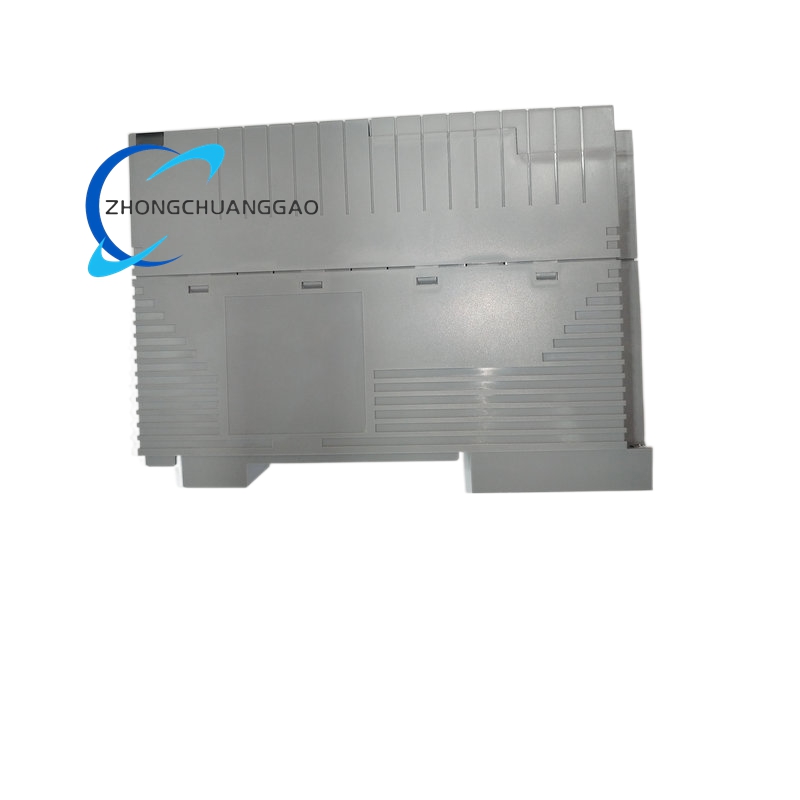

YOKOGAWA CP401-10

Description

Technical Specifications:

• Model Number: CP401-10

• Manufacturer: YOKOGAWA

• Product Type: Communication Processor Module

• CPU Architecture: 32-bit RISC processor

• Memory Capacity: 512MB RAM, 1GB Flash

• Communication Ports: 2 × Ethernet (100BASE-TX), 1 × RS-232C

• Protocol Support: Vnet/IP, Modbus TCP/IP, OPC

• Data Processing Speed: 10,000 points/second

• Power Supply: 24 VDC ±5%

• Power Consumption: 15W (typical)

• Operating Temperature: -25°C to 70°C (wide-range)

• Storage Temperature: -40°C to 85°C

• Protection Class: IP20 (dust-resistant)

• Dimensions: 130 mm × 100 mm × 42 mm (H × W × D)

• Weight: 0.35 kg

• Mounting: Standard system rack

• Redundancy Support: Yes (when paired with CP401-20)

• Compatibility: CENTUM VP DCS

Functional Features:

• High-Speed Data Processing: With a powerful 32-bit RISC processor and optimized communication stack, the module handles up to 10,000 data points per second, ensuring real-time responsiveness for large-scale control systems

• Multi-Protocol Support: Bridges between Yokogawa’s Vnet/IP and industry-standard protocols like Modbus TCP/IP and OPC, enabling integration with diverse third-party systems and field devices

• Advanced Diagnostics: Comprehensive status monitoring and logging capabilities provide visibility into communication performance and help quickly identify network issues

• Redundancy Options: When paired with the CP401-20 module, the system achieves high-availability communication paths for critical applications

• Dual Redundancy: Built with dual microprocessors for cross-verification, ensuring uninterrupted operation even in fault conditions

• Compact Design: Space-saving form factor ideal for installations with limited cabinet space

Performance Parameters:

• Data Throughput: 10,000 data points per second

• Power Efficiency: 15W typical power consumption

• Temperature Resilience: Operates effectively in temperatures 15% lower than most competitors

Material Composition:
Industrial-grade electronic components housed in a robust enclosure designed for demanding industrial environments. The module features a compact, optimized design for installation into a backplane or chassis. Internal design minimizes component count to enhance mean time between failures (MTBF). Non-volatile memory ensures user programs and configuration data are retained during power loss.

Structural Characteristics:

• Form Factor: Compact module designed for standard system rack mounting

• Front Panel Layout: Communication interfaces (Ethernet and serial ports) are conveniently accessible on the front panel for easy network connectivity

• Backplane Interface: Optimized for installation into a backplane or chassis

• Cooling: Passive cooling with optimized thermal design minimizing thermal load

Working Principle:
The CP401-10 functions as a communication processor that receives data from field devices through various industrial protocols, performs protocol conversion, and transmits processed data to the CENTUM VP DCS system. The 32-bit RISC processor executes communication stack operations at high speed, handling up to 10,000 data points per second. The module bridges Yokogawa’s proprietary Vnet/IP protocol with industry-standard protocols like Modbus TCP/IP and OPC. In redundant configurations paired with the CP401-20, the module provides dual communication paths for high-availability applications.

Advantages and Strengths:

• Superior temperature resilience with wide operating range from -25°C to 70°C

• Plug-and-play compatibility with existing Yokogawa systems, reducing commissioning time by 30%

• Dual redundancy at a 10% lower cost than comparable solutions

• Advanced diagnostic capabilities for real-time communication performance monitoring

• Non-volatile memory for program and data retention during power loss

Applicable Industries:

• Oil and gas facilities

• Power generation facilities

• Petrochemical plants

• Chemical manufacturing

• Water treatment systems

• Pharmaceutical manufacturing

Model Series:
Part of Yokogawa’s CENTUM VP distributed control system (DCS) product family. The CP401-10 works in conjunction with the CP401-20 module for redundancy configurations.

Installation Requirements:

• Mounting: Standard system rack installation

• Power Supply: 24 VDC ±5%

• Environmental: Operating temperature range of -25°C to 70°C; storage temperature range of -40°C to 85°C

• Cabinet Space: Compact design suitable for installations with limited cabinet space

• Compatibility Verification: Ensure compatibility with existing CENTUM VP infrastructure before installation

Usage Precautions:

• Environmental Considerations: Opt for CP401-10 if application requires operation in sub-zero or high-temperature environments

• Redundancy Planning: Balance redundancy requirements with budget considerations

• Protocol Configuration: Properly configure protocol settings for seamless integration with third-party systems

• Diagnostic Monitoring: Regularly review status monitoring and logging data for early detection of network issues
