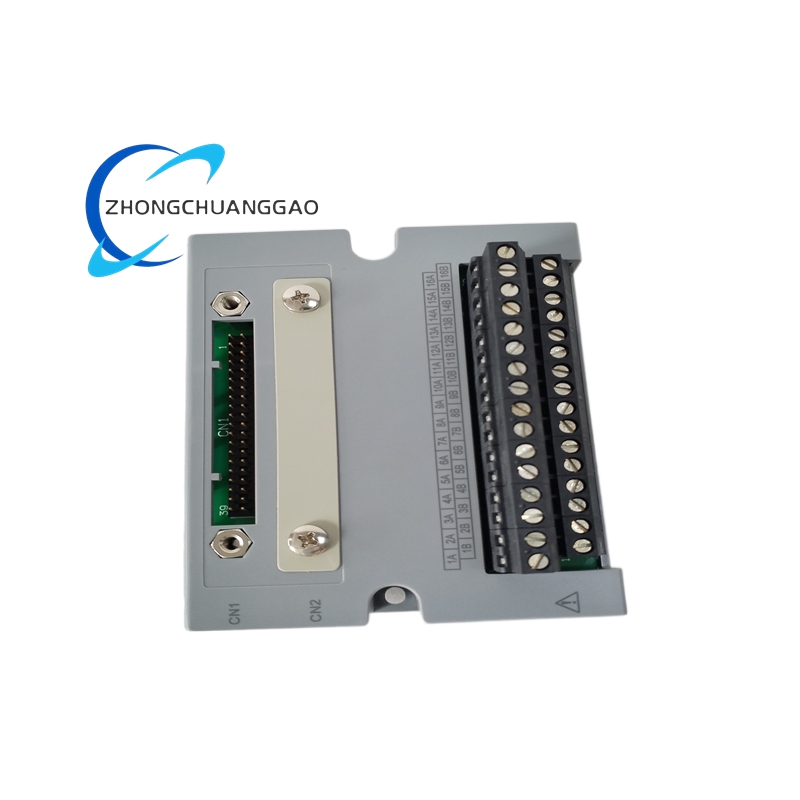

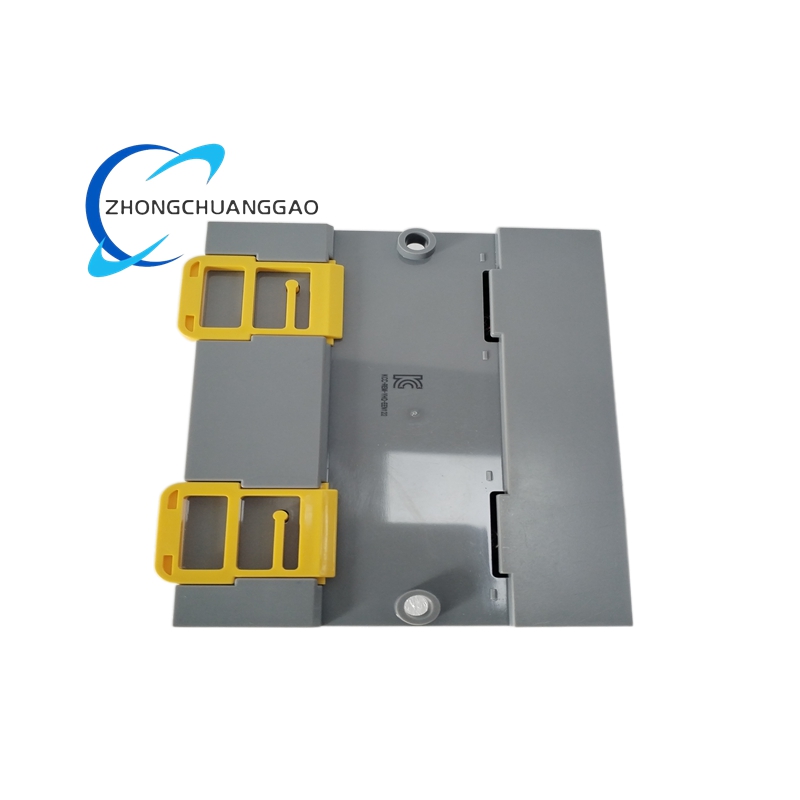

Yokogawa A1BA4D-05

Description

• Technical Specifications:
  • Full Model: A1BA4D-05
  • Rated Power Supply: 24 VDC
  • Operating Temperature: 0 °C ~ +60 °C
  • Storage Temperature: -30 °C ~ +80 °C
  • Relative Humidity: 10% ~ 90% non-condensing
  • Electromagnetic Compatibility: Comply with IEC 61000 industrial EMC standard
• Functional Features: Logic operation, signal acquisition and output, data communication, channel self-diagnosis, fault alarm, system data interaction.
• Performance Parameters: High operational stability, low signal error, fast logic response, strong anti-electromagnetic interference, support long-term continuous operation.
• Material Composition: Flame-retardant industrial plastic housing, high-precision electronic components, copper alloy conductive terminals, metal electromagnetic shielding layer, reinforced anti-vibration circuit board.
• Structural Characteristics: Standard Yokogawa rack-mount modular design, plug-and-play structure, front panel with LED status indicators, independent wiring terminal area, anti-vibration locking device.
• Working Principle: Receive control instructions and field signals from upper system, execute preset logic operations, output control signals to on-site actuators; complete data exchange with other modules through system bus, and realize self-diagnosis of internal circuit and channels.
• Advantages & Highlights: Mature industrial design, high operational reliability, perfect compatibility with Yokogawa automation products, strong environmental adaptability, simple maintenance.
• Applicable Industries: Petrochemical, natural gas, power generation, food processing, pharmaceutical industry, papermaking, textile industry, general industrial automation.
• Installation Requirements: Install on Yokogawa standard dedicated rack; ensure cabinet internal ventilation is unobstructed; module is locked in place after insertion; wiring strictly follow terminal definition.
• Usage Notes: Live plugging and unplugging is forbidden; do not apply voltage beyond rated range; clean internal dust periodically; replace only with original A1BA4D-05 model for failure replacement.
