Product Short Description

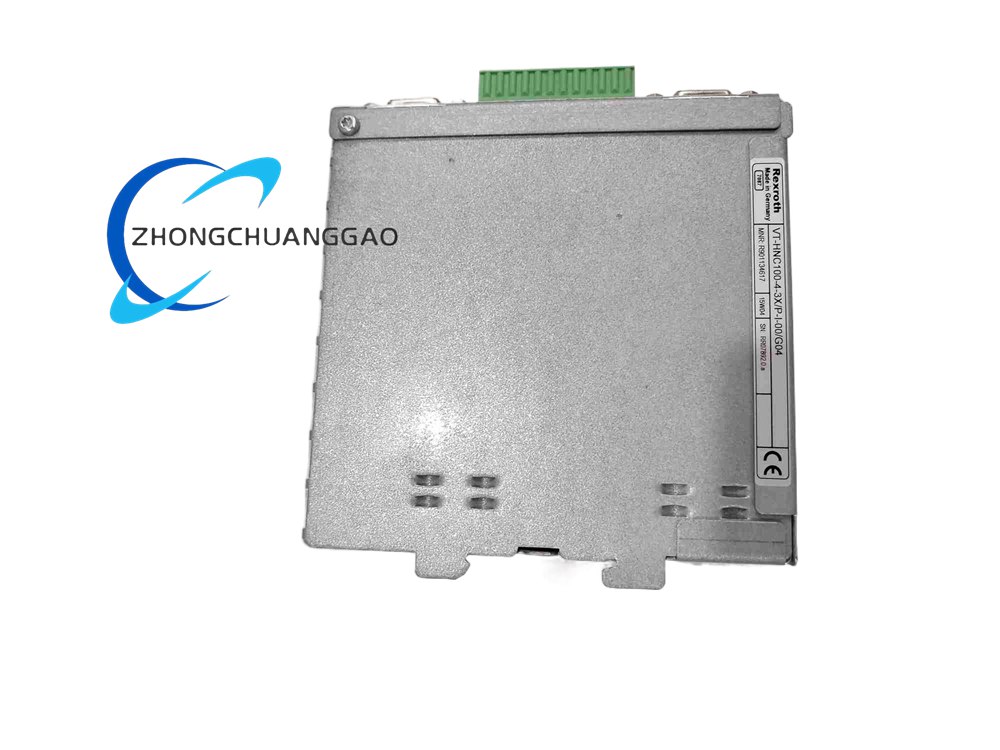

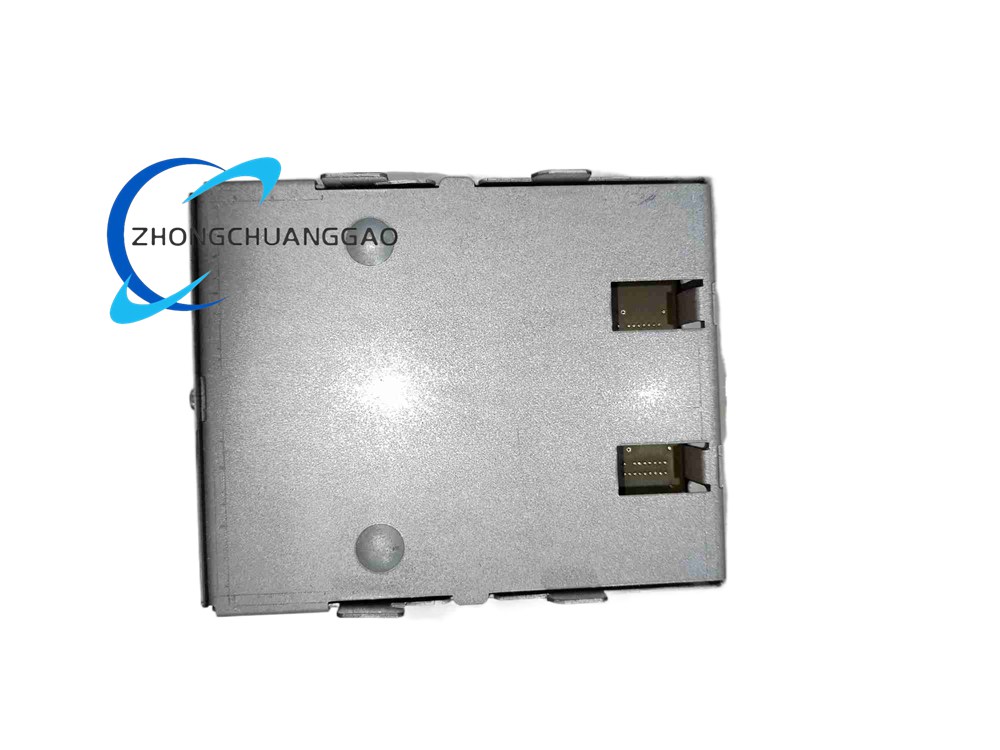

Product Name: Digital Axis Controller (4-axis Electro-hydraulic NC Controller)
Product Introduction:
Programmable closed-loop NC motion controller developed for electro-hydraulic drive systems, capable of synchronous control for maximum four hydraulic axes. Optimized for high precision hydraulic positioning, pressure regulation and motion synchronization under harsh industrial operating environments.
Description
- Control Axis Quantity: 4 independent hydraulic axes
- Processor: 32-bit Power PC microprocessor
- Power Supply: 18 VDC ~ 30 VDC, 24 VDC nominal
- Programming Software: WIN-PED V7
- Communication Interfaces: PROFIBUS DP, RS232, TCP/IP
- Position Transducer Support: Incremental encoder, SSI absolute encoder
- Digital I/O: Expandable digital input and output channels
- Operating Temperature: 0 °C ~ +50 °C
- Weight: 960 g
- Compliance: CE, EMC Directive 2004/108/EC
Function Features:
- Multi-axis synchronous motion control, electronic cam function
- Support position, velocity, pressure and differential pressure closed-loop regulation
- Complete NC programming language with subprogram and conditional jump functions
- Built-in fault diagnosis and continuous hardware monitoring
- Parameter storage and password protection
- Support hand-held operator panel for on-site operation
Application Scenarios:
Metal forming presses, plastic injection machinery, machine tools, automated transfer lines, special-purpose industrial machinery
Material Composition:
Aluminum extruded heat dissipation housing, printed circuit board with industrial-grade electronic components, metal mounting brackets, plastic insulated terminal connectors
Structural Features:
Wall-mount / DIN rail mount compact enclosure; front panel equipped with D-SUB communication ports and pluggable spring terminal blocks; integrated passive heat sink for thermal dissipation
Working Principle:
Receives setpoint commands via communication or analog inputs; collects real-time position, pressure feedback signals from hydraulic sensors; operates closed-loop control algorithm; outputs drive commands to proportional hydraulic valves to realize continuous motion adjustment of hydraulic actuators
Installation Requirements:
Install inside control cabinet; reserve sufficient ventilation clearance around the housing; avoid mounting adjacent to frequency converters and high-power electromagnetic equipment; shielded cables must be used for sensor wiring; housing backplane reliable grounding
Usage Notes:
Strictly comply with specified DC supply voltage range; use shielded signal cables with single-side grounding; perform parameter backup before firmware modification; only trained technicians are allowed for configuration and debugging; cut off power before wiring modification
