Description
Technical Specifications
- Model Code Breakdown:
DKC10.3 = medium power hardware platform revision 10.3
018 = 18 A continuous rated output current
3 = incremental sinusoidal encoder feedback variant
MGP = Multi-Global Protocol communication expansion module integrated
01VRS = factory preset standard motion control firmware variant 01VRS
- Continuous Output Current: 18 Arms
- Peak Overload Current: 36 Arms (30 s maximum overload)
- Encoder Interface Variant 3: 1 Vpp sinusoidal incremental encoder input
- Main Power Supply: 3 x 200 VAC ~ 480 VAC three-phase industrial AC input
- Auxiliary Control Power: 24 VDC external control logic supply
- Integrated MGP Bus Protocols: Profinet IO, EtherCAT, Profibus-DP multi-protocol support
- Operating Ambient Temperature: 0 °C ~ +40 °C continuous cabinet operation
Functional Features
- Triple closed-loop position/speed/torque control with auto-tuning servo parameter algorithm
- Multi-axis electronic cam and electronic gearing synchronous motion function
- Support 1 Vpp sinusoidal incremental encoder high-resolution position feedback
- MGP multi-protocol fieldbus module compatible with mainstream industrial PLC control platforms
- Built-in position limit, overvoltage, undervoltage, overcurrent, overtemperature stall protection
- Expandable digital input/output terminal block for external machine safety interlock signals
- VRS 01 standard firmware includes pre-programmed motion sequences for general automation machinery
Performance Parameters
- Position closed-loop bandwidth: 1600 Hz maximum dynamic response
- Steady-state speed regulation error: ±0.008% full motor speed range
- Internal power module overtemperature protection threshold: +90 °C
- Fieldbus real-time command cycle minimum interval: 0.125 ms
- Full continuous load power dissipation: 420 W
Material Composition
- Enclosure: Heavy-duty galvanized steel cabinet mount housing with powder anti-corrosion coating
- Power stage substrate: Aluminum metal insulated substrate with high thermal conductivity
- Control PCB: 10-layer high-speed signal isolation FR4 circuit board
- Power switching elements: High-current silicon IGBT three-phase inverter power bridge
Structural Characteristics
- DIN rail and vertical flat panel dual installation compatible form factor
- Front panel equipped LCD parameter display, navigation operation keys, fault LED indicator, service USB port
- Segmented terminal layout: three-phase main power, motor power cable, encoder feedback, safety DI/DO, 24 V control power terminals separated independently

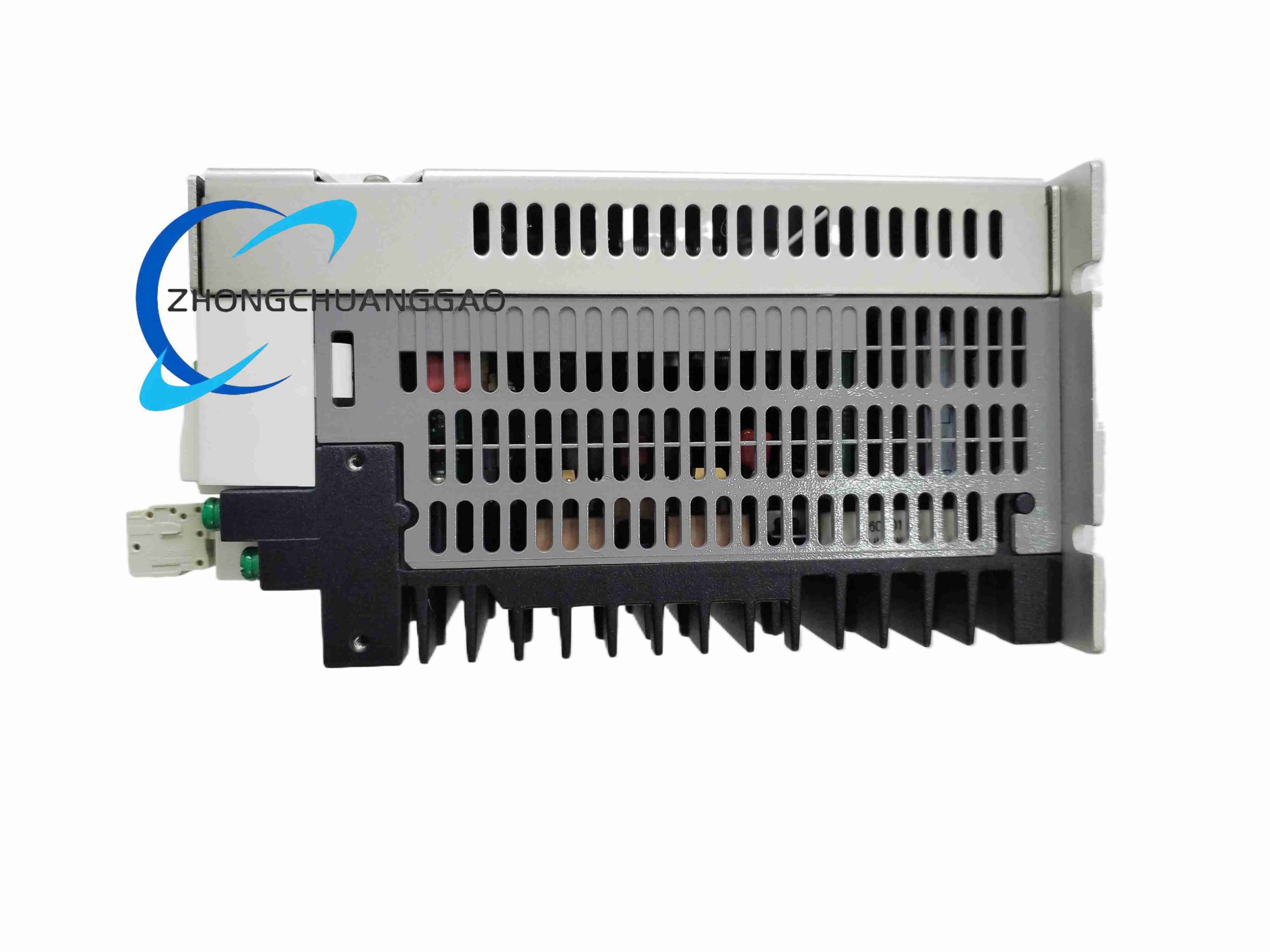

- Large area rear aluminum extrusion heat sink for passive high-power heat dissipation
Working Principle
Three-phase AC industrial power rectified into stable DC bus voltage, high-current IGBT inverter converts DC bus to variable frequency variable amplitude three-phase AC driving heavy-duty servo motor. Sinusoidal incremental encoder transmits high-resolution rotor position feedback signal to drive control chip, auto-tuned triple closed-loop algorithm adjusts motor output torque, speed and position according to fieldbus motion commands. MGP multi-protocol communication module processes real-time data exchange between drive and upper master motion controller, internal 01VRS firmware executes pre-defined motion sequence logic without external PLC auxiliary program.
Advantage Highlights
- 18 A high continuous output current matches large torque heavy-load servo motor specifications
- Integrated MGP multi-protocol bus eliminates separate communication expansion card purchase
- Ultra-high closed-loop bandwidth realizes high dynamic fast positioning for heavy machinery
- Built-in automatic servo parameter identification shortens equipment commissioning time
- Standard VRS factory firmware preloaded for universal automation machine motion applications
Applicable Industries
Metal cutting CNC machine tools, injection molding machinery, stamping automation equipment, large gantry handling robots, printing press high-speed motion systems
Installation Requirements
- Install drive vertically with heat sink fins downward to maintain natural air convection cooling
- Maintain minimum 15 cm vertical ventilation clearance above and below adjacent power drives
- Deploy shielded EMC-compliant motor power cable and encoder feedback cable with full 360° shielding grounding
- Connect drive protective earth terminal to cabinet low-impedance earth copper bar
Operation Precautions
- Forced air cooling fan mandatory for continuous full-load operation above +35 °C ambient temperature
- Complete motor parameter auto-identification and servo loop auto-tune after mechanical assembly modification
- Wait minimum 15 minutes after power shutdown before touching internal circuit components for DC bus capacitor discharge
- Do not operate peak overload current longer than 30 consecutive seconds to avoid power module thermal damage
- Firmware variant modification requires official Rexroth motion control engineering software exclusively
