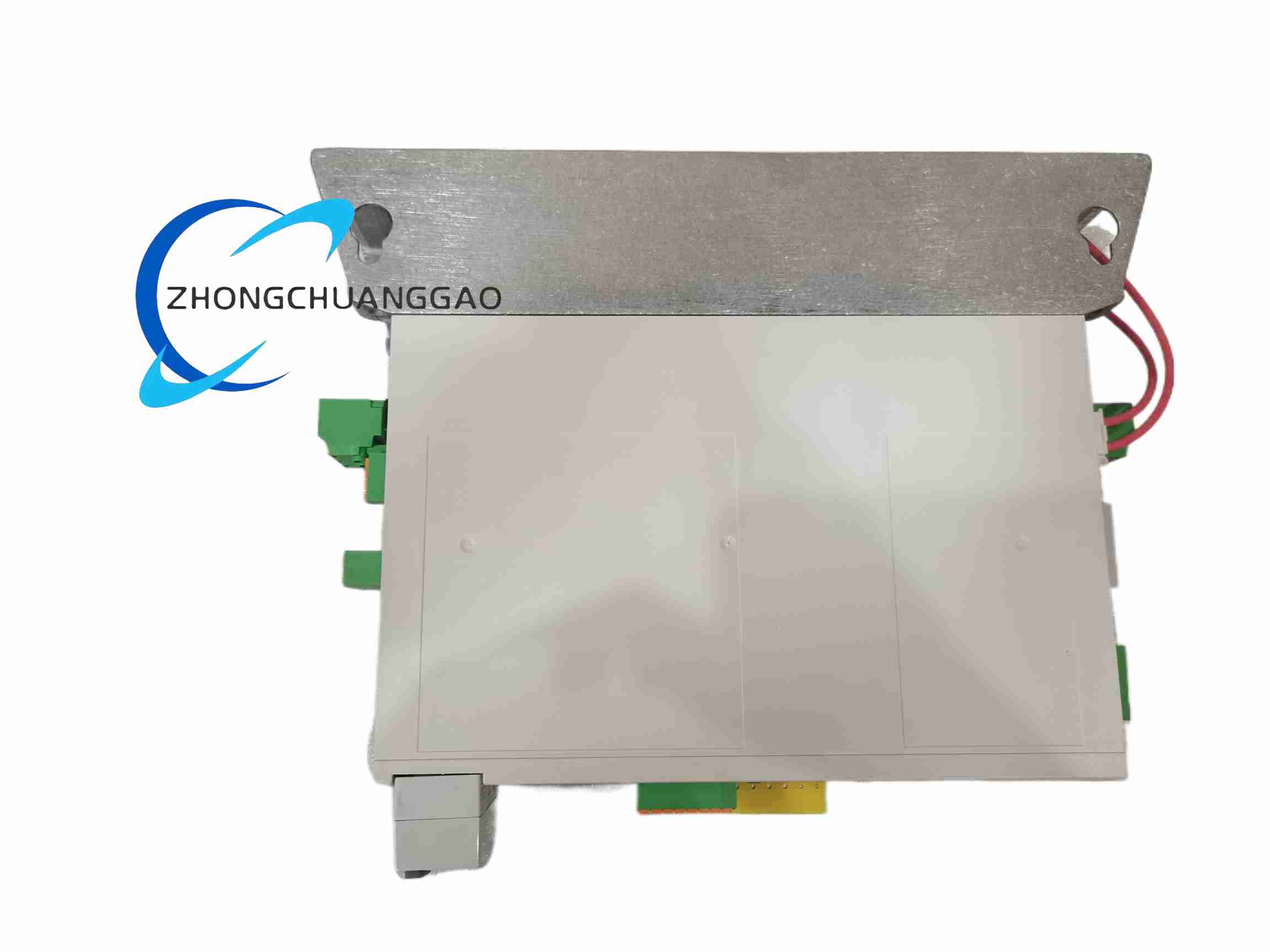

Product Name: IndraDrive Cs HCS01 Single-Axis Converter
Product Introduction: The IndraDrive Cs HCS01 is a compact single-axis converter from Bosch Rexroth that combines power unit and control unit in a single device, designed for the lower kW range of drive applications with high overload capacity and integrated safety technology.
Description
Technical Specifications:
- Series: IndraDrive Cs
- Type: Single-axis converter
- Power Range: 0.15 kW … 14 kW
- Maximum Current: 3.3 A … 54 A
- DC Supply Voltage: 110 V … 500 V
- Cooling: Internal air (unventilated) or forced ventilation depending on variant
- Protection Type: IP20
- Pollution Degree: 2
- Communication: Sercos III, EtherCAT®, Multi-Ethernet, PROFIBUS (depending on configuration)
- Encoder Interface: Multi-encoder interface (EC)
- Integrated Safety: STO (Safe Torque Off), SBC, Safe Motion options
- Switching Frequency / Max Output Frequency: 0–400 Hz @ 4 kHz carrier; 0–800 Hz @ 8 kHz; 0–1200 Hz @ 12 kHz; 0–1600 Hz @ 16 kHz
- Control Unit Versions: ADVANCED, BASIC, ECONOMY
- Firmware: Must be ordered separately for certain configurations
Type Code Configuration (example HCS01.1E-W0003-A-02-NN-NN-NN-NN):
- Line: 01
- Variant: 1
- Power supply unit: E (Internal air cooling)
- Maximum current: 0003 (3 A), 0005 (5 A), 0006 (6 A), 0008 (8 A), 0009 (9 A), 0013 (13 A), 0018 (18 A), 0028 (28 A), 0054 (54 A)
- Protection type: A (IP20)
- Mains connection voltage: 02 (3× AC 110…230 V) or 03 (3× AC 200…500 V)
- Control unit version: A (ADVANCED), B (BASIC), E (ECONOMY)
Example Variant HCS01.1E-W0009-A-02-B-ET-EC-NN-NN-NN-FW:
- Max current: 9 A
- Continuous current: 3 A
- Mains voltage: 110–230 V (1 AC or 3 AC)
- Control unit: BASIC
- Predefined communication: MultiEthernet
- Encoder interface 1: Multi-encoder
- Weight: 1.400 kg
- Dimensions: 50 mm (W) × 220 mm (H) × 215 mm (D)
- Max power (without choke): 1.38 kW
- Continuous power (without choke): 0.46 kW
Functional Features: Combines power and control in one compact unit; Ethernet-based communication; multi-encoder interface supporting diverse feedback devices; integrated safety technology (STO, SBC, Safe Motion); high overload capacity; compact design for single-axis applications.
Application Scenarios: Single-axis industrial automation, machine tools, printing presses, textile machinery, packaging machines, robotics, and any application requiring precise single-axis servo control.
Installation Requirements: Panel or cabinet mounting; ensure adequate clearance for cooling (internal air cooling for smaller variants, forced ventilation for higher current variants); proper grounding and shielded cable routing for encoder and power lines; configure firmware and communication protocol per application.
Usage Notes: Firmware must be added via configuration or ordered as separate item for certain variants; ensure mains connection voltage matches selected variant (110…230 V or 200…500 V); observe IP20 protection — install inside control cabinet; utilise integrated STO or Safe Motion functions for compliance with safety requirements.
