Product Short Description

Product Introduction

The NI 9205 is a high-density multiplexed analog voltage input module designed for National Instruments CompactRIO industrial real-time embedded control and measurement platform. It provides flexible configurable analog input channels supporting either 32 single-ended voltage measurement channels or 16 differential noise-rejection measurement channels, equipped with a 16-bit high-resolution analog-to-digital converter and four programmable input voltage gain ranges for universal industrial voltage signal measurement applications
Share on Facebook
Share on Twitter
Email This Product

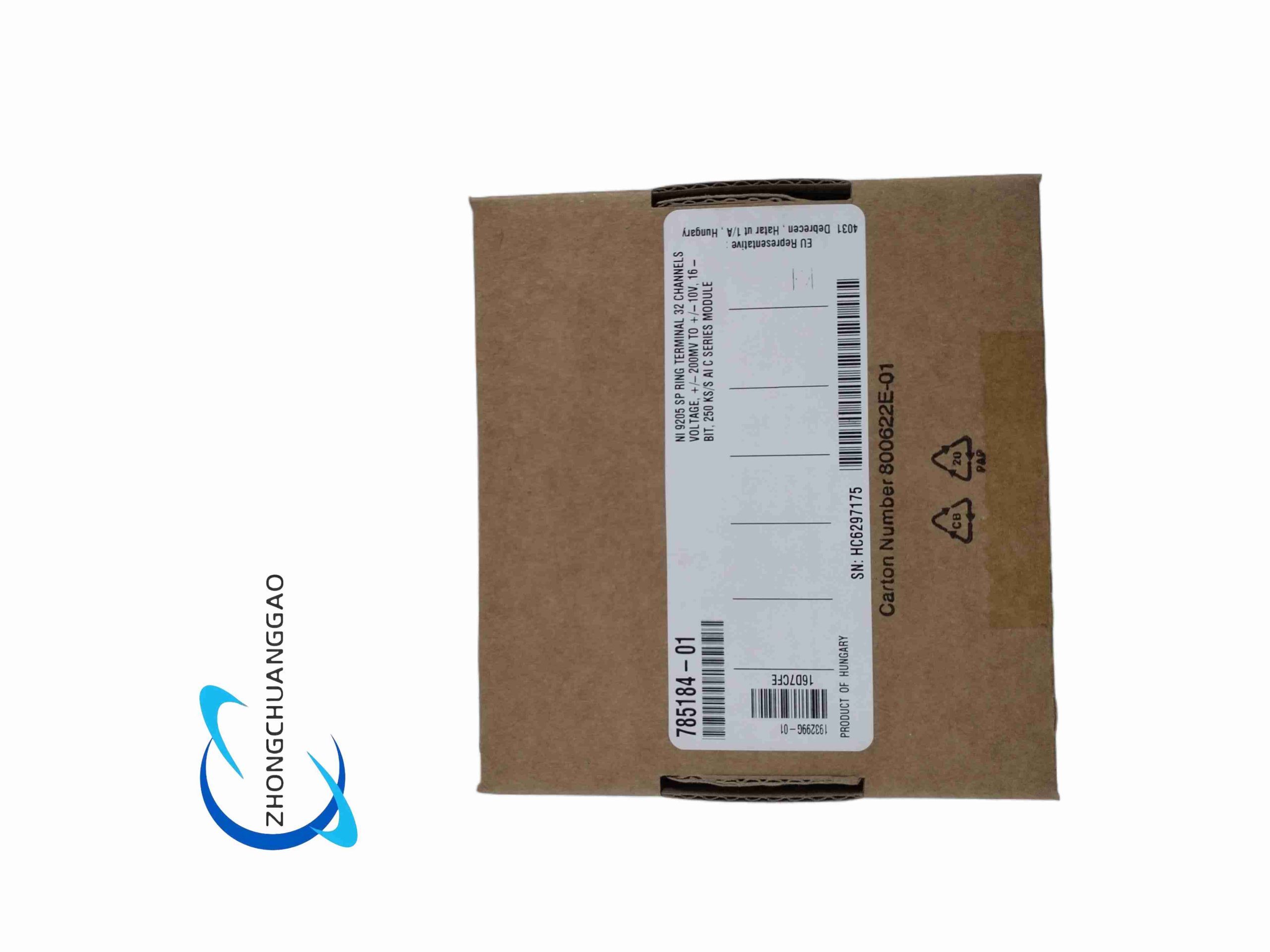

NI-9205

Description

Core Technical Specifications & Performance Parameters

  1. Analog Input Channel Configuration Options
    • Single-Ended Mode: Maximum 32 independent analog input channels
    • Differential Mode: Maximum 16 differential input channel pairs for common-mode noise suppression
  2. ADC Resolution: 16-bit successive approximation analog-to-digital converter
  3. Maximum Aggregate Sampling Rate: 250 kS/s total system sampling speed across all active input channels
  4. Programmable Input Voltage Measurement Ranges: ±200mV, ±1V, ±5V, ±10V four configurable full-scale voltage ranges
  5. Input Circuit Protection: Built-in channel-by-channel overvoltage transient surge protection, ESD electrostatic discharge protection
  6. Module Power Consumption: Maximum 625mW power draw from CompactRIO chassis backplane under full active measurement mode; 15mW low-power sleep mode power consumption
  7. Physical Connector Options: Two hardware variants available: 36-position spring-spring terminal connector or 37-position D-SUB male industrial connector
  8. Environmental Rating Parameters
    • Ingress Protection Grade: IP40 (only when installed inside sealed CompactRIO chassis)
    • Pollution Degree Rating: Pollution Degree 2 indoor industrial environment
    • Maximum Safe Operating Altitude: 2000m for spring terminal variant, 5000m for D-SUB connector variant
    • Shock & Vibration Resistance: Operating random vibration 5g RMS (10Hz~500Hz), operating sinusoidal vibration 5g (10Hz~500Hz); operating shock resistance 30g 11ms half-sine pulse
  9. Operating Ambient Temperature Range: -40℃ ~ +70℃ continuous operating temperature
  10. Relative Humidity Tolerance: 5%RH ~ 95%RH non-condensing humidity range for operation and storage

Function & Feature Highlights

  1. Flexible dual channel configuration mode, switchable between high-density 32 single-ended channels or high-noise-rejection 16 differential channels via LabVIEW FPGA software configuration without hardware modification
  2. Four programmable full-scale voltage measurement ranges covering all mainstream low-voltage industrial sensor output signals, supporting precise measurement of millivolt level strain gauge signals up to ±10V DC standard industrial analog voltage signals
  3. Multiplexed analog front-end circuit with integrated programmable gain instrumentation amplifier (PGIA), provides high input impedance to avoid loading down high-impedance industrial sensor output circuits
  4. Channel-independent overvoltage and ESD protection circuitry for each analog input channel; miswiring of excessive voltage signal to any single channel will not damage other measurement channels on the module
  5. Full native compatibility with all CompactRIO real-time embedded chassis models, including cRIO-903x, cRIO-904x, cRIO-905x series industrial controllers; all measurement acquisition logic fully programmable via LabVIEW FPGA module for deterministic low-latency real-time data processing
  6. Compact standard C Series module form factor, multiple modules can be densely installed on single CompactRIO chassis backplane to integrate multi-type analog/digital measurement and control I/O functions within single embedded industrial controller
  7. Two industrial-grade connector hardware variants to adapt different on-site wiring requirements: spring terminal variant for low-volume quick wiring, D-SUB connector variant for high-vibration industrial field fixed wiring with shielded multi-core cable

Working Principle

The NI 9205 module connects to the CompactRIO chassis backplane via standardized C Series bus interface, receiving low-voltage DC operating power and high-speed digital control/communication signals from the chassis embedded real-time processor and FPGA chip. External industrial analog voltage sensor signals are routed to the module front panel connector terminals, each input channel fed into independent high-input-impedance buffer amplifier circuits to prevent signal attenuation caused by sensor output load current. A multi-channel analog multiplexer chip sequentially switches each buffered analog input signal to the shared programmable gain instrumentation amplifier (PGIA). The PGIA amplifies the low-level input analog voltage signal to match the full-scale input range of the 16-bit ADC chip, with gain level digitally controlled by configuration commands transmitted from the CompactRIO FPGA via the C Series backplane bus. The amplified analog voltage signal is sampled and converted to discrete 16-bit binary digital measurement data by the successive approximation ADC chip at the configured sampling rate. Raw digital measurement data is temporarily stored in onboard module FIFO data buffer memory, then transmitted in real-time to the CompactRIO chassis FPGA chip via the high-speed C Series backplane digital bus for user-programmed real-time signal processing, filtering, scaling and data logging operations within LabVIEW FPGA logic code. The onboard channel-by-channel protection circuits continuously monitor input terminal voltage levels; instantaneous overvoltage or ESD surge events are clamped and dissipated by transient voltage suppression diodes without interrupting normal measurement operation of unaffected channels.

Material Composition & Structural Features

  1. Module Housing Material: High-strength flame-retardant black industrial ABS plastic shell, UL94-V0 fire resistance rating
  2. Internal Circuit Board: Multi-layer low-noise analog/digital mixed signal PCB, separated analog and digital ground planes to minimize digital switching noise coupling into sensitive analog measurement circuits
  3. Internal Electronic Components: Low-noise JFET input buffer operational amplifiers, analog multiplexer IC, programmable gain instrumentation amplifier chip, 16-bit successive approximation ADC converter, FIFO data buffer memory chip, channel-by-channel ESD/overvoltage transient suppression TVS diodes
  4. Mechanical Chassis Mount Structure: Standard C Series module locking slide rail design; module slides horizontally into CompactRIO chassis backplane slot, rear metal locking tab engages chassis slot edge to secure module tightly against chassis backplane under industrial vibration conditions
  5. Front Panel Connector Assembly: Two optional connector mechanical structures:
    • Spring Terminal Variant: Plastic terminal block with spring-loaded wire clamping terminals, wire insertion without screwdriver tool operation
    • D-SUB Variant: Metal-shielded 37-pin D-SUB industrial connector with threaded locking screws for shielded multi-core cable fixed connection

Installation Requirements

  1. Chassis Mounting Installation: Slide the NI 9205 module horizontally into empty standard C Series I/O slot on CompactRIO industrial controller chassis; push module fully rearward until rear locking tab clicks into locked position to ensure full electrical contact between module edge connector and chassis backplane gold fingers
  2. Wiring Installation Rules
    • Spring Terminal Variant Wiring: Strip 5mm insulation from copper wire ends, insert stripped wire fully into spring terminal wire slot, depress terminal spring lever to secure wire firmly inside terminal cavity
    • D-SUB Variant Wiring: Crimp multi-core shielded cable wire ends to D-SUB connector pin crimp terminals, assemble metal shielded D-SUB connector housing and fasten threaded locking screws tightly to chassis module front panel D-SUB port
  3. Environmental Installation Restrictions: Install CompactRIO chassis with NI 9205 modules only inside sealed indoor industrial electrical control cabinets; avoid installation locations with direct water splash, corrosive chemical gas, heavy conductive metal dust accumulation or direct high-temperature heat radiation
  4. Vibration Critical Application Installation: For high-vibration industrial field operating environments (machinery production lines, engine test benches), select D-SUB connector variant module and use fully shielded armored multi-core signal cable with cable strain relief clamps to prevent wiring loosening under continuous mechanical vibration
  5. Altitude Operation Limits: Spring terminal hardware variant restricted to maximum operating altitude of 2000m above sea level; D-SUB connector variant approved for operation up to 5000m altitude for highland industrial measurement applications

Application Scenarios

  1. Industrial machinery embedded real-time vibration, strain gauge and pressure sensor voltage signal measurement systems
  2. Automotive powertrain engine, transmission bench real-time multi-channel analog sensor data acquisition and closed-loop test control
  3. Aerospace component environmental thermal cycling, vibration durability test bench high-density multi-channel voltage measurement
  4. Renewable energy wind turbine generator, solar photovoltaic power station analog voltage sensor real-time monitoring and fault detection
  5. Hydraulic/pneumatic industrial valve, cylinder pressure and flow sensor multi-channel high-speed data logging systems
  6. Laboratory scientific research precision multi-channel analog signal measurement, material characterization test data acquisition

Operation & Maintenance Precautions

  1. All wiring modification, connector disassembly and module replacement operations must be performed after fully powering down the CompactRIO chassis main DC power supply to avoid transient voltage surge damaging sensitive analog measurement circuits
  2. Strictly observe maximum input voltage rating for each configured measurement range; do not connect analog input terminals to voltage signals exceeding ±10V DC maximum rated input voltage to prevent permanent damage to internal buffer amplifier components
  3. When deploying differential measurement mode for high-electromagnetic-interference industrial field environments, always use twisted-pair shielded signal cable for sensor wiring, connect cable shield layer single-end grounded inside the control cabinet to minimize common-mode noise coupling into measurement channels
  4. Regular quarterly visual inspection of front panel connector wiring terminals; check spring terminal wire clamping tension or D-SUB connector locking screw tightness, repair loose wiring connections immediately to eliminate unstable measurement signal noise and data drift
  5. Avoid long-term continuous operation at ambient temperature exceeding +70℃; excessive operating temperature will increase analog measurement circuit thermal noise and degrade long-term measurement accuracy stability
  6. When performing module replacement during equipment maintenance, power off chassis, slide out faulty NI 9205 module, insert spare identical NI 9205 module fully into chassis slot and re-power chassis; re-download LabVIEW FPGA measurement logic code to ensure proper channel configuration and sampling rate parameter initialization
