Product Name: PCI-CAN/XS2 – PCI Controller Area Network (CAN) Interface with Software-Selectable Transceivers

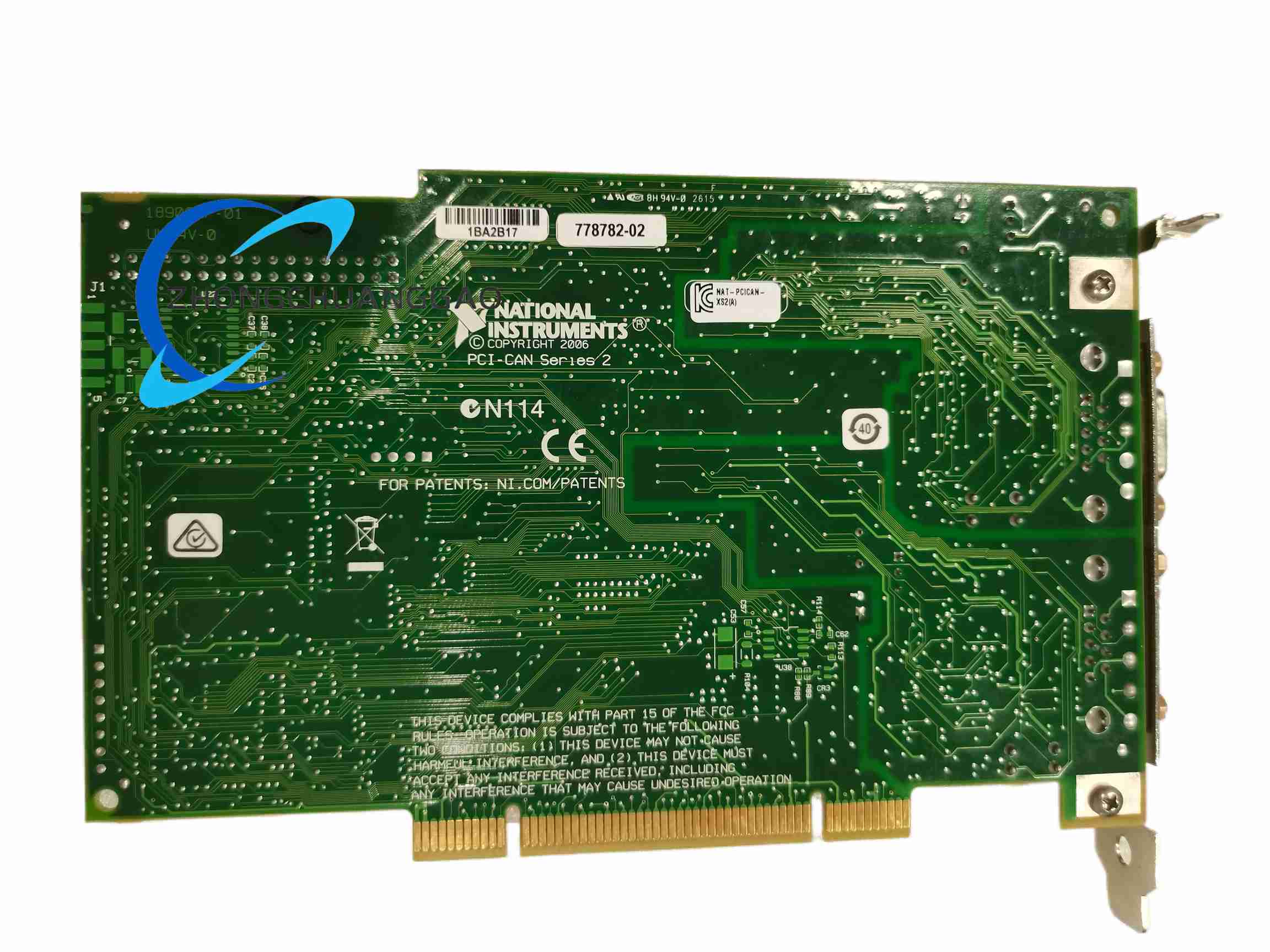

Product Introduction: The 778782-02 is a PCI-bus CAN interface card from National Instruments, featuring two independently configurable CAN ports. Each port’s transceiver type is software-selectable, allowing the card to operate across high-speed, low-speed/fault-tolerant and single-wire CAN networks without hardware changes.
Description
Technical Specifications:
-
Manufacturer: National Instruments
-
Model: PCI-CAN/XS2
-
Part Number: 778782-02
-
Bus Interface: PCI
-
CAN Ports: 2
-
Transceivers: TJA1041 (high-speed), TJA1054A (low-speed/fault-tolerant), AU5790 (single-wire), EXT
-
Interface Standard: ISO 11898
-
Maximum Baud Rate: 1000 kb/s (high-speed); 125 kb/s (low-speed); 83.333 kb/s (single-wire)
-
I/O Connector: 9-pin male D-SUB (DB9) per port
-
Isolation: Optical isolation up to 500 V
-
Power Requirement: +5 VDC, 900 mA
-
Dimensions: 8.15 in × 4.4 in
-
Driver Software: NI-CAN
-
Warranty: 2–3 years (new surplus / refurbished)
Functional Features:
-
Software-selectable transceiver per port—no jumper changes needed
-
Dual-port architecture for simultaneous multi-network communication
-
Optical isolation protects the host computer from field-side transients
-
Full NI-CAN driver support for LabVIEW, LabWindows/CVI and other NI software environments
Application Scenarios: Automotive CAN bus development and testing, industrial machine-CAN communication, embedded system diagnostics, real-time control networks, research labs requiring flexible CAN protocol experimentation.
Installation & Notes: Install in a free PCI slot of a desktop PC. Ensure the PC’s +5 V rail can supply 900 mA. Use only the NI-CAN drivers (available from National Instruments). For high-speed 1000 kb/s operation, ensure proper CAN bus termination (120 Ω at both ends). Optical isolation is rated to 500 V—do not exceed this between the field network and the host ground.
