Product Short Description

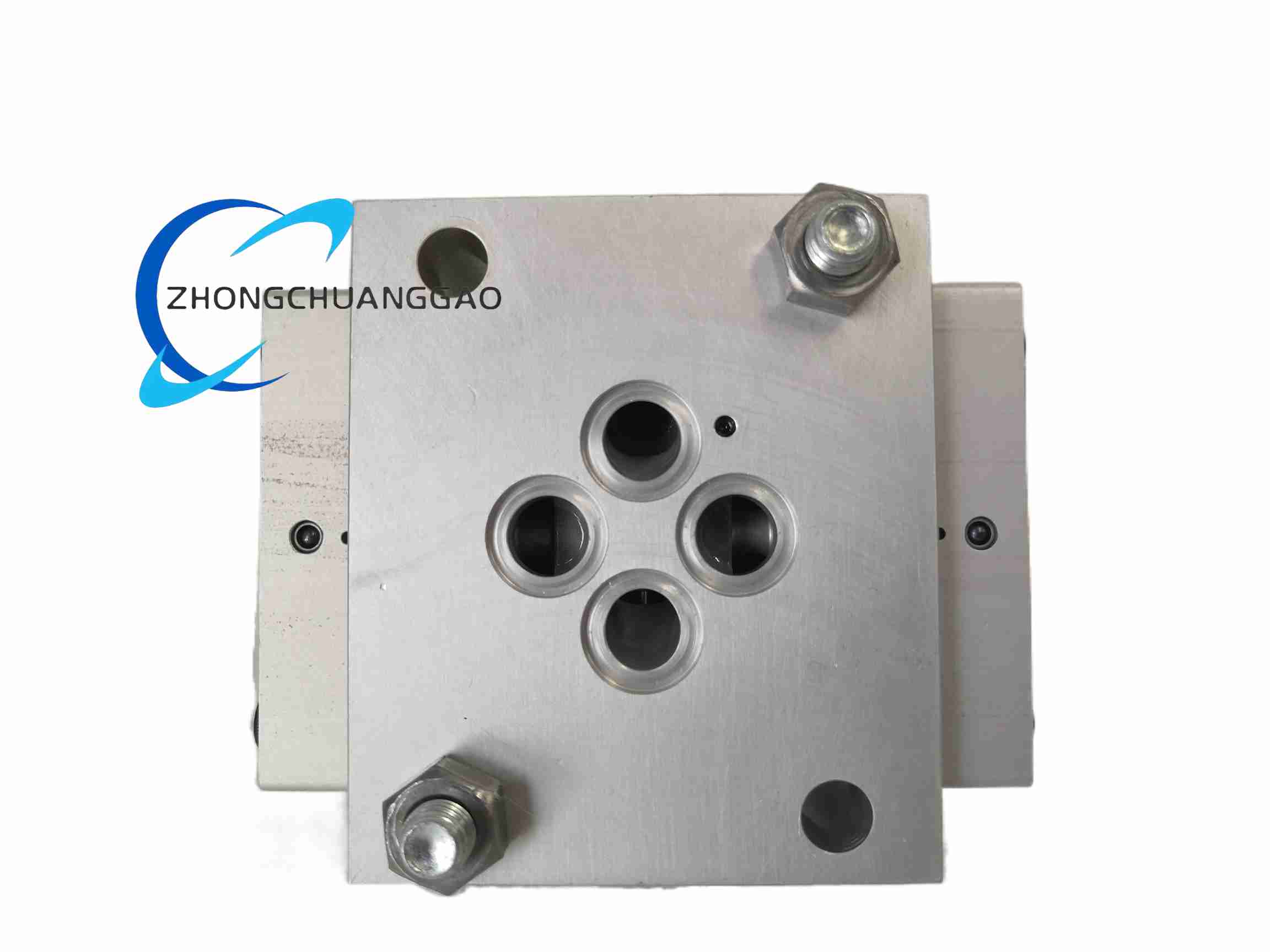

Product Name: G761 Series Flow Control Servovalve
Overview: The MOOG G761-3002B is a high-performance two-stage flow control servovalve with mechanical feedback, using a nozzle-flapper pilot stage. It is designed for precise hydraulic flow control in demanding industrial and aerospace applications.
Description
Technical Specifications:
- Valve Design: 2-stage mechanical feedback with bushing and spool
- Pilot Valve: Nozzle flapper
- Mounting Pattern: ISO 10372-04-04-0-92
- Rated Flow (ΔpN = 35 bar): 10 l/min (2.5 gpm)
- Rated Current: ±40 mA
- Maximum Operating Pressure (Port P, X, A, B): 315 bar (4,500 psi) aluminum body / 350 bar (5,000 psi) steel body
- Maximum Flow (Qmax): 104 l/min (27.5 gpm)
- Ambient Temperature Range: -29 to +135 °C (-20 to +275 °F)
- Storage Temperature: -40 to +60 °C
- Weight: 1.7 kg (steel body) / 1.0 kg (aluminum body)
- Vibration Resistance: 30 g, 3-axis, 10 Hz to 2 kHz
- Shock Resistance: 30 g, 3-axis
- Hydraulic Fluid: Mineral oil-based fluids per DIN 51524 / ISO 11158
- Seal Material: FKM (fluorocarbon) 90 Shore or EPR
- Recommended Viscosity: 15 to 100 mm²/s at 38 °C
- Recommended Cleanliness: ISO 4406 17/14/11 (functional safety), 15/13/10 (longer service life)
Key Features:
- Two-stage mechanical feedback for high accuracy
- Nozzle-flapper pilot stage for fast response
- Any mounting position (fixed or movable)
- Available in aluminum or steel body construction
Application Scenarios: Aerospace flight control actuators, metallurgical plant hydraulic systems, injection molding machines, fatigue testing rigs, and precision motion platforms.
Working Principle: An electrical command signal drives the nozzle-flapper pilot stage, which positions the spool via mechanical feedback. The spool metering edges regulate hydraulic flow to the actuator proportional to the input signal.
Installation & Notes:
- Install in any orientation per ISO 10372-04-04-0-92
- Maintain hydraulic fluid cleanliness per ISO 4406 recommendations
- Use appropriate filtration: β10 ≤ 75 (10 μm absolute) for functional safety, β5 ≤ 75 (5 μm absolute) for longer service life
- Higher temperature options available up to 400 °F
