Product Short Description

  • Product Name: AIP571 BUS2 RS-485 Bus Interface Module
  • Product Introduction: The AIP571 BUS2 is an RS-485 bus interface module belonging to the YOKOGAWA EXA series. It is used to connect YOKOGAWA EXA series analog input/output modules to the RS-485 bus, linking multiple modules together for data transmission over the bus.
Share on Facebook
Share on Twitter
Email This Product

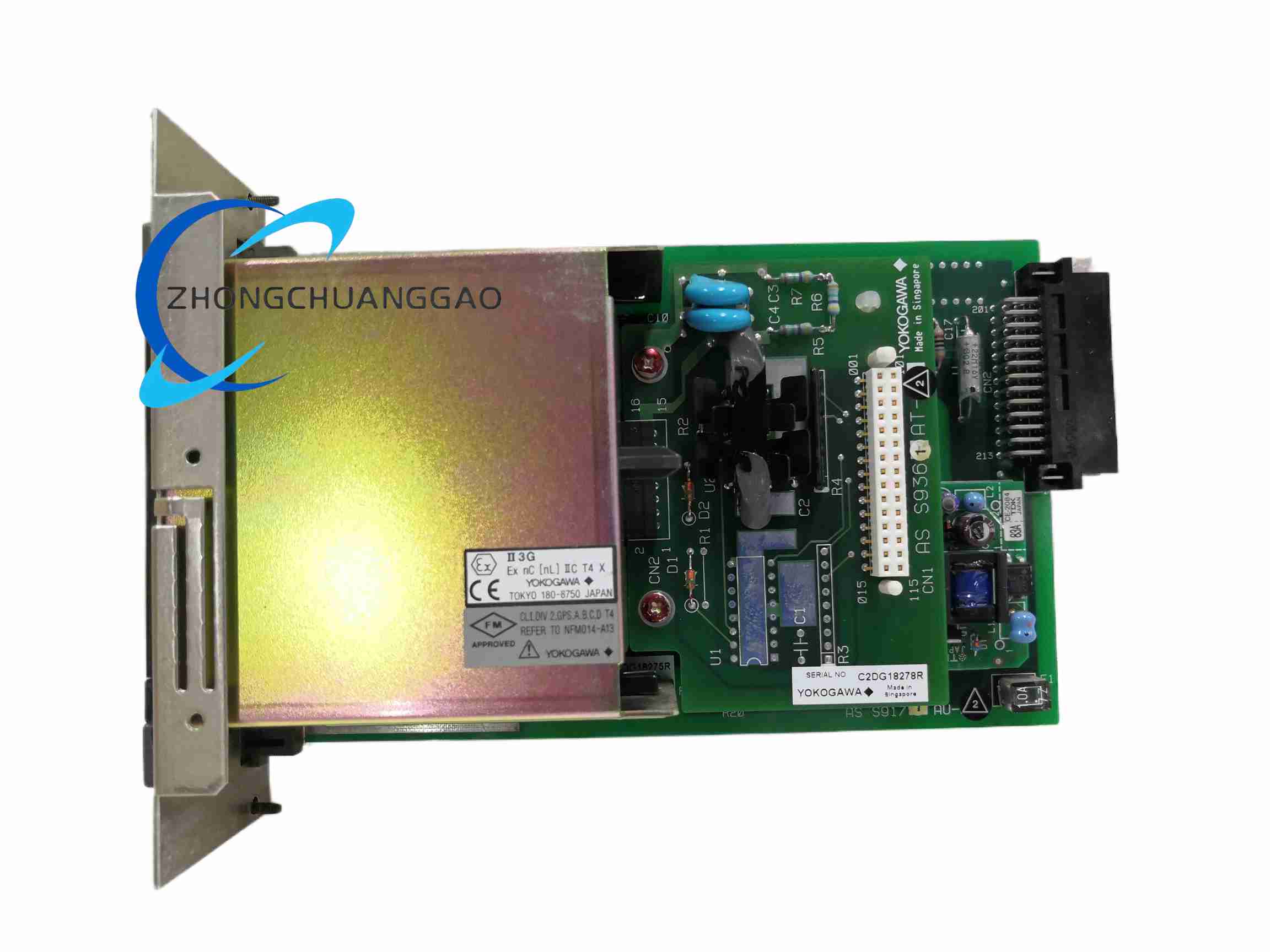

YOKOGAWA AIP571 BUS2

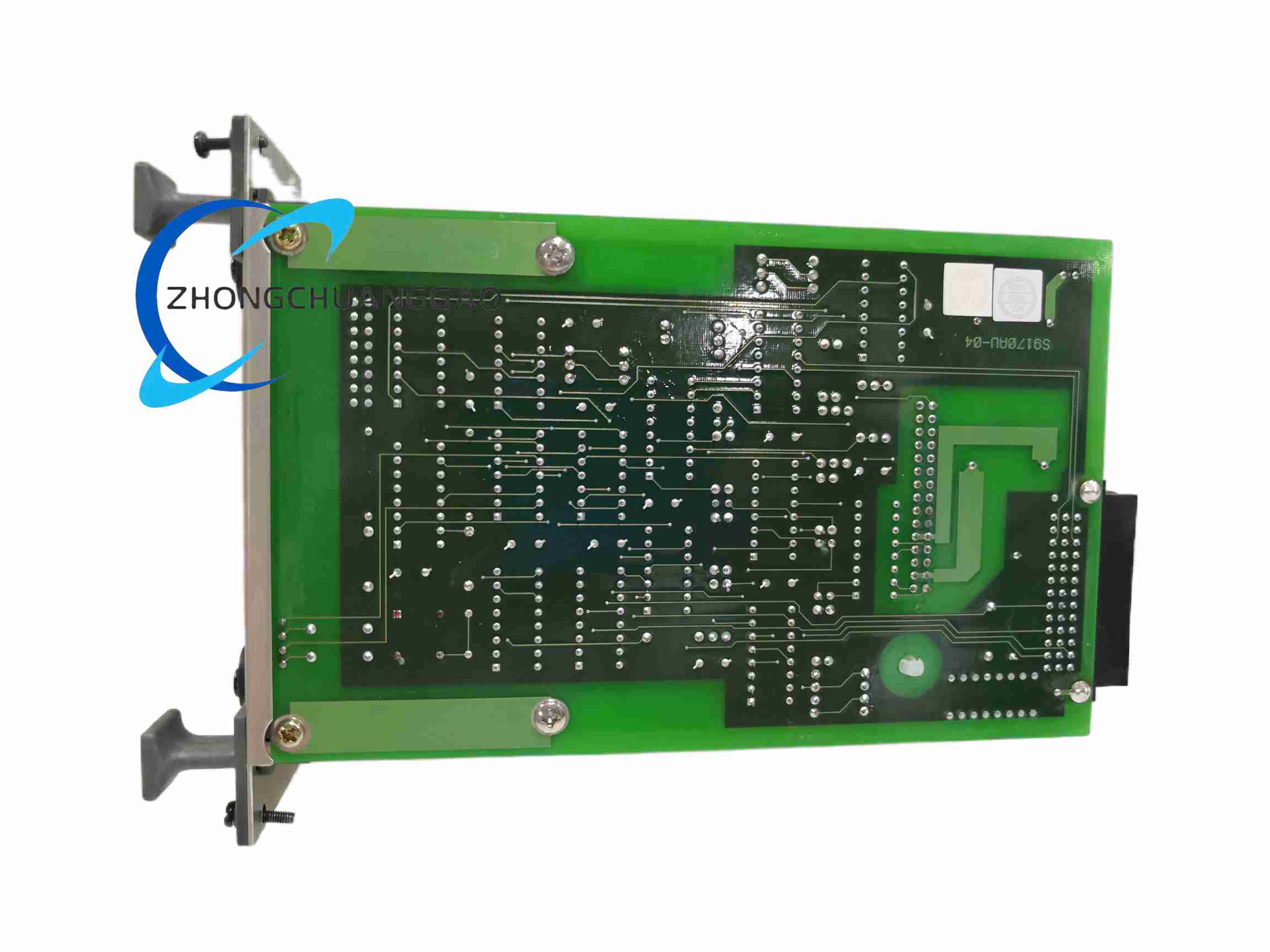

YOKOGAWA AIP571 BUS2 - Image 2

Description

  • Technical Specifications:
    • Communication Method: RS-485 bus
    • Number of Nodes: 32
    • Baud Rate: 1200 bps to 921.6 kbps
    • Transmission Distance: 1200 m (fiber optic)
    • Power Supply: 24 VDC
    • Power Consumption: ≤ 5 W
    • Operating Temperature: -20 °C to +60 °C
    • Humidity: 0–95 % RH (non-condensing)
    • Protection Rating: IP65
    • Dimensions: 100 mm × 45 mm × 30 mm
    • Weight: Approx. 200 g
    • Material: ABS plastic
  • Features: High speed and high reliability; supports multiple baud rates; long transmission distance; easy installation and maintenance.
  • Application Scenarios: Industrial process control, power systems, environmental monitoring, and other fields.
  • Installation Requirements: DIN rail mounting.
  • Usage Notes: Keep within the stated operating temperature and humidity range; ensure the 24 VDC supply is stable and within the specified current margin.
