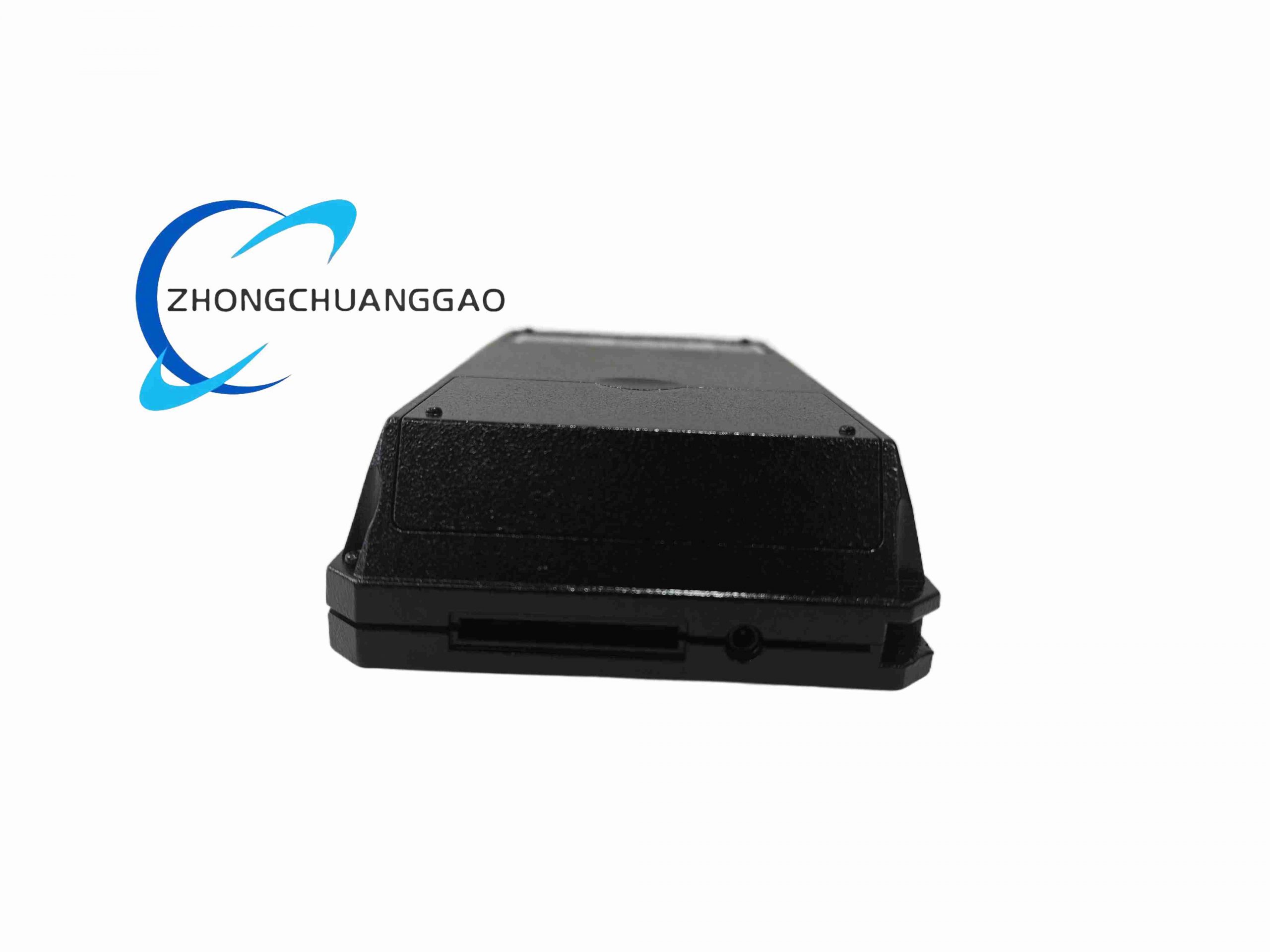

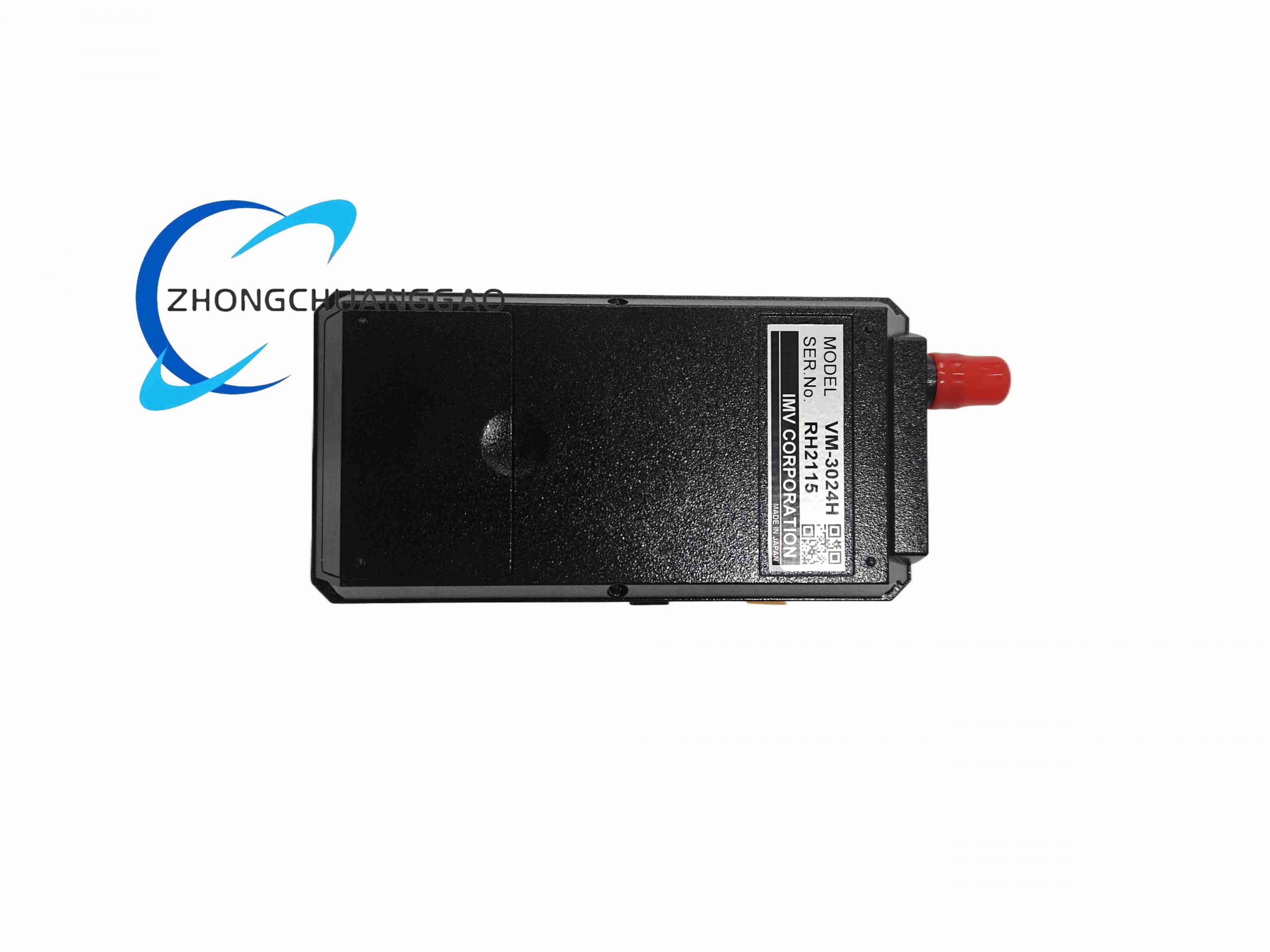

Vibro-Meter VM-3024H

Core Technical Specifications

• Measuring Physical Quantities: Vibration acceleration, vibration velocity, peak-to-peak displacement, bearing shock pulse
• Measurement Modes: RMS, Peak, EQP equivalent vibration value selectable
• Range Parameters:

  Acceleration: 0~100 m/s² RMS

  Velocity: 0~200 mm/s RMS

  Displacement: 0~1 mm p-p

• Frequency Response Bandwidth:

  Acceleration/Velocity: 0.01 Hz ~ 1 kHz

  Displacement: 10 Hz ~ 1000 Hz

• Analysis Function: Real-time FFT spectrum analysis, 1024-point frequency resolution
• Data Storage: Micro SD card up to 32 GB capacity, waveform and spectrum file logging
• Display Unit: Color LCD touch screen, bilingual English/Japanese interface
• Power Supply: Rechargeable lithium polymer battery, continuous working time ≥8 hours
• Physical Dimensions: 74 mm (W) × 32.5 mm (D) × 148 mm (H)
• Net Weight: 280 g (battery included)
• Sensor Interface: Single-channel IEPE piezoelectric accelerometer input with built-in 2 mA constant current excitation
• Output Ports: Analog AC waveform output for external oscilloscope viewing

Functional Features

1. Simultaneous three-parameter real-time display (acceleration, velocity, displacement) eliminates repeated single-parameter measurement operations
2. High-end exclusive real-time FFT spectrum analysis to identify rotating machine fault characteristic frequencies (gear mesh, bearing inner/outer race defects)
3. Onboard SD card automatic data recording stores time-series vibration waveforms for post-processing analysis on PC
4. Touch screen intuitive operation with auto-range measurement function to avoid manual range switching errors
5. Built-in bearing fault frequency calculation algorithm, direct display of BPFO, BPFI, BSF, FTFO defect frequency values
6. Portable lightweight handheld design with shock-resistant rubber protective casing for harsh factory workshop environments
7. External AC analog waveform output supports real-time signal observation via laboratory oscilloscope
8. Auto power-off energy saving function extends battery service life during intermittent field inspection work

Working Principle

Material & Structural Characteristics

• Outer Housing: ABS engineering plastic with integrated soft TPU anti-drop rubber wrap-around protection
• Touch Screen Panel: Tempered scratch-resistant glass LCD with anti-glare coating for outdoor sunlight visibility
• Battery Pack: Lithium polymer rechargeable cell with overcharge/discharge protection circuit
• Sensor Input Socket: Threaded locking SMA connector to prevent accidental cable disconnection during field operation
• Control Buttons: Membrane silicone touch buttons with dustproof sealing structure
• Internal Circuit Board: Miniature low-power SMD PCB with electromagnetic shielding metal can for analog signal circuits

Installation & On-Site Operation Requirements

1. Mount piezoelectric accelerometer firmly to machine bearing housing via magnetic base or threaded stud; hand-held probe measurement only for temporary rapid inspection
2. Keep sensor cable as short as possible during measurement; excessive cable length introduces high-frequency signal attenuation
3. Fully charge lithium battery before long-duration field inspection; low battery voltage distorts low-amplitude vibration measurement accuracy
4. Store instrument in matching shockproof hard carry case when not in use; avoid heavy extrusion or impact transport
5. Calibrate instrument with standard vibration shaker bench every 12 months per ISO 16063-21 vibration measurement standard
6. Clean SMA sensor connector contacts with isopropyl alcohol regularly to remove industrial oil contamination causing signal noise

Application Scenarios

• On-site predictive maintenance spot inspection of factory motors, pumps, fans and blowers
• Power plant turbine, generator auxiliary equipment field vibration fault diagnosis
• Petrochemical plant centrifugal pump, compressor bearing defect spectrum analysis
• Shipping marine engine, propeller machinery vibration survey and acceptance inspection
• Steel mill rolling mill gearbox abnormal vibration frequency spectrum capture
• Wind turbine generator, gearbox field portable vibration data logging

Operation & Maintenance Precautions

1. Do not expose instrument to continuous high-temperature environments above 50°C; internal lithium battery suffers capacity degradation
2. Prevent liquid oil, coolant or chemical solvent splashing onto touch screen surface; chemical erosion damages display coating
3. Remove SD memory card only after executing software safe eject procedure to avoid waveform data file corruption
4. Avoid strong magnetic field environments (near large transformers) during measurement; magnetic interference distorts FFT spectrum results
5. Use only factory-matched IEPE accelerometer sensors; mismatched sensor sensitivity causes incorrect vibration amplitude readings
6. Disconnect sensor cable during long-term storage to eliminate standby battery power drain
