Product Short Description

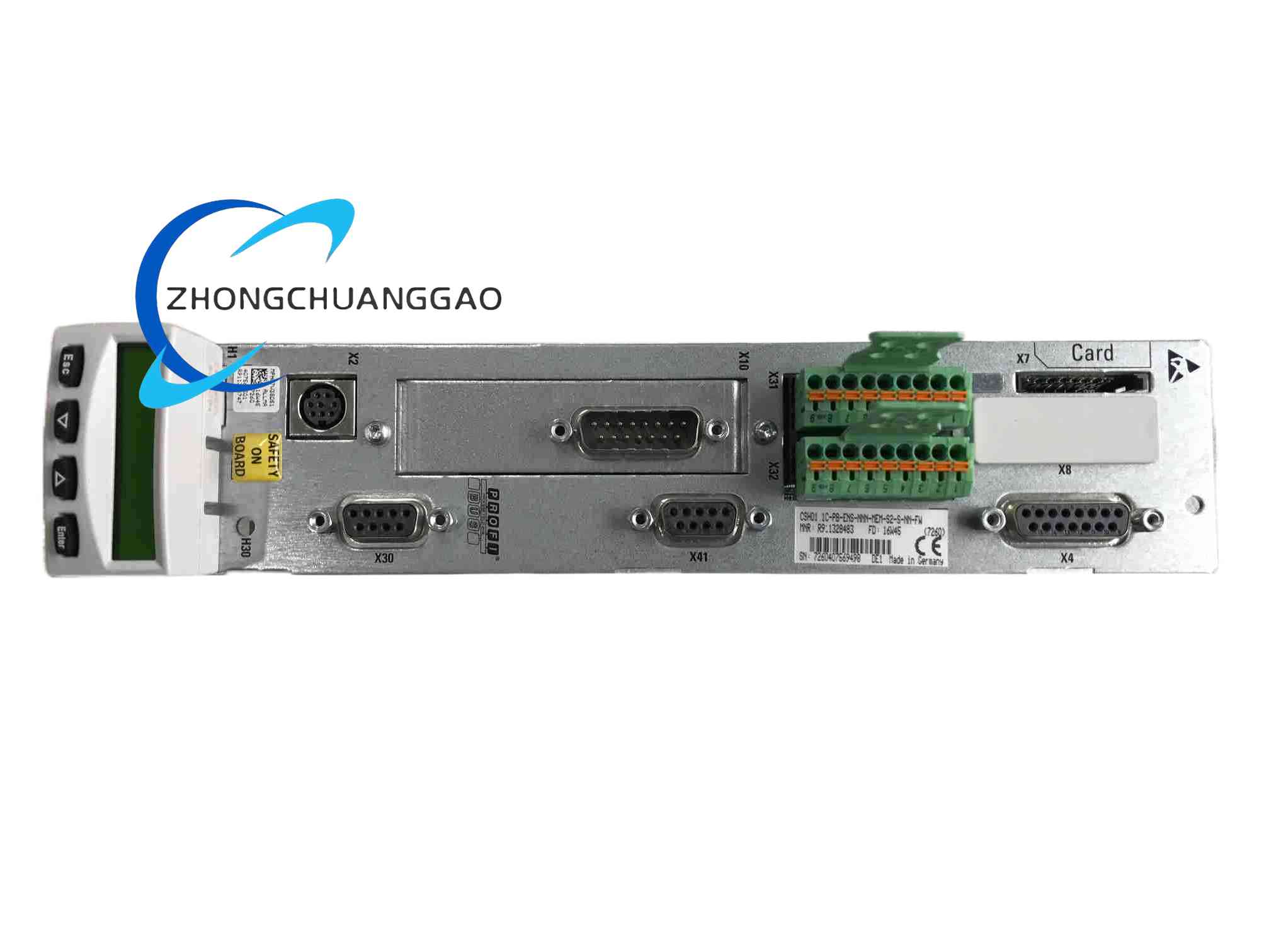

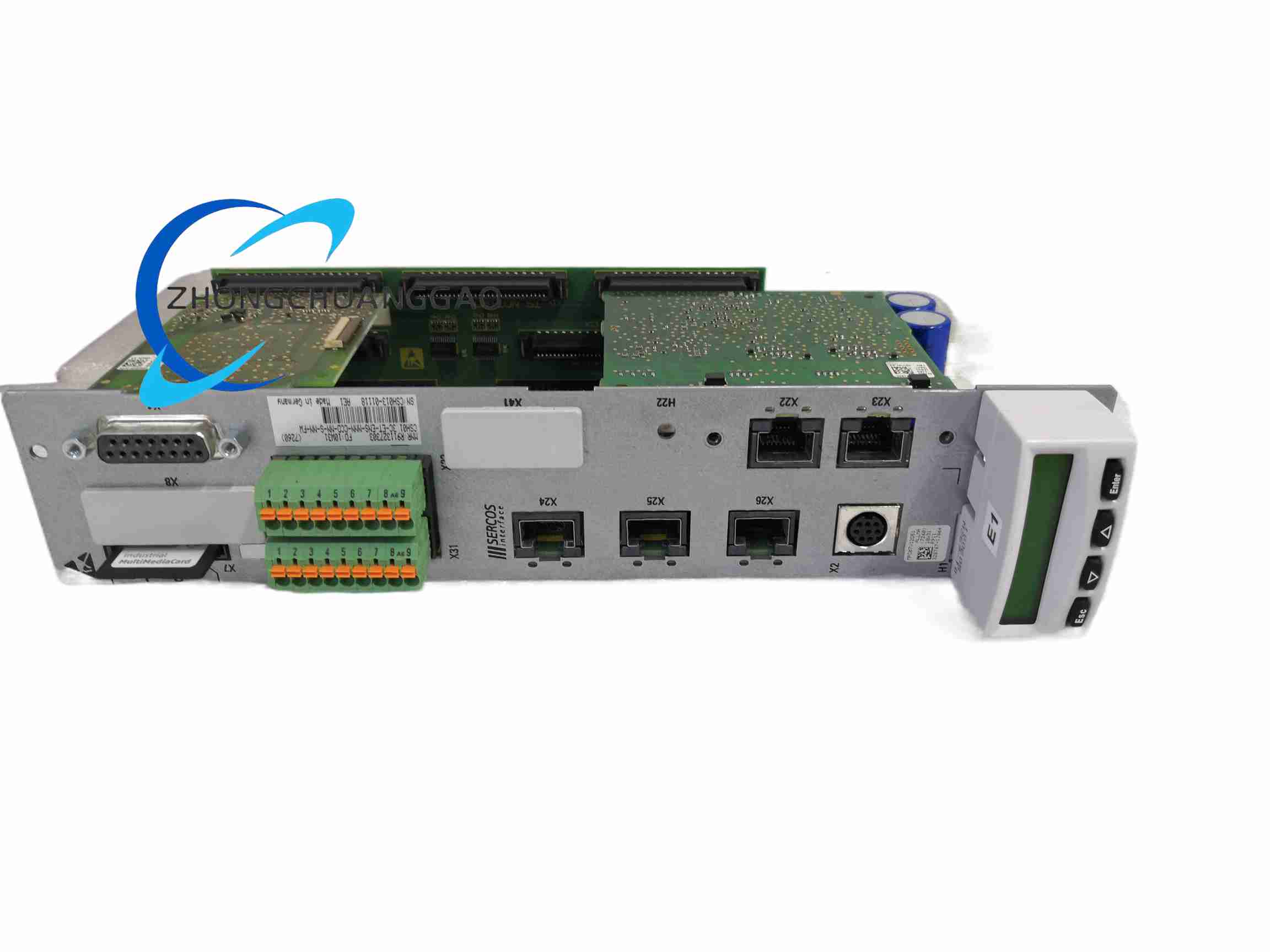

Product Name: Bosch Rexroth CSH01 — IndraDrive Advanced Single-Axis Drive Controller Control Section
Product Introduction: The CSH01 is the ADVANCED series single-axis configurable control section of Bosch Rexroth’s IndraDrive modular servo drive system. It serves as the control core of the IndraDrive drive system, providing high-precision motion control with multiple expansion slots, multi-protocol compatibility, and cross-communication (CCD) capability. The CSH01 is designed to seamlessly match Rexroth IndraDyn series motors and various encoder types.
Description
Available Variants: CSH01.1C, CSH01.2C, CSH01.3C (ADVANCED single-axis configurable, multiple expansion slots)
Technical Specifications:
- Power Supply: 24 VDC
- Maximum Power Consumption: 7.5 W
- Inrush Current: 4 A maximum (100 ms maximum pulse width)
- Switching Frequency: 2 kHz – 16 kHz (adjustable via parameter P-0-0001)
- Control Cycle: Current control 62.5–125 μs; Speed control 250–500 μs; Position control 500–1000 μs
- Control Frequency: Up to 62.5 μs (higher than BASIC series)
Encoder Compatibility:
- 12 V supply (ENS module), 8 V (EN1 module), 5 V (EN2 module)
- Compatible with SinCos, Hiperface, EnDat 2.1, IndraDyn, TTL, 1 Vpp encoder types
- Primary encoder interfaces support IndraDyn, Hiperface, 1 Vpp, and TTL signals
Communication Interfaces:
- Built-in: Multi-Ethernet (EtherCAT, PROFINET), CANopen, DeviceNet
- Optional modules: Sercos III, Parallel interface, Cross Communication (CCD)
- Master communication: CANopen or DeviceNet via D-sub connector
- Debugging: RS232 serial port (X2), Engineering Ethernet interface (X26)
- Control panel: Standard control panel with battery-backed data storage
- Memory: MMC card slot
I/O Configuration:
- Digital I/O: 5–22 digital inputs, 0–4 digital outputs (Type A/B/C/D, 24 V, 3 mA)
- Analog I/O: 2 analog inputs (±10 V / 0–20 mA), 2 analog outputs (0–10 V); expandable to 4–6 inputs and 4 outputs via AN/MA1 modules
- Expansion: Encoder simulation (MEM), digital I/O expansion (MD1/MD2), SSI encoder evaluation (MD2 module integration)
Safety Technology:
- L1: Start lock (compliant with EN60204-1 stop category 0)
- L2: Safe Torque Off, SIL3/PL e
- S1: Safe I/O, SIL2/PL d
- S2: Safe Motion — safe stop, safe speed limit, SIL2/PL d
Structural Features:
- Dual-section design separating power and control circuits
- Multiple expansion slots for configurable modularity
- Standard control panel for programming
- Battery-backed data storage
Application Scenarios: Single-axis high-precision servo control, machine tools, printing machinery, packaging machinery, robotics — anywhere advanced motion control with multi-protocol communication and functional safety is required.
Installation Requirements:
- Install as the control section paired with a compatible IndraDrive power section
- Connect 24 VDC power supply (max consumption 7.5 W; inrush 4 A / 100 ms)
- Seat optional expansion modules (encoder, communication, I/O, safety) into available slots per configuration
- Wire the primary encoder interface (IndraDyn/Hiperface/1 Vpp/TTL) to the motor
- Connect fieldbus communication via the appropriate D-sub or Ethernet interface
- Use RS232 (X2) or Engineering Ethernet (X26) for commissioning with Rexroth IndraWorks/debugging tools
Usage Precautions: The CSH01 is the ADVANCED variant — confirm this matches application requirements (vs BASIC CSB01 or dual-axis CDB01). Switching frequency is adjustable 2–16 kHz; select appropriate value for motor and application to avoid overheating. Inrush current is 4 A for 100 ms at 24 VDC — ensure power supply can accommodate. Safety functions L1/L2/S1/S2 must be configured per EN60204-1, SIL3/PL e, or SIL2/PL d requirements. Use the correct expansion modules (ENS/EN1/EN2) matching the encoder voltage requirement (12 V/8 V/5 V). Overvoltage and over-temperature protection are built-in; ensure proper cabinet cooling for the 7.5 W consumption plus power section heat dissipation.
