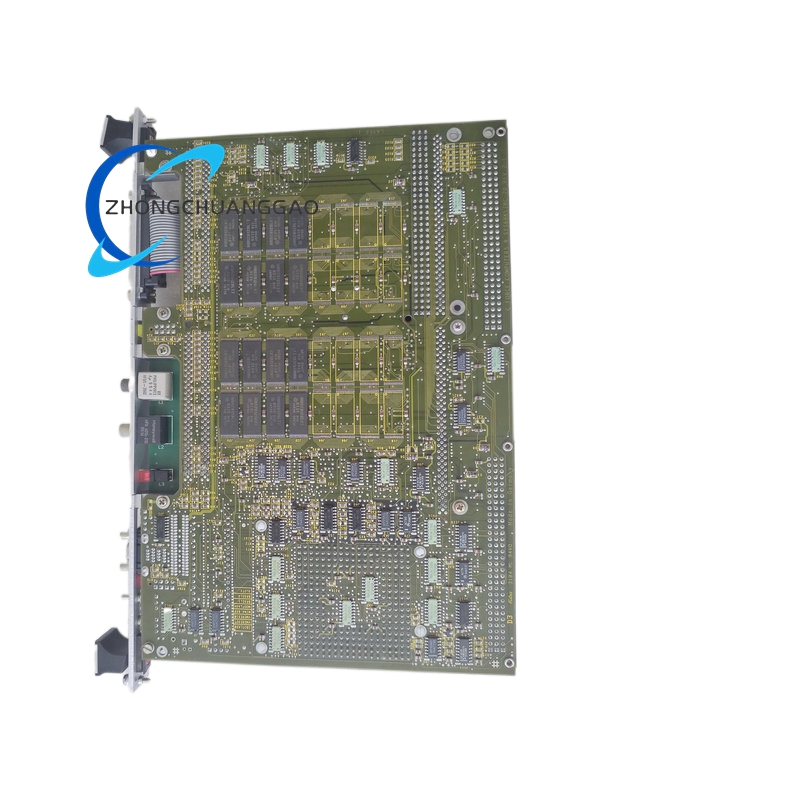

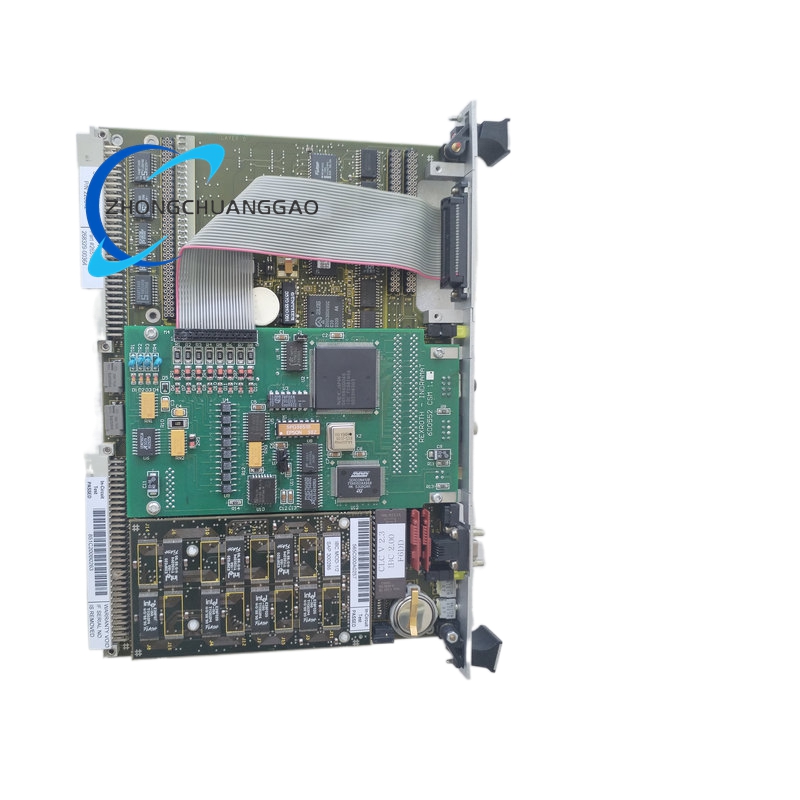

BOSCH CLC-V02.3C-FW

Description

Technical Specifications:

• Manufacturer: Bosch Rexroth AG

• Architecture: Bus-based VME architecture

• Control Axes: 2 to 16

• Rated Current: 10 to 60 A

• Rated Voltage: 200 to 690 VDC

• Control Precision: ±0.1 μm

• Maximum Speed: 10 m/s

• Maximum Acceleration: 20 m/s²

• Protection Class: IP67

• Weight: 1.35 kg

• Country of Origin: Germany

Valve-Specific Specifications (Proportional Pressure Control Valve Configuration):

• Valve Type: Direct-acting, force-controlled

• Pressure Range: 0–350 bar

• Maximum Flow Rate: 25 L/min (at Δp = 5 bar)

• Hysteresis: ≤0.5% of full scale

• Linearity: ≤±0.5% FS

• Control Signal: ±10V DC or PWM (4–9 kHz)

• Feedback: Integrated LVDT position sensor

• Porting Size: G1/4″ (ISO 228-1)

• Seal Material: FKM (Fluoroelastomer)

• Fluid Compatibility: Mineral oils (HFD R, HLP)

• Operating Temperature: –20°C to +80°C

• Protection Class: IP65 (with connector)

Functional Features:

• Multi-Axis Coordinated Motion Control: Simultaneous control of multiple axes for complex motion trajectories

• High Performance: High precision, high speed, and high dynamic response

• Scalability: Supports multiple expansion modules for customized applications

• User-Friendly: Intuitive programming interface and rich software tools

• ASCII CLC Response Interface: Configured for ASCII CLC response at 9600 baud rate, 8 bits data per character

• Three Form Factors: Compatible with many different firmware and programs

Principle of Operation:
As a motion control card, the CLC-V02.3C-FW plugs directly into the IndraDrive servo drive card slot, transforming a standard drive into a specialized intelligent motion controller. The card processes complex motion control algorithms and communicates with the drive to execute coordinated multi-axis movements. In valve configuration, it uses force-controlled solenoid technology with integrated LVDT feedback for closed-loop pressure regulation.

Advantages and Strengths:

• Dynamic Response: Step response times <30 ms (10–90% setpoint) through optimized solenoid design and low-mass control spool

• Integrated Diagnostics: Built-in LVDT provides real-time spool position monitoring

• Cost-Effective: High cost-performance motion control solution

• Versatile: Suitable for complex high-end robotic applications

Applicable Industries:
Machine tools (milling, turning, drilling), packaging machinery (pick-and-place, sealing), printing presses (feeding, printing, cutting), textile machinery (spinning, weaving, finishing), robotics, injection molding (clamping force control), steel processing (tension management), die-casting, offshore equipment.

Model Series: CLC Series

Installation Requirements:
Install in a dry, dust-free environment. Installation and maintenance must be performed by qualified technicians.

Usage Precautions:

• Read product documentation and follow all safety instructions before installation

• Ensure hands are dry before touching the device

• Use a grounded wrist strap to prevent electrostatic discharge damage
