Product Short Description

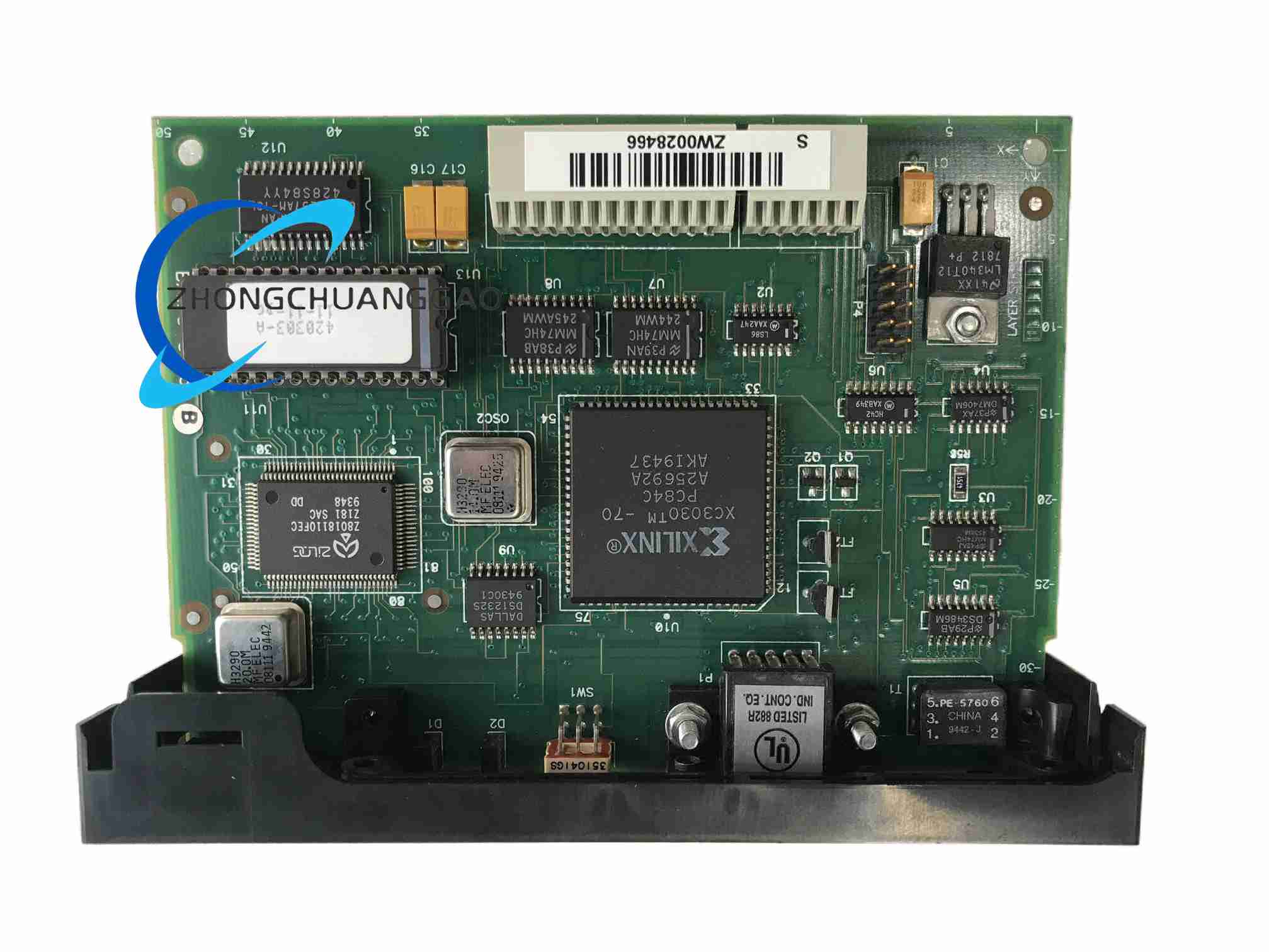

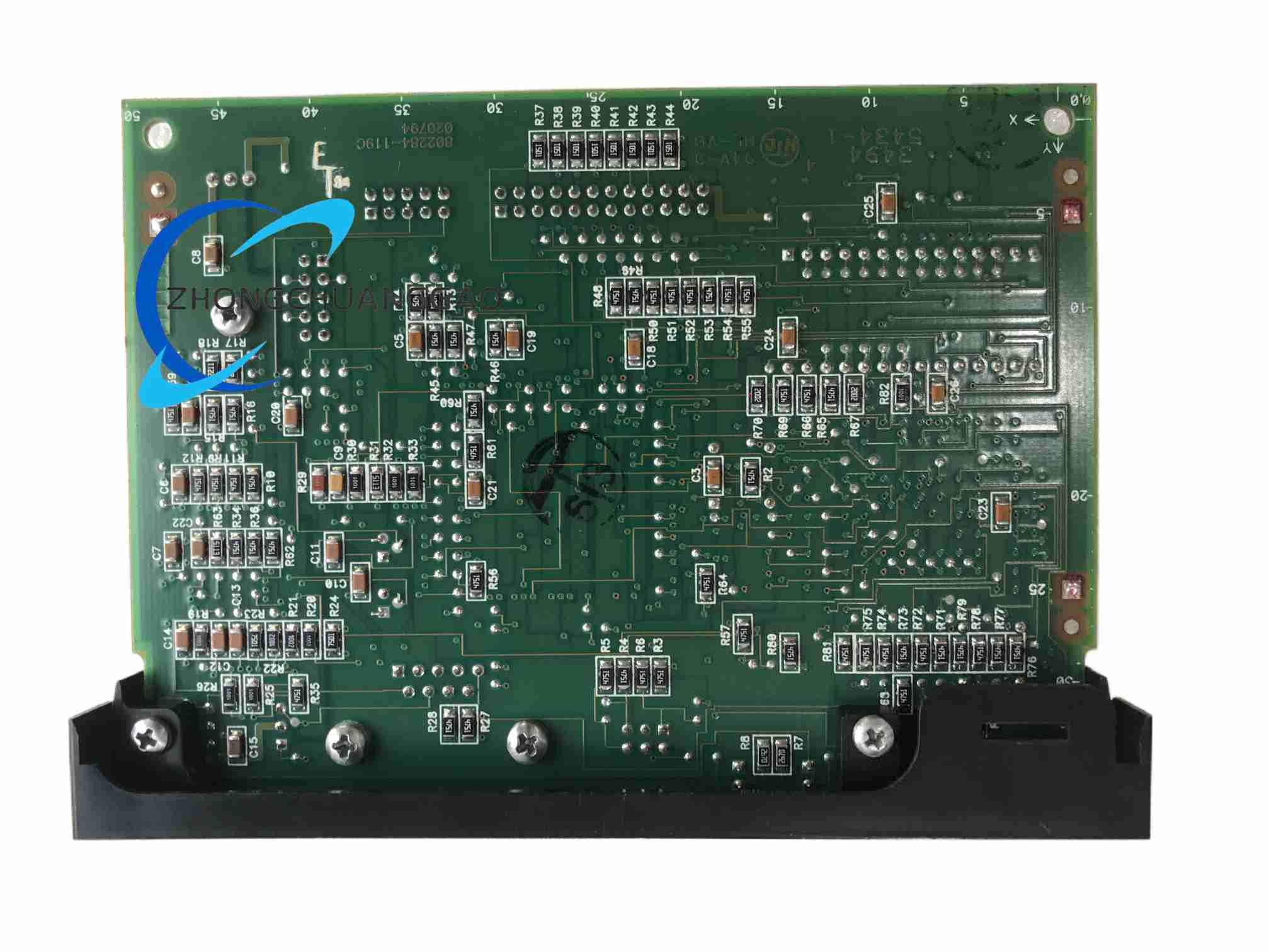

Product Name: AutoMax Remote I/O Shark Interface Module
Product Introduction: The 57C554 (also numbered 0-57554 or 57554) is a Remote I/O interface module that connects a Shark remote rack to the AutoMax Remote I/O network. It replaces the processor module position when a Shark rack is used as a remote I/O drop.
Description
Technical Specifications:
-
Manufacturer: Reliance Electric (also ABB/Baldor Reliance)
-
Series: AutoMax / DCS 5000
-
Product Type: Remote I/O Shark Interface Module
-
Processor: Built-in microprocessor for buffer circuitry and timing
-
Logic Power Supply: +5 VDC (from Shark rack backplane)
-
I/O Network Power: +24 VDC (regulated to +12 VDC on rack)
-
Network Connector: 9-pin D-sub female (“NETWORK” port)
-
Status Indicators: CPU OK LED, COM OK LED (both green)
-
Drop Address: 16-position rotary switch
-
Communication Rate: 1 MBaud (standard AutoMax network)
-
Max Network Distance: 1000 ft (≈300 m) with standard twinaxial cable
-
Mounting: Rack plug-in PCB module; installs in first slot to the right of power supply
-
Weight: Approx. 1.12 kg
-
Dimensions: 260 mm × 195 mm × 25 mm
-
Power Consumption: 1.5 A @ +5 VDC
-
Operating Temperature: 0 °C to 60 °C
Functional Features: Performs communication synchronization, buffering, and data exchange between distributed I/O devices and the AutoMax controller. Onboard microprocessor handles interface tasks, reducing load on the main controller. Rotary switch allows easy configuration of drop address. LED indicators provide real-time diagnostics for CPU self-test and network communication status.
Application Scenarios: Used to distribute I/O physically closer to controlled devices in large-scale industrial facilities, reducing wiring complexity. Ideal for motor control and manufacturing applications requiring deterministic data exchange.
Installation & Notes: Never hot-swap while rack is powered—always remove power before insertion or removal to prevent bus contention or backplane damage. Set the rotary switch to a unique drop number before powering up.
