Product Short Description

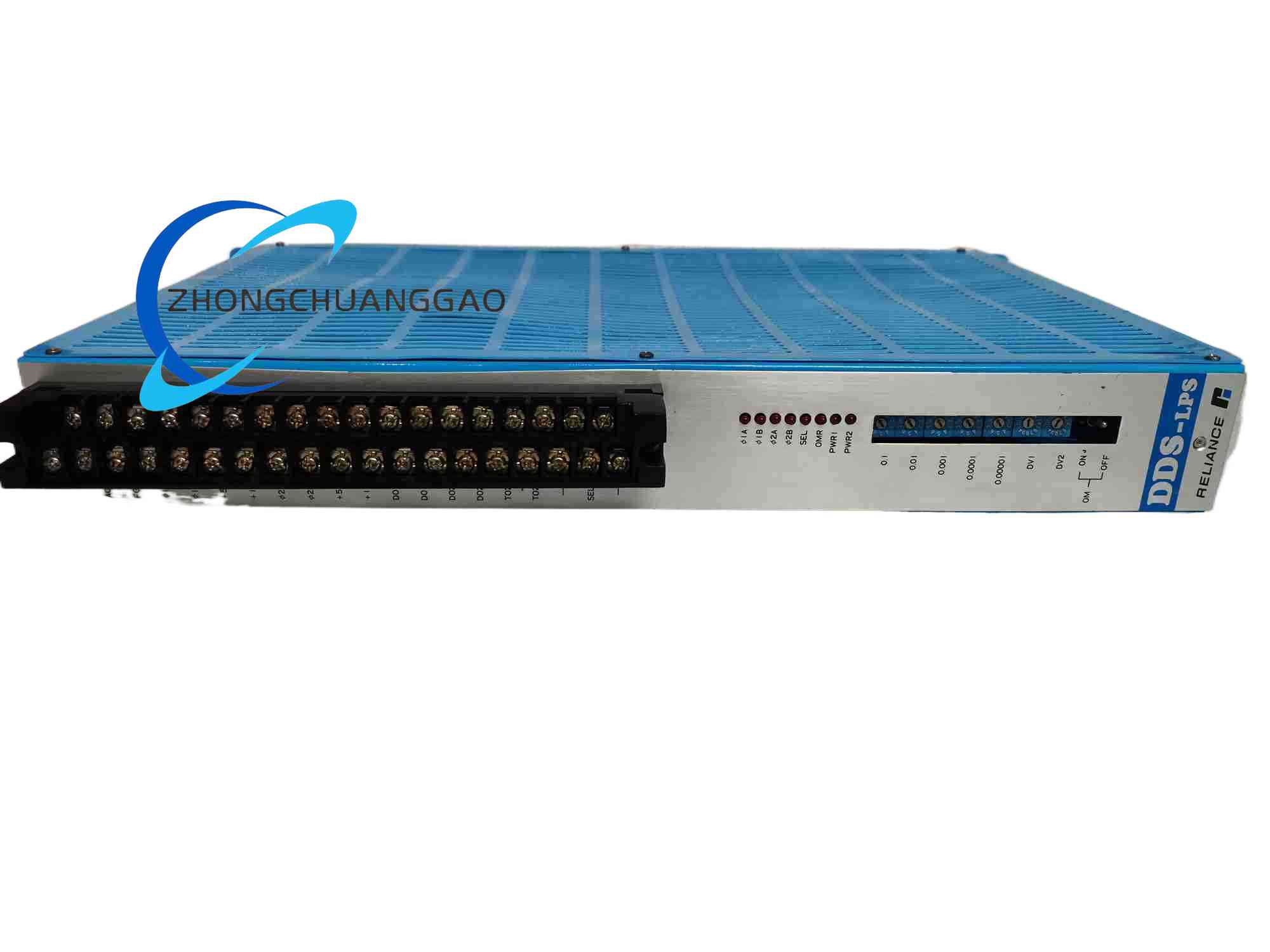

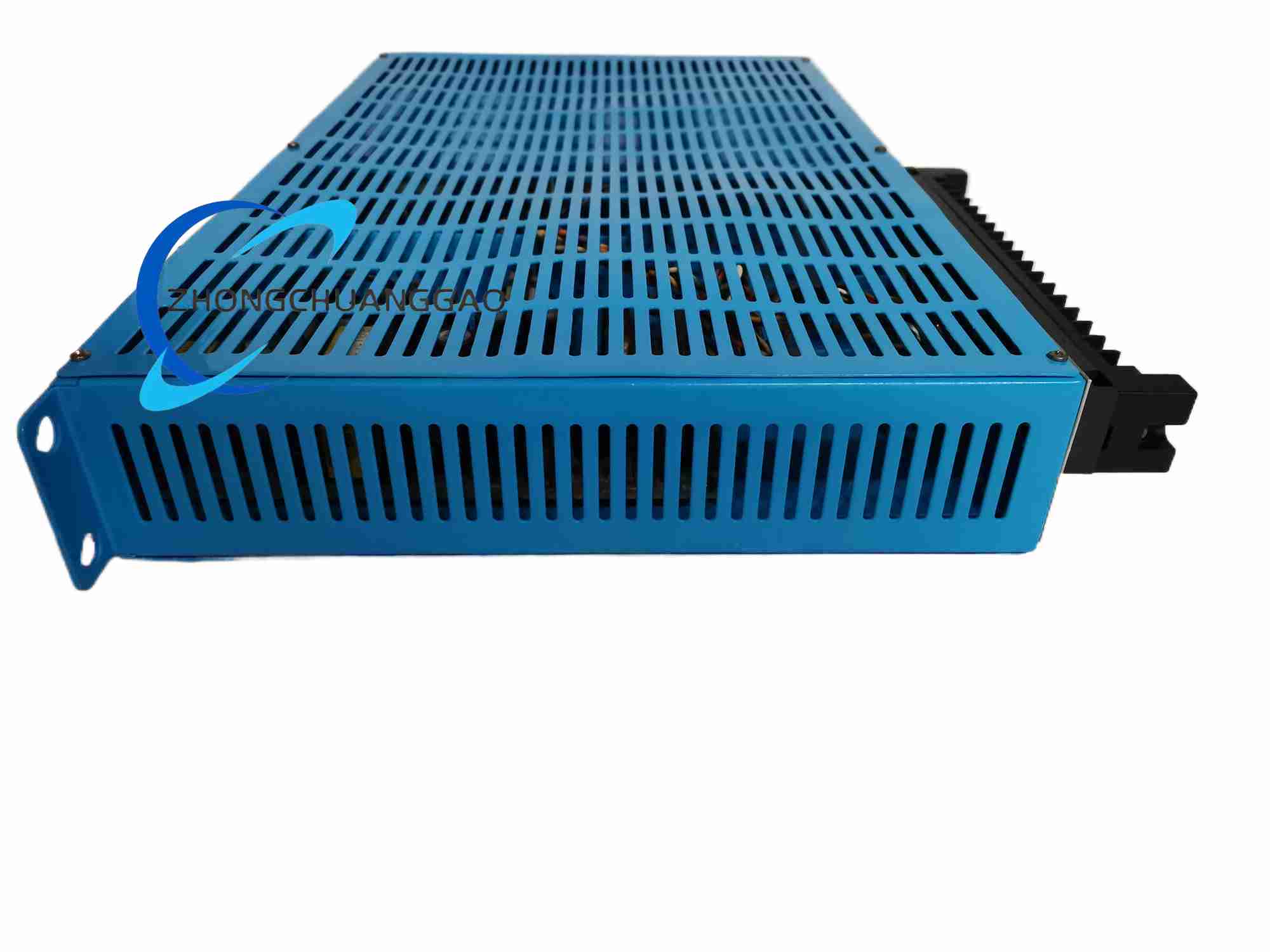

Product Name: RELIANCE DDS-LPS Industrial DC Power Supply Module
Product Overview: The RELIANCE DDS-LPS is an industrial-grade low-profile power supply module designed to deliver regulated DC power to automation components such as PLCs, drives, sensors, and control systems. It accepts a wide-range AC input and provides stable DC output with comprehensive protection features.
Description
Technical Specifications:
- Input Voltage: 85–265 VAC, 47–63 Hz (wide-range universal input)
- Output Voltage: 24 VDC (configurable/selectable; some versions support 48 VDC)
- Output Current: Up to 5 A (some versions up to 10 A / 240 W)
- Power Rating: 120 W (up to 240 W depending on configuration)
- Efficiency: ≥ 90%
- Operating Temperature: –20 °C to +70 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection: Over-voltage, over-current, short-circuit protection
- Mounting: DIN rail or panel mount
Key Features: High efficiency (up to 90%) minimizes energy loss and heat; robust protection against over-voltage, over-current, and short-circuit; wide input voltage range for global compatibility; compact modular design for tight cabinet spaces; reliable continuous operation in harsh industrial environments.
Application Scenarios: Industrial automation, PLC systems, control cabinets, and safety-critical equipment requiring uninterrupted clean DC power.
Installation & Usage Notes: Mount securely on DIN rail or designated panel. Connect AC input and DC output per wiring diagram. Ensure proper ventilation for heat dissipation. Periodically inspect connections and output voltage. Clean exterior with dry cloth; avoid moisture and dust accumulation.
