Product Short Description

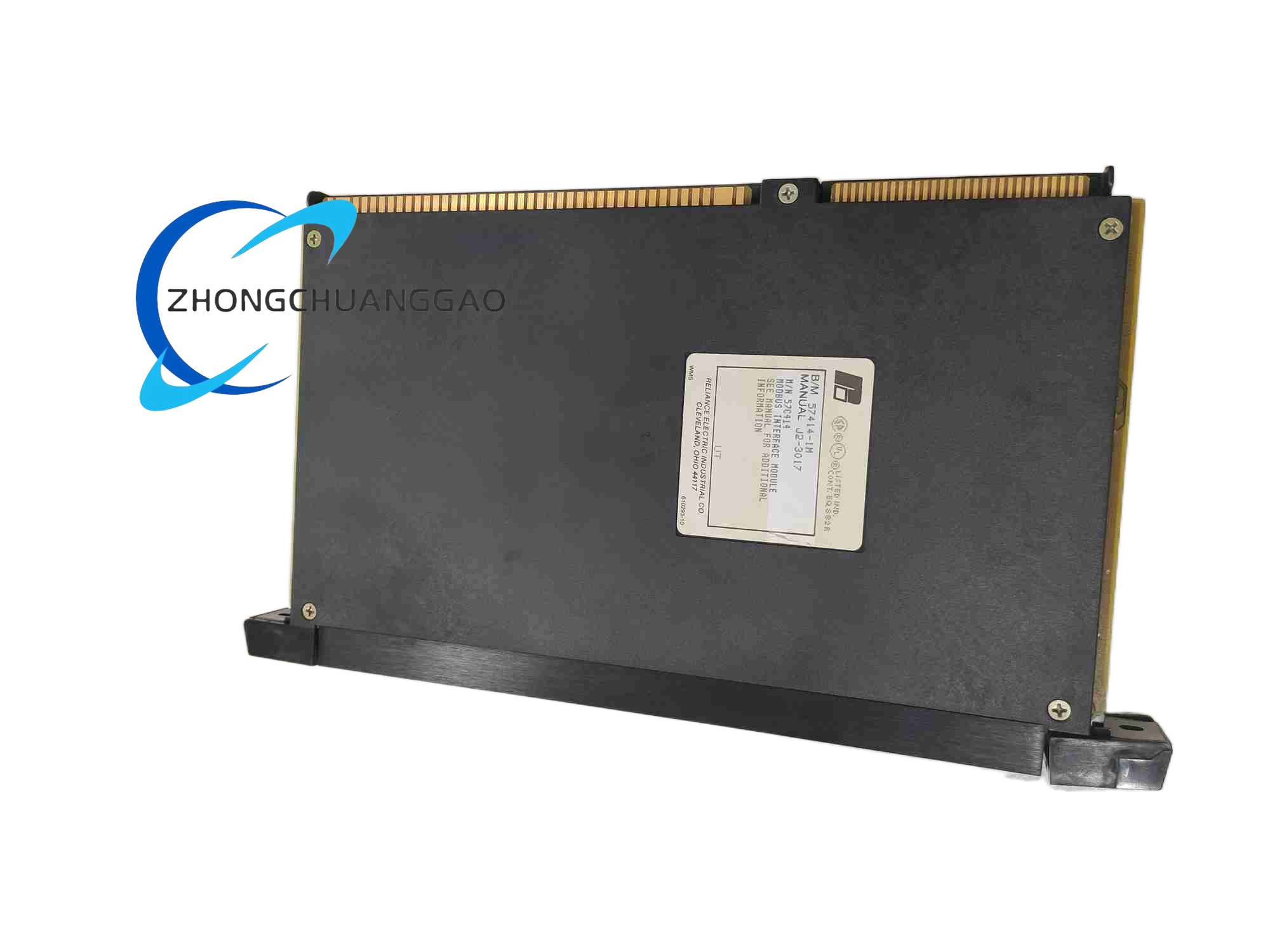

Product Name: AutoMax Interface Module (RS-232 / R-NET Gateway)
Product Introduction: An interface module for the Reliance Electric AutoMax distributed control system. It provides an RS-232 serial communication port using the AutoMate Communication Protocol, enabling connection to multiple AutoMate modules and integration with the R-NET network via an R-Net Gateway Interface Head.
Description
Technical Specifications:
-
Manufacturer: Reliance Electric
-
Type: Interface / Communication Module
-
System: AutoMax
-
Connection type: RS-232
-
Communication protocol: AutoMate
-
Maximum power dissipation: 20 W
-
Networking: Connects to R-NET via R-Net Gateway Interface Head
-
Compatibility: Multiple AutoMate modules
-
Additional capability: Can connect to a serial communication processor for enhanced functionality
Functional Features:
-
Provides a straightforward RS-232 interface for system integration.
-
Leverages the robust AutoMate Communication Protocol for seamless interaction.
-
Compatible with a wide array of AutoMate components, expanding system functionality.
-
Can bridge to the R-NET network through a gateway interface head.
-
Facilitates serial data exchange between AutoMax processors and external devices (e.g., barcode scanners, printers, HMIs).
Application Scenarios: Industrial control systems requiring serial communication between AutoMax controllers and auxiliary devices; upgrading or expanding existing AutoMax networks; connecting AutoMax to R-NET based subsystems.
Working Principle: The module terminates an RS-232 serial line on one side and interfaces with the AutoMax backplane on the other. It packages serial data into AutoMate protocol frames for transmission across the AutoMax system, and conversely decodes incoming AutoMate messages to RS-232 characters. When coupled with an R-Net Gateway Interface Head, it can extend connectivity to the broader R-NET network.
Installation Requirements:
-
Install in a compatible AutoMax rack slot.
-
Wire the RS-232 port to the target serial device using the appropriate cable.
-
If R-NET connectivity is needed, attach the R-Net Gateway Interface Head.
-
Configure the AutoMate Communication Protocol parameters to match the connected devices.
Usage Precautions:
-
Ensure the RS-232 cabling is shielded and properly grounded to minimize noise.
-
Do not exceed the module’s maximum power dissipation of 20 W.
-
Verify baud rate and protocol settings match all connected serial devices.
-
As a legacy AutoMax component, confirm compatibility with the existing rack firmware before deployment.
