Product Short Description
Product Name

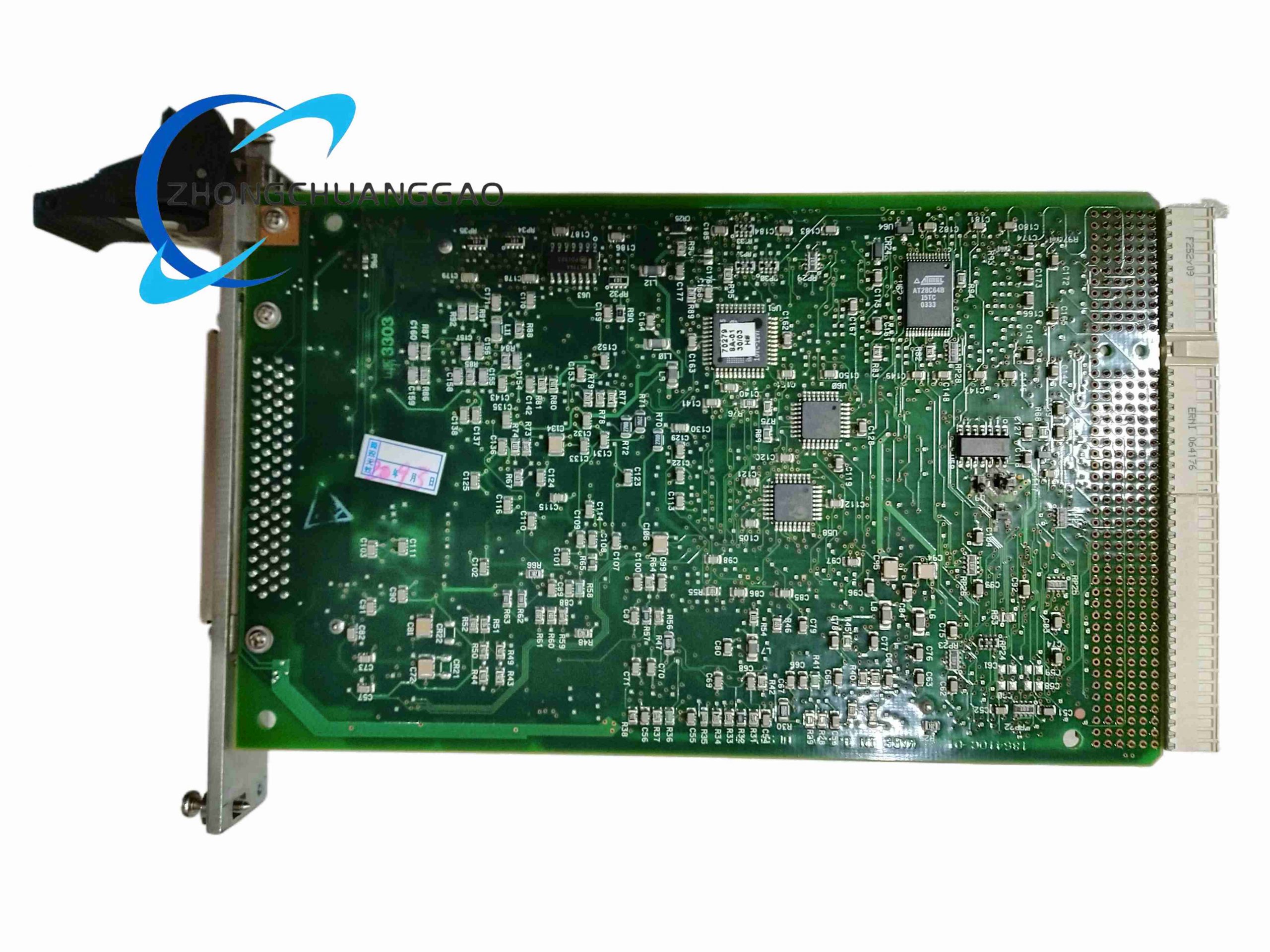

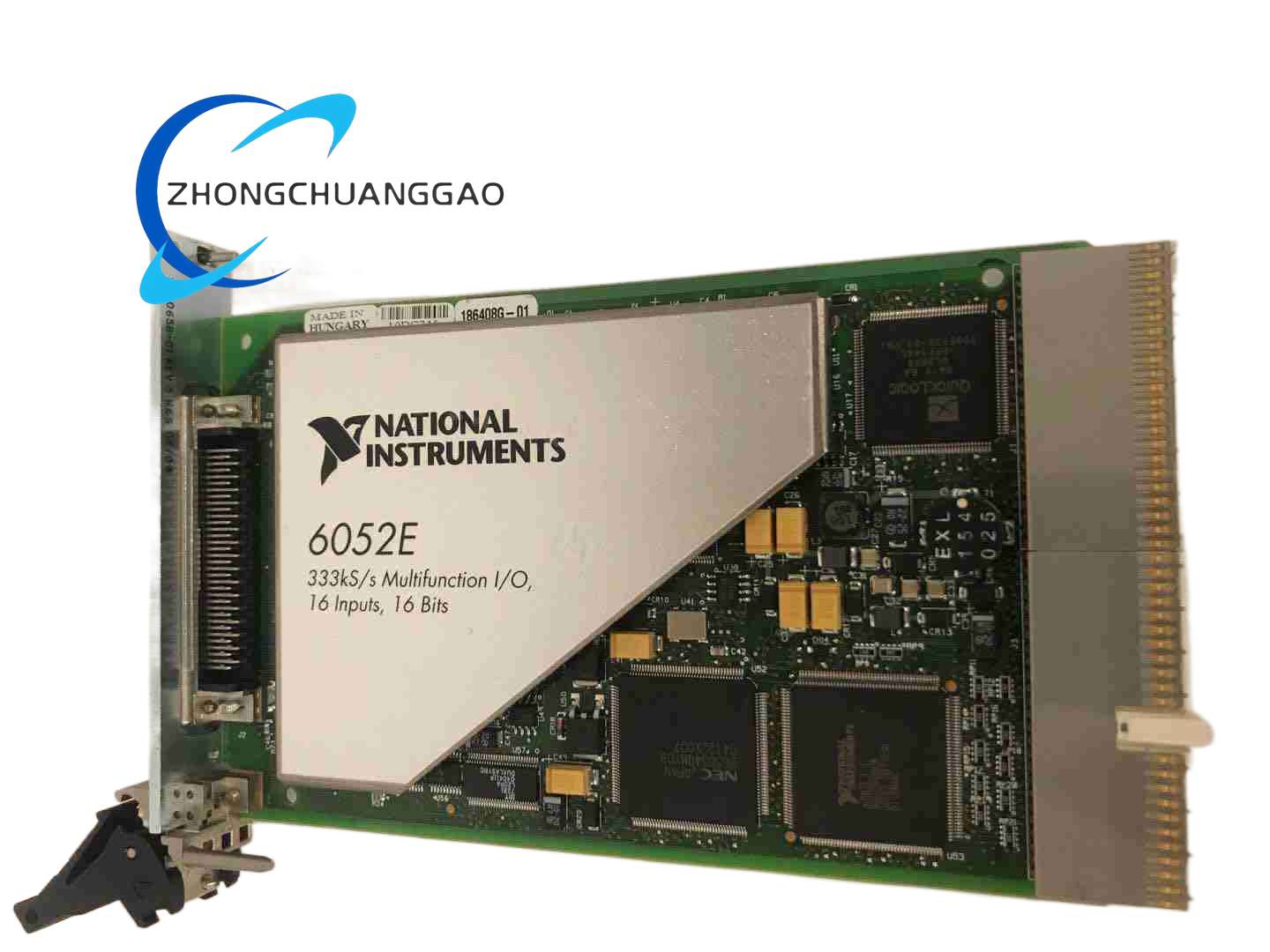

PXI-6052E E Series Multifunction Data Acquisition Module
Product Overview
The PXI-6052E is a multifunction DAQ module that combines analog input, analog output, digital I/O, and counter/timer functions in a single PXI module. It is used for general-purpose measurement, control, and automated test.
Description
Technical Specifications
- Analog Input Channels: 16 single-ended or 8 differential
- ADC Resolution: 16 bits
- Maximum Sample Rate: 333 kS/s
- Analog Output Channels: 2
- Analog Output Resolution: 16 bits
- Digital I/O Lines: 8
- Counter/Timers: 2 × 24-bit
- Connector: 68-pin male SCSI-II
- DMA Channels: 3
- Operating Temperature: 0 °C to 55 °C
- Calibration Interval: 1 year
Functional Features
- Multifunction I/O in one module
- Software-selectable single-ended or differential inputs
- Analog output generation
- Event counting, frequency measurement, and pulse generation
- NI-DAQmx and LabVIEW support
- PXI trigger and timing synchronization
Working Principle
The module samples analog inputs through a multiplexed ADC, generates analog outputs through DACs, and handles timing operations with onboard counters. Data moves between module and controller through DMA or programmed I/O.
Application Scenarios
- Data logging
- Sensor measurement
- Industrial automation
- Research and development
- Electronics test
- Process monitoring
Installation Requirements
- Insert into any standard PXI chassis slot
- Use 68-pin SCSI shielded cable and compatible terminal block
- Install NI-DAQmx driver
- Configure device in NI Measurement and Automation Explorer
- Ensure proper signal grounding
Usage Notes
- Do not exceed input voltage range
- Use differential mode for noisy or floating signal sources
- Calibrate annually
- Avoid electrostatic discharge when handling module
- Keep firmware and driver versions compatible
