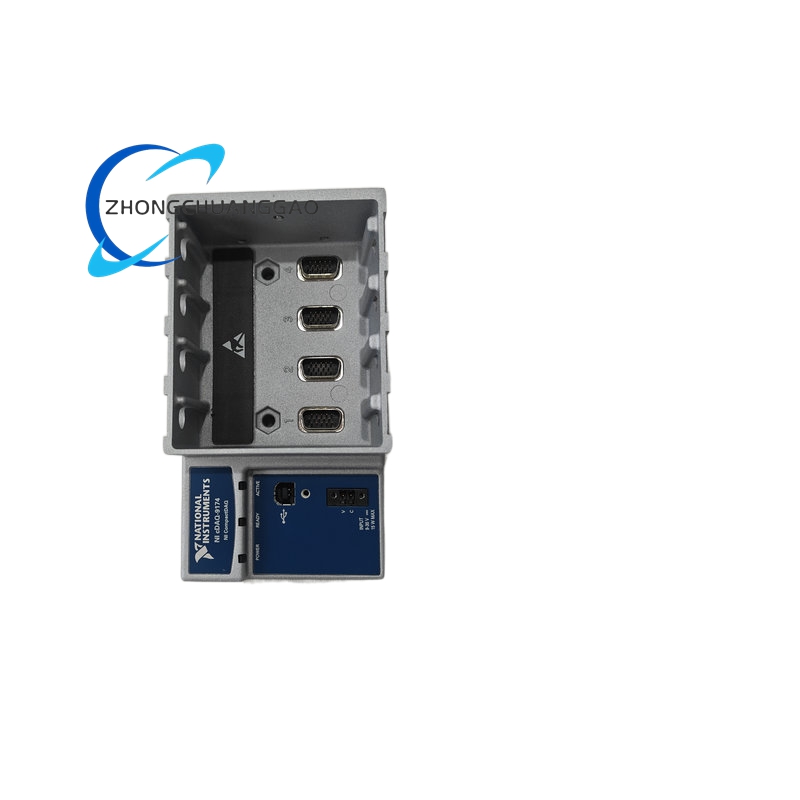

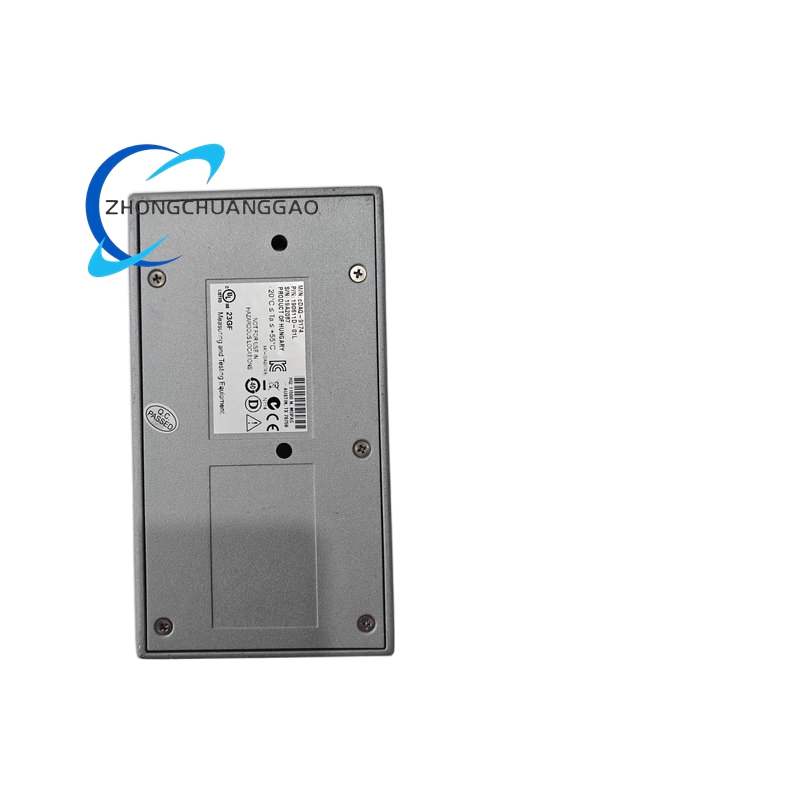

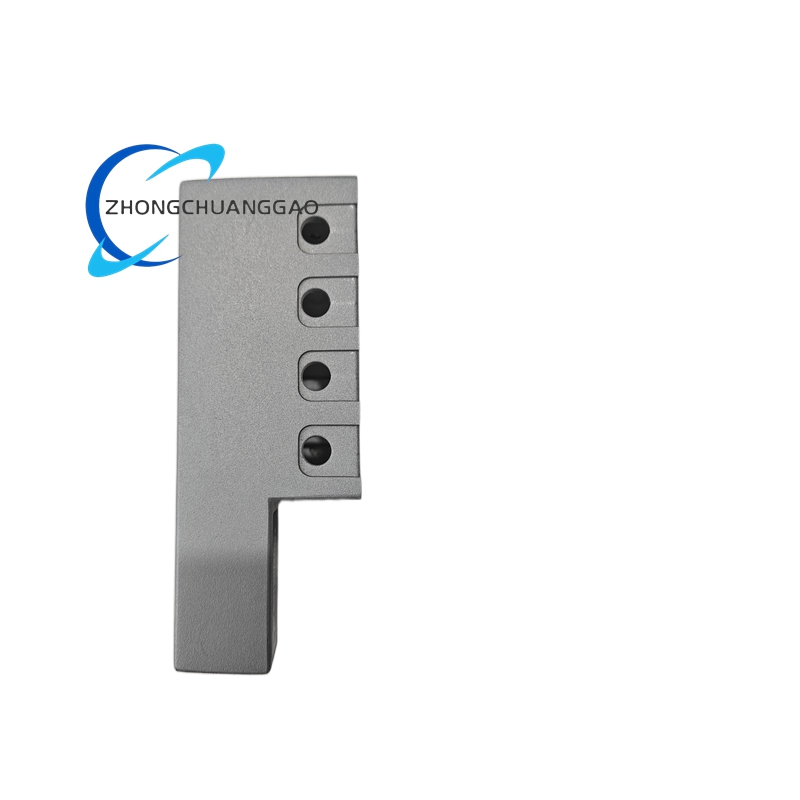

NI cDAQ-9174

Description

Technical Specifications:

• Slot Count: 4

• Bus Connector: USB 2.0

• Input Voltage Range: 9 to 30 V

• Maximum Required Input Power: 15 W

• Operating Temperature Range: -20 °C to 55 °C

• Weight (Unloaded): Approx. 574 g (20.2 oz)

• Conformal Coated: No

• Onboard Trigger: No

• Synchronization Enabled: No

Functional Features:

• Analog Input FIFO Size: 127 samples per slot

• Analog Input Timing Accuracy: 50 ppm of sample rate

• Analog Input Timing Resolution: 12.5 ns

• Analog Output Onboard Regeneration Maximum Update Rate: 1.6 MS/s (multi-channel, aggregate)

• Analog Output Timing Accuracy: 50 ppm of sample rate

• Analog Output Timing Resolution: 12.5 ns

• Analog Output FIFO Size (Onboard Regeneration): 8,191 samples shared among channels used

• Analog Output FIFO Size (Non-regeneration): 127 samples per slot

• Digital Input FIFO: 127 samples per slot

• Digital Output FIFO: 2,047 samples

• Digital Input Sample Clock Frequency: 0 to 10 MHz

• Digital Output Sample Clock Frequency: 0 to 10 MHz

• Digital Timing Accuracy: 50 ppm

Performance Parameters:

• Number of General-Purpose Counters/Timers: 4

• Counter Resolution: 32 bits

• Counter Measurements: Edge counting, pulse, semi-period, period, two-edge separation, pulse width

• Position Measurements: X1, X2, X4 quadrature encoding with Channel Z reloading; two-pulse encoding

• Output Applications: Pulse, pulse train with dynamic updates, frequency division, equivalent time sampling

• Internal Base Clocks: 80 MHz, 20 MHz, 100 kHz

• External Base Clock Frequency: 0 to 20 MHz

• Output Frequency: 0 to 20 MHz

• Frequency Generator Channels: 1

• Frequency Generator Base Clocks: 20 MHz, 10 MHz, 100 kHz

• Frequency Generator Divisors: 1 to 16 (integers)

Principle of Operation:
The chassis operates as a USB-based data acquisition front-end, hosting up to four C Series I/O modules. It manages the timing and synchronization of measurements across multiple modules, with multiple timing engines enabling four hardware-timed operations simultaneously at three independent rates for analog input.

Advantages and Strengths:

• Plug-and-play USB connectivity simplifies system setup

• Supports mixed measurement types (analog I/O, digital I/O, counter/timer) through C Series module combinations

• Portable and compact form factor ideal for field measurements

Applicable Industries:
Sensor measurement systems, portable test and measurement, data logging, industrial monitoring.

Model Series: CompactDAQ

Installation Requirements:
Panel mounting required to meet specifications. Use an NI locking USB cable and affix ferrules to the ends of terminal lines.

Usage Precautions:
Specifications are typical at 25 °C unless otherwise noted. C Series I/O module specifications are detailed in the documentation for each specific module.
