Description
Technical Specifications
Brand: National Instruments

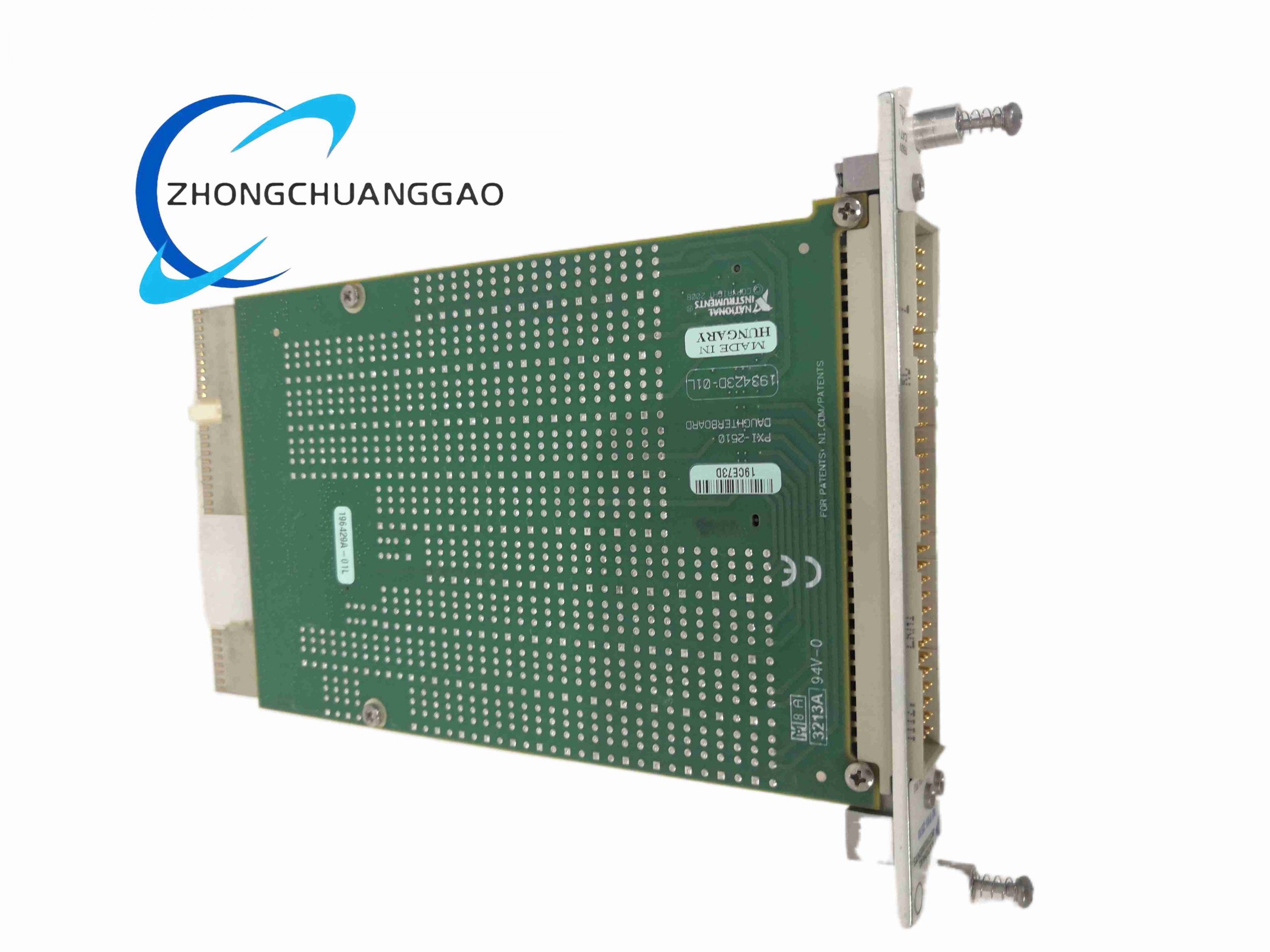

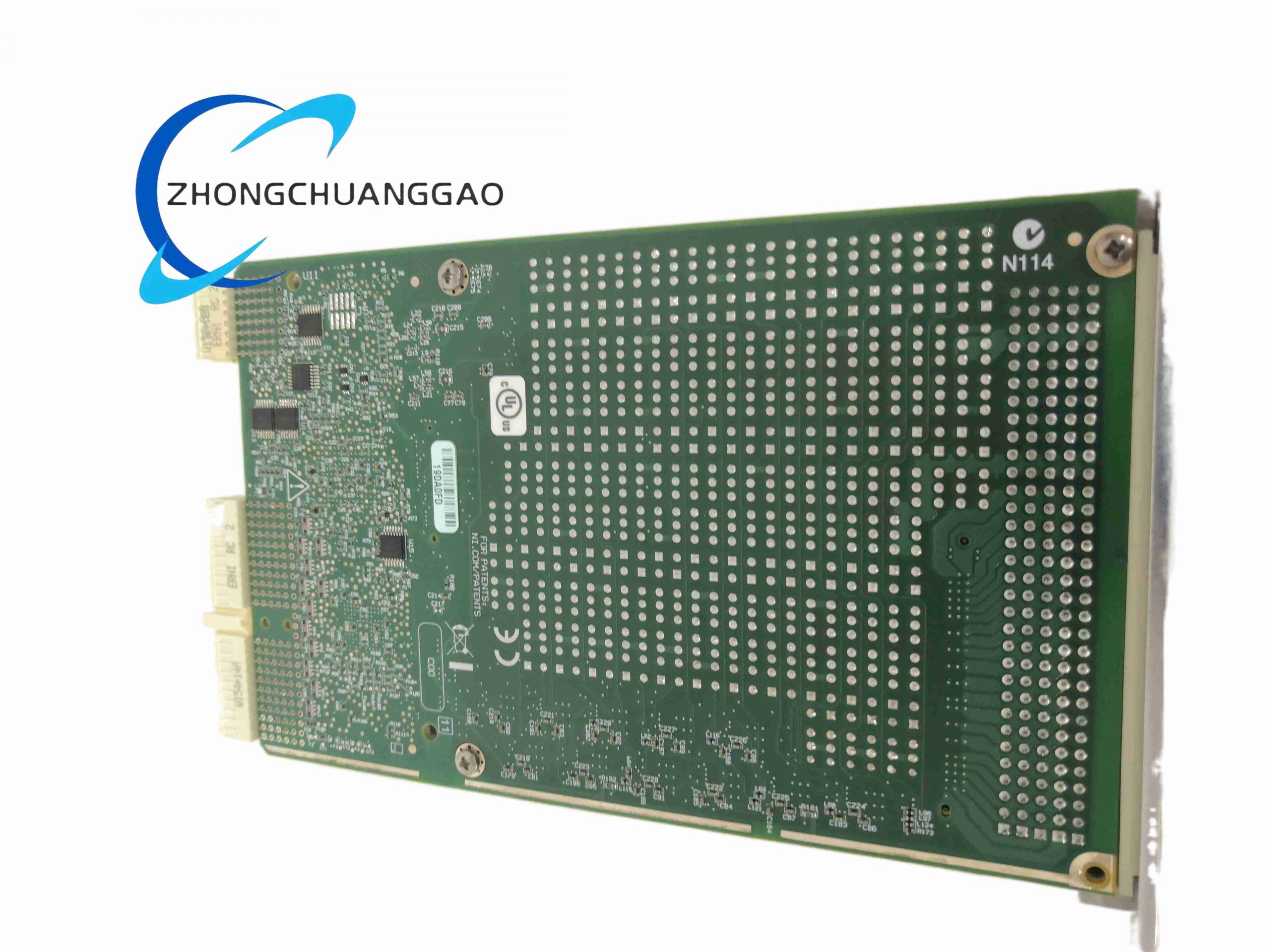

Model: PXI-2510
Part Numbers: 778572-10, 196429A-01L
Channels: 68
Maximum DC Switching Current: 2 A
Maximum Switching Voltage: 150 V DC/AC
Switch Bandwidth: 6.5 MHz per NI listing; 20 MHz per some distributor listings
Relay Type: electromechanical, non-latching
Actuation Time: 1 ms typical
Mechanical Relay Life: 100 million cycles
Electrical Relay Life: 500,000 cycles at 30 V, 1 A; 100,000 cycles at 30 V, 2 A
Front Connector: 160-pin DIN 41612 male
Slot: 3U single-slot PXI
Power: 6.6 W at 5 V
Operating Temperature: 0°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 85% noncondensing
Functional Features
Fault insertion
Open/short simulation
Pin-to-pin short simulation
Short to ground
Short to battery voltage
Feedthrough channel architecture
Per-channel fault control
LabVIEW Real-Time support
Application Scenarios
Hardware-in-the-loop testing
ECU validation
FADEC validation
Automotive control testing
Aerospace control system testing
Electronic reliability test
Structural Characteristics
3U PXI module
160-pin front-panel connector
Electromechanical relay matrix
Hybrid PXI bus connection
Installation Requirements
Install in PXI or PXI Express hybrid peripheral slot
Use compatible NI switch driver software
Terminate signals within rated voltage/current
Use proper 160-pin cabling
Usage Precautions
Do not exceed 2 A or 150 V switching limits
Avoid inductive load switching without suppression
Prevent condensation and pollution degree above 2
Do not hot-insert module into powered chassis
Cycle relays within rated life expectations
