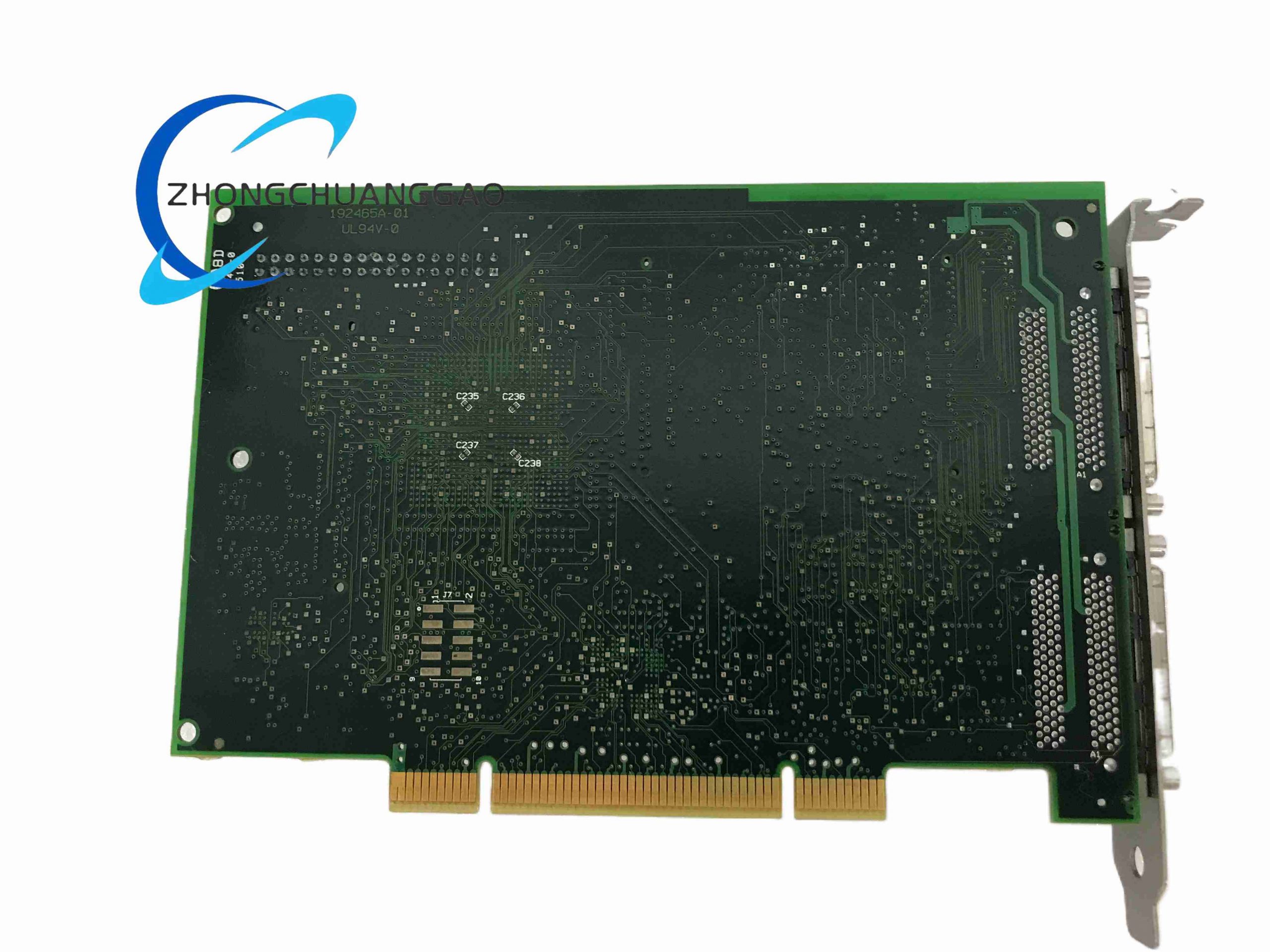

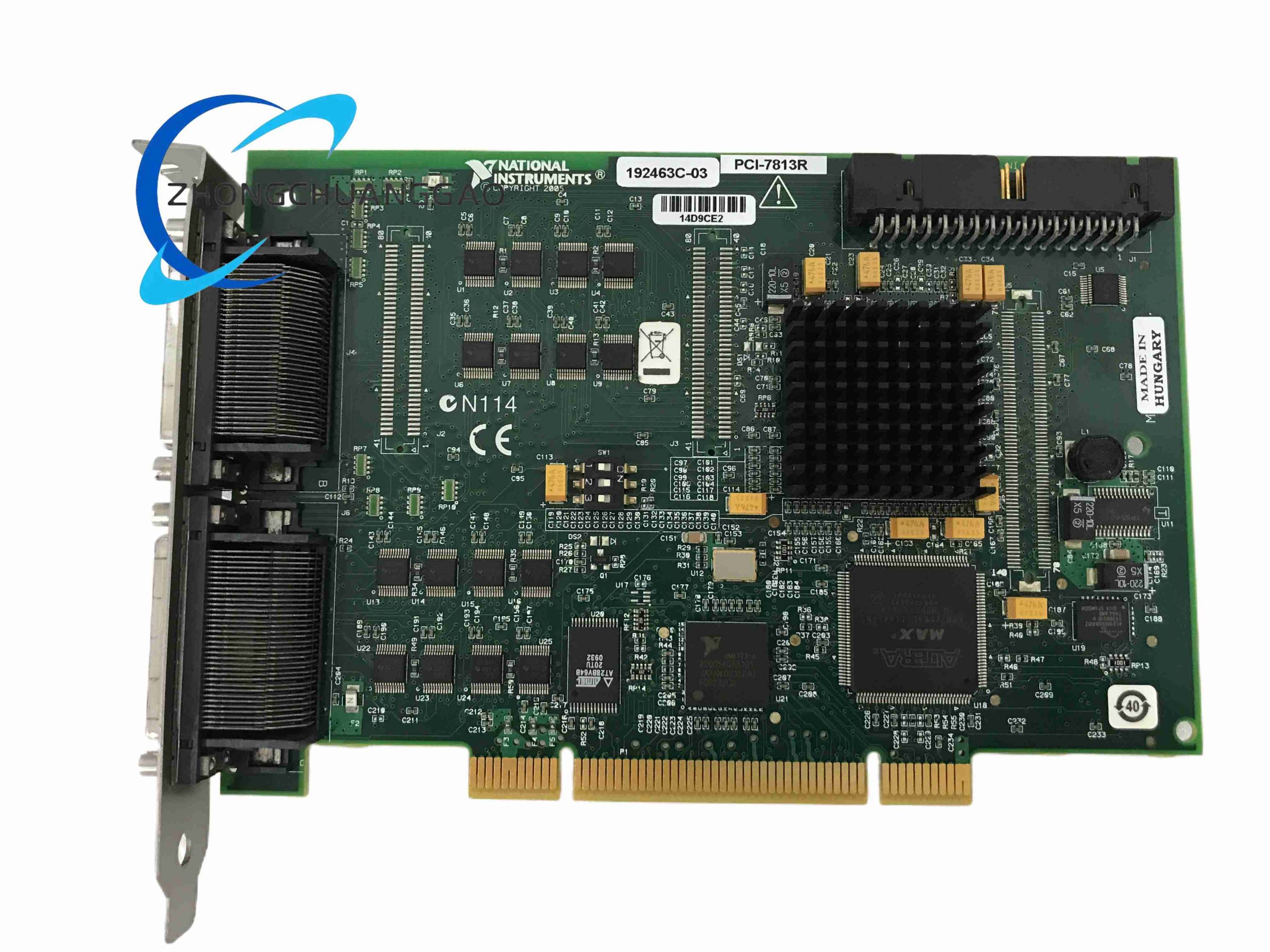

NI PCI-7813R

Description

Technical Specifications:

• FPGA Type: Xilinx Virtex-II V3000
• Maximum Clock Rate: 40 MHz
• Digital I/O Logic Levels: 3.3 V / 5 V
• Embedded Block RAM: 1728 Kb
• Number of 4-input LUTs: 28672
• Number of 18×18 Multipliers: 96
• Bus Interface: 32-bit PCI bus
• DMA Channels: 3
• Typical Current Consumption: 850 mA Functional Features:
• User-programmable FPGA for custom I/O functionality
• Configurable digital lines as inputs, outputs, counter/timers, PWM, encoder inputs, or custom communication protocols
• Hardware-timed execution for ultra-precise timing and control
• Supported by LabVIEW FPGA development environment Application Scenarios:
• High-speed waveform generation
• Sensor simulation
• Hardware-in-the-loop (HIL) testing
• Custom communication protocol implementation
• Bit error rate testing
• Real-time control systems Material Composition:
• High-density FPGA chip
• Industrial-grade PCB with signal integrity design Structural Features:
• Standard PCI form factor
• Single-board integrated design Working Principle: The onboard FPGA can be programmed with custom logic circuits via LabVIEW FPGA software. It executes all I/O operations and signal processing directly in hardware at clock cycle precision, eliminating software latency and delivering deterministic real-time performance. Installation Requirements:
• Installs in standard 32-bit PCI slot
• Requires sufficient system power supply
• Compatible with LabVIEW development environment for programming Usage Notes:
• This product is in mature lifecycle phase; recommended replacement is PCIe-7820
• FPGA programming requires LabVIEW FPGA module
• Follow proper ESD protection during handling and installation
