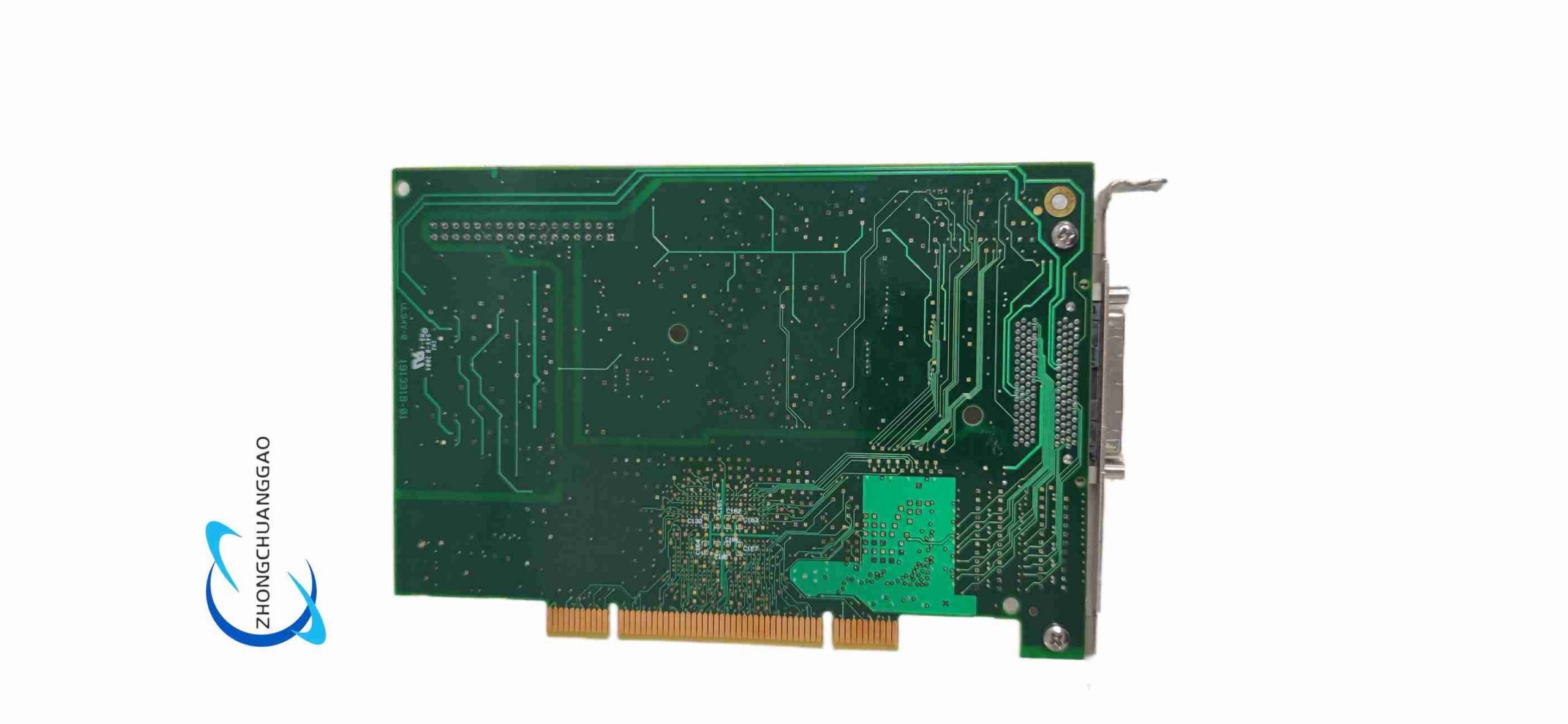

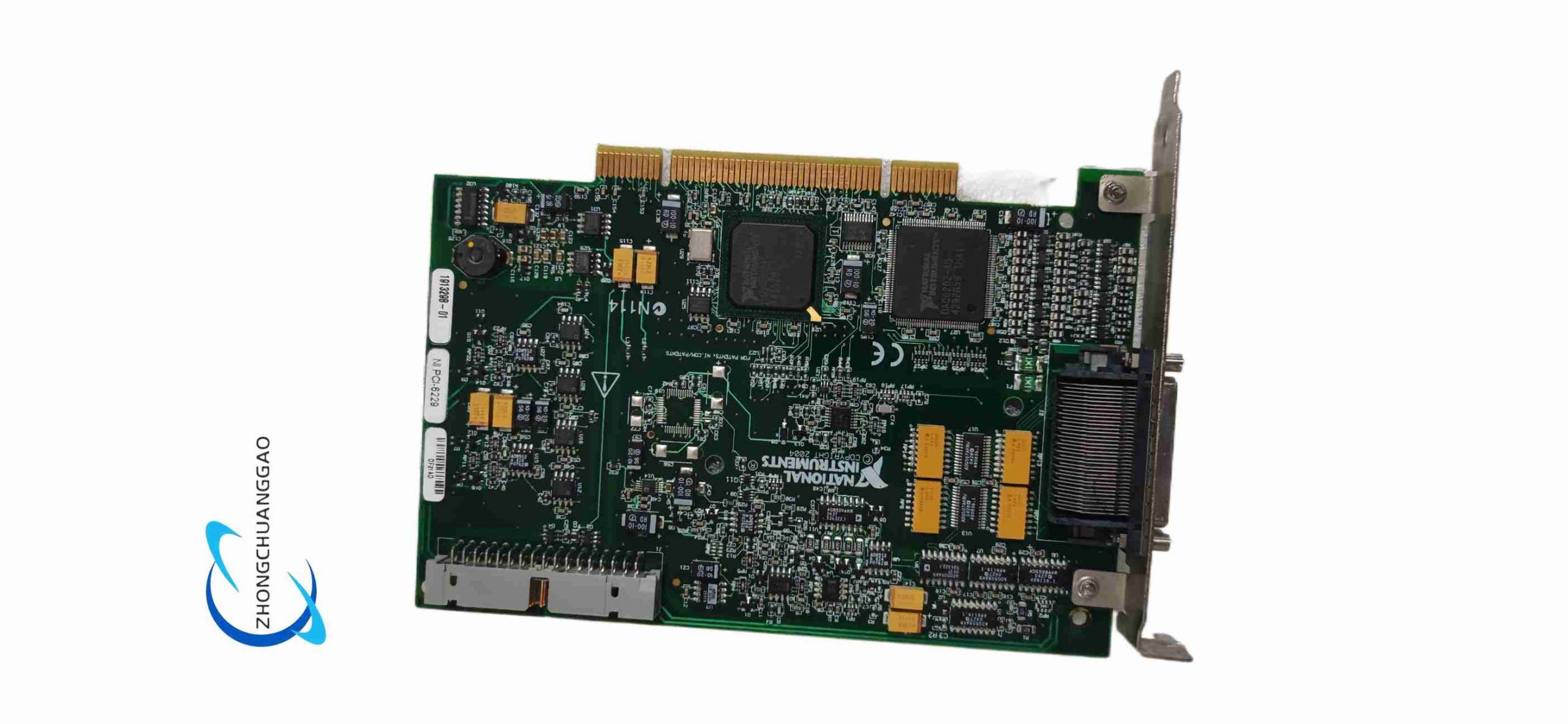

NI PCI-6229

Analog Input

• Channel Configuration: 32 single-ended input channels or 16 true differential input channels, software dynamic switching
• ADC Resolution: 16-bit successive approximation analog-to-digital converter
• Maximum Single-channel Sampling Rate: 250 kS/s
• Programmable Input Voltage Ranges: ±0.1 V, ±0.2 V, ±1 V, ±2 V, ±5 V, ±10 V
• Input Bandwidth: 1.5 MHz full power bandwidth per channel
• Common Mode Rejection Ratio: >100 dB at 50 Hz industrial interference frequency

Analog Output

• Channel Count: 4 independent single-ended analog output channels
• DAC Resolution: 16-bit digital-to-analog converter
• Maximum Update Rate: 833 kS/s total aggregate output sampling rate
• Fixed Output Voltage Range: ±10 V
• Built-in full short-circuit protection with automatic current limiting circuit

Digital I/O Interface

• Total Digital Channels: 48 bidirectional TTL digital I/O lines divided into six independent 8-bit ports
• Logic Standard: 5 V TTL compatible, high-level threshold 2.0 V, low-level threshold 0.8 V
• Single Channel Drive Capacity: Maximum 2.4 mA sink and source current
• Programmable digital input filter for suppressing industrial contact bounce noise

Counter & Timer Subsystem

• Counter Quantity: Two independent 32-bit high-resolution event counters
• Maximum Counter Input Frequency: 80 MHz
• Supported Working Modes: Edge counting, frequency measurement, pulse width capture, quadrature encoder position tracking, PWM pulse signal generation

Timing Synchronization System

• Internal Reference Clock Accuracy: ±50 ppm under 25 ℃ standard working temperature
• Multi-board Synchronization: RTSI bus hardware interface supports synchronous clock and trigger signal transmission among multiple M Series DAQ boards

6.4 Functional Features

1. Flexible dual input mode switching, supporting high-density single-ended multi-channel measurement and low-noise differential signal collection for weak sensors
2. 32-bit ultra-long counter architecture, eliminating frequent counter overflow interrupts during long-time continuous pulse acquisition
3. Four-channel analog output design realizes multi-variable closed-loop control for multi-actuator industrial equipment
4. 48-channel mass digital I/O ports meet large-scale relay matrix control, multi-point limit switch detection and parallel digital communication requirements
5. Onboard programmable digital filter suppresses mechanical switch bounce and industrial electromagnetic interference noise on digital input signals
6. Independent per-channel analog input gain configuration allows mixed deployment of thermocouples, strain gauges, voltage transmitters in one test system
7. Complete NI-DAQmx driver compatibility, supporting LabVIEW, Python, MATLAB, C#, C++ mainstream development environments
8. Built-in automatic self-calibration function, real-time correcting gain drift and offset error caused by ambient temperature changes

6.5 Application Scenarios

• Industrial assembly line multi-point temperature, pressure, flow sensor real-time monitoring
• Closed-loop multi-axis motion control system analog feedback signal acquisition and analog actuator drive
• Material tensile, compression mechanical performance laboratory multi-sensor synchronous testing
• Battery pack charge-discharge cycle voltage current multi-channel synchronous measurement
• Automatic test equipment for low-speed analog electronic circuit verification
• University mechanical, electrical engineering laboratory general data acquisition teaching platform
• Building environmental monitoring multi-channel temperature and humidity transmitter signal collection

6.6 Performance Parameters (Typical under 25℃)

• Continuous Operating Temperature Range: 0 ℃ ~ 55 ℃
• Storage Temperature Range: -40 ℃ ~ 85 ℃
• Peak Total Power Consumption: 17.6 W
• Minimum Warm-up Time to Reach Full Rated Accuracy: 10 minutes continuous power supply
• Maximum Continuous Uninterrupted Working Time: 720 hours without accuracy attenuation

6.7 Material & Construction Composition

• Main Circuit Substrate: Multi-layer FR-4 fire-resistant printed circuit board, independent analog ground, digital ground and power supply ground three-layer separated ground plane to isolate digital switching noise
• Core Processing Chips: 16-bit multi-channel successive approximation ADC, four-channel 16-bit DAC, low-noise JFET input operational amplifiers, Xilinx dedicated timing control FPGA, dual 32-bit counter logic integrated circuits
• Front Panel Connector: Multi-pin metal shielded D-SUB connector with built-in EMI rubber sealing gasket for all analog, digital and counter wiring terminals
• Mechanical Fixing Components: Cold rolled steel full-height PCI mounting bracket with zinc anti-corrosion electroplating surface treatment
• Passive Electronic Components: Low temperature drift metal film precision resistors, low noise polypropylene signal capacitors, ferrite magnetic bead EMI suppression components for all input and output signal traces

6.8 Structural Characteristics

• Form Factor: Standard full-length 32-bit 33 MHz PCI bus expansion board
• Physical Overall Dimensions: Width 10.6 cm, Length 17.5 cm
• PCB Regional Isolation Design: Analog front-end circuit area and digital FPGA, counter logic area separated by continuous copper ground guard ring to avoid signal crosstalk
• Thermal Dissipation Layout: High-density copper thermal vias laid under FPGA, ADC and DAC high-power chips for passive convection heat dissipation without additional cooling fans
• EMI Shielding Layout: Closed copper ground shielding layer around all analog signal traces to block external industrial electromagnetic interference signal coupling

6.9 Working Principle

1. Analog Input Signal Conditioning Stage: External sensor analog voltage signal enters per-channel independent buffer amplifier; software controlled programmable gain circuit amplifies weak sensor signals to match ADC full-scale range; single-ended/differential multiplexer switches signal transmission path according to user configuration
2. 16-bit Successive Approximation ADC Conversion: Multiplexed analog voltage signal is sampled and held; successive approximation ADC completes binary search analog-to-digital conversion and outputs 16-bit binary digital data; converted data is temporarily stored in onboard FIFO buffer memory
3. FPGA Timing and Digital I/O Control Logic: Onboard dedicated FPGA generates programmable sample clock and trigger signals for analog input and output channels; FPGA completes digital port direction switching, digital input filter noise suppression and digital signal transmission control to PCI bus
4. 32-bit Counter Timer Operation: External pulse, quadrature encoder signals enter counter input buffer circuits; 32-bit counter logic accumulates pulse counts, measures input signal frequency and pulse width, and outputs variable frequency digital pulse signals synchronized with board master clock
5. Four-channel Analog Output DAC Conversion: Host computer transmits target analog voltage digital data to onboard DAC FIFO memory; each independent 16-bit DAC converts discrete digital sample values into continuous analog voltage signals to drive external actuators and test fixtures
6. RTSI Multi-board Synchronization Logic: RTSI bus transmits unified master clock and trigger signals between multiple PCI-6229 boards, realizing fully synchronous multi-card multi-channel analog signal collection and analog waveform output

6.10 Installation Requirements

1. Host PC Expansion Slot: Unoccupied full-length 32-bit PCI motherboard expansion slot; computer chassis must be equipped with forced air cooling fan to maintain internal temperature within rated operating range
2. Pre-operation Warm-up Requirement: After powering on the host computer, maintain continuous power supply for at least 10 minutes before executing high-precision DC voltage measurement tasks to eliminate thermal drift errors
3. Mechanical Installation Steps: Remove the metal blank baffle of the chassis expansion slot; align the gold-plated edge connector of the PCI board with the motherboard PCI slot; fully insert the board until the connector is completely seated; tighten the fixing screw of the steel mounting bracket to the chassis frame to eliminate PCB mechanical vibration
4. Signal Wiring Specifications: All analog sensor signal wiring adopts double shielded twisted pair cables; connect the outer shielding layer of the cable to the metal shell of the D-SUB connector to form low-impedance EMI ground reference; separate analog signal cables from high-current power cables and motor drive cables by a minimum distance of 10 cm to avoid electromagnetic interference
5. Software Driver Installation Process: Download and install the latest NI-DAQmx driver software matching the host operating system; launch NI MAX hardware configuration tool, the software automatically identifies PCI-6229 hardware equipment; execute onboard self-calibration program after hardware identification to correct channel gain and offset errors

6.11 Operation Precautions

1. Analog Input Overvoltage Restriction: Do not input analog voltage exceeding ±10 V peak value; excessive voltage will permanently damage front-end buffer amplifier circuits
2. ESD Static Discharge Protection Rule: Wear a grounded anti-static wristband before touching PCB boards, connectors and internal circuit components; electrostatic discharge will permanently damage sensitive ADC, DAC and FPGA chips
3. Chassis Cooling Mandatory Requirement: Do not run PCI-6229 with the side panel of the host computer chassis removed; insufficient air convection will cause serious thermal drift, increased measurement noise and inaccurate voltage reading data
4. Cable Separation Specification: Strictly separate low-level analog sensor cables and high-power industrial wiring to prevent electromagnetic interference from introducing noise into measurement signals
5. Calibration Cycle Regulation: Execute onboard self-calibration every 45 days of continuous operation; complete full external factory calibration with NI certified reference voltage equipment once per calendar year
6. Storage Environment Requirements: When uninstalled from the host computer, store PCI-6229 in the original factory anti-static packaging bag; avoid long-term storage in high humidity, dusty and extreme temperature environments
7. Digital I/O Current Limit Warning: Do not make single digital channel sink or source current exceed 2.4 mA; excessive current will burn out digital output driver circuits permanently
