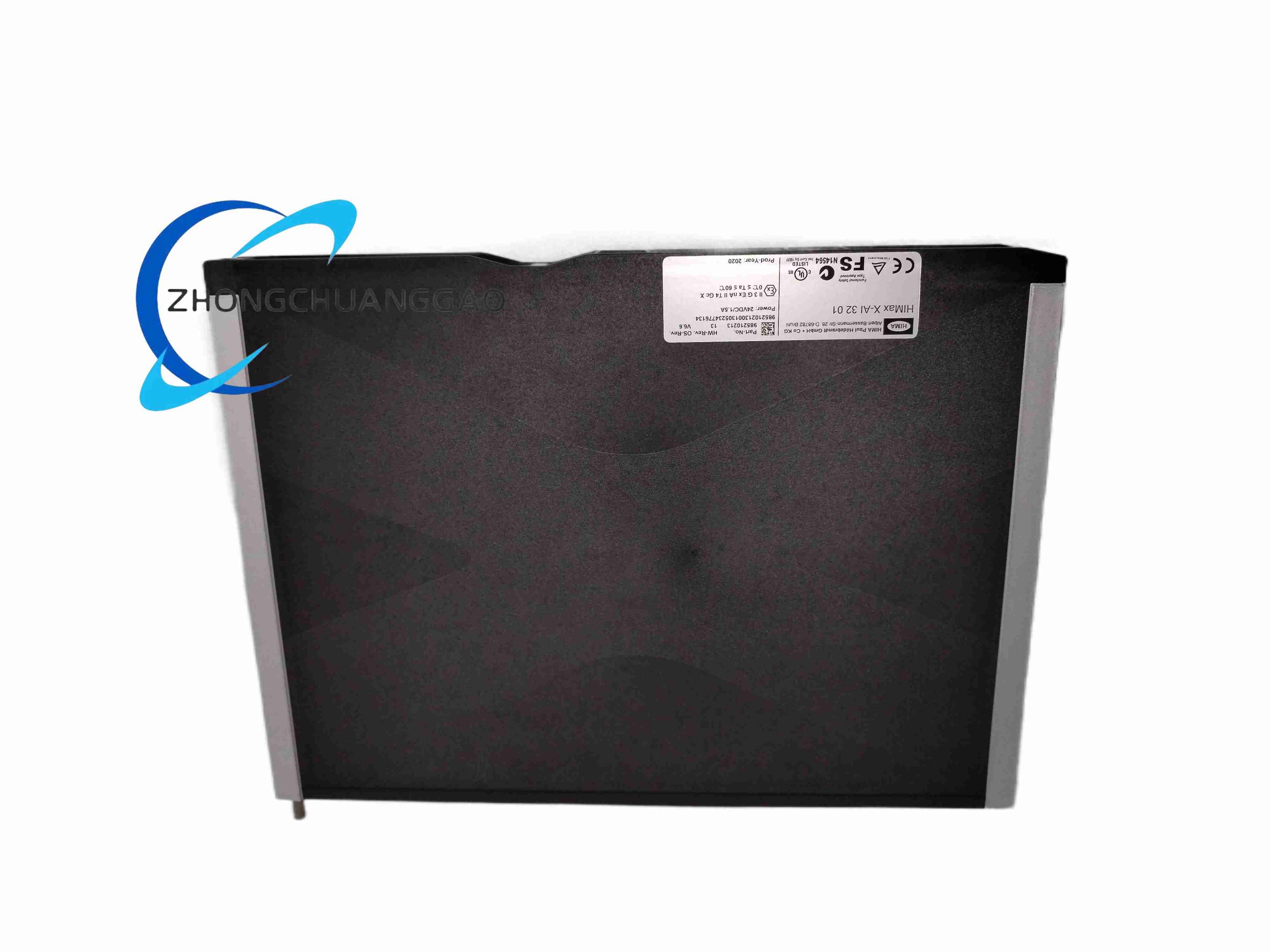

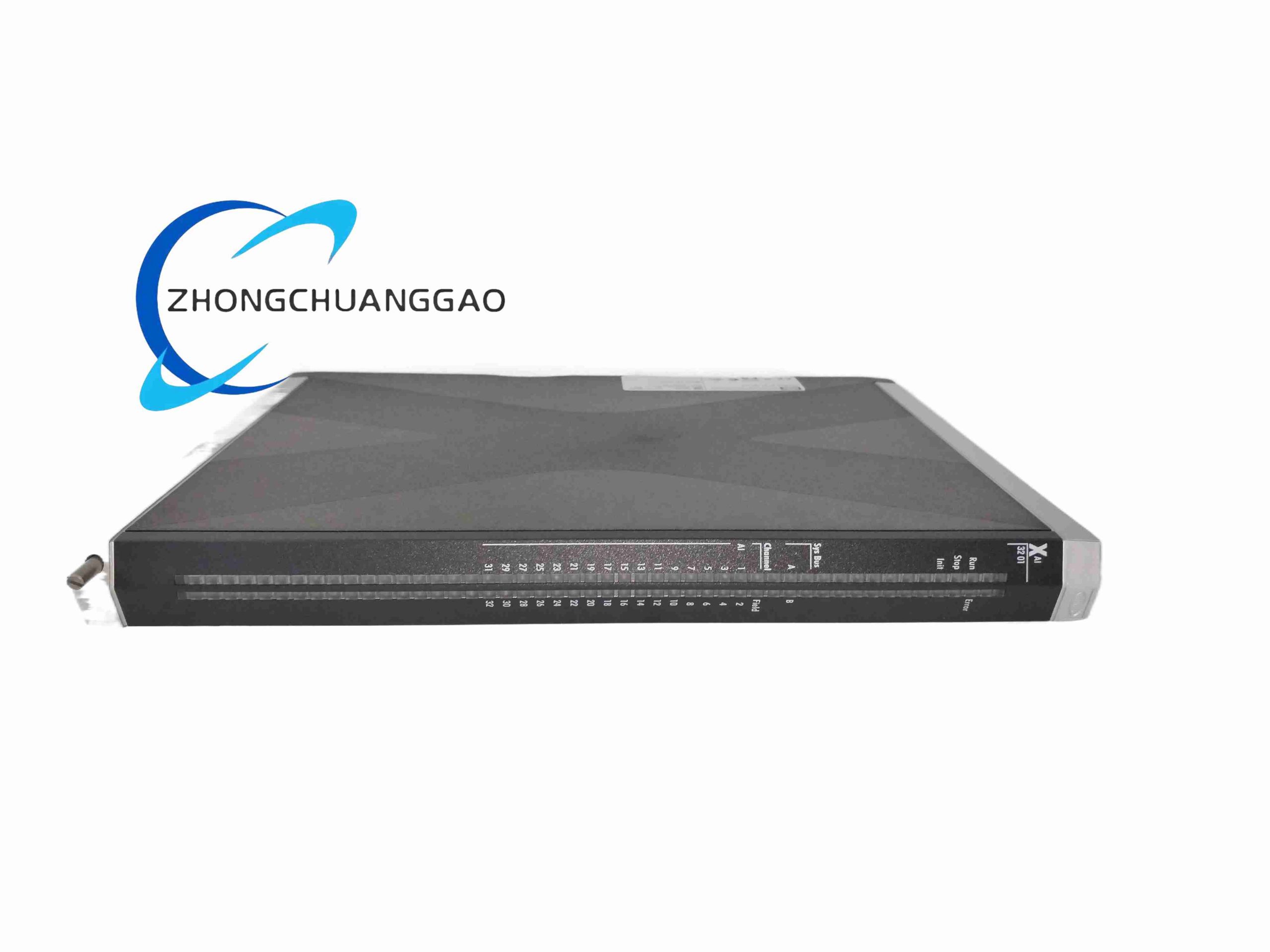

HIMA X-AI3201

Core Technical Specifications

• Analog Input Channel Count: 32 independent isolated 4–20mA input channels
• Supported Signal: Standard 4–20mA analog current, built-in HART communication demodulator
• Functional Safety Grade: SIL3 (IEC 61508 / IEC 61511), PL e (ISO 13849)
• Channel Isolation: Per-channel individual galvanic isolation, inter-channel isolation voltage 1500 VDC
• Sensor Diagnosis: Wire break (≤3.8mA), over-range (≥21mA), short-circuit real-time detection
• Transmitter Power Supply: Module built-in 24VDC loop power supply for each HART transmitter
• ADC Conversion Resolution: 16-bit high precision safety-grade analog-to-digital conversion
• Backplane Bus: HIMA proprietary X-BUS safety redundant backplane bus
• Operating Temperature Range: -40°C ~ +70°C
• Protection Class: IP20 safety cabinet installation
• Module Dimensions: 230mm × 29.2mm × 310mm, net weight 1.4kg
• Certifications: ATEX, IECEx, SIL3, TÜV Rheinland functional safety certification

Functional Features

1. 32 high-density independent safety analog input channels, greatly reduce safety system cabinet width and installation cost
2. Built-in HART demodulation circuit, support real-time reading intelligent transmitter diagnostic data besides 4–20mA process value
3. Each channel 1500V independent galvanic isolation, eliminate cross-channel signal interference and ground loop risk in hazardous plant environment
4. Triple redundant internal signal sampling circuit (SIL3 safety architecture), single internal circuit fault will not cause safety signal loss
5. Comprehensive per-channel sensor fault diagnosis: wire break, short circuit, over-range signal, transmitter power loss automatic identification and fault upload
6. Redundant X-BUS backplane communication, single bus channel failure maintain normal safety signal transmission
7. TÜV certified safety fault self-test cycle ≤1 second, automatic circuit diagnostic scan to detect internal module hidden faults
8. Compatible HIMA H51q, H41m, H61 X-series safety controller platforms, matched XAL-TERM dedicated terminal accessory

Working Principle

1. Module internal safety-grade isolated power supply outputs 24VDC loop power to field 4–20mA HART pressure/temperature/liquid level transmitters.
2. Transmitter process value proportional converted to 4–20mA current signal input to corresponding isolated channel sampling circuit of X-AI3201.
3. Triple redundant 16-bit ADC converts analog current signal to digital safety value; internal safety logic chip executes cross-check of three sampling values to eliminate single-point fault error.
4. Built-in HART demodulator extracts transmitter self-diagnosis data superimposed on 4–20mA DC signal, upload process value and equipment health data simultaneously to HIMA safety controller via redundant X-BUS.
5. Real-time channel diagnosis circuit judges current signal out of 3.8–21mA normal range as sensor fault, mark safety fault bit and trigger safety interlock logic according to system configuration.

   Structure & Material Composition

   • Module Main Housing: Thick aluminum alloy extrusion shell, black anti-corrosion electrophoretic coating, integrated X-BUS backplane locking mechanism
   • Safety Circuit PCB: Double redundant FR4 safety circuit board, per-channel independent isolation transformer and safety sampling chip
   • Terminal Connection Matching: Dedicated XAL-TERM spring terminal accessory for 32-channel signal wiring centralized arrangement
   • Internal Safety Components: Automotive-grade wide-temperature operational amplifiers, fault-detectable precision metal film resistors, redundant safety logic FPGA chips
   • Status Indicator Window: High-transmittance polycarbonate front panel window, independent LED indicators for power running, bus communication, channel fault, module self-test alarm
   • Internal Conformal Coating: Flame-retardant silicone conformal coating on all PCB surfaces, anti-corrosion against chemical plant oil mist, moisture and weak acid vapor

   Installation Requirements

   1. Install on standard HIMA X-series redundant backplane rack, vertical DIN rail fixed inside SIL safety control cabinet, maintain minimum 30mm vertical ventilation gap between adjacent safety modules
   2. All field transmitter wiring must adopt shielded twisted pair instrument cable, cable length maximum 200m; cable shield single-end grounded at XAL-TERM terminal side only
   3. Separate 4–20mA safety signal wiring from high-power inverter, motor power cables, routing separation distance ≥40cm to avoid electromagnetic interference breaking SIL signal integrity
   4. Cabinet dedicated safety grounding bus connected to module aluminum housing ground terminal, ground loop resistance strictly controlled ≤0.5Ω to comply with IEC 61511 safety standard
   5. XAL-TERM spring terminal wire insertion depth ≥9mm, ensure full contact of conductor inside spring clip; stranded wires must use ferrule crimp terminals before wiring
   6. Cabinet internal ambient temperature must not exceed +70°C continuously; install independent air cooling system if workshop heat radiation causes cabinet temperature rise

   Application Scenarios

   Petrochemical refinery SIS safety interlock systems, natural gas processing plant high-density process signal collection, chemical reactor pressure/temperature safety monitoring, offshore platform hazardous zone safety instrument system, power plant boiler furnace safety interlock, ammonia synthesis plant liquid level & pressure safety detection.

   Operation & Maintenance Precautions

   1. Strictly cut off redundant X-BUS backplane power supply before disassembling module or modifying XAL-TERM wiring; live plugging will damage triple redundant safety circuit and invalidate SIL3 certification
   2. Do not replace internal PCB components with non-TÜV certified spare parts; unauthorized component replacement cancels functional safety certification and causes single-point safety failure risk
   3. Perform full module self-test inspection every 12 months as per SIL maintenance specification; record all channel diagnosis results for safety audit documentation
   4. If frequent wire-break fault alarms occur, first check aging or damaged shielding layer of field transmitter cables, loose XAL-TERM terminals, or transmitter internal power failure
   5. Avoid installation environment containing volatile corrosive sulfur, chloride gas; corrosive medium will erode aluminum shell and PCB isolation transformers over long-term operation
   6. Long-term plant shutdown storage: Remove module from backplane rack, place with desiccant inside sealed anti-static packaging, store at temperature range -20°C ~ +60°C
