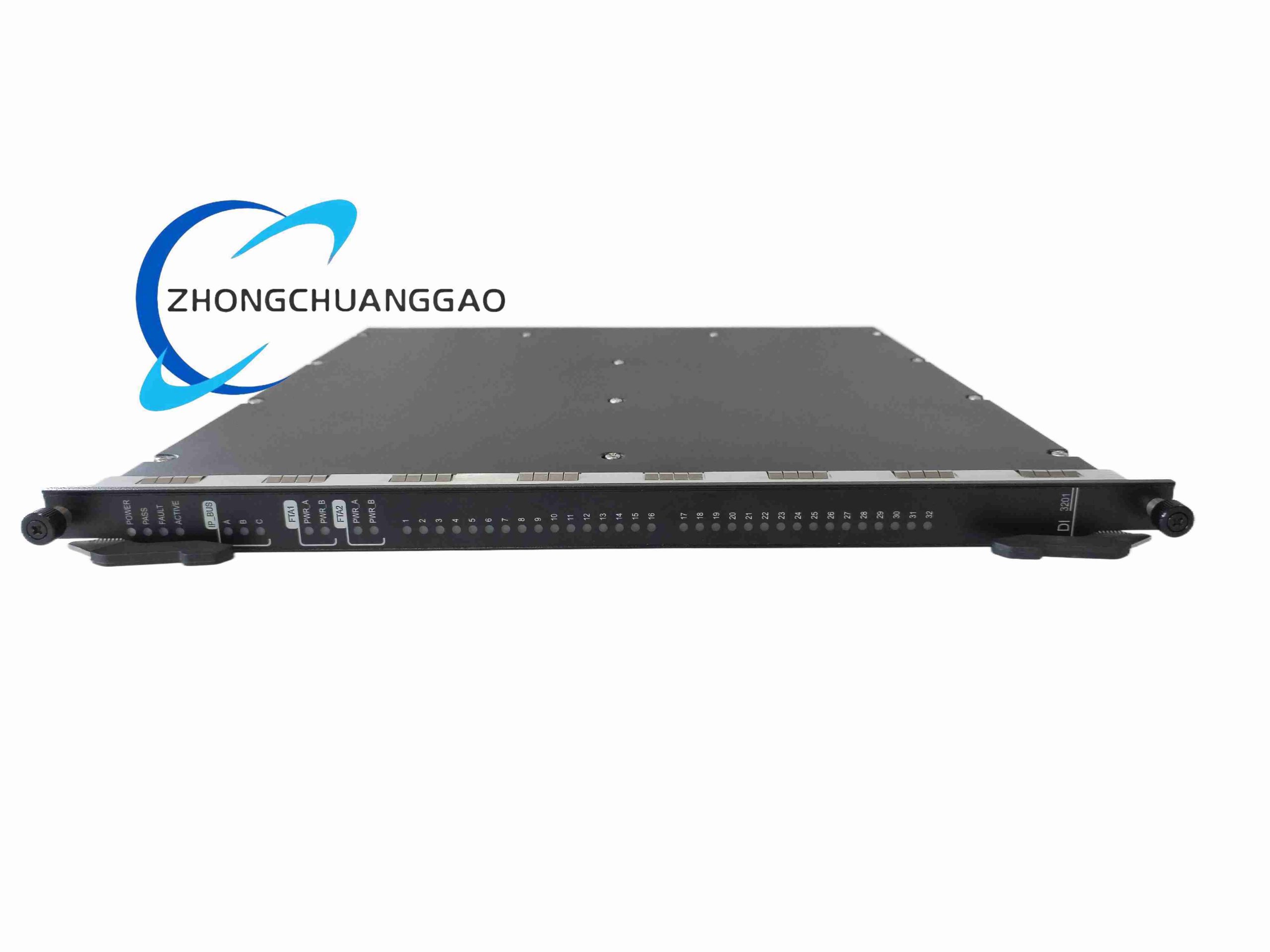

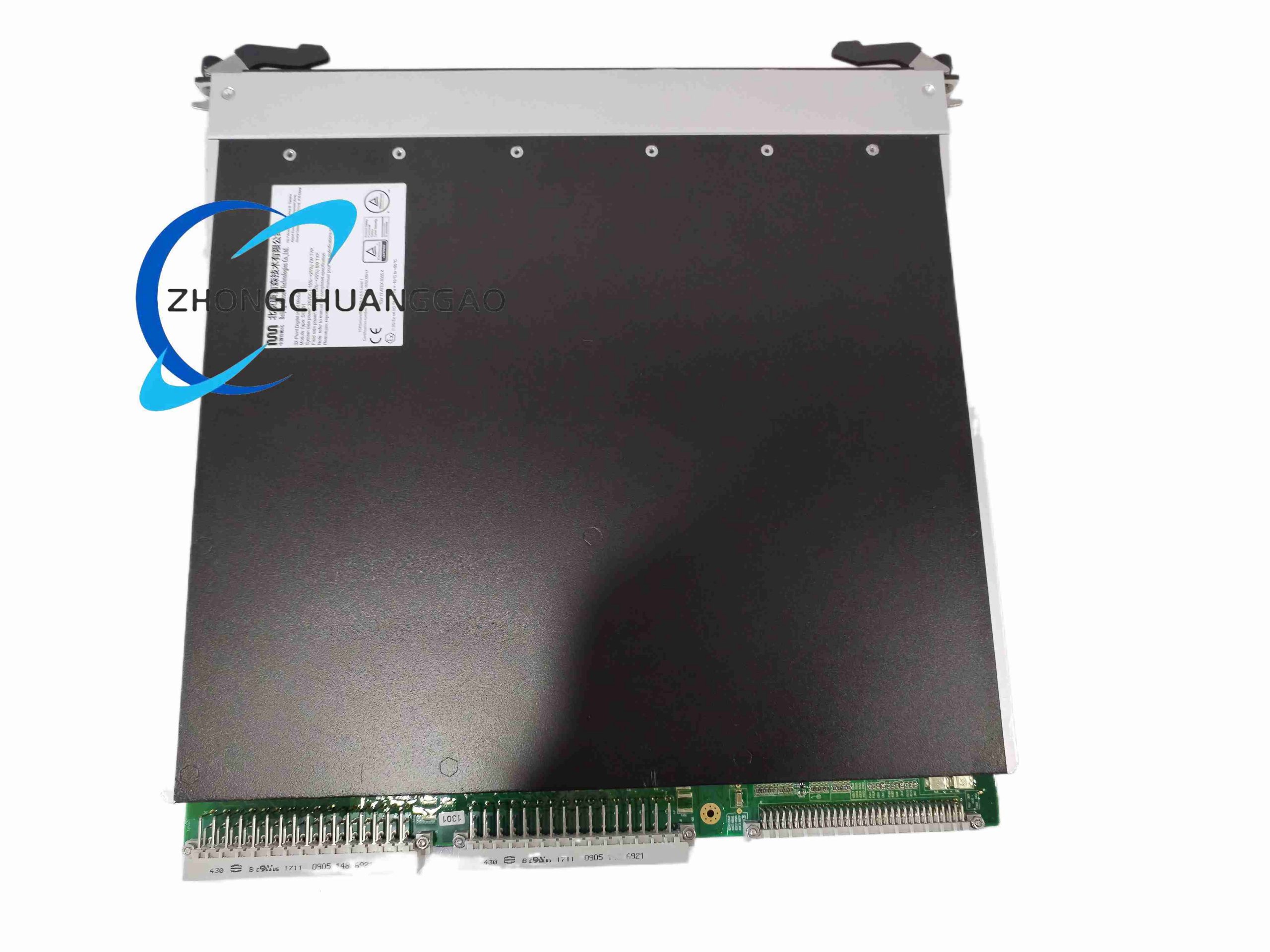

HIAM X-DI3201

Technical Specifications

• Digital Input Channel Count: 32 independent galvanically isolated DI channels
• Input Signal Level Standard: 24 VDC sinking type industrial dry contact input
• Channel Isolation: 500 VDC optoelectronic isolation per single input channel
• Field Bus Interface: Profibus-DP standard industrial field bus, 12 Mbps maximum communication speed
• Power Supply: 24 VDC industrial control power, 19 VDC ~ 30 VDC input tolerance
• Operating Temperature: -10 °C ~ +55 °C standard factory cabinet range
• EMC Standard: IEC 61000-6-2 heavy industrial electromagnetic interference immunity

Functional Features

1. Independent single-channel optocoupler isolation eliminates cross-channel signal interference
2. Channel status real-time LED indication for on-site fast wiring fault inspection
3. Hardware input filter with programmable 0.1 ms ~ 20 ms debounce time parameter
4. Profibus-DP cyclic data transmission of all 32 channel switch status bits
5. Overvoltage reverse polarity protection for every individual input channel
6. Station address hardware dial switch setting without software configuration tool

Performance Parameters

• Input signal detection threshold: ≥ 15 VDC logic high, ≤ 5 VDC logic low
• Single channel input leakage current: ≤ 0.1 mA logic off state
• Channel response delay: ≤ 0.3 ms with minimum 0.1 ms filter setting
• Bus data update cycle: ≤ 4 ms full 32-channel status refresh
• Module rated power consumption: 6.2 W maximum full channel energized state

Material Composition

• DIN rail housing: Flame-retardant PA66 plastic UL94-V0 fire classification
• Circuit substrate: FR4 glass fiber PCB with anti-flux residue protective coating
• Isolation elements: High-speed industrial optocoupler chips with integrated transient suppression
• Wiring terminals: Spring clamp quick connection copper alloy terminals

Structural Characteristics

• Standard 35 mm DIN top-hat rail mounting module, 45 mm wide double module width
• Front panel arranged 32 LED channel indicators, Profibus bus status LED, address dial switches
• Two separate spring terminal blocks split left/right for 16 DI channels each, clear wiring grouping
• Internal heat dissipation rib structure to reduce operating temperature rise under full load

Working Principle

Advantage Highlights

• 32 high-density digital input channels minimize cabinet installation space occupation
• Per-channel independent isolation avoids single channel fault affecting adjacent signal circuits
• Spring clamp terminal design enables fast field wiring without screwdriver tightening
• Hardware dial address setting eliminates software commissioning tool requirement
• Heavy industrial EMC design operates stably near frequency converters and high-power motors

Applicable Industries

Installation Requirements

1. Secure module to standard 35 mm DIN rail inside IP54 industrial control cabinet
2. Separate Profibus shielded bus cable from high-power AC motor drive wiring with 10 cm clearance
3. Set station address dial switch before powering on the module to avoid bus address conflict
4. Connect module power ground terminal to cabinet protective earth copper bar

Operation Precautions

1. Do not connect AC voltage signals to 24 VDC digital input channels, permanent channel chip damage occurs
2. Adjust input debounce filter time according to field switch mechanical bounce characteristics
3. Avoid installing module adjacent to high heat generating servo drive power modules
4. Power off module before modifying station address dial switch setting
5. Keep cabinet internal ambient humidity below 90% RH non-condensing continuously
