Product Short Description

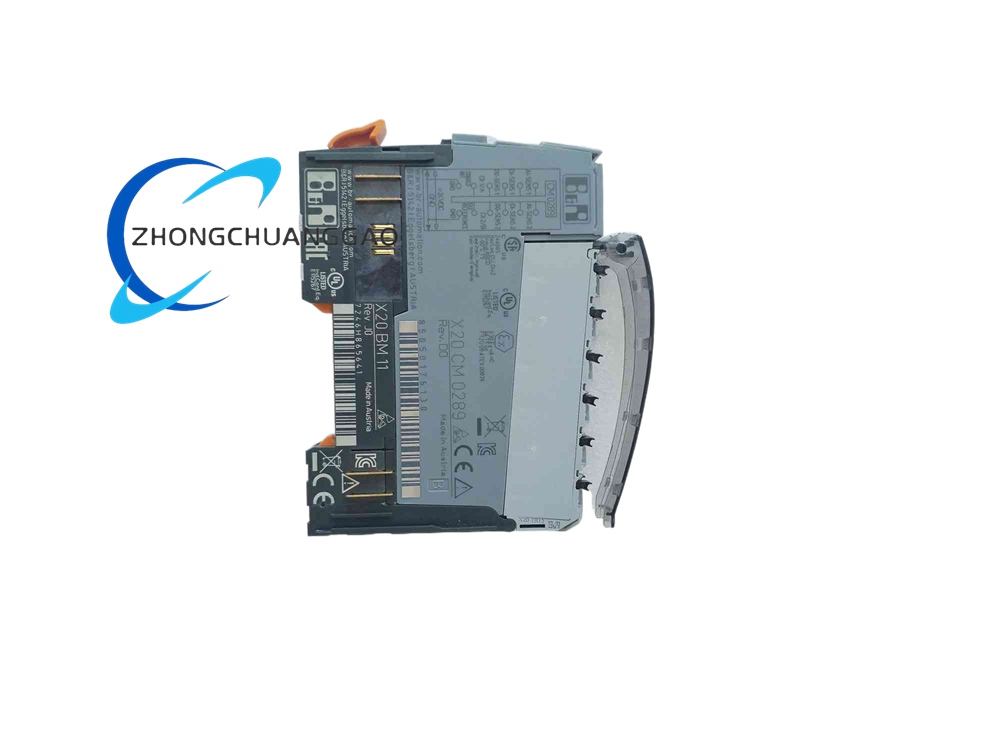

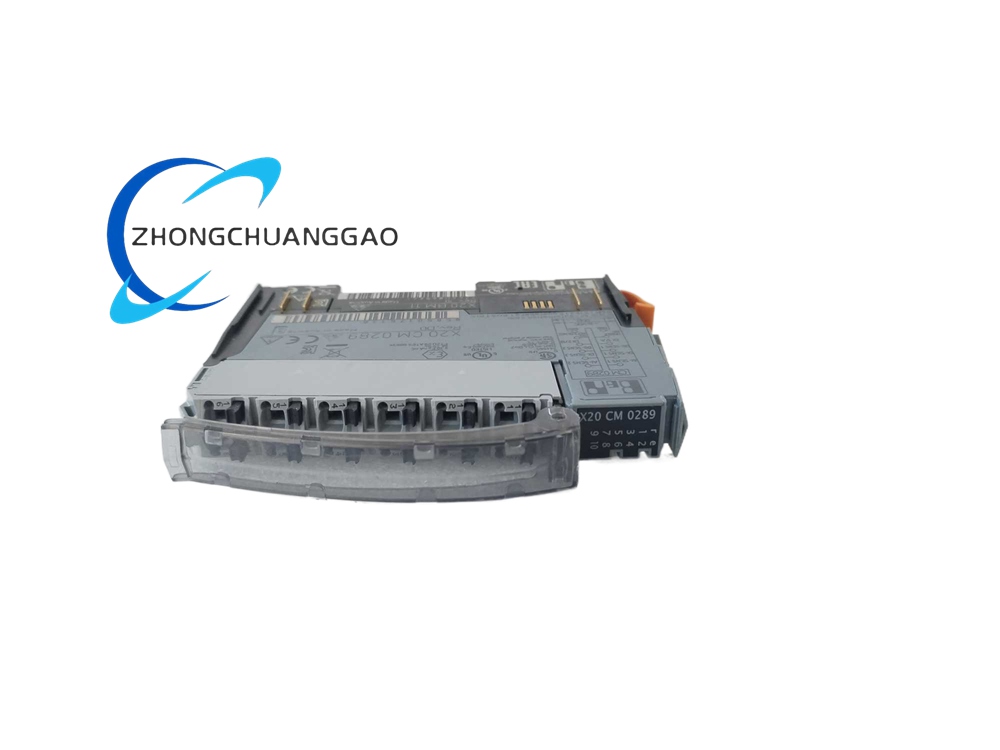

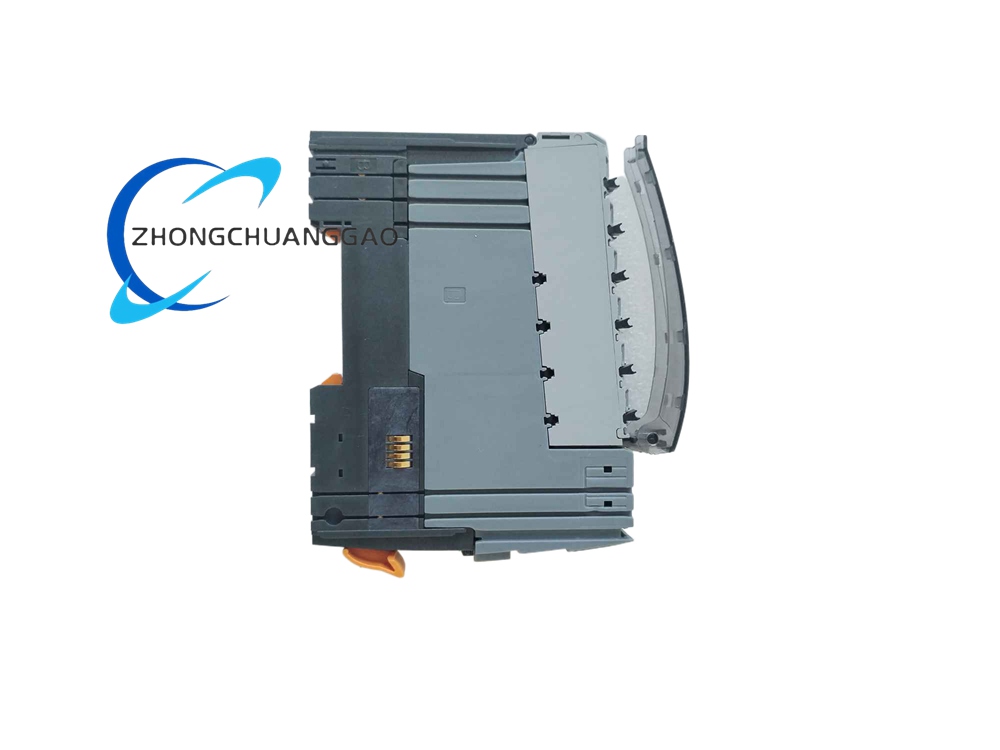

Product Overview: X20CM0289 is dedicated counter module for B&R X20 automation system, designed to process encoder signals and high-speed pulse measurement for motion feedback.
Technical Specifications:
- Counter Channels: 2 independent counter channels
Description
- Supported Signals: A/B incremental encoder, pulse/direction signals
- Maximum Input Frequency: 4 MHz
- Bus Connection: X2X Link
Functional Features:
- Quadrature signal decoding
- Hardware position latch function
- Zero marker signal processing
- Software configurable counting modes
Application Scenarios: Position measurement, speed feedback for servo axes, cutting length control, winding machinery.
Performance Parameters:
- Count range: 32-bit signed integer
- Operating temperature: -20 °C ~ +65 °C
Material Composition: Flame retardant plastic enclosure, high-speed signal processing PCB, spring terminal blocks.
Structural Characteristics: Standard X20 modular form factor, DIN rail mounted, stacked with other X20 I/O modules.
Working Principle: Hardware circuit captures encoder pulse signals, calculates position and rotation speed independently, transfers position data to CPU via backplane bus without occupying CPU computing resources.
Installation Requirements: DIN rail installation; separate encoder cables from power cables to reduce interference.
Usage Notes: Use shielded encoder cables; properly connect encoder power supply; avoid exceeding maximum input frequency specification.
