Product Short Description

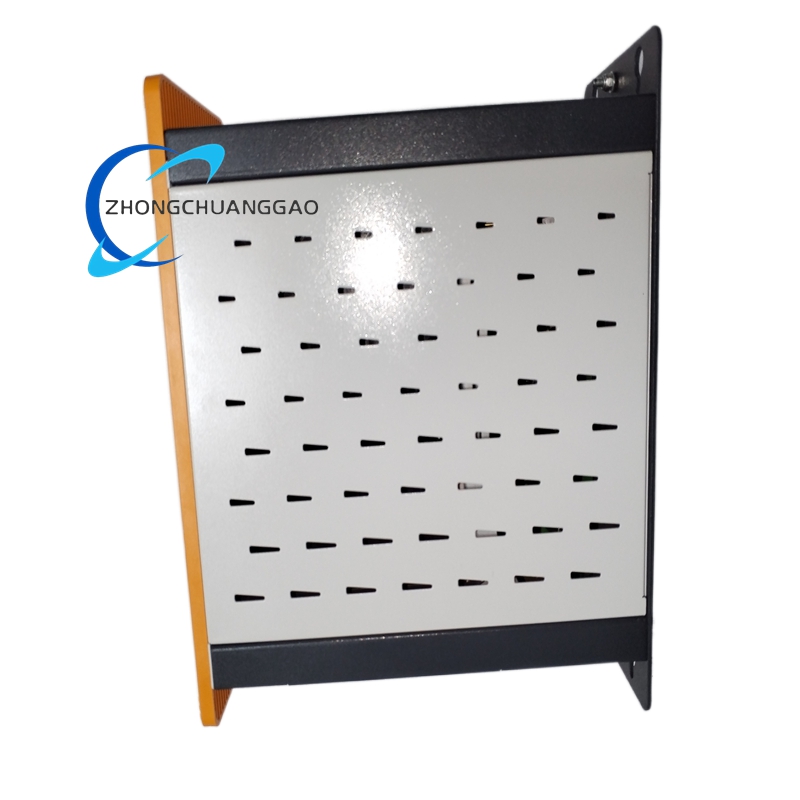

Product Series: B&R 5PC910 Series Modular Industrial Computer
Product Brief: High-performance modular industrial computer for medium and large-scale industrial control systems. It undertakes high-load program operation, multi-station data processing, centralized control and network management tasks, and is the core control host for complex automated production systems.
Description
- Rated Supply Voltage: 24 V DC ±15%
- Operating Temperature: 0 °C ~ +60 °C
- Storage Temperature: -25 °C ~ +75 °C
- Relative Humidity: 10% ~ 88% RH (Non-condensing)
- Network Interface: Dual Gigabit Ethernet
- Expansion Slots: Standard industrial expansion slots for function card expansion
- Serial Interfaces: RS232 / RS485 industrial communication ports
- High-speed operation of large-scale industrial control and motion control programs
- Centralized data processing for multi-channel on-site signals and equipment status
- Dual Ethernet port for network redundancy and segmented network management
- Rich expansion capability to access various functional expansion cards
- Real-time operating system support to ensure control timeliness
- Complete hardware fault self-test and alarm output function
- Total Power Consumption: ≤ 35 W
- Vibration Resistance: 5 Hz ~ 160 Hz, 0.9 g
- Shock Resistance: 18 g peak acceleration
- Data Processing Speed: Support high-concurrency data calculation
- MTBF: ≥ 90000 hours
- Chassis: Thickened aluminum alloy sheet metal with spray treatment
- Mainboard: Industrial server-grade multilayer PCB with anti-static coating
- Core Components: High-performance industrial CPU, industrial memory, high-capacity solid-state drive
- Expansion Slot Components: Metal shielding baffle and gold-plated slot contacts
- Heat Dissipation Parts: High-efficiency aluminum heat sink and shockproof fixing parts
- Standard cabinet-mounted modular structure, compatible with industrial standard cabinet size
- Front panel with status indicator lights, power switch and maintenance interface
- Rear panel arranged with power port, network ports and serial communication ports
- Internal layered layout of mainboard and expansion slots, independent air duct design
- All internal components adopt anti-vibration locking structure
The device obtains stable 24 V DC power and starts the real-time operating system and application programs. It collects data from each control station and field module through communication interfaces, executes complex logic algorithms and motion control calculations. Control commands are distributed to each subordinate unit. Dual network ports realize data interaction with upper monitoring system and remote equipment, and the expansion slots expand additional control and collection functions.
- Strong computing performance, adapt to high-load complex control tasks
- Dual Ethernet redundancy design, improve system network reliability
- Flexible hardware expansion, meet personalized function upgrading demands
- Optimized internal air duct, excellent passive heat dissipation effect
- High stability for long-term 24/7 continuous operation
Large-scale automated production lines, automobile manufacturing, semiconductor equipment, metallurgy, chemical process control, intelligent factory central control system
- Install in standard 19-inch industrial control cabinet with fixed brackets
- Keep the front and rear air ducts unobstructed, reserve sufficient ventilation space
- All communication cables use industrial shielded cables with standard grounding
- Install away from high-power electrical equipment to reduce electromagnetic interference
- Power wiring adopts dedicated power circuit to avoid voltage fluctuation
- Perform all hardware expansion and wiring operations under power-off state
- Check the fastening state of expansion cards and internal components regularly
- Do not place liquid and sundries near the equipment to prevent short circuit
- Maintain the ventilation of the cabinet where the device is located
- Regularly optimize system programs and back up key data files
