Product Short Description

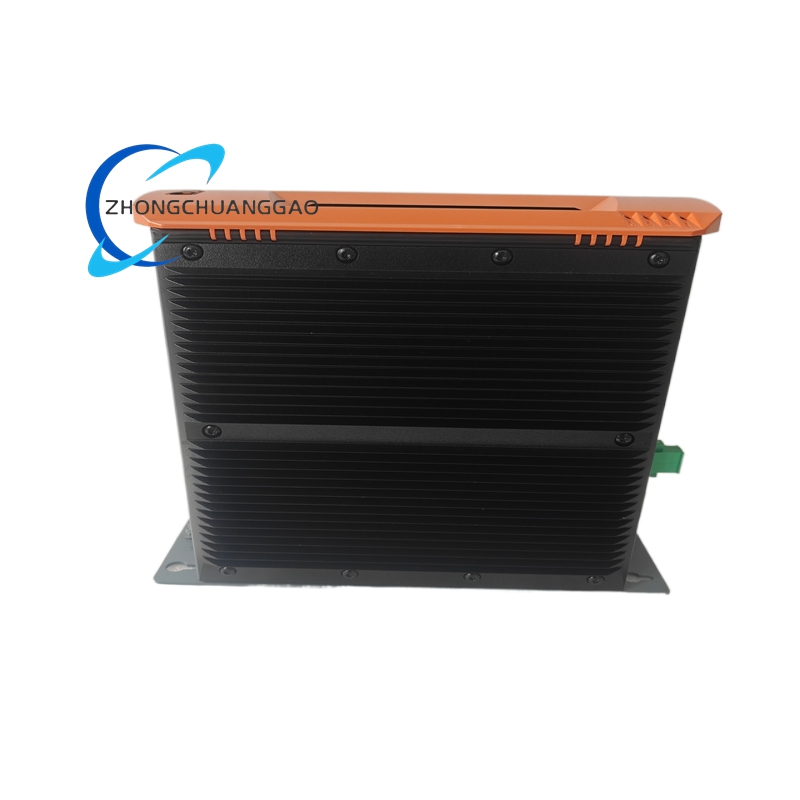

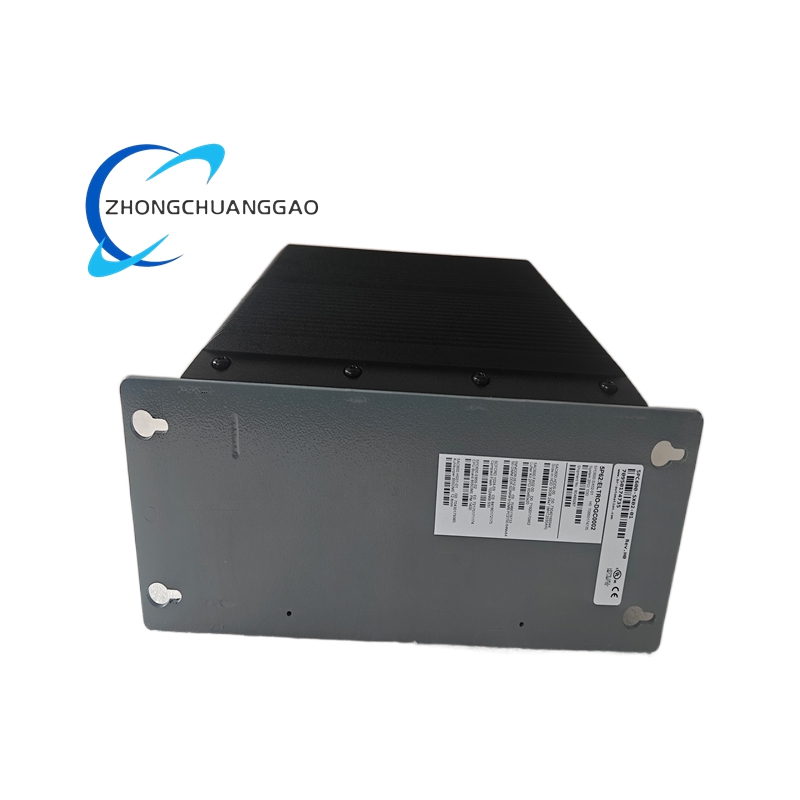

Product Series: B&R 5PC600 Series Compact Industrial Computer
Product Brief: Compact fanless industrial computer developed for industrial automation scenarios. It acts as the core host of control systems, responsible for program operation, data processing, logic control and network communication, and is widely matched with B&R automation software and peripheral modules.
Description
- Supply Voltage: 24 V DC ±10%
- Processor: Industrial embedded high-performance CPU
- Onboard Memory: Standard industrial DDR memory
- Storage Medium: Industrial solid-state drive
- Operating Temperature: 0 °C ~ +60 °C
- Storage Temperature: -20 °C ~ +70 °C
- Relative Humidity: 10% ~ 90% RH (Non-condensing)
- Standard Interfaces: Ethernet, USB, RS232, RS485, Digital I/O
- Execute industrial control programs and complete complex logic and motion calculation
- Real-time data collection, storage and processing of on-site equipment
- Multi-protocol network communication for system interconnection and remote transmission
- Support peripheral device expansion via standard external interfaces
- System self-diagnosis and operating status real-time monitoring
- Fanless design for dust-free and maintenance-free operation
- Total Power Consumption: ≤ 28 W
- Operating Continuous Runtime: 24/7 uninterrupted operation
- Vibration Resistance: 5 Hz ~ 150 Hz, 0.8 g
- Shock Resistance: 15 g peak acceleration
- MTBF: ≥ 95000 hours
- Main Chassis: Extruded aluminum alloy with anodized anti-corrosion treatment
- Mainboard: Industrial-grade high-density multilayer PCB
- Core Hardware: Embedded CPU, industrial memory, solid-state storage chip
- Interface Components: Metal-shielded standard industrial connectors
- Internal Structural Parts: High-rigidity insulating brackets and shockproof gaskets
- Compact integrated chassis structure, DIN rail and panel dual installation support
- Fully enclosed fanless heat dissipation structure, chassis wall as heat conduction medium
- Rear panel centralized layout of all external interfaces with clear marking
- Internal fully fixed component design, anti-loose structure for vibration resistance
- Integrated mounting flanges and standard fixing holes on chassis side
After power-on, the industrial PC loads the embedded operating system and user control programs. It receives data signals from field I/O modules and sensors through bus and communication interfaces, completes data analysis and operation. Corresponding control instructions are generated and sent to actuators. Meanwhile, operating data is uploaded to upper monitoring system via network interfaces to realize full-process equipment control and data management.
- Fanless passive heat dissipation, adapt to dusty industrial workshop environment
- Compact size, flexible installation in control cabinets and equipment casings
- Rich onboard interfaces, meet diversified peripheral expansion demands
- High anti-vibration and anti-interference performance for on-site harsh conditions
- Perfect compatibility with full range of B&R automation software and hardware
Automated production lines, machine tool equipment, pharmaceutical machinery, plastic processing, intelligent logistics, factory monitoring systems
- Support both 35 mm DIN rail mounting and panel embedded installation
- Reserve ≥ 20 mm heat dissipation gap around the chassis
- Use shielded cables for communication and signal wiring, single-point grounding for shielding layer
- Install in well-ventilated area, away from direct heat radiation and strong vibration sources
- Connect 24 V DC power supply strictly in accordance with polarity requirements
- Cut off power supply before plugging and unplugging external devices and maintenance
- Do not block the chassis heat dissipation surfaces during installation and use
- Regularly back up system data and control programs to prevent data loss
- Avoid using in environment with conductive dust, flammable and explosive substances
- Do not disassemble the sealed chassis without professional technical permission
