Product Short Description

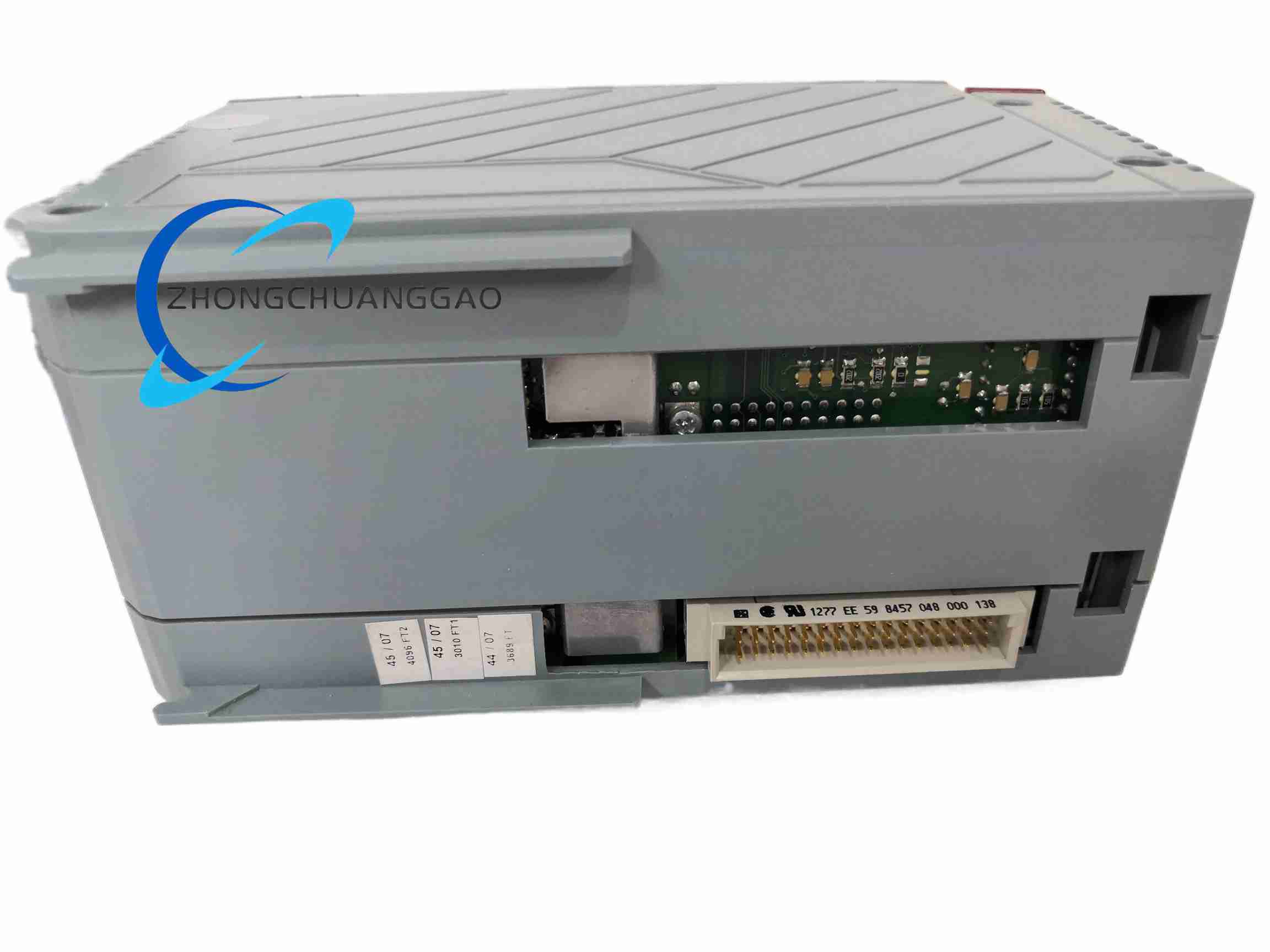

Product Name: Programmable I/O Processor
Product Introduction: A freely programmable I/O module with integrated CPU section, three interfaces, and digital/analog I/O. Can be used as either a programmable I/O processor or as a CPU (slots 3+4).
Technical Specifications:
-
Memory: 850 KB SRAM, 1.5 MB FlashPROM
Description
-
Interfaces: 1 × RS232, 1 × CAN (electrically isolated, network-capable)
-
Digital Inputs: Max. 12, 24 VDC, sink type
-
Digital Outputs: Max. 12, 24 VDC, 0.1 A
-
Analog Inputs: 6 × ±10 V, 14-bit resolution
-
Analog Outputs: 6 × ±10 V, 12-bit resolution
-
Special I/O: 2 outputs with +10 V and -10 V per terminal block
Functional Features:
-
Interrupt-capable digital inputs/outputs
-
Fast analog inputs operable in FIFO mode and comparator mode
-
Local RISC processor core with local system RAM
-
DPR area (“PPdpr” library) for CPU communication
-
Field terminals: 3 × TB170 (to be ordered separately)
Application Scenarios: High-speed signal acquisition, interrupt-driven I/O tasks, CAN bus integration, visualization via bus adapter AC961.
Working Modes:
-
Default: I/O processor to relieve the main CPU
-
Slots 3+4: Automatic CPU mode
