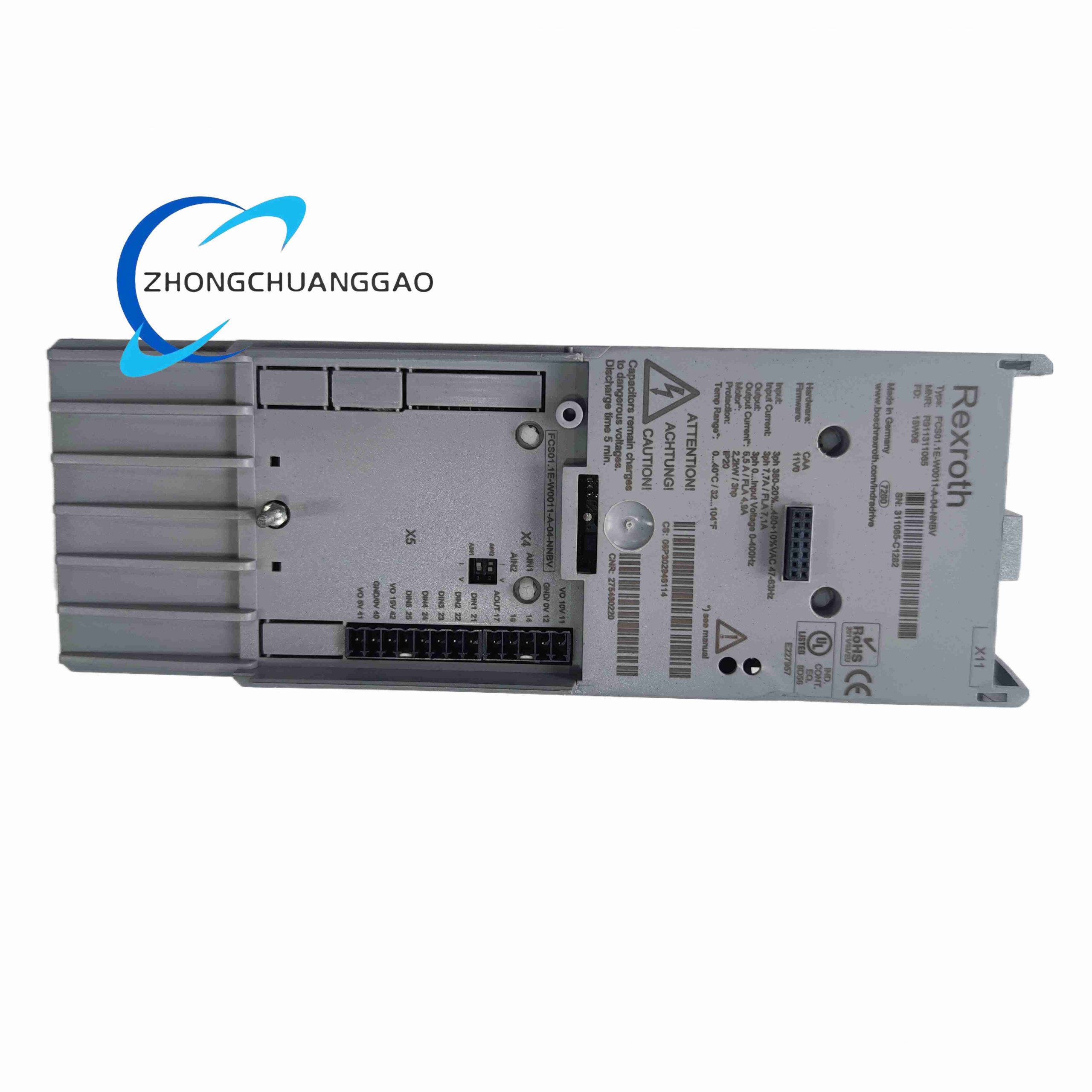

Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065

Description

Product Brief Introduction

FCS01.1E-W0011-A-04-NNBV (R911311065) is a compact integrated safety motion control processor module manufactured by Bosch Rexroth for IndraDrive servo drive systems and IndraControl industrial automation platforms. It executes safety motion limit logic, safe torque off (STO) signal management, axis position monitoring and cross-axis safety interlock calculation, serving as dedicated safety core for multi-axis servo motion production machinery.

Technical Specifications & Core Performance Parameters

• Processor Core: Rexroth dedicated dual-redundant safety motion processing core
• Safety Certification Grade: PL d / SIL2 IEC 61508, IEC 61131-3, EN 60204-1
• Supported Axis Quantity: Up to 4 synchronized servo axes safety monitoring per module
• Communication Interfaces: Internal IndraDrive backplane bus, safe digital I/O terminal interface
• Safety Motion Functions: Safe Torque Off (STO), Safe Speed Monitor (SSM), Safe Position Limit (SPL)
• Backplane Operating Power: 24VDC ±10V DC supply, maximum power consumption 3.8W
• Physical Dimension: 135mm (Length) × 80mm (Width) × 40mm (Depth)
• Net Weight: 0.36kg
• Continuous Operating Temperature Range: 0℃ ~ +55℃ machine tool electrical cabinet
• EMC Compliance: EN 61000-6-2 industrial heavy interference environment standard

Material Composition

• Module Shell: Die-cast aluminum alloy electromagnetic shielding housing with passivation anti-corrosion treatment
• Control PCB: Multi-layer FR4 high-temperature flame-retardant circuit board with full copper shielding layers
• Safety Logic Chip: Dual redundant industrial safety ASIC dedicated for motion monitoring
• Wiring Connector: Gold-plated IP20 spring-clamp terminal blocks for safety signal wiring

Structural Features

• Compact slide-in subrack modular design, compatible with Rexroth IndraControl CS01 rack system
• Front panel integrated multi-status LED array: power supply indicator, safety running light, axis fault alarm LED, bus communication status LED
• Integrated full aluminum shielding shell suppresses servo drive high-frequency EMI interference in machine tool cabinet environments
• Separated internal circuit partitions for safety logic processing, servo bus communication and discrete safety signal terminals

Working Principle

1. Real-time axis position, speed and torque feedback data transmitted from IndraDrive servo drives via internal high-speed backplane bus.
2. Dual redundant safety ASIC cores synchronously execute cross-verified safety motion limit calculation logic.
3. When axis movement exceeds pre-configured safe speed or position thresholds, module triggers STO safety torque cut-off signal to corresponding servo drives instantly.
4. External safety discrete signals (emergency stop, safety door switch) are sampled via front terminal interface and integrated into overall machine safety interlock logic.
5. All safety violation events, axis faults and communication errors are stored to on-board non-volatile memory for equipment failure traceability.

Function Features

1. Dual redundant safety processing architecture achieves PL d / SIL2 safety rating for automated machinery multi-axis motion control.
2. Native support for core safe motion functions: STO, SSM and SPL without external separate safety relay hardware.
3. Centralized safety monitoring for maximum 4 synchronized servo axes reduces cabinet safety control hardware quantity.
4. Real-time bidirectional data exchange with IndraDrive servo system for closed-loop safety motion supervision.
5. Permanent fault log storage retains safety trigger records for equipment maintenance and machinery safety audit.

Advantage Highlights

1. Original Bosch Rexroth matching hardware with zero compatibility deviation for full IndraDrive servo series.
2. Integrated aluminum shielding housing adapts to heavy EMI workshop environments of CNC machine tools, packaging production lines and robotic equipment.
3. Compact form factor occupies minimal rack space compared to split safety relay and motion monitoring hardware.
4. Dual-core cross-verification eliminates single-point failure risk of machinery safety motion supervision.
5. Unified spare part number R911311065 for global asset procurement and inventory archive management.

Applicable Industries

CNC precision machining equipment, automated packaging production lines, multi-axis robotic handling machinery, printing press servo control systems, textile automated weaving machinery, lithium battery manufacturing automation lines.

Installation Requirements

1. Slide module horizontally into dedicated FCS slot of Rexroth IndraControl CS01 standard subrack, lock side mounting screw securely.
2. Servo backplane communication cables use factory-specified shielded bus cable, shield double-ended grounded at cabinet earth bar.
3. Separate safety signal wiring and servo motor power cables with minimum 15cm routing clearance to avoid high-frequency interference.
4. Reserve vertical ventilation gap of minimum 25mm between adjacent rack modules for passive heat dissipation.
5. Machine cabinet cooling system shall maintain internal ambient temperature below +55℃ continuously during production operation.

Usage Precautions

1. Hot-swap of module during machine automatic running cycle will trigger full-axis STO safety shutdown and unplanned production halt.
2. Input signal voltage exceeding 30VDC will damage front-end safety signal sampling circuit permanently.
3. After module replacement, complete full-axis safe motion limit function test before resuming automated production.
4. Communication bus terminals must be cleaned with anhydrous alcohol every 6 months to remove conductive dust accumulation.
5. Do not install module adjacent to servo drive power unit heat sinks to avoid excessive ambient operating temperature.
