Product Short Description
Product Name: High-resolution Surface Profiling / Interferometric Measurement Module
Overview:

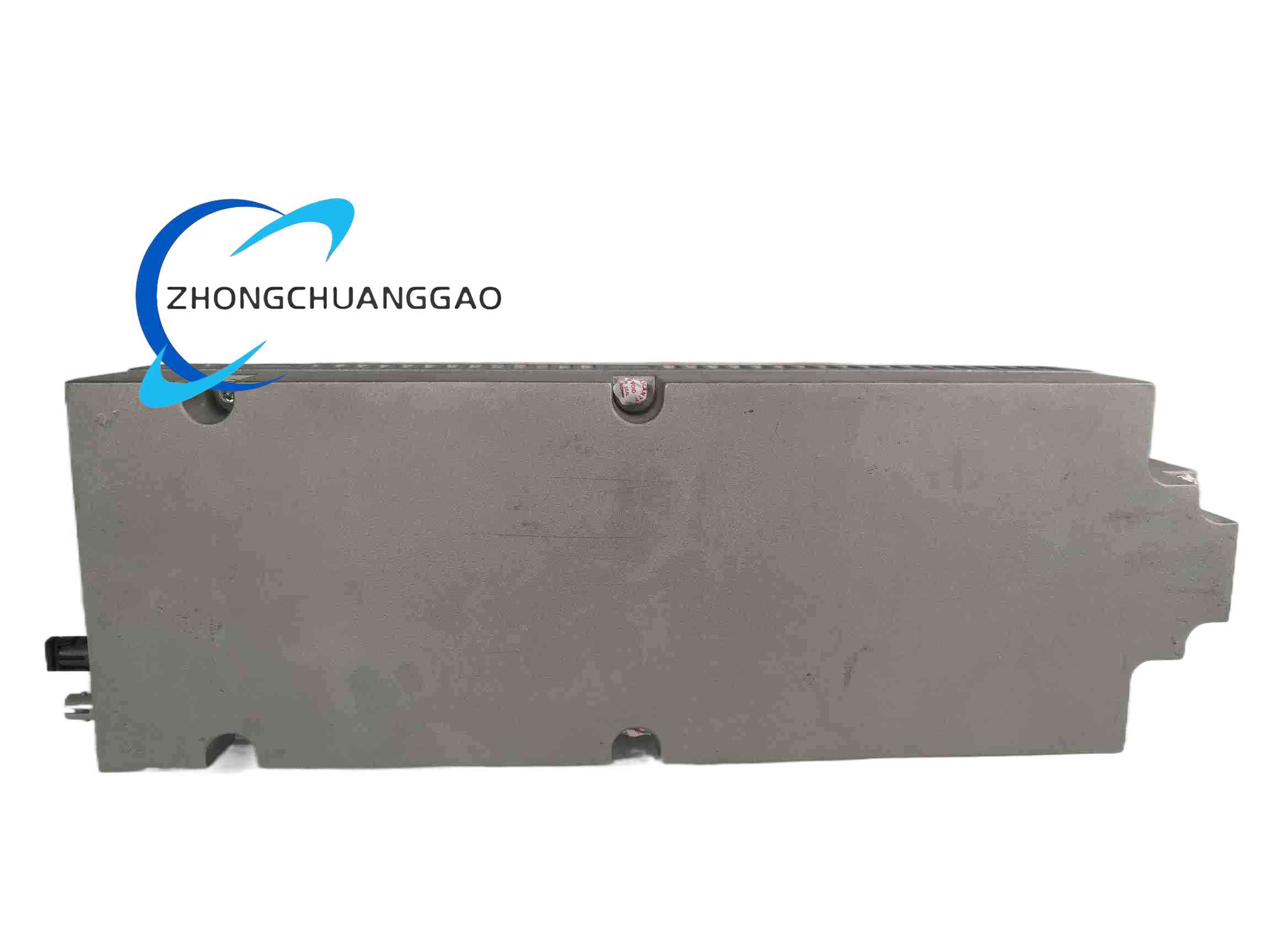

The ZYGO 8070-0279-01 is a high-precision optical measurement module that provides high-resolution, high-speed surface profiling. It operates at a 633 nm wavelength and is designed for surface shape and form measurement of optical components, semiconductors, and precision engineered parts.
Description
Technical Specifications:
-
Resolution: 2,048 × 2,048 pixels
-
Pixel Size: 9 µm
-
Measurement Range: ± 500 µm
-
Repeatability: 0.005 µm
-
Accuracy: 0.02 µm
-
Wavelength Range: 633 nm
-
Maximum Linear Scan Speed: 1 kHz
-
Dimensions: 164 × 164 × 95 mm
-
Weight: 1.4 kg
-
Supply Voltage: 100–240 VAC, 50/60 Hz
-
Operating Temperature: 10 °C to 35 °C
-
Storage Temperature: -20 °C to 60 °C
-
Humidity: 10 % to 90 % non-condensing
Key Features:
-
Sub-micrometer repeatability (0.005 µm)
-
High pixel density (4 megapixel sensor) for detailed surface mapping
-
1 kHz linear scan rate for high-throughput inspection
-
Broadband 100–240 VAC input for global deployment
Application Scenarios:
Optical element surface form measurement, optical glass surface inspection, semiconductor manufacturing, fuel cell manufacturing, aerospace component manufacturing, R&D and production metrology.
Installation & Notes:
Operate in a temperature-stable environment (10–35 °C) with controlled humidity. The unit contains precision optical components; avoid dust, vibration, and direct sunlight. Ensure adequate ventilation around the 164 mm enclosure.
