Product Short Description
Product Overview

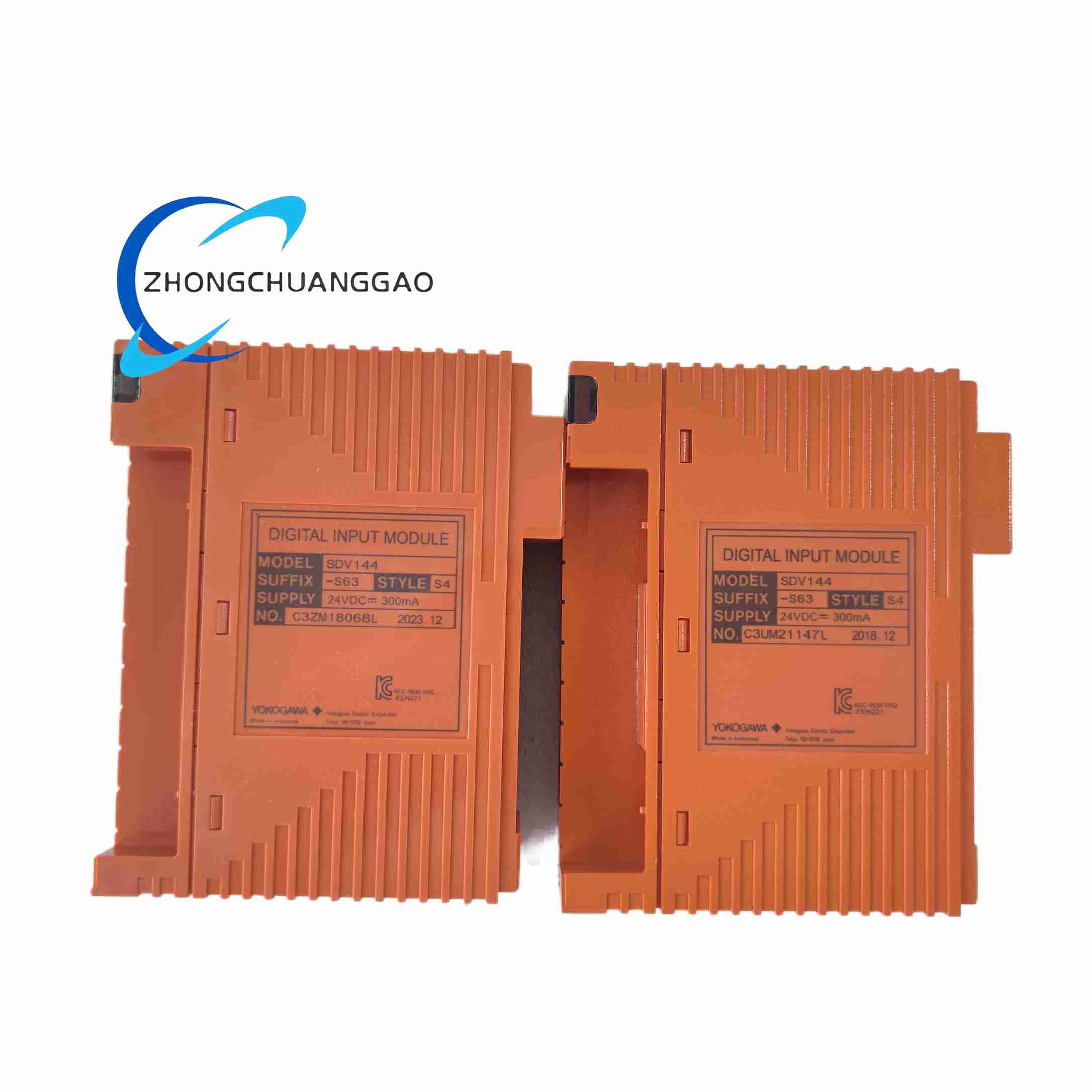

This safety-certified discrete signal acquisition hardware is mass-produced by Yokogawa Electric Corporation, designated exclusively for ProSafe-RS safety interlock and emergency shutdown systems deployed within hazardous process manufacturing facilities. The suffix marking defines standard industrial environmental grade equipped with ISA G3 protective conformal coating, enabling stable continuous operation under fluctuating temperature, humid and mildly corrosive cabinet atmospheric conditions.
Description
Complete Technical Specifications
- Channel Configuration: Sixteen fully independent galvanically isolated digital input signal channels
- Rated Field Input Signal Standard: 24 volt direct current dry contact input, accepts input voltage fluctuation within ±20% rated nominal value
- Single Channel Nominal Operating Current: 6mA with ±20% allowable deviation under standard 24VDC external field power supply
- Signal Response Delay Parameter: Total signal detection response time maintained below 40 milliseconds for all channel state switching events
- Dielectric Withstand Isolation Rating: 2500 volt alternating current isolation strength between individual signal channels and internal system backplane bus circuits, one minute continuous voltage withstand test compliance
- Total Module Power Consumption Metrics: Typical normal operating power consumption less than 2 watts; maximum internal backplane bus current draw reaches 290mA under 5VDC rack power supply, maximum external field 24VDC power current consumption limited to 140mA
- Continuous Operating Ambient Temperature Boundaries: Operational range spans negative twenty degrees Celsius to positive seventy degrees Celsius
- Environmental Resistance Compliance Standard: Full printed circuit board surface ISA G3 acrylic conformal coating, providing effective barrier protection against industrial sulfur gas, acid vapor, high humidity and accumulated cabinet dust
- Mechanical Enclosure Protection Classification: IP20 protection grade, designed solely for fully enclosed industrial control cabinet internal installation, not suitable for direct exposure to open workshop environments
- Net Unit Mass Measurement: Single module net weight 0.41 kilograms, complete packaged shipping weight 1.5 kilograms
- External Field Signal Connection Matching Hardware: Compatible with AKB331 series dedicated MIL specification shielded signal cable adapters, supports screw type pressure terminal wiring construction methods
- Cross-System Hardware Compatibility Scope: Perfect physical and communication matching with Yokogawa Centum VP DCS control racks and ProSafe-RS safety instrumented system frame backplanes
- Redundant System Architecture Support Capacity: Hardware compatible with PRP parallel redundancy communication protocol, allowing construction of fully hot standby fault tolerant safety control system architectures
Core Functional Features
Full channel independent galvanic isolation structure eliminates cross-channel signal distortion triggered by inconsistent field equipment grounding potential differences. Onboard hardware RC passive filter circuit effectively suppresses high frequency industrial electromagnetic pulse noise and mechanical switch contact bounce interference signals before digital sampling procedures. Built-in full coverage channel fault real-time self-diagnosis logic continuously monitors wiring integrity of every input channel, automatically uploading open circuit and short circuit fault alarm information to upper level DCS central monitoring stations with accurate channel positioning markers. Integrated safety grade signal state latching mechanism retains field switch contact status data during transient momentary power supply fluctuations, preventing temporary loss of critical safety interlock state information. Compact vertical plug-in modular physical layout enables direct insertion into standard DCS rack slot positions, supporting hot swap online replacement operations without full DCS system power interruption or safety loop shutdown. Complete printed circuit board conformal coating treatment resists long term degradation caused by cabinet chemical vapor, condensed moisture and accumulated fine dust particles. Standardized proprietary digital backplane bus communication interface realizes seamless bidirectional data transmission with rack mounted main control hardware, eliminating requirement for additional external signal conditioning auxiliary modules.
Working Principle
Dry contact switch status signals originating from field installed process equipment transmit through dedicated shielded AKB331 signal cables to independent terminal blocks corresponding to each input channel of the module. Individual channel integrated optoelectronic isolation barriers completely separate external field 24VDC signal loop voltage from low voltage internal logic control circuits to prevent high voltage field circuit surges from damaging sensitive internal signal processing components. Onboard passive RC filter networks eliminate transient voltage spike interference and mechanical contact bounce noise signals prior to digital signal sampling execution. Internal high speed logic integrated circuits perform millisecond interval real-time sampling of each channel’s on-off state, converting raw analog contact electrical signals into standardized digital data frames compatible with rack backplane communication protocols. Processed digital channel status data transmits continuously to DCS rack backplane bus distribution circuits, and main system controllers execute safety interlock logic, emergency shutdown trigger judgment and real-time equipment state monitoring functions based on received multi-channel signal data streams. Dedicated fault diagnosis circuitry operates in parallel with normal signal acquisition workflows, continuously measuring electrical continuity parameters of all channel wiring paths; detection of abnormal open or short circuit wiring conditions triggers generation of coded fault information which is uploaded to central operator monitoring workstations for maintenance alert notification.
Material Composition & Structural Characteristics
Materials
Outer protective enclosure constructed from high temperature resistant flame retardant orange ABS engineering plastic material with anti-static surface modification treatment, providing robust mechanical impact resistance and UL94-V0 fire safety rating compliance. Internal signal processing printed circuit boards adopt double sided copper clad fiberglass base substrates, with full surface coverage of ISA G3 acrylic conformal coating layer for environmental barrier protection. Channel isolation functional components utilize industrial grade high reliability optocoupler semiconductor chips to realize electrical separation between field signal loops and internal logic circuits. External signal terminal connection pins adopt gold plated pure copper conductive contacts to maintain long term stable low resistance signal transmission performance and resist oxidation degradation under high humidity cabinet operating environments. All internal mechanical fastening hardware consists of stainless steel screws with anti-rust surface treatment to prevent structural loosening and corrosion damage caused by long term cabinet humidity exposure.
Structural Features
Vertical plug-in modular mechanical layout with unified standardized dimensional specifications fully matching all Yokogawa standard DCS and SIS rack slot backplane frames. Transparent protective window integrated into front panel assembly, with individual independent LED status indicator lamps allocated to each of the sixteen signal input channels; green lamp illumination indicates normal closed contact signal state while red lamp activation signals wiring open circuit or hardware channel fault conditions. Rear side of module body integrates integrated golden finger backplane bus electrical connector assembly enabling seamless power supply delivery and bidirectional data communication with rack mounted power distribution and main controller hardware components. Side mounted integrated mechanical locking buckle structure securely fastens module body into rack slot positions, preventing accidental plug loosening and unstable electrical contact caused by long term cabinet mechanical vibration originating from nearby rotating production equipment. Independent internal power distribution circuit layout physically separates external field 24VDC signal loop power supply and low voltage internal logic circuit operating power supply, eliminating cross contamination electrical interference between distinct power supply loops.
