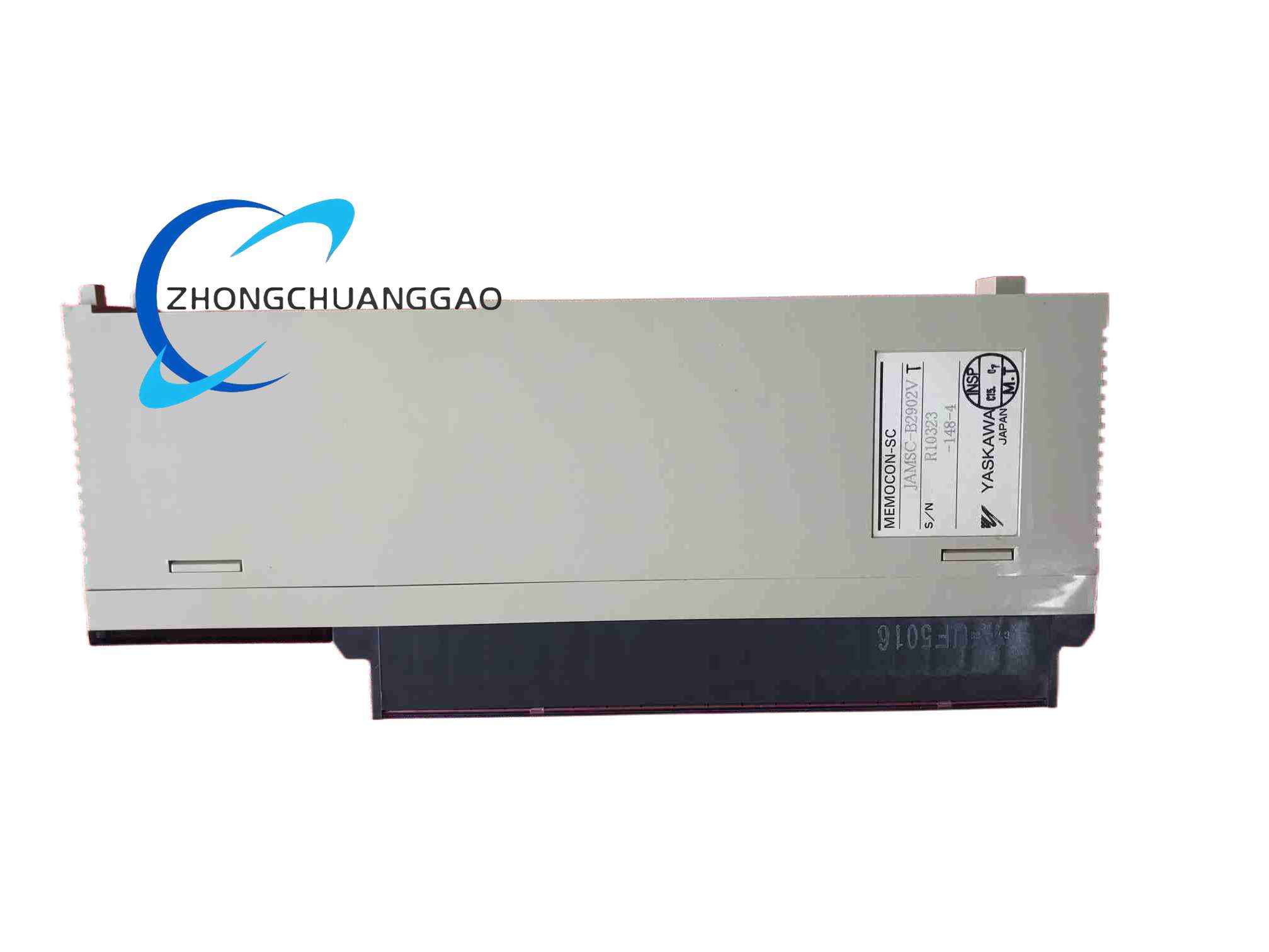

Yaskawa JAMSC-B2902V

Description

Technical Specifications:

• Number of output channels: 32 points
• Output type: Relay contact output
• Control voltage: 24 VDC
• Contact rating: 250 VAC / 30 VDC, 2 A per point
• Common configuration: 8 points per common terminal
• Connection type: Screw terminal block
• Power consumption: 0.6 W (typical)
• Operating temperature: 0°C to +55°C
• Storage temperature: -25°C to +85°C
• Humidity range: 30% to 95% RH (non-condensing)
• Vibration resistance: 14.7 m/s², 16.7 Hz, 3 axes, 2 hours each
• Shock resistance: 147 m/s² (15 G), 11 ms, 2 times per axis

Function Features:

• 32 independent relay outputs for switching AC or DC loads
• Built-in output status indicators for visual diagnostics
• Optical isolation between PLC internal circuit and field outputs
• Automatic fault detection for output circuit abnormalities
• Hot-swap compatible with MEMOCON-SC PLC backplane
• Supports both sink and source output wiring configurations

Application Scenarios:

• Industrial production line control
• Conveyor system sequencing
• Packaging machine control
• Material handling equipment
• Building automation systems
• General-purpose discrete output control

Performance Parameters:

• Contact switching capacity: 2 A per channel, resistive load
• Mechanical life: 10 million operations (minimum)
• Electrical life: 100,000 operations at rated load
• Response time: 10 ms maximum (ON/OFF)
• Isolation voltage: 1500 VAC between logic and field circuits

Material Composition:

• Module housing: Flame-retardant ABS plastic
• Terminal block: Heat-resistant phenolic resin
• Relay contacts: Silver cadmium oxide (AgCdO) alloy
• PCB: Glass-epoxy composite with copper traces
• Connector pins: Tin-plated phosphor bronze

Structure Characteristics:

• Standard single-slot width for MEMOCON-SC rack mounting
• Front-facing screw terminals for easy field wiring
• LED status indicators aligned with each output channel group
• DIN rail compatible via optional adapter
• Compact form factor: 260 mm x 100 mm x 50 mm (approximate)
• Weight: ~0.6 kg

Working Principle:

• Receives output data from PLC CPU via backplane bus
• Logic circuit drives relay coils based on commanded output states
• Relay contacts open or close to switch power to external field devices
• Optical isolators prevent electrical noise from affecting PLC logic
• Status LEDs reflect the current state of each output channel

Installation Requirements:

• Install in MEMOCON-SC series PLC rack with proper slot alignment
• Torque terminal screws to 0.5 Nm to ensure reliable connections
• Ensure proper wire gauge (0.5 mm² to 1.5 mm²) for output circuits
• Separate output wiring from high-voltage power cables to reduce noise
• Connect common terminals properly for each output group
• Ground module chassis to system ground

Usage Notes:

• Do not exceed rated contact voltage and current specifications
• Inductive loads require surge suppression components to extend contact life
• Do not wire input signals to output terminals
• Disconnect all power before wiring or module replacement
• Periodically inspect terminal connections for tightness
• Do not use in environments with explosive gases or conductive dust
