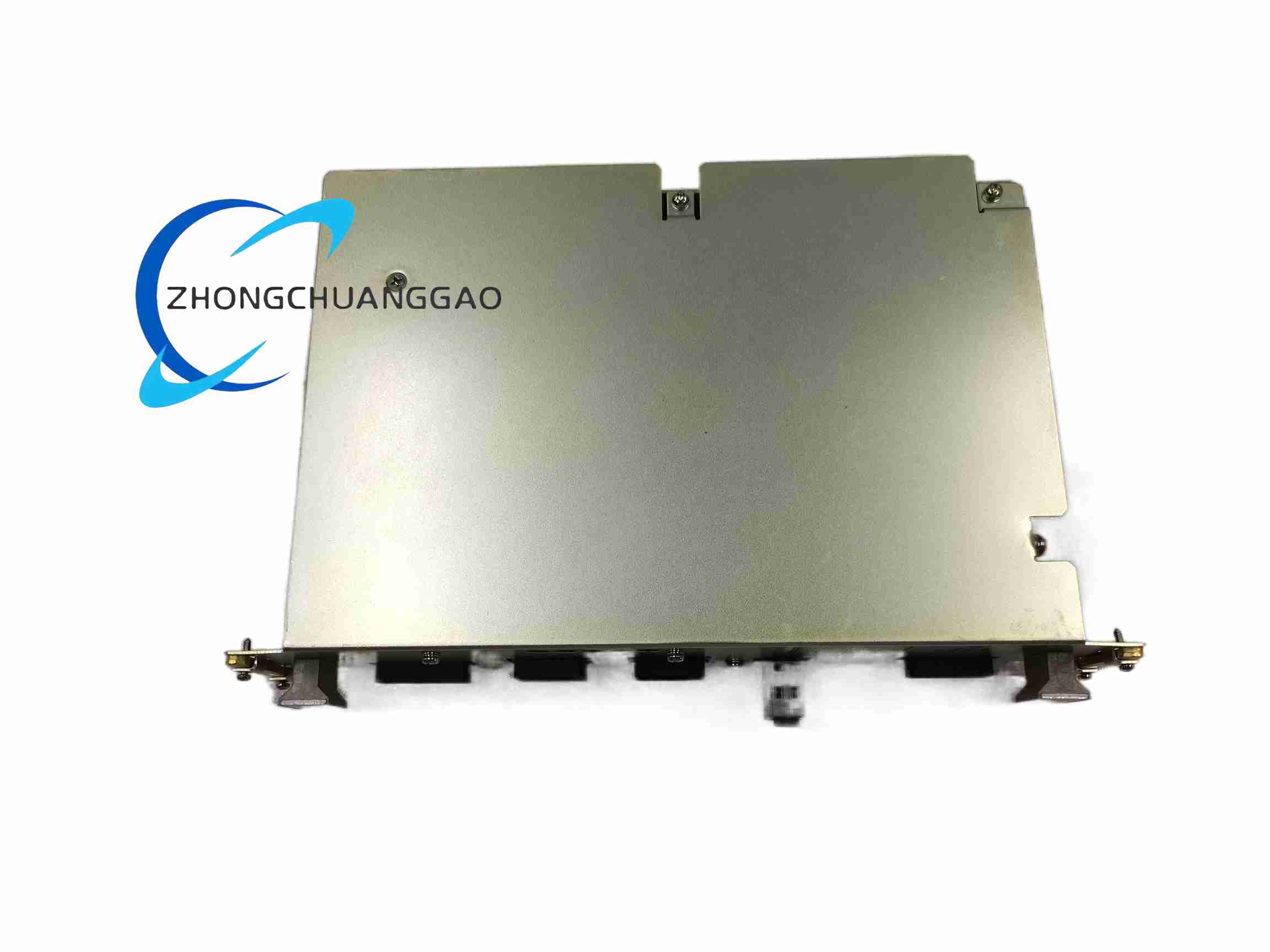

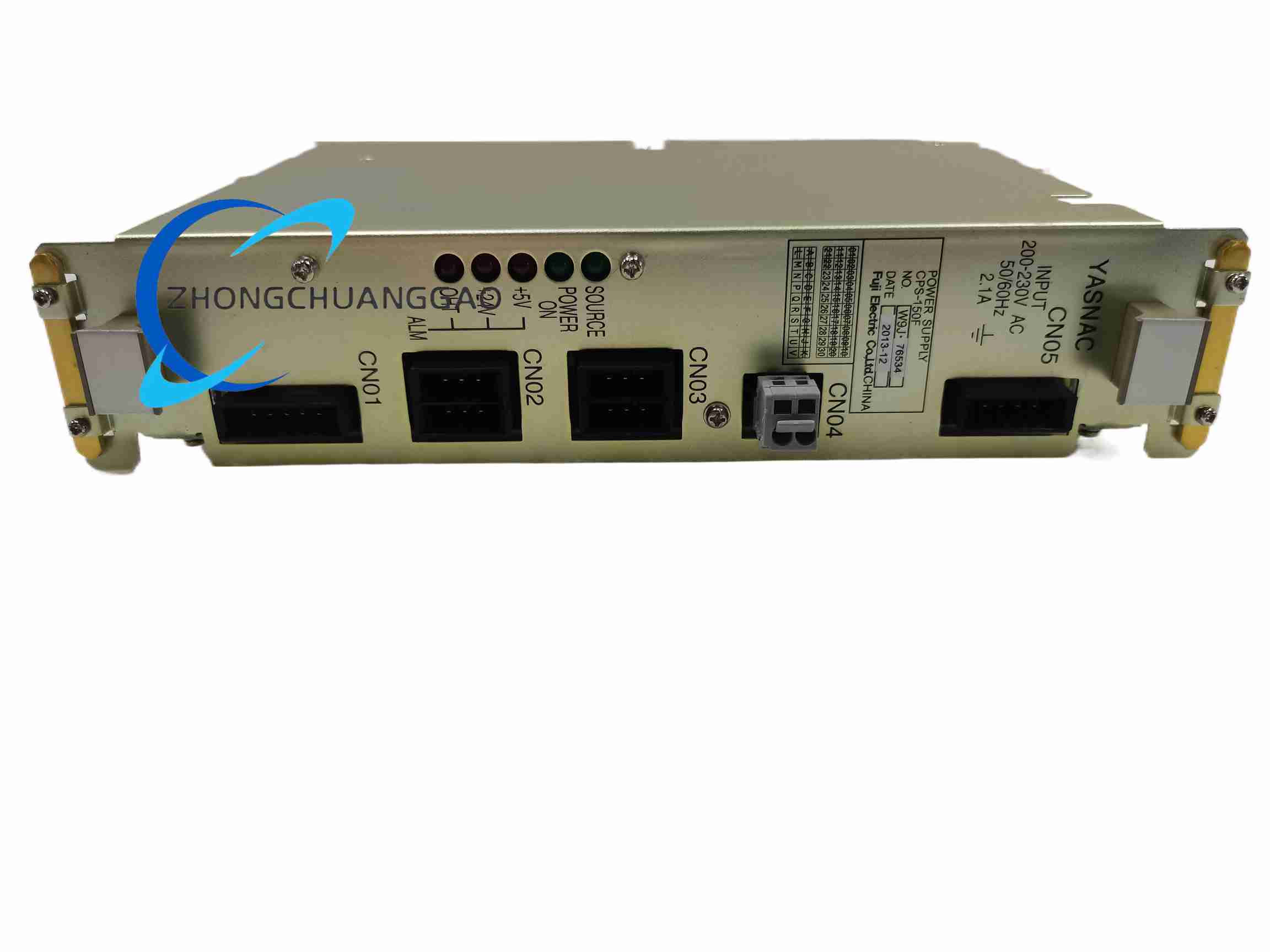

Product Name: Yaskawa CPS-150F — Industrial Switching Mode Power Supply (SMPS) / Power Supply Module
Product Introduction: The CPS-150F is a high-efficiency industrial-grade power supply unit from Yaskawa, designed to convert standard AC input into stable, clean DC power for Yaskawa automation systems, including servo drives, controllers, robot control systems (NX100, XRC MOTOMAN series), and other control circuits.
Description
Technical Specifications:
- Input Voltage: 200–230 VAC (single-phase)
- Input Frequency: 50/60 Hz
- Input Current: 2.1 A
- Output Voltage: 24 VDC (6.25 A); some configurations provide +5 VDC and +24 VDC
- Rated Output Power: 150 W
- Efficiency: >90% (typically >85%)
- Dimensions: 150 mm × 125 mm × 65 mm
- Weight: 2.5 kg
- Operating Temperature: -10°C to +60°C (0°C to +55°C per some specifications)
Functional Features:
- High-efficiency switching mode power conversion minimizes energy loss and heat generation
- Stable DC output voltage maintained even with input fluctuation or load variation
- Comprehensive protection: overload protection, overvoltage protection, short-circuit protection
- Natural convection cooling (fanless design)
- Compatible with Yaskawa robot controllers and servo systems
- DIN-rail or panel mounting
- Certifications: CE, UL, cUL, RoHS
Application Scenarios: Control system power supply (PLC, control circuits, electronic devices), DC motor power (conveyors, pumps, fans), robot system support (control panels, actuators), general auxiliary power in industrial environments.
Structural & Material Features: Industrial-grade rugged housing designed for control cabinet installation. Compact form factor optimizes cabinet space.
Installation Requirements:
- DIN-rail mounting or panel mounting inside a control cabinet
- Natural convection cooling — ensure adequate spacing around the unit for airflow
- Input wiring: 200–230 VAC single-phase with proper grounding
- Output wiring: 24 VDC (and 5 VDC if applicable) with appropriate gauge for 6.25 A load
- Verify input voltage range before energizing
Usage Precautions: Confirm whether the specific unit provides 24 VDC only or both +5 VDC and +24 VDC outputs — match wiring to the actual output terminals. Do not exceed 150 W total load. Ensure the input voltage is within 200–230 VAC range. Rely on built-in overload, overvoltage, and short-circuit protection — but still fuse the input circuit appropriately. Maintain ambient temperature within -10°C to +60°C for rated operation.
