Product Short Description

The Woodward 9907-205 is a solenoid-operated, spring-return magnetic actuator designed to drive fuel control valves on diesel and gas engines. It converts electrical control signals (PWM or analog) into precise linear mechanical motion to position the fuel rack. The actuator provides both a pull (energize-to-open) force and a push (spring-return) force, making it suitable for applications requiring fail-safe fuel shutoff on loss of signal. It replaces legacy mechanical actuators and is compatible with all Woodward 5441, 5453, 5501, 9905, and 9910 series governors and controllers.

Description

Product Category
Magnetic Fuel Actuator / Solenoid Valve Driver / Electromagnetic Actuator for Engine Fuel Control


Key Functions

  • Fuel Valve Positioning — Drives the fuel control rack to commanded position using solenoid electromagnetic force
  • Fail-Safe Spring Return — Internal return spring drives actuator to full closed (fuel cut) position on loss of electrical signal
  • PWM Signal Acceptance — Accepts 125 Hz or 250 Hz PWM signals from Woodward governors for proportional positioning
  • Analog Signal Acceptance — Accepts 4–20 mA or 0–10 VDC signals from external controllers
  • Position Feedback — Provides LVDT (Linear Variable Differential Transformer) output proportional to stroke position
  • Overspeed Shutdown — Responds to ESD signal by cutting fuel within 50 ms
  • Local Manual Override — Manual adjustment screw for commissioning and testing
  • Reversible Wiring — Polarity-insensitive coil for simplified flexibility
  • Built-in Diodes — Suppression diodes protect against voltage transients

Technical Specifications

Parameter Value
Actuator Type Magnetic solenoid, spring-return
Stroke Length 25 mm (1.0 inch)
Pull Force (Energize) 350 N (78.7 lbf) at 24 VDC
Push Force (De-energize, Spring Return) 175 N (39.3 lbf) at 24 VDC
Supply Voltage 24 VDC nominal (range: 18 VDC to 32 VDC)
Coil Resistance 12 Ω ± 10% at 20°C (68°F)
Coil Inductance 85 mH ± 15% at 1 kHz
Coil Power Consumption 48 W at 24 VDC (2 A continuous)
Duty Cycle 100% continuous (S1)
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Storage Temperature -55°C to +125°C (-67°F to 257°F)
Humidity Rating 5% to 95% non-condensing
Vibration Rating IEC 60068-2-6: 5 g RMS, 10 Hz to 2000 Hz
Shock Rating IEC 60068-2-27: 30 g, 11 ms half-sine
Altitude Rating Up to 10,000 ft (3,048 m) without derating
EMC Compliance IEC 61000-6-2 (Industrial Environment)
Ingress Protection IP65 (with supplied cable gland)
Weight Approximately 1.8 kg (4.0 lbs)
Dimensions (L x W x H) Approximately 180 mm x 80 mm x 80 mm (7.1″ x 3.1″ x 3.1″)
Cable Length 1.5 m (5 ft) integral shielded cable
Connector Type Deutsch DT06-6S (6-pin, sealed)
Mounting Direct mount to actuator bracket or DIN rail adapter

Electrical Specifications

Parameter Value
Nominal Voltage 24 VDC
Voltage Range 18 VDC to 32 VDC
Current at 24 VDC 2.0 A continuous
Inrush Current 3.5 A for 50 ms maximum
PWM Frequency 125 Hz or 250 Hz (selectable via controller)
PWM Duty Cycle Range 0% to 100%
Analog Input Range 4 mA to 20 mA or 0 VDC to 10 VDC
LVDT Output 0.5 VAC to 4.5 VAC RMS (proportional to stroke)
LVDT Excitation 3 VAC RMS, 3 kHz (provided by controller)
Coil Protection Built-in suppression diode and TVS clamp
Reverse Polarity Protected — coil operates correctly regardless of polarity

Position Feedback Specifications

Parameter Value
Feedback Type LVDT (Linear Variable Differential Transformer)
Linearity ±0.25% of full stroke
Repeatability ±0.10% of full stroke
Resolution 12-bit (4,096 steps over 25 mm stroke)
Stroke per Step 0.0061 mm (0.00024″) per step
Output Signal 0.5 VAC to 4.5 VAC RMS at 3 kHzkHz
Phase In-phase with LVDT excitation when moving toward full stroke

Communication Interfaces

Interface Protocol
Primary Input PWM (125 Hz or 250 Hz) from Woodward governors
Secondary Input 4 mA to 20 mA or 0 VDC to 10 VDC analog
Feedback Output LVDT AC signal (0.5–4.5 VAC) to governor
Discrete Input ESD signal (dry contact closure = fuel cut)
Connector Deutsch DT06-6S (6-pin)
Pin Assignment Pin 1: Coil +, Pin 2: Coil -, Pin 3: LVDT Sig, Pin 4: LVDT Gnd, Pin 5: ESD, Pin 6: Spare

Protection Features

  • Reverse Polarity Protection — Coil operates correctly regardless of supply polarity
  • Overvoltage Protection — Internal TVS diode clamps at 36 VDC
  • Transient Suppression — Built-in diode and RC snubber on coil
  • ESD Response — Fuel cutoff within 50 ms of ESD contact closure
  • Coil Thermal Protection — Internal thermistor triggers alarm at +130°C coil temperature
  • Overstroke Protection — Mechanical stops limit travel to ±5% beyond rated stroke
  • Short Circuit Protection — Current limited to 3 A maximum by controller

Control Modes

Mode Description
PWM Mode (Primary) Actuator follows 125 Hz or 250 Hz PWM signal from Woodward governor
Analog Mode (Secondary) Actuator follows 4–20 mA or 0–10 VDC signal from external controller
ESD Mode Actuator drives to full closed (fuel cut) on ESD contact closure
Local Manual Mode Manual screw override for commissioning and testing
Fail-Safe Mode Spring returns actuator to full closed (fuel cut) on loss of all electrical signals

Material Composition

Component Material
Housing Die-cast aluminum alloy 380 (A380) with anodized finish
Solenoid Core Soft iron (low-carbon steel) with nickel plating
Solenoid Coil Bobbin Glass-filled nylon (PA66-GF30)
Coil Wire Copper magnet wire, Class H insulation (180°C rating)
Return Spring Stainless steel 302 (music wire)
LVDT Core Ferrite (MnZn)
LVDT Windings Copper magnet wire, polyimide insulation
Shaft Stainless steel 416
Shaft Seals FKM (Viton) O-rings
Cable Jacket Chlorinated polyethylene (CPE), oil-resistant, 90°C rated
Cable Shield Tinned copper braid, 85% coverage
Connector Pins Gold-plated brass (30 µin gold over nickel)
Connector Body Glass-filled nylon (PA66-GF30)
Mounting Bracket Stainless steel 304
Gaskets Silicone rubber (VMQ), 70 Shore A durometer
Internal Potting Epoxy resin (electronic grade)

Structural Features

  • Direct-mount design — Mounts directly to fuel rack via supplied bracket
  • Deutsch DT06-6S connector — IP67 rated, 6-pin, keyed for correct orientation
  • Integral 1.5 m shielded cable — Flying leads with stripped and tinned ends
  • Manual adjustment screw — Accessible from front for zero-stroke calibration
  • LVDT feedback port — Separate connector for clean signal routing
  • ESD input terminal — Dry contact input on connector Pin 5
  • Conformal-coated internal electronics — LVDT windings potted in epoxy
  • Mechanical overstroke stops — Hardened steel pins limit shaft travel
  • Vibration-damped mounting holes — Rubber grommets on mounting bracket

Working Principle

The 9907-205 operates on the principle of electromagnetic solenoid actuation with spring return. When electrical current flows through the solenoid coil, a magnetic field is generated that pulls the ferromagnetic armature (plunger) inward against the force of the return spring. The armature is mechanically linked to the actuator shaft, which moves linearly to open the fuel valve. The position of the armature is precisely measured by an internal LVDT (Linear Variable Differential Transformer). The LVDT core moves with the armature, changing the coupling between the primary and secondary windings, producing an AC voltage output proportional to shaft position. When electrical power is removed, the return spring forces the armature and shaft back to the fully closed position, cutting fuel supply. The actuator accepts a PWM signal from the Woodward governor. The governor varies the PWM duty cycle from 0% to 100%, which the actuator interprets as a position command from fully closed to fully open. The actuator’s internal driver circuit converts the PWM signal into a proportional average current through the coil, creating a proportional electromagnetic force that balances the spring force at the commanded position.


Advantages and Highlights

  • Fail-Safe Design — Spring return ensures fuel cut on loss of all electrical signals
  • High Force Output — 350 N pull force at 24 VDC, sufficient for large fuel valves
  • Precise Positioning — 12-bit LVDT feedback±0.25% linearity0.0061 mm per step
  • Dual Input Redundancy — Accepts both PWM (primary) and analog 4–20 mA (secondary) inputs
  • Built-in Protection — Reverse polarity, overvoltage, transient suppression, thermal protection
  • IP65 Rated — Suitable for harsh industrial, marine, and outdoor environments
  • Long Service Life — MTBF exceeds 60,000 hours, no mechanical wear in solenoid
  • Wide Temperature Range — -40°C to +85°C operation without derating
  • Universal Compatibility — Works with all Woodward 5441, 5453, 5501, 9905, 9910 governors
  • Easy Installation — Deutsch connector, integral cable, direct mount bracket

Applicable Industries

  • Power Generation — Diesel and gas generator sets (standby, prime, continuous)
  • Marine Propulsion — Main engine and auxiliary engine fuel control
  • Oil and Gas — Compressor drivers, pump drivers, wellhead power units
  • Mining — Diesel generator sets for underground and surface operations
  • Rail — Locomotive engine governors
  • Industrial — Any diesel/gas engine requiring solenoid fuel actuation
  • Telecommunications — Cell tower and central office backup power
  • Data Centers — Standby generator fuel control
  • Military/Defense — Tactical and stationary power systems

Compatible Woodward Governors and Controllers

Governor/Controller Communication Compatibility
Woodward 5441-693 PWM 125 Hz Full compatible
Woodward 5453-759 PWM 250 Hz Full compatible
Woodward 5501-376 PWM 250 Hz Full compatible
Woodward 9905-971 PWM 125 Hz Full compatible
Woodward 9905-973 PWM 250 Hz Full compatible
Woodward 9910 PWM 125 Hz Full compatible
Woodward EasYgen 3000/3500/4000 CAN bus + PWM Full compatible
Woodward EGC-4 CAN bus + PWM Full compatible
Woodward 505E / 505D Analog 4–20 mA Full compatible (secondary input)
Woodward 8440 Load Share Analog 4–20 mA Full compatible (secondary input)

Model Series Cross-Reference

Model Stroke Pull Force Push Force Key Difference from 9907-205
9907-046 25 mm 150 N 75 N Low-force version for small valves
9907-167 25 mm 800 N 400 N High-force version for large valves
9907-168 25 mm 500 N 250 N Standard-force version
9907-205 25 mm 350 N 175 N Reference model — medium force, spring return
9907-225 25 mm 350 N 350 N Equal pull/push (no spring return)
9907-267 50 mm 800 N 400 N Double stroke, high-force
9907-305 25 mm 350 N 175 N Extended temperature (-55°C to +105°C)
9907-405 25 mm 350 N 175 N Hazardous area (ATEX Zone 2)

Certifications and Compliance

Certification Standard
CE Marking EN 61010-1, EN 55032 Class A, EN 61000-6-2, EN 61000-6-4
UL Listed File E147353 (North America)
CSA Certified File LR78161 (Canada)
DNV GL Type Approval For marine installations
Lloyd’s Register Approved for marine generator sets
ABS Approved for marine use
ATEX Standard 9907-205 is NOT rated for hazardous areas; use 9907-405 for ATEX Zone 2
IEC 61000-6-2 EMC emission and immunity for industrial environments
IEC 60068-2-6 Vibration resistance
IEC 60529 IP65 ingress protection
RoHS Compliant EU Directive 2011/65/EU
REACH Compliant EU Regulation 1907/2006

Part Number Breakdown

Segment Meaning
9907 Product family — Magnetic Fuel Actuator
2 Stroke — 25 mm (1.0 inch)
05 Force rating — 350 N pull / 175 N push, spring-return, global standard

Installation Requirements

  • Mount the actuator on the fuel rack using the supplied stainless steel 304 bracket
  • Align the actuator shaft with the fuel rack lever arm using the manual adjustment screw
  • Torque all mounting bolts to 8 Nm (70.8 in-lbs)
  • Connect the Deutsch DT06-6S connector to the governor output — do not force the connector
  • Route the integral cable away from high-current power cables (minimum 150 mm separation)
  • Use shielded cable for any cable extensions (minimum 24 AWG)
  • Ground the cable shield at the governor end only (single-point grounding)
  • Verify the ESD input is wired to the emergency stop circuit
  • Supply voltage must be 24 VDC regulated with less than 5% ripple
  • Verify actuator stroke is 25 mm before connecting to the fuel rack
  • Perform a no-load stroke calibration after initial installation
  • Verify LVDT feedback signal is within 0.5 VAC to 4.5 VAC at full stroke

Usage Precautions

  • Do not exceed the maximum supply voltage of 32 VDC — permanent damage to the coil will occur
  • Do not apply voltage exceeding 32 VDC for more than 1 second — coil insulation will degrade
  • Do not operate the unit in environments exceeding +85°C ambient temperature
  • Do not block the ventilation openings on the actuator housing — overheating will occur
  • Do not disassemble the actuator — no user-serviceable components are present
  • Do not exceed the rated stroke of 25 mm — mechanical stops will engage and damage the shaft seal
  • Do not apply side loads to the actuator shaft — this will bend the shaft and damage the LVDT
  • Perform a functional test of the ESD circuit every 6 months
  • Perform a stroke calibration check every 12 months
  • Do not modify the firmware of the connected governor — this voids the actuator warranty
  • Replace the FKM (Viton) O-rings if the IP65 seal is compromised
  • Store the actuator in a dry environment with relative humidity below 85%
  • Do not drop the actuator from a height exceeding 1 meter — internal LVDT windings will fracture
  • The actuator contains a return spring under tension — do not disassemble without proper tools

Warranty

  • Standard Warranty24 months from date of shipment
  • Extended Warranty: Available up to 60 months (Woodward Protect program)
  • Warranty Exclusions: Damage caused by overvoltage, physical impact, unauthorized disassembly, operation outside specified environmental limits, or use with incompatible governors

Document Reference Numbers

Document Number
Installation Manual 9907-IM-001
Operator’s Manual 9907-OM-001
Configuration Guide 9907-CG-001
Wiring Diagram 9907-WD-001
Calibration Guide 9907-CAL-001
Actuator Compatibility Chart 9907-AC-001
Declaration of Conformity 9907-DoC-001

Reviews

There are no reviews yet.

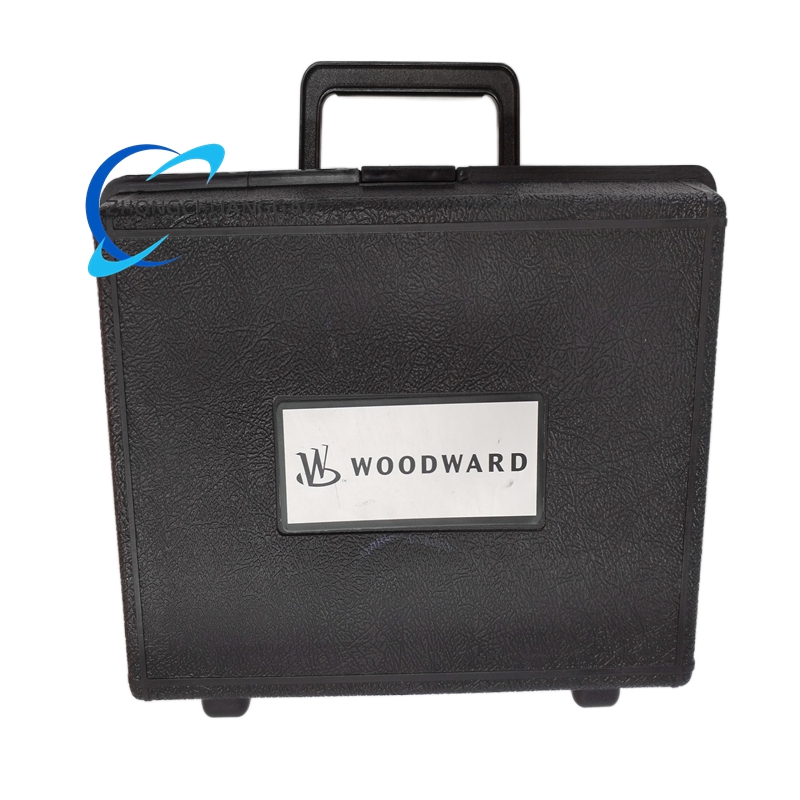

Be the first to review “Woodward 9907-205”

Your email address will not be published. Required fields are marked *

View Related Products
