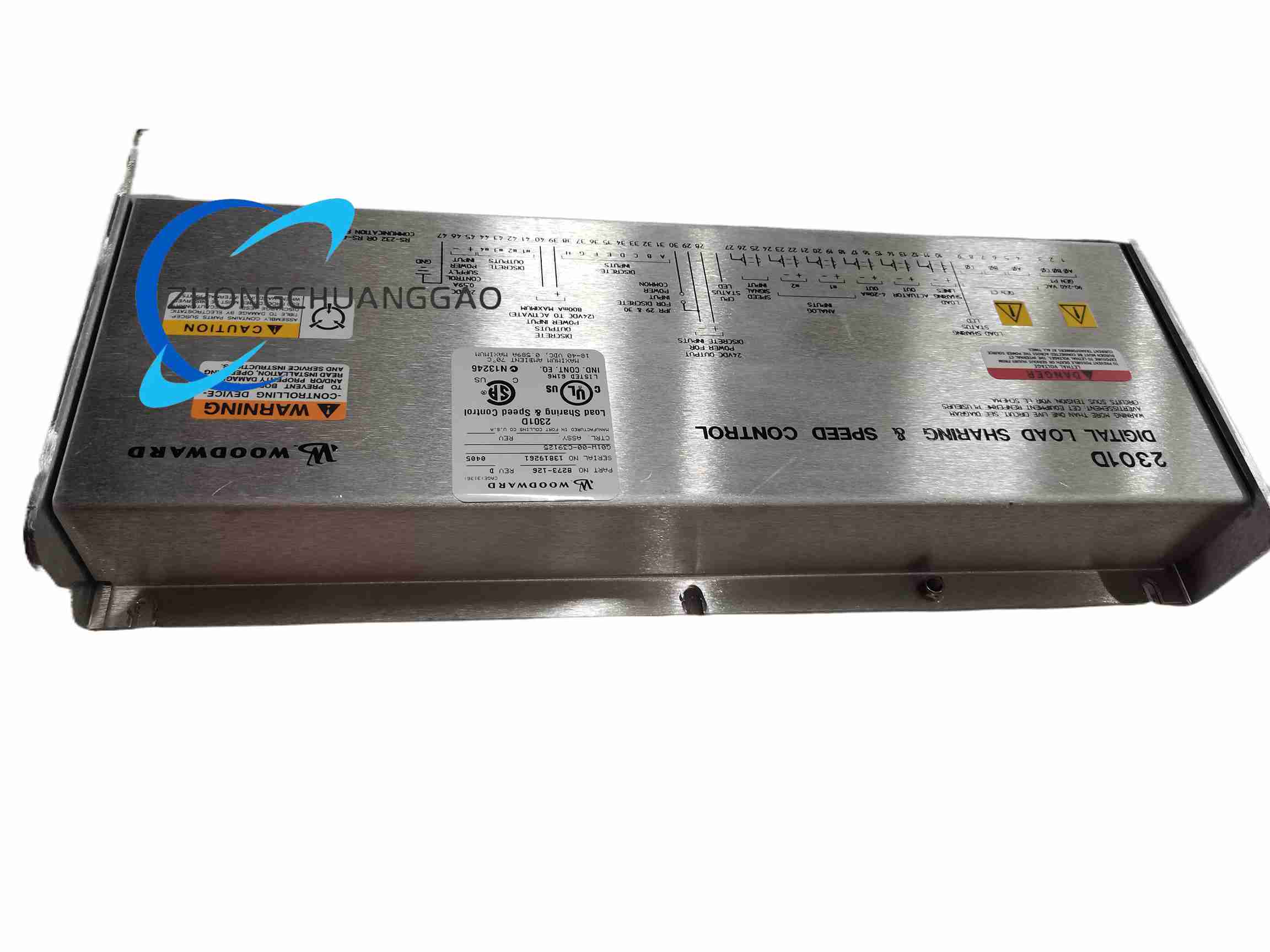

WOODWARD 8273-126

Product Short Description

Product Name: Microprocessor-based Load Sharing & Speed Control Module (2301D Series)

Overview:

The Woodward 8273-126 belongs to the 2301D Series, Revision E. It is a microprocessor-based digital load sharing and speed control module designed to provide precise speed control and load distribution for diesel engines, gas engines, and steam or gas turbines driving electrical generators. It replaces legacy analog governors with fully digital, programmable control.

Description
Reviews (0)

Description

Below is an independent, English-language profile for each model. All parameters are taken from publicly available industrial-supplier / technical datasheet references; where the exact original-manufacturer document could not be verified, the description reflects the most consistent public technical source.

ZYGO 7702 (P/N: BH5-6314)

Product Name: Dual-frequency HeNe Laser Head (Interferometer Light Source)

Overview:

The ZYGO 7702 (Part Number BH5-6314) is a high-performance helium-neon (HeNe) dual-frequency laser head manufactured by ZYGO Corporation. It serves as the core light source for ZYGO interferometer systems and ZMI-series displacement measurement platforms, providing a stable laser reference for nano-scale position metrology. The unit uses orthogonal linear polarization dual-frequency output with Acousto-Optical Modulator (AOM) beam splitting.

Technical Specifications:

Laser Type: HeNe, continuous-wave, dual-frequency
Nominal Wavelength: 632.8 nm (visible light)
Output Power: > 400 µW (some configurations > 650 µW)
Beam Diameter: 3 mm or 6 mm (configurable)
Frequency Difference: 20 MHz ± 1,600 Hz (AOM)
Wavelength Stability: 0.01 ppm / 24 hours
Beam Pointing Stability: < 0.5 arc sec / °C
Start-up Time: Typical < 10 s, maximum 70 s
Supply Voltage: 24 VDC
Power Consumption: Maximum 27 W
Cooling Method: Forced-air cooling
Operating Temperature: 10 °C to 30 °C
Storage Temperature: -40 °C to 75 °C
Approximate Dimensions: 250 × 150 × 100 mm
Weight: Approx. 5.5 kg
Laser Class: Class II

Key Features:

Ultra-high wavelength stability (0.01 ppm/24 h) for nanometer-level displacement measurement
Fast start-up (< 10 s typical) for rapid deployment
Dual-axis frequency differential interferometry cancels environmental air-refractive-index and thermal drift errors
Compatible with ZMI 2400, 4004, 4104 series measurement boards
Single head drives multiple measurement axes, improving system integration efficiency
Industrial-grade reliability for 24/7 continuous operation

Working Principle:

The laser head generates two orthogonally polarized frequencies separated by 20 MHz. During measurement, the frequency difference is used for differential interferometric comparison, effectively compensating for errors caused by ambient air refractive index variations and temperature fluctuations.

Application Scenarios:

Semiconductor manufacturing (wafer inspection, lithography positioning), precision CNC machine tools, national metrology laboratories, optical inspection equipment, and high-precision dimensional inspection in automotive and electronics assembly.

Installation & Notes:

Install in a clean, vibration-damped environment within 10–30 °C. Ensure 24 VDC supply with adequate current margin. Avoid mechanical shock during handling; the HeNe tube is sensitive to severe impact.

BETA LASERMIKE 8000-306

Product Name: Non-contact Laser Distance / Measurement Sensor

Overview:

The BETA LASERMIKE 8000-306 is a non-contact laser-based measurement instrument designed for industrial automation. It uses GaAsP laser technology to measure distance, size, displacement, and vibration of target objects without physical contact.

Technical Specifications:

Measurement Type: Non-contact, laser-based
Measurement Range: 0.1 ft to 306 ft (30 mm to 93 m)
Accuracy: ± 0.1 inch (2.54 mm)
Linearity: 0.5 %
Spot Size: 0.1 inch (2.54 mm)
Laser Type: GaAsP
Laser Wavelength: 830 nm
Outputs: Optional analog or digital
Supply Voltage: 24 VDC
Power Consumption: < 5 W
Operating Temperature: -40 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Ingress Protection: IP67

Key Features:

Non-contact measurement – no wear, no influence on the measured object
Programmable measurement modes (delay, duration, cycle)
Data logging and analysis (mean, standard deviation, etc.)
IP67 sealed housing for dust and water immersion resistance
Wide operating temperature for harsh industrial environments

Application Scenarios:

Automotive production lines (part dimensional inspection), metal processing (vibration monitoring), wastewater treatment (level/flow monitoring), chemical process control (non-contact temperature/pressure inference), mining equipment displacement monitoring, pulp & paper fiber thickness measurement.

Installation & Notes:

Mount with the laser beam perpendicular to the target surface. Avoid aiming at highly reflective mirrors or transparent surfaces without proper retro-reflective targets. Ensure 24 VDC supply is properly fused; the IP67 rating protects against temporary water immersion but the connector must be sealed correctly.

ZYGO 8070-0279-01

Product Name: High-resolution Surface Profiling / Interferometric Measurement Module

Overview:

The ZYGO 8070-0279-01 is a high-precision optical measurement module that provides high-resolution, high-speed surface profiling. It operates at a 633 nm wavelength and is designed for surface shape and form measurement of optical components, semiconductors, and precision engineered parts.

Technical Specifications:

Resolution: 2,048 × 2,048 pixels
Pixel Size: 9 µm
Measurement Range: ± 500 µm
Repeatability: 0.005 µm
Accuracy: 0.02 µm
Wavelength Range: 633 nm
Maximum Linear Scan Speed: 1 kHz
Dimensions: 164 × 164 × 95 mm
Weight: 1.4 kg
Supply Voltage: 100–240 VAC, 50/60 Hz
Operating Temperature: 10 °C to 35 °C
Storage Temperature: -20 °C to 60 °C
Humidity: 10 % to 90 % non-condensing

Key Features:

Sub-micrometer repeatability (0.005 µm)
High pixel density (4 megapixel sensor) for detailed surface mapping
1 kHz linear scan rate for high-throughput inspection
Broadband 100–240 VAC input for global deployment

Application Scenarios:

Optical element surface form measurement, optical glass surface inspection, semiconductor manufacturing, fuel cell manufacturing, aerospace component manufacturing, R&D and production metrology.

Installation & Notes:

Operate in a temperature-stable environment (10–35 °C) with controlled humidity. The unit contains precision optical components; avoid dust, vibration, and direct sunlight. Ensure adequate ventilation around the 164 mm enclosure.

TRICONEX 8120E

Product Name: Tricon Safety System Communication / Processor Module (EICM II+ class)

Overview:

The TRICONEX 8120E is a key module within the Triconex Triple Modular Redundant (TMR) Safety Instrumented System (SIS). Public technical sources describe it either as a high-performance main processor module or as a communication expansion module (EICM II+). In either role, it is engineered for SIL 3 rated mission-critical applications in oil & gas, power, and chemical industries.

Technical Specifications (Communication / Processor class):

Architecture: Triple Modular Redundancy (TMR)
Safety Level: SIL 3 (IEC 61508)
Processor: High-performance 32-bit embedded CPU (independent of main CPU in comms role)
Ethernet Ports: 2 × 10/100/1000BASE-T RJ45, auto-negotiating
Protocols: Modbus TCP (Client/Server), EtherNet/IP (Explicit Messaging & Implicit I/O), Triconbus, SNTP/NTP
Global Variable Mapping: Up to several thousand I/O points
SOE Buffer: Built-in millisecond time-stamping event buffer
Supply: Powered from Tricon chassis backplane (+5 VDC), no external power required
Hot-swap: Supported
Operating Temperature: -20 °C to +60 °C
Storage Temperature: -20 °C to +65 °C
Relative Humidity: 5 % to 95 % non-condensing
Certifications: SIL 3 (IEC 61508), TÜV, CE, UL, ISA
Origin: USA or UK

Key Features:

TMR architecture for fault-tolerant, fail-safe operation
Independent communication processor reduces main CPU load
Redundant Ethernet with star, ring, or cascaded topologies
Hot-swappable for online maintenance without process interruption
Comprehensive LED indicators (OK, COMM, FAULT, Link/Act)
Built-in SOE recording for post-event forensic analysis

Application Scenarios:

Emergency Shutdown Systems (ESD), Fire & Gas (F&G) systems, Burner Management Systems (BMS) in oil & gas, petrochemical, offshore platforms, and power generation.

Installation & Notes:

Insert into the dedicated communication slot in the Tricon main or extension chassis (typically adjacent to the main processor). Although hot-swap is supported, exercise caution to avoid network interruption. Ensure firmware version compatibility (v11.x or v12.x recommended).

GE 8121-DI-DC

Product Name: 16-Channel Digital Input Module (PAC8000 I/O System)

Overview:

The GE 8121-DI-DC is a 16-channel digital input (DI) module belonging to GE’s PAC8000 I/O system (MTL Instruments series). It collects discrete on/off signals from field devices such as limit switches, push-buttons, and proximity sensors, and transmits them to the control system over the Railbus.

Technical Specifications:

Manufacturer: GE (General Electric) – MTL Instruments series
System: PAC8000 I/O
Input Channels: 16 (sourcing type)
Operating Voltage: 18–30 VDC (bus-powered)
Input Signal Types: NPN, PNP; high-level, low-level, pulse
ON-state Input Current: > 1.2 mA
OFF-state Input Current: < 0.3 mA
Wetting Current: 2.8 mA typical
Input Filter Time: 2–512 ms selectable (Fast / Slow / Custom)
Minimum Detectable Pulse Width: 5 ms
Max. Pulse Counting Frequency: 100 Hz (debounce-off mode)
Channel-to-Railbus Isolation: 250 VAC
Field Wiring Safety (per channel): Voc = 30 V, Isc = 3.5 mA, Ca = 0.12 µF, La = 1000 mH
Bus Power Consumption: 60 mA @ 18–30 VDC (typical)
Module Width: 42 mm
Weight: 210 g
Operating Temperature: -20 °C to +70 °C
Mounting: PAC8000 Railbus / DIN rail
Certifications: FM non-intrinsic-safety, CE

Key Features:

High-density 16-channel design saves control cabinet space
Auto-compatible NPN/PNP – no reconfiguration needed
Programmable filter time (2–512 ms) suppresses electromagnetic interference
Debounce function eliminates false triggering from mechanical switch bounce
Pulse counting up to 100 Hz
Railbus isolation of 250 VAC per channel

Application Scenarios:

Chemical, power, metallurgy, and general manufacturing industries; specifically suited for Motor Control Centers (MCC) and high-voltage switchgear where strong EMI is present.

Installation & Notes:

Mount on PAC8000 Railbus or standard DIN rail. Ensure bus field power module (24 VDC) is properly sized. Set filter time according to field noise level (use slow filtering for high-EMI environments). Observe 250 VAC isolation rating when selecting field wiring.

WOODWARD 8200-226

Product Name: Servo Position Controller (SPC)

Overview:

The Woodward 8200-226 is the latest model in Woodward’s SPC lineup, replacing 8200-224 and 8200-225. It precisely positions hydraulic or pneumatic actuators based on a demand signal received from a control system via DeviceNet, 4–20 mA, or both. Configuration and calibration are performed through a PC-based service tool.

(Note: two physical size variants are reported by suppliers — 32.9 × 20.3 × 6.5 cm / 1.55 kg, and 5.4 × 13.5 × 13.3 cm / 0.4 kg — the exact variant depends on the specific configuration ordered.)

Technical Specifications:

Power Input: 24 VDC nominal (18–32 VDC range)
Typical Power Dissipation: 20 W
Actuator Driver Output Current Ranges: ±10 mA, ±25 mA, ±50 mA, ±100 mA, ±250 mA
Driver Output Resolution: 11 bits
Driver Output Linearity: 0.2 % of full scale
Analog Demand Input: 4–20 mA (fault detected below 1 mA or above 23 mA)
Demand Input Resolution: 13 bits
Demand Input Linearity: 0.1 % of full scale
Monitor Output: 4–20 mA nominal, 12-bit resolution
System Accuracy (DeviceNet): 0.25 % of full scale at 25 °C, TC < 150 ppm/°C
System Accuracy (4–20 mA): 0.25 % of full scale at 25 °C, TC < 300 ppm/°C
Transducer Compatibility: LVDT, RVDT, DC transducer
Communications: DeviceNet, RS-232 service port (9-pin Sub-D)
Shock Resistance: 30 g, 11 ms half-sine pulse
Vibration Resistance: 0.7 g, 5–2000 Hz
Operating Temperature: -40 °C to +70 °C
Humidity: 95 % condensing

Key Features:

High system accuracy (0.25 % FS) with low temperature coefficient
Versatile I/O – supports single/dual feedback, ±10 mA to ±250 mA actuator currents
Advanced diagnostics: driver current error, over-current, actuator open/short circuit, internal supply monitoring, memory test, A/D check, CPU power monitoring, DeviceNet communication fault detection
Flexible communications via DeviceNet and RS-232
Wide environmental tolerance (-40 to +70 °C)

Application Scenarios:

Precise positioning of hydraulic or pneumatic actuators in turbine control, valve actuation, and industrial automation systems requiring closed-loop position control.

Installation & Notes:

Use shielded cable for all analog and DeviceNet signals. Provide 24 VDC supply capable of delivering at least 20 W. Configure and calibrate via Woodward SPC Service Tool before commissioning. Ensure proper grounding to prevent EMI-induced faults.

GE 8201-HI-IS

Product Name: High-Integrity Safety Digital Input Module (Mark VIe Turbine Control System)

Overview:

The GE 8201-HI-IS is a High-Integrity Safety (HI) digital input module within GE’s Mark VIe Turbine Control System. Engineered with dual-redundant channels and comprehensive diagnostics, it reliably detects trip conditions in SIL 3-rated safety applications for power generation, oil & gas, and industrial facilities. The module provides fail-safe operation and hot-swap capability.

Technical Specifications:

Manufacturer: GE (General Electric)
Type: High-Integrity Safety Digital Input Module
System: GE Mark VIe Turbine Control System
Input Channels: 16 (configurable)
Input Type: Dry contact or active 24 VDC input
Supply Voltage: 24 VDC
Power Consumption: < 10 W
Redundancy Architecture: Dual-channel redundant (2-out-of-2 voting)
Safety Level: SIL 3 (IEC 61508 compliant)
Communication: Mark VIe dedicated safety bus
Diagnostics: Open-circuit, short-circuit, ground-fault, channel-consistency, internal fault
Hot-swap: Supported
Operating Temperature: 0 °C to +60 °C
Storage Temperature: -40 °C to +85 °C
Ingress Protection: IP20
Mounting: Standard 19-inch cabinet, DIN rail

Key Features:

SIL 3 certified for safety-critical trip detection
Dual-channel redundancy with 2oo2 voting for maximum reliability
Comprehensive self-diagnostics covering open/short/ground/channel mismatch
Hot-swappable for online replacement without system shutdown
Fail-safe operation ensures safe state on internal fault

Application Scenarios:

Turbine trip protection, generator protection, emergency shutdown in power generation, oil & gas extraction, and industrial process facilities.

Installation & Notes:

Install in a Mark VIe 19-inch cabinet with proper DIN rail mounting. Ensure 24 VDC safety-bus supply is isolated from non-safety circuits. Verify channel configuration (dry vs. active) matches field wiring before energizing. Hot-swap only after confirming the redundant channel is healthy.
