Product Short Description
Product Name: MicroNet Pentium CPU Module
Product Introduction:

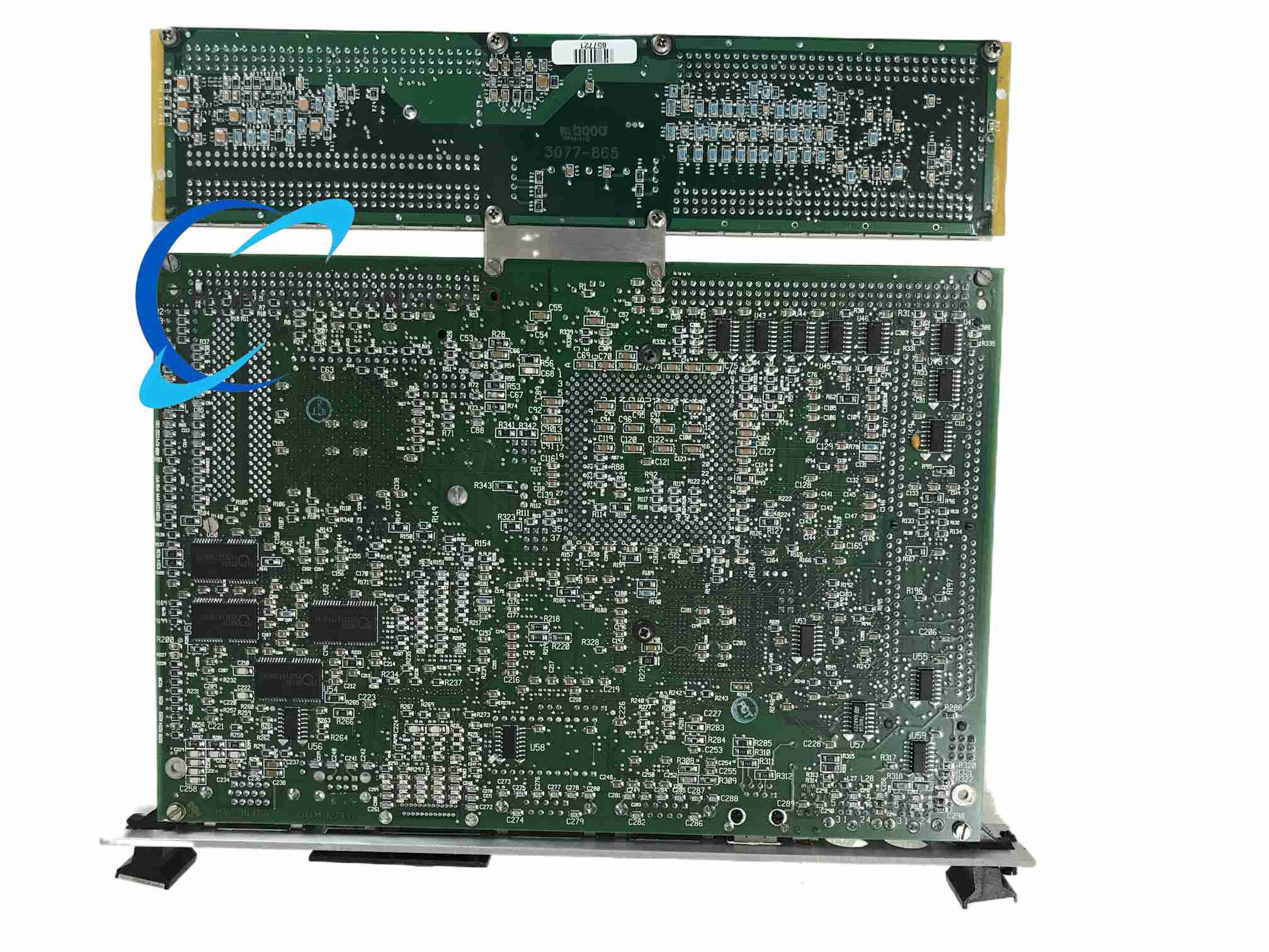

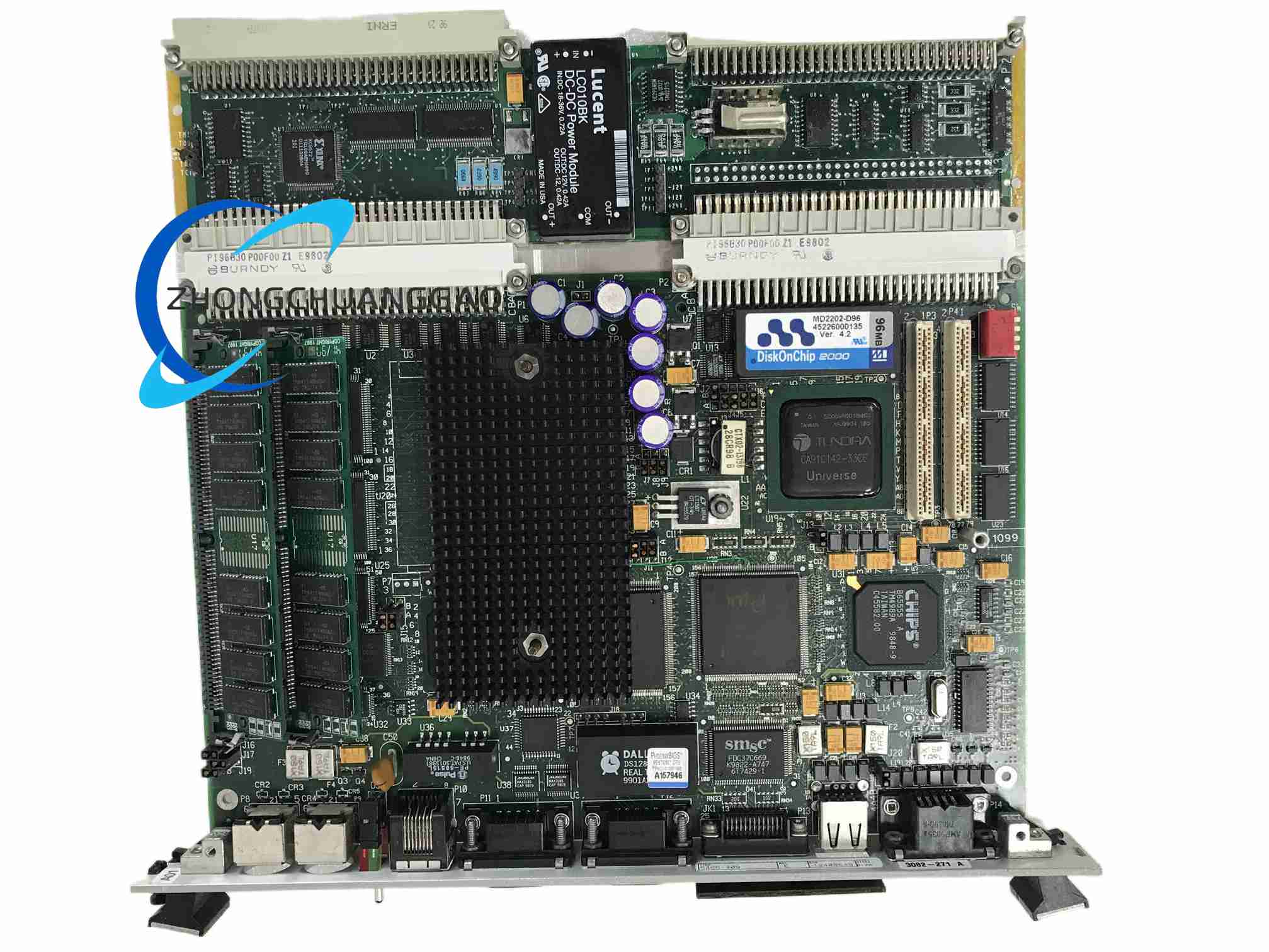

The WOODWARD 5466-409 is a high-performance central processing unit (CPU) module belonging to the MicroNet Digital Control series. Built around a Pentium processor running at 233 MHz with 64 MB of RAM, it is designed for highly demanding industrial control applications. The module executes complex control algorithms and interfaces with plant automation networks, ensuring precise control of equipment speed, load, and safety parameters.
Description
Technical Specifications:
-
Manufacturer: WOODWARD
-
Series: MicroNet Digital Control
-
Processor: Pentium CPU
-
Clock Speed: 233 MHz
-
Memory: 64 MB RAM
-
Communication Interfaces: Two (2) RS-232 serial ports; One (1) Ethernet port
-
Operating Temperature: 0°C to 50°C
-
System Mode: Simplex only
-
Service Tool: AppManager
-
Associated Part Numbers: 70653-700 / 70653-095
Functional Features:
-
Advanced computing capability for complex logic operations and real-time control tasks
-
High-speed data processing via dual RS-232 and Ethernet interfaces
-
OS software developed and certified to DO-178B Standard, Level A
Application Scenarios:
-
Industrial control systems requiring high-reliability computing
-
Turbine and engine control systems
-
Complex automation architectures
Installation Requirements & Precautions:
-
Must be installed in the expansion rack of the MicroNet chassis
-
When the Pentium CPU is located in an expansion rack, it must be used together with a Primary Transceiver (XCVR) and Remote XCVR
-
Operating temperature must be strictly maintained within 0°C to 50°C to avoid malfunction
-
The AppManager service tool is used to boot and load applications via the Ethernet port
