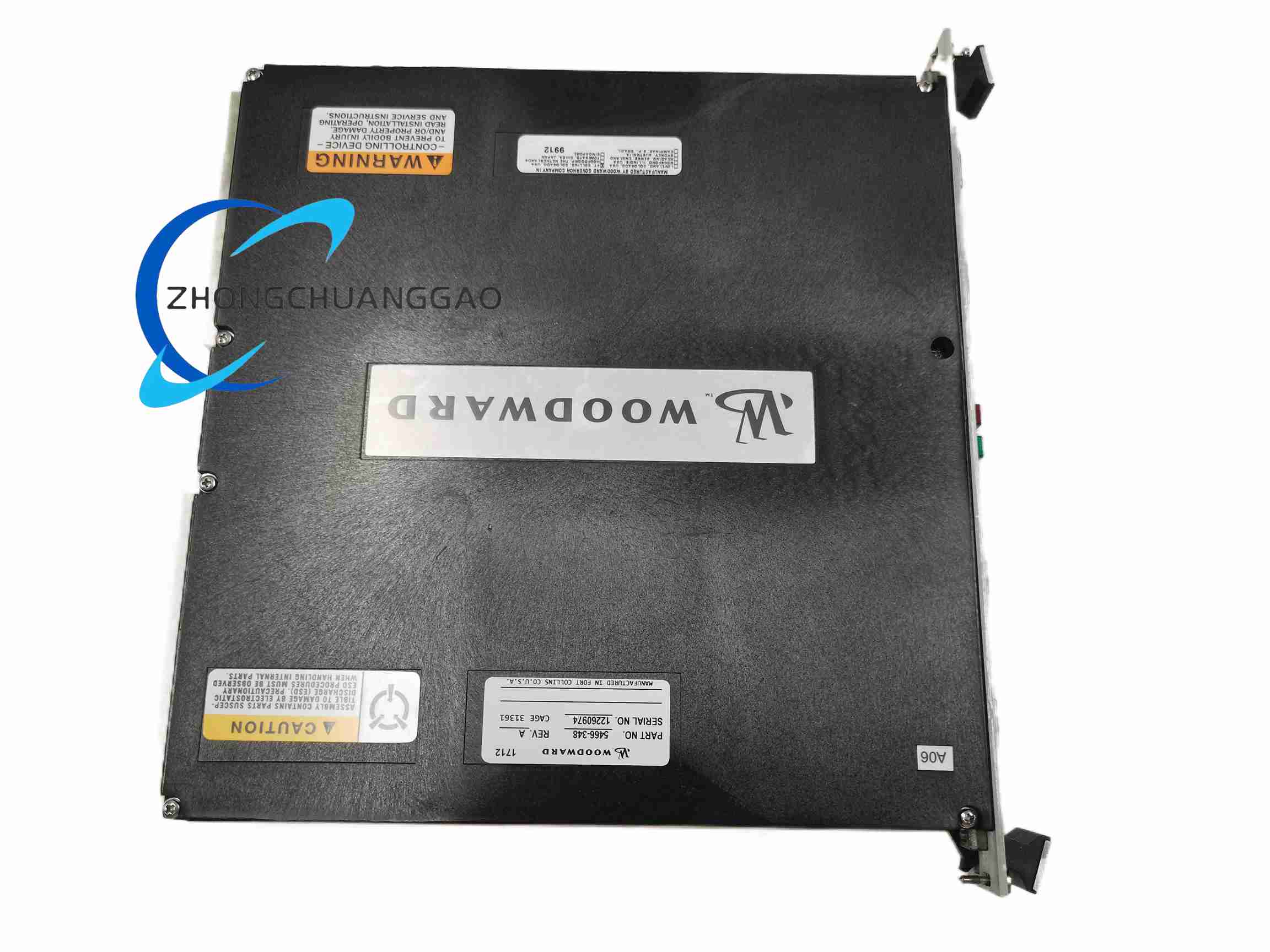

Product Name: Netcon 5000B Serial I/O Module
Product Introduction:
The WOODWARD 5466-348 is a communication module developed by Woodward for use in MicroNet Plus control systems. It features three RS-485 ports for serial communication with other devices and is compatible with a variety of Woodward CPUs, including the 5200 and P1020, as well as Coder 4.06 and later software.
Description
Technical Specifications:
-
Manufacturer: WOODWARD
-
Series: NetCon Control System
-
Module Type: Serial I/O (SIO) Module
-
Communication Ports: Three (3) RS-485 ports
-
Protocols Supported: Modbus RTU, ASCII
-
Isolation: Galvanic isolation
-
Baud Rates: Up to 115.2 kbps
-
Mounting: DIN rail mount
-
Origin: United States
Functional Features:
-
Each RS-485 port is designed for use with EM or GS/LQ digital actuator controllers
-
One controller per port, operating on a 5 ms cycle
-
Galvanic isolation for robust signal integrity
Application Scenarios:
-
Industrial automation
-
Building automation
-
Power generation
-
Oil and gas production
-
Water and wastewater treatment
Installation Requirements & Precautions:
-
Align the module with NetCon guide rails and ensure the backplane connector is fully inserted
-
Take anti-static precautions before installation or removal to prevent damage to onboard components
-
Confirm correct A/B wiring in RS-485 mode; install a 120-ohm termination resistor for long-distance communication
