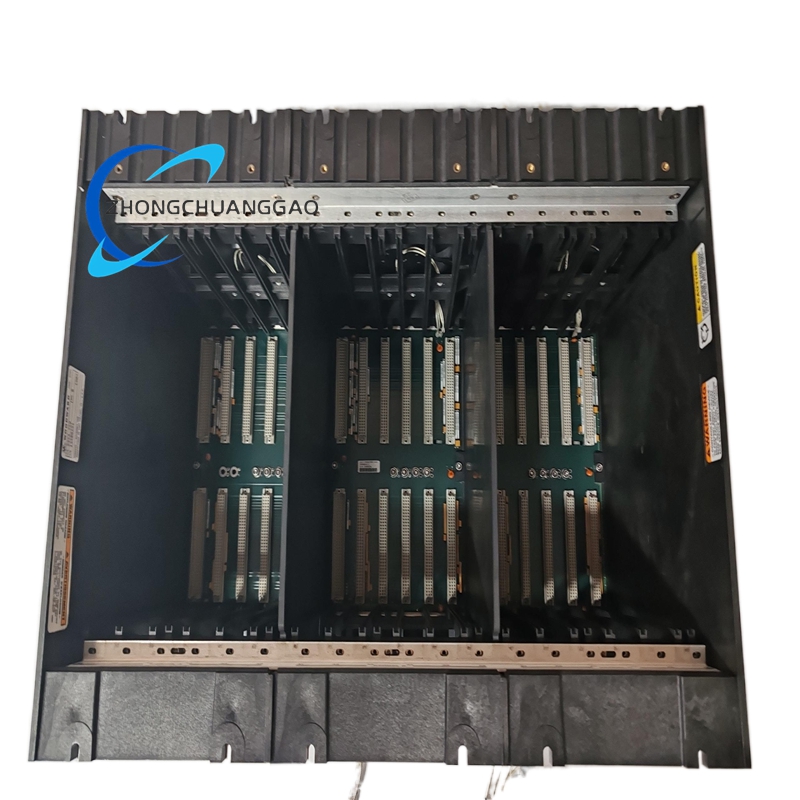

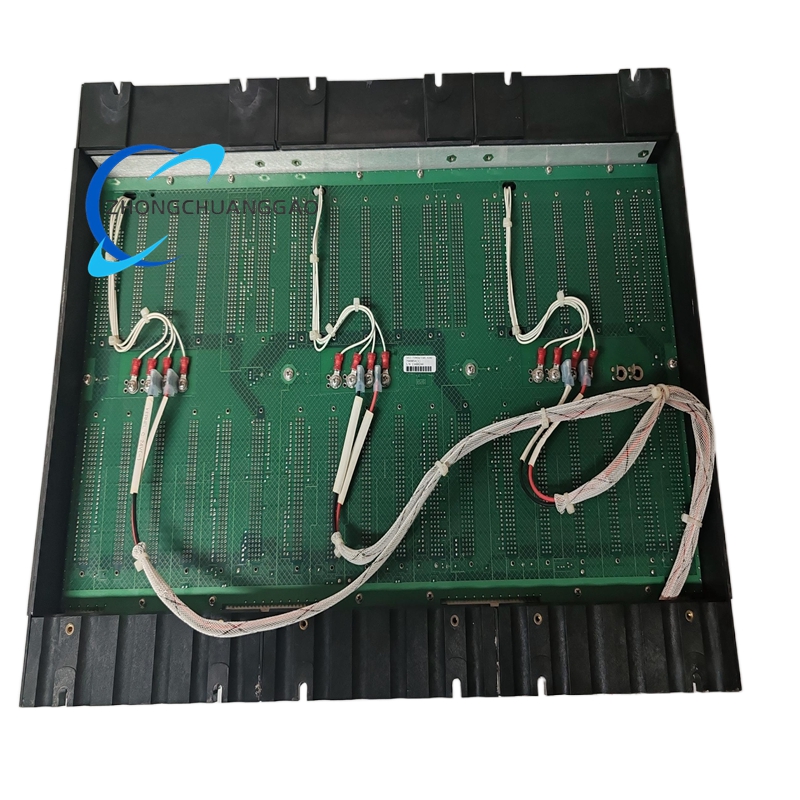

Woodward 5453-759

Description

Product Category
Fuel Actuator Controller / Servo Driver for Gas Turbine and Reciprocating Engines

Key Functions

• Fuel Valve Position Control — Drives the fuel control valve to precise positions based on engine controller commands
• Actuator Position Feedback — Provides real-time valve position feedback to the engine controller via CAN bus
• Overspeed Protection — Automatic fuel shutoff on engine overspeed condition
• Underspeed Protection — Alarm and shutdown on low engine speed
• Emergency Shutdown (ESD) — Executes rapid fuel cutoff on emergency trip signal
• Actuator Diagnostics — Monitors coil current, position sensor health, and temperature
• Local/Remote Mode Selection — Supports both local manual override and remote automatic control
• Fail-Safe Positioning — Drives actuator to safe position (full open or full closed) on signal loss

Technical Specifications

Actuator Drive Specifications

Communication Interfaces

Protection Features

• Overspeed Trip — Configurable trip point, adjustable delay 0 to 30 seconds
• Underspeed Trip — Configurable trip point, adjustable delay
• ESD Actuation — Fuel cutoff within 100 ms of ESD signal
• Actuator Coil Open/Short Detection — Immediate fault alarm
• Position Sensor Failure Detection — Loss of feedback triggers safe shutdown
• Overtemperature Protection — Internal thermal shutdown at +105°C junction temperature
• Supply Voltage Monitor — Low voltage alarm at <18 VDC, high voltage alarm at >32 VDC
• CAN Bus Timeout — Actuator drives to safe position on loss of CAN communication

Drop / Control Modes

Material Composition

Structural Features

• DIN rail mountable (35 mm top-hat rail) or direct actuator mounting
• Front-accessible terminal blocks for field wiring
• Membrane keypad with 4-line LCD display for local configuration
• LED status indicators: Power (green), Run (green), Alarm (amber), Fault (red)
• Deutsch DT connector for quick actuator connection
• Conformal-coated PCB for moisture and chemical resistance

Working Principle

The 5453-759 receives a position command from the EasYgen or EGC-4 engine controller via CAN bus or analog signal. The internal microcontroller compares the commanded position to the actual actuator position measured by an LVDT (Linear Variable Differential Transformer) or potentiometer feedback sensor. The error signal is processed through a PID control algorithm. The controller outputs a high-frequency PWM signal to the actuator drive coil, adjusting current flow to move the fuel valve to the commanded position. All position data, diagnostic status, and alarm conditions are transmitted back to the engine controller via CAN bus in real time.

Advantages and Highlights

• Fully Digital Architecture — No analog drift, no calibration drift over time
• High Position Accuracy — ±0.5% of full stroke ensures precise fuel metering
• Fast Response — <200 ms full stroke time for rapid load changes
• CAN Bus Integration — Seamless communication with EasYgen and EGC-4 controllers
• Comprehensive Diagnostics — Real-time monitoring of actuator health via CAN
• Redundant Protection — Multiple independent overspeed, underspeed, and ESD channels
• IP65 Rating — Suitable for harsh industrial and outdoor environments
• Long Service Life — MTBF exceeds 60,000 hours, no mechanical wear in controller
• Field Configurable — All parameters adjustable via front panel or Modbus

Applicable Industries

• Power Generation — Gas turbine and reciprocating engine generator sets (standby, prime, continuous)
• Oil and Gas — Gas compressor drivers, turbine drivers, wellhead power units
• Marine Propulsion — Gas turbine-powered vessels, auxiliary generators
• Industrial Co-Generation — Combined heat and power (CHP) plants
• Pipeline Compression — Gas turbine-driven compressor stations
• Mining — Gas turbine generator sets for remote power

Compatible Engine Controllers

Compatible Actuator Models (Woodward)

Model Series Cross-Reference

Certifications and Compliance

• CE Marking — Conforms to EU Machinery Directive 2006/42/EC
• UL Listed — File E147353 (North America)
• CSA Certified — File LR78161
• DNV GL Type Approval — For marine installations
• Lloyd’s Register — Approved for marine generator sets
• ATEX — Standard 5453-759 is NOT rated for hazardous areas; use 5453-959 for ATEX Zone 2
• IEC 61508 — SIL 2 capable (when used with SIL-rated engine controller)

Installation Requirements

• Mount on 35 mm DIN rail or directly on the fuel actuator using the supplied bracket
• Maintain minimum 50 mm clearance on all sides for ventilation
• Route CAN bus cable away from high-current power cables (minimum 200 mm separation)
• Use shielded twisted-pair cable for CAN bus (120 Ω characteristic impedance)
• Use shielded cable for analog signals (4-20 mA or 0-10 VDC)
• Ground the controller chassis to the engine block ground point using minimum 6 AWG copper wire
• Supply voltage must be 24 VDC regulated with less than 5% ripple
• Torque all terminal connections to 1.5 Nm (13.3 in-lbs)
• Verify actuator air gap is within 0.3 mm to 1.5 mm (0.012″ to 0.060″) before startup

Usage Precautions

• Do not exceed the maximum supply voltage of 32 VDC — permanent damage will occur
• Do not reverse the polarity of the power supply — internal fuse will blow
• Do not operate the unit in environments exceeding +85°C ambient temperature
• Do not expose the PCB to chemical solvents — conformal coating will degrade
• Perform a no-load position calibration after initial installation
• Perform a functional test of all protection relays every 6 months
• Do not modify the firmware using unauthorized tools — this voids the warranty
• The unit contains no user-serviceable components — contact Woodward for repairs
• Replace the FKM O-rings if the IP65 seal is compromised
• Verify CAN bus termination resistors (120 Ω) are installed at both ends of the bus

Part Number Breakdown

Warranty

• Standard Warranty: 24 months from date of shipment
• Extended Warranty: Available up to 60 months (Woodward Protect program)

Document Reference Numbers
