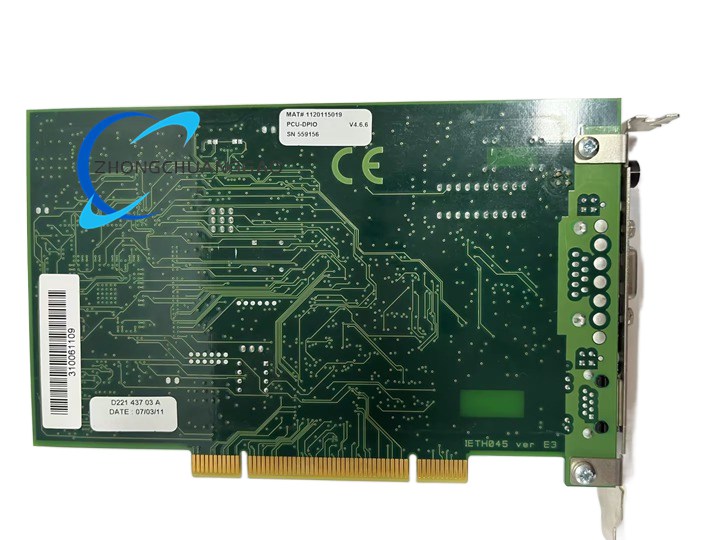

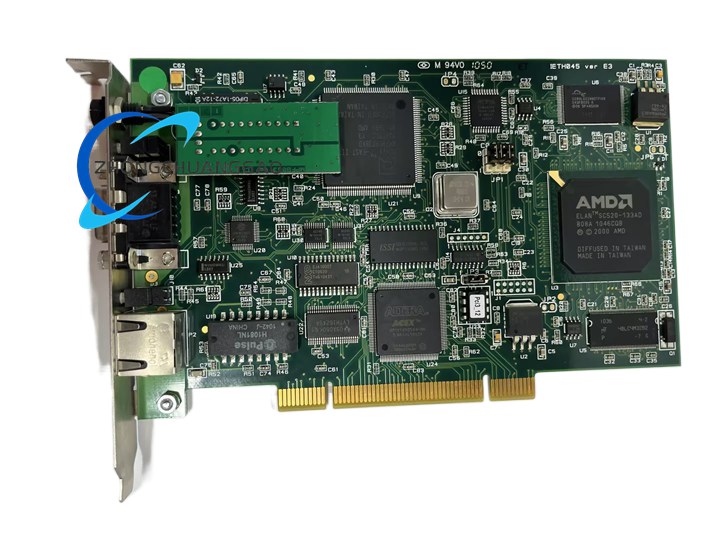

Woodhead PCU-DPIO

Core Technical Performance Parameters

1. Digital Input Specs
   • Total Isolated Digital Input Channels: 16 channels
   • Input Signal Voltage Compatibility: DC 12V–24V NPN/PNP universal sensor signal input
   • Input Channel Isolation: Each channel independent optocoupler isolation, isolation voltage 2500V RMS
   • Input Signal Response Speed: ≤0.5ms signal sampling response time
2. Digital Output Specs
   • Total Relay Digital Output Channels: 12 channels
   • Relay Contact Rated Load Capacity: AC 250V/5A resistive load per channel
   • Relay Mechanical Service Life: ≥10,000,000 switching cycles under no-load condition
   • Relay Electrical Service Life: ≥100,000 switching cycles under rated AC5A load
3. Communication & Bus Specs
   • Module Expansion Bus Interface: Internal dedicated parallel expansion bus for connection with Woodhead PCU host module
   • Maximum Expandable Quantity: Up to 4 sets of PCU-DPIO modules can be cascaded to single PCU host module
4. Environmental & Mechanical Specs
   • Operating Temperature Range: -30°C ~ +70°C continuous operation
   • Protection Grade: IP20 cabinet internal rating
   • Physical Dimension: 145mm(W) × 92mm(H) × 40mm(D)
   • Mounting Method: Standard 35mm DIN rail slide-in installation
   • Net Weight: 0.32kg

Function & Feature Highlights

1. Large-Capacity Digital I/O Expansion: 16-way isolated digital input and 12-way relay output, greatly expanding on-site digital signal collection and actuator drive capacity of Woodhead PCU host control module
2. Dual NPN/PNP Universal Input Compatibility: Digital input channels automatically adapt to NPN sinking and PNP sourcing type proximity sensors, no hardware jumper adjustment required for different sensor wiring modes
3. Independent Channel Optocoupler Isolation: Each digital input channel equipped with separate high-isolation optocoupler device, completely block high-voltage surge, inductive load reverse electromotive force interference transmitted from field sensor wiring
4. High-Capacity Relay Output Drive: Mechanical relay contact supports direct driving of AC220V small solenoid valves, signal indicator lamps and miniature contactors without intermediate relay conversion
5. Channel-by-Channel LED Status Indicator: Each input and output channel equipped with independent red/green LED indicator light, directly display channel signal on/off state and relay pull-in release status for fast on-site fault troubleshooting
6. Cascadable Multi-Module Expansion Bus: Dedicated high-speed parallel expansion bus supports up to 4 PCU-DPIO modules cascaded to single PCU host, flexible matching different production line I/O quantity requirements
7. Overcurrent Short-Circuit Channel Protection: Each relay output channel built-in independent PTC self-recovery fuse, automatically cut off channel output current when short-circuit or overload occurs, no damage to module main circuit

Working Principle

Material Composition & Structural Characteristics

1. Enclosure Housing: Flame-retardant ABS plastic enclosure with UL94-V0 fire resistance standard, dust-proof and anti-corrosion surface treatment
2. Main Control Circuit Board: Double-sided FR4 copper-clad PCB with three-proof anti-moisture coating, independent wiring partition for input circuit, output relay circuit and expansion bus circuit to avoid cross-signal interference
3. Isolation & Drive Components: High-withstand voltage optocoupler devices for all input channels; miniature electromagnetic mechanical relays with silver alloy contact points for output channels; independent PTC self-recovery fuse for each output channel
4. Terminal Wiring Structure: Spring-type quick-release nickel-plated copper wiring terminals, wire clamping range 0.3mm²–2.0mm², no screwdriver required for fast wiring disassembly
5. Mounting Structure: Integrated DIN rail buckle on enclosure back, slide and lock on standard 35mm DIN rail without additional fixing screws

Installation Technical Requirements

1. Mounting Carrier: Install on standard NS35/7.5 DIN rail inside sealed electrical control cabinet, vertical installation direction only
2. Module Cascading Installation Rule: When multiple PCU-DPIO modules cascaded, install all expansion modules adjacent to Woodhead PCU host module with maximum 10cm distance between modules to ensure stable expansion bus signal transmission
3. Wiring Standard: Digital input sensor wire use twisted pair shielded cable, relay output actuator wire use 1.5mm² copper wire; all shield layers single-point grounding at cabinet earth bar
4. Heat Dissipation Installation Space: Minimum clearance 15mm above and below module for air convection heat dissipation; no heat-generating components installed within 10cm surrounding area
5. Grounding Requirement: Module ground terminal connected to cabinet protective earth wire with grounding resistance less than 0.5Ω

Typical Application Scenarios

1. Automated assembly production line limit switch, photoelectric sensor digital signal collection expansion module
2. Packaging machinery solenoid valve, warning light digital relay drive expansion unit matched with Woodhead PCU host controller
3. Conveyor belt transportation equipment proximity switch signal acquisition and alarm light control expansion module
4. Water treatment equipment flow switch, liquid level switch digital input expansion control unit
5. Small automatic machine tool auxiliary actuator relay drive expansion I/O module

Operation & Maintenance Precautions

1. Pre-Wiring Power Cut Rule: Must disconnect PCU host module main power supply before connecting or disconnecting any input/output wiring to avoid static electricity damage to internal optocoupler and MCU chip
2. Output Load Matching Limit: Each relay output channel resistive load cannot exceed rated AC250V/5A long-term continuous operation; inductive load (solenoid valve, contactor) must install freewheeling diode or RC absorption circuit at load terminal to eliminate reverse electromotive force impact on relay contact points
3. Regular Inspection Cycle: Check spring wiring terminal clamping tightness every 3 months to prevent loose wiring poor contact signal loss; clean dust accumulated on enclosure LED indicator window every 6 months
4. Fault Channel Recovery Operation: When output channel overload short-circuit triggers PTC fuse protection, disconnect load wiring and cut off module power supply for minimum 10 minutes for PTC component cooling recovery before re-powering test
5. Module Cascading Fault Troubleshooting: When expansion bus communication failure occurs between PCU host and DPIO expansion module, check expansion bus cable plug connection tightness first; damaged expansion bus cable must be replaced with original Woodhead matching cable
6. Environmental Operation Limit: Prohibit long-term continuous operation in environment with ambient temperature exceeding +70°C or below -30°C; high-temperature operation will accelerate relay contact point oxidation and reduce service life
