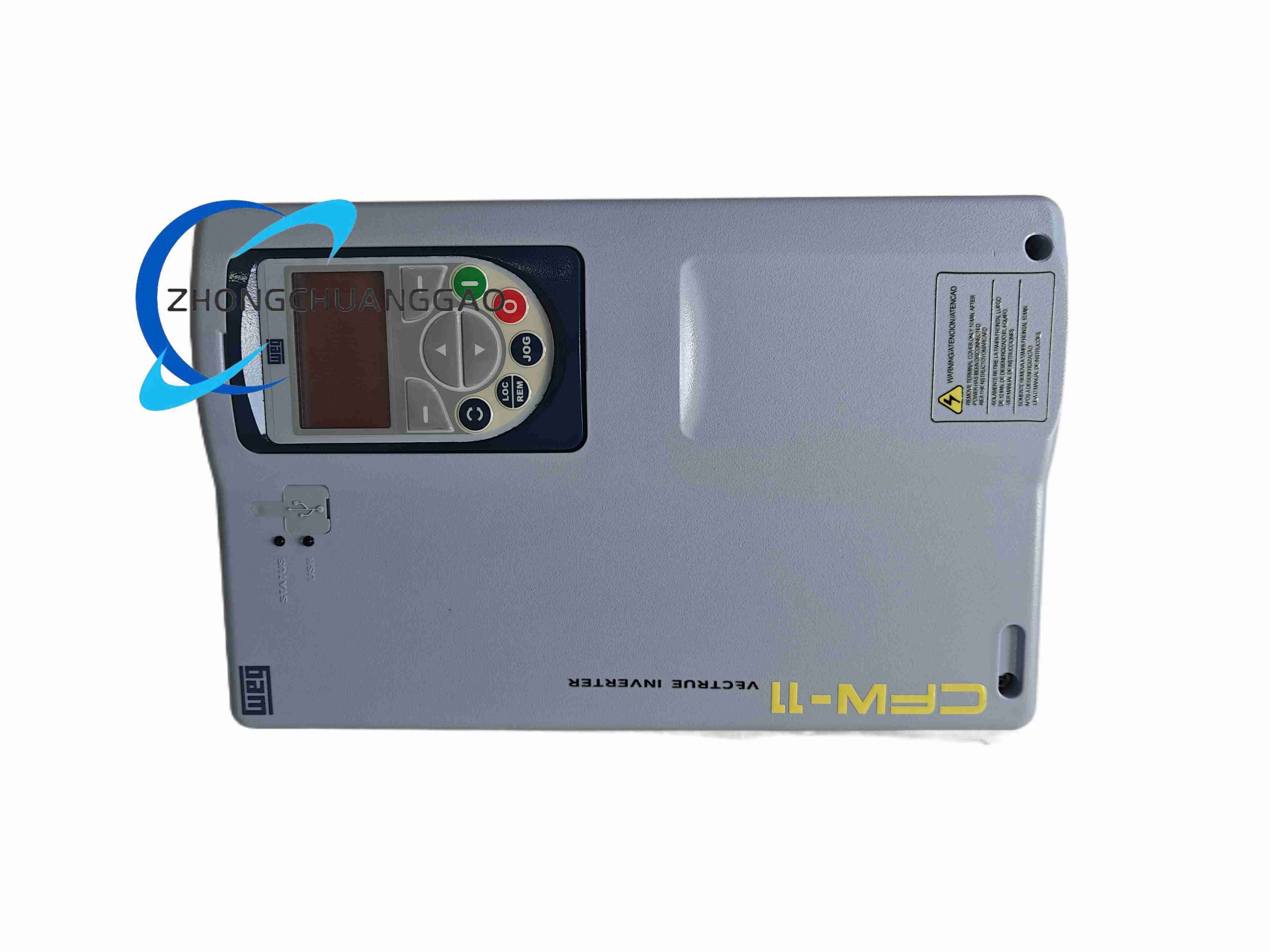

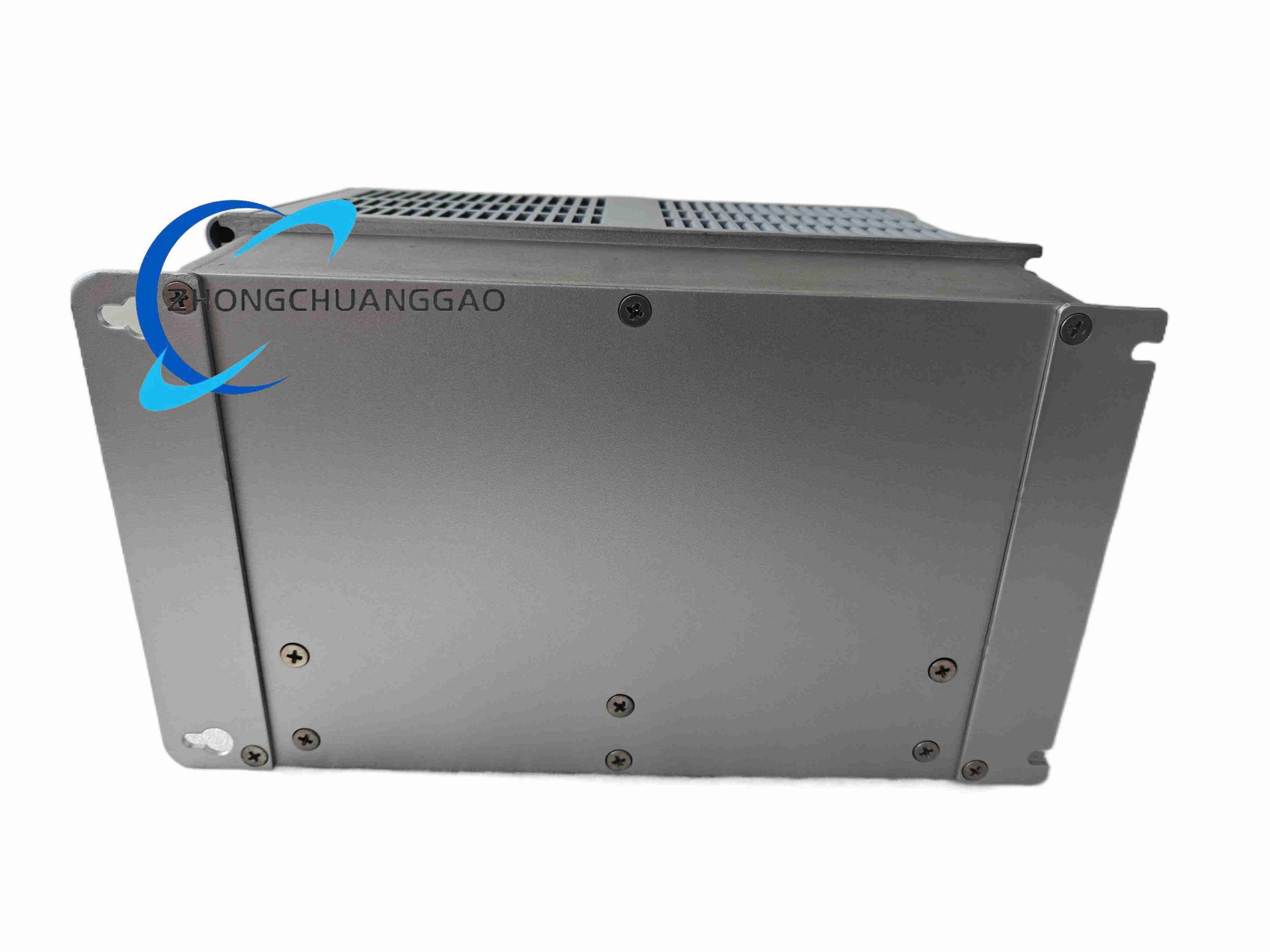

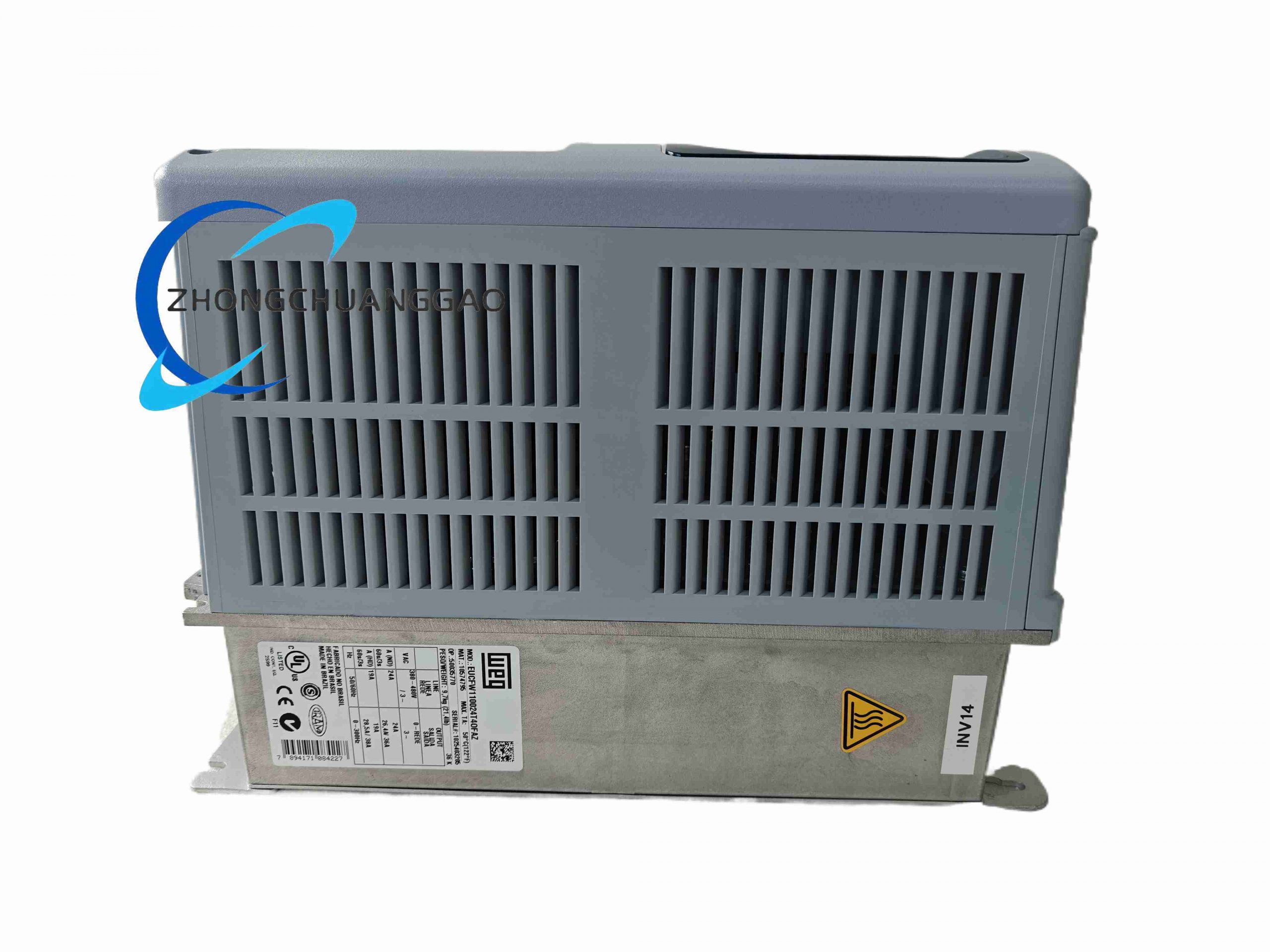

WEG EUCFW110024T40FAZ

Product Brief Introduction

Core Technical Specifications

• Input Power Supply: Three-phase 380–480V AC (+10%/-15%), 50/60Hz
• Rated Output Current: 24 A (Normal Duty ND), 19 A (Heavy Duty HD)
• Matched Motor Power Rating: 11kW three-phase asynchronous motor
• Frame Size: Size B
• Enclosure Protection Grade: IP21 standard
• Integrated Standard Configurations: Built-in dynamic braking circuit, C3 EMC input filter, STO Safe Torque Off safety circuit
• Overload Capacity: ND: 110% rated current for 60s / 150% for 3s per 10min cycle; HD: 150% for 60s / 200% for 3s per 10min cycle
• Control Modes: V/F scalar control, sensorless vector control, closed-loop vector control (encoder optional)
• Analog I/O: 1 differential analog input (0–10V / 4–20mA); 2 isolated analog outputs
• Digital I/O: 6 opto-isolated bidirectional 24V DC digital inputs; 3 relay NO/NC contact outputs
• User Auxiliary Power: Built-in 24V DC / 500mA isolated power supply for field sensors
• Overall Dimensions: 260mm × 145mm × 190mm
• Net Weight: 4.8 kg
• Operating Ambient Temperature: -10°C ~ +50°C; up to 60°C with 2% current derating per °C above 50°C
• Altitude Adaptation: 0–1000m full rated output; 1% current derating per 100m above 1000m up to 4000m

Function Features

1. Vectrue high-performance vector control algorithm, maintains high low-speed torque without encoder sensor
2. STO Safe Torque Off safety function, meets EN 61800-5-1 machinery safety standard for production line emergency stop
3. Built-in C3 grade RFI filter, suppresses power grid harmonic interference without external filter installation
4. Integrated dynamic braking IGBT module, supports fast motor stop under high inertia load conditions
5. Automatic motor parameter self-tuning function, one-click identification of stator resistance, rotor resistance and inductance parameters
6. Multi-segment speed curve programming, 16 preset fixed speed points for process fixed speed switching
7. Complete motor protection suite: overcurrent, overvoltage, undervoltage, overheat, PTC thermistor motor temperature protection
8. Modbus RTU standard communication interface, optional Profibus DP / Ethernet communication expansion card
9. Front panel removable LCD parameter keypad, support parameter copy between multiple drives for batch commissioning

Performance Parameters

• Maximum Output Frequency: 0 ~ 600Hz continuously adjustable
• Starting Torque (Sensorless Vector): 150% rated torque at 0.5Hz
• Energy Conversion Efficiency: ≥ 98% under nominal load operating condition
• DC Braking Time Range: 0.1s ~ 30s adjustable
• Switching Frequency Range: 2kHz ~ 15kHz user configurable
• EMC Compliance: EN 61800-3 Category C3 industrial environment standard

Material Composition

• Outer Enclosure: Cold rolled steel sheet with black anti-rust electrostatic spraying
• Main Power Module: Industrial grade IGBT power semiconductor module with integrated temperature sensor
• Internal Heat Sink: Aluminum alloy extruded heat sink with fin structure for forced air cooling
• Circuit Board: FR4 flame retardant PCB with conformal coating anti-humidity protection
• Power Capacitors: Long-life film DC-link capacitors with 100,000-hour service life at rated temperature

Structural Characteristics

• Vertical cabinet floor mounting standard structure, optional rear flange mounting mode with IP54 heat sink side protection
• Front side removable operation keypad panel, independent wiring terminal compartment covered by plastic protective cover
• Internal layered layout: power circuit compartment separated from control signal compartment with metal shielding partition
• Bottom-mounted cooling fan with dust filter screen, fan speed automatic adjustment based on internal temperature

Working Principle

Advantage Highlights

1. All core functional modules (braking, EMC filter, STO safety) integrated as standard configuration, no extra accessory purchase required
2. High starting torque sensorless vector control eliminates expensive encoder installation cost for most transmission equipment
3. Wide ambient temperature and altitude adaptation range, suitable for outdoor mining, water treatment and agricultural machinery harsh environments
4. One-click motor self-tuning and parameter copy functions greatly shorten on-site equipment commissioning time
5. High energy conversion efficiency reduces long-term industrial operation power consumption cost

Applicable Industries

Installation Requirements

1. Vertical installation only, mounting inclination angle cannot exceed 10°, horizontal installation strictly prohibited
2. Maintain ≥ 150mm vertical heat dissipation gap above and below the drive, ≥ 50mm horizontal gap between adjacent drives
3. Input power cable uses shielded copper cable, motor output cable must be shielded cable with shielding layer double-ended grounding
4. Install external braking resistor when braking duty cycle exceeds 10% continuous operation
5. Cabinet cooling fan required when multiple drives are installed in single cabinet to control internal temperature below 50°C

Usage Precautions

1. Do not operate drive without connecting motor load, no-load operation may damage output IGBT module
2. STO safety circuit wiring must use dedicated safety cable, no shared wiring with ordinary control signals
3. Clean heat sink dust filter screen every 3 months for dusty industrial workshop environments
4. Avoid frequent repeated start-stop operation exceeding 20 times per minute to prevent overheating power module
5. Cut off input AC power supply and wait minimum 10 minutes for DC-link capacitor discharge before opening drive housing maintenance
