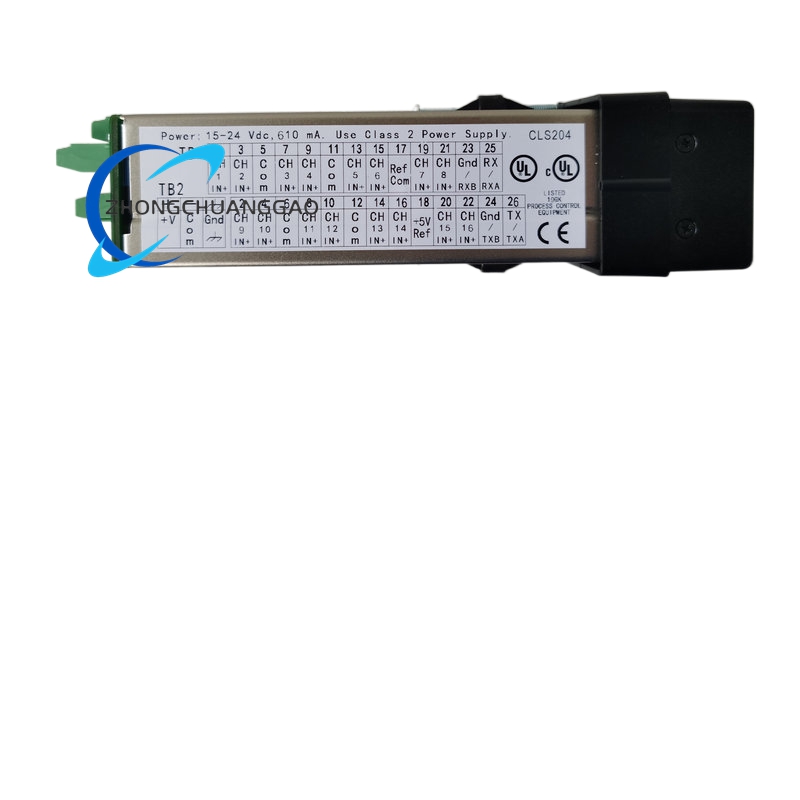

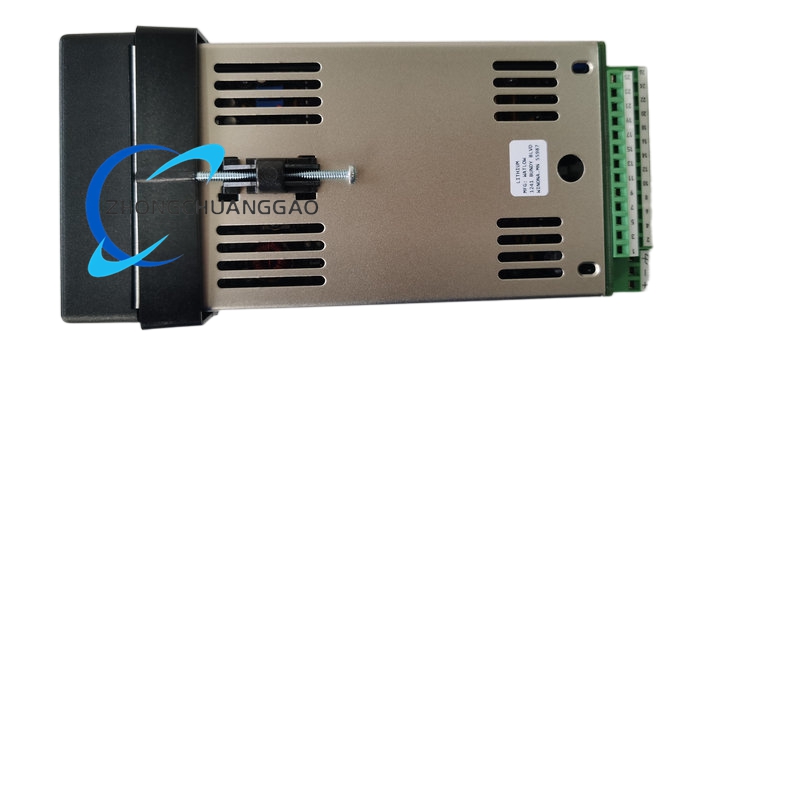

Watlow CLS204

Description

Technical Specifications:

• Manufacturer: Watlow (Anafaze series)

• Control Loops: 4 channels independent control

• Input Signal Compatibility: Thermocouples (J/K/T/E/R/S/B/N types), RTD (Pt100), Analog (0-10V/4-20mA)

• Output Types: Relay (≤5A @ 250V AC), SSR drive, Analog output (0-10V/4-20mA)

• Control Algorithm: Adaptive PID + Auto-tuning (dynamic parameter optimization)

• Communication Interface: RS-485 (Modbus RTU), Ethernet (TCP/IP)

• Temperature Range: -200°C to +1300°C (full scale coverage)

• Control Accuracy: ±0.07% (25°C ambient) / ±0.1°C (laboratory grade)

• Sampling Rate: 6 samples/second (full channel scan cycle 0.167 seconds)

• Display Interface: 32-character vacuum fluorescent screen + 8-key keypad (menu configuration)

• Power Requirements: 24V DC or 100-240V AC 50/60Hz

• Ingress Protection Rating: IP65 (dustproof and waterproof)

• Physical Size: ⅜ DIN规格 (compact design)

• Dimensions: 48mm x 48mm (square design)

• Weight: 200g

Functional Features:

• High-Speed Multi-Channel Processing Architecture: 24-bit Σ-Δ ADC + cold junction compensation; 16-bit high-precision ADC

• ARM Processor: PID engine for precise control

• 120dB Power Frequency Rejection: Anti-inverter interference capability (mine/steel mill scenarios)

• Auto-Tuning Algorithm: Automatically optimizes PID parameters for nonlinear loads

• Programmable Control Points: Up to 4 programmable control points

• Output Options: Supports relay, SSR, or analog output

• LED Display: Provides clear visual feedback on controller status and settings

Industrial Reliability Design:

• Vibration Tolerance: 5g / 20-200Hz (industrial equipment verified) – IEC 60068-2-6

• Electrical Isolation: Optocoupler isolation (channel-to-channel ≥2500V AC) – IEC 61131-2

• Chemical Protection: PCB conformal coating (acid/alkali/oil mist resistant) – ISO 12944-5

• Thermal Stability: 3000 hours full load at 60°C, temperature drift <0.05%

Principle of Operation:
The CLS204 uses a high-speed multi-channel processing architecture with 24-bit Σ-Δ ADC and cold junction compensation for thermocouple inputs. The ARM processor executes adaptive PID control algorithms with auto-tuning capability to dynamically optimize parameters for varying process conditions. The controller supports multiple output types (relay, SSR, analog) to drive heating and cooling elements.

Advantages and Strengths:

• High precision with ±0.07% accuracy

• 4-channel independent control for multi-zone applications

• Versatile input compatibility (thermocouples, RTD, analog)

• Robust industrial design with high vibration tolerance and electrical isolation

• Long-term thermal stability proven through extensive testing

Applicable Industries:

• Plastic Injection Molding: Multi-segment temperature curve control (16-segment program control: heating/soaking/cooling)

• Food Sterilization: HACCP compliance with data logging and alarm traceability (≥1000 event storage)

• Semiconductor Packaging: ±0.1°C stability with PID parameter adaptation and overshoot suppression

• Chemical Reactors: Temperature-pressure interlocking with dual-channel asynchronous control (heating SSR + cooling valve联动)

• Industrial heating and cooling, process control, automated manufacturing systems

Model Series: Anafaze Series

Installation Requirements:

• Thermocouple wire length ≤30m (longer runs require compensation wire)

• RS-485 bus requires 120Ω termination resistor to prevent signal reflection

Usage Precautions:
Thermocouple and RTD input specifications vary by configuration. For detailed installation and wiring, refer to official Watlow documentation.
