Product Short Description

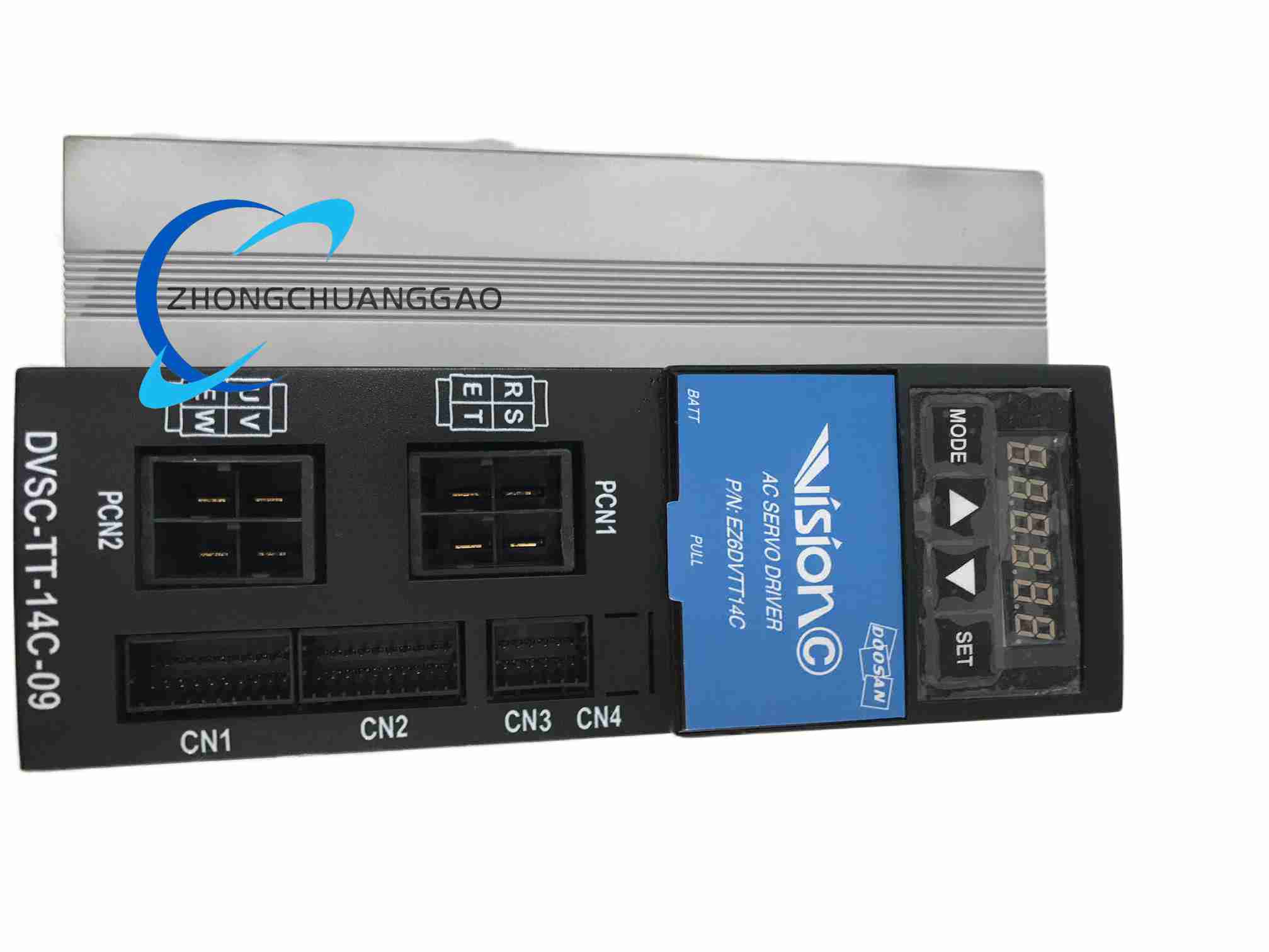

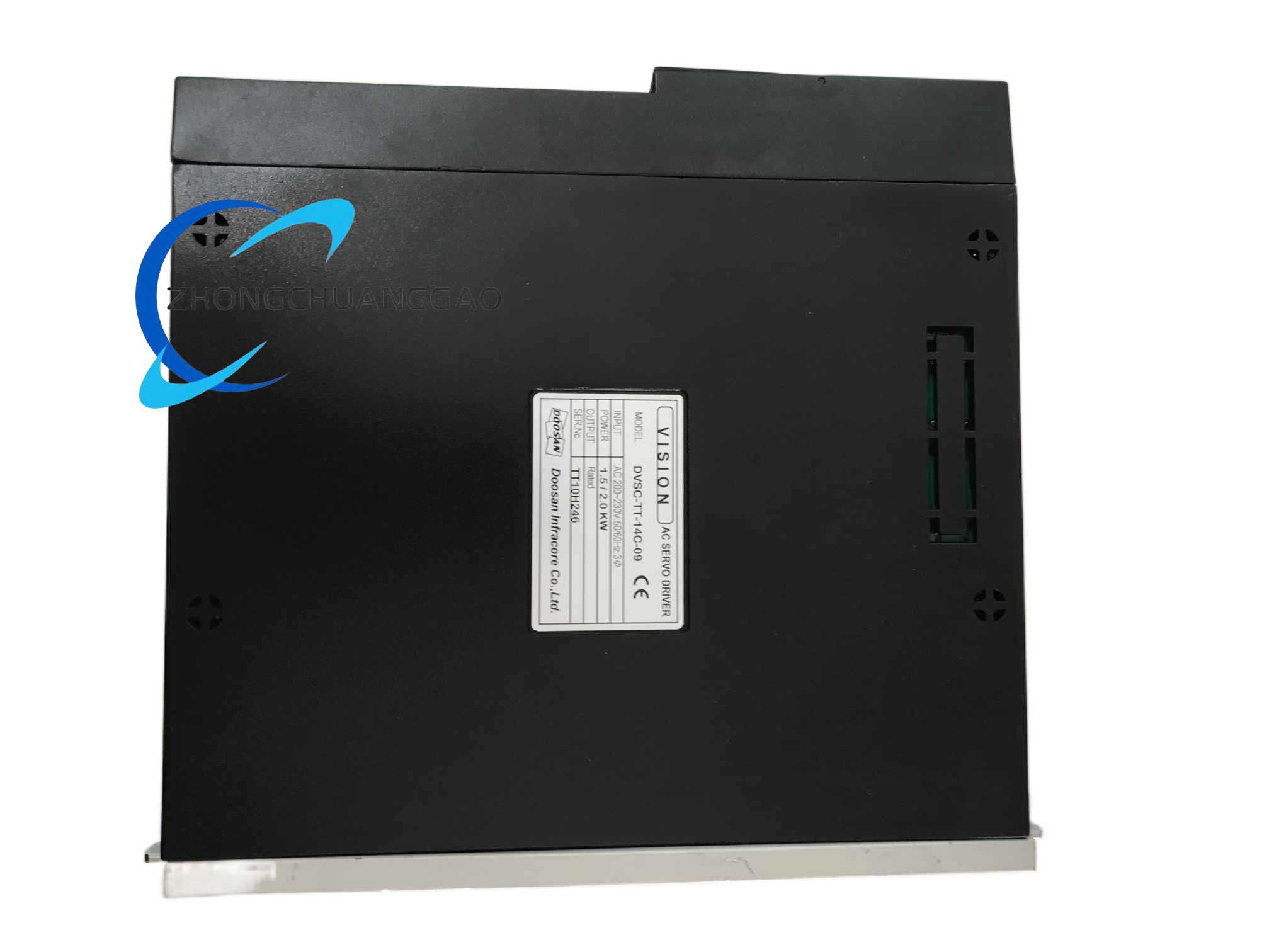

Product Name: Vision DVSC-TT-14C-09 AC Servo Drive (DOOSAN VISION AC SERVO DRIVE series)
Product Overview: A high-performance AC servo drive engineered for precise motion control on machine tools and automated production equipment, delivering three control modes (position, speed, torque) for rotary servo motors.
Technical Specifications:
- Input Voltage: AC 200–230 V, 50/60 Hz
Description
- Rated Current: 14 ARMS continuous output
- Overload Capacity: 300% rated current for 3 seconds
- Output Frequency Range: 0–400 Hz
- Positioning Repeatability: ±0.01°
- Position Loop Response Time: < 1 ms
- Protection Class: IP20 (control panel mounting)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: -20 °C to +70 °C
- Dimensions: 150 × 85 × 190 mm
- Communication: PCN1, PCN2 encoder ports; I/O terminal bus
- Protocols: Pulse train input, analog command, serial servo communication
Structural & Material Features: IP20-rated enclosure designed for control panel mounting. Features a front-mounted digital operator panel, built-in anti-vibration filtering, and auto-tuning functions. Integrated fault diagnostics with robust short-circuit, overvoltage, and overheat protection.
Working Principle: The drive controls servo motors using advanced control algorithms across three modes (position, speed, torque). The built-in anti-vibration filtering and auto-tuning resolve unstable positioning and vibration issues during high-speed cyclic operation.
Application Scenarios: CNC machining center axis control; automated assembly transfer lines; metal forming and press auxiliary motion systems; retrofit of legacy Doosan machine tools as a direct replacement drive.
Installation & Usage Notes: Mount within a control panel (IP20 protection) with adequate ventilation, maintaining ambient temperature 0–50 °C. Follow wiring diagrams for encoder (PCN1/PCN2) and I/O terminal bus connections. Use auto-tuning for commissioning to eliminate vibration and instability.
