TRICONEX DO3201

Description

Material Composition

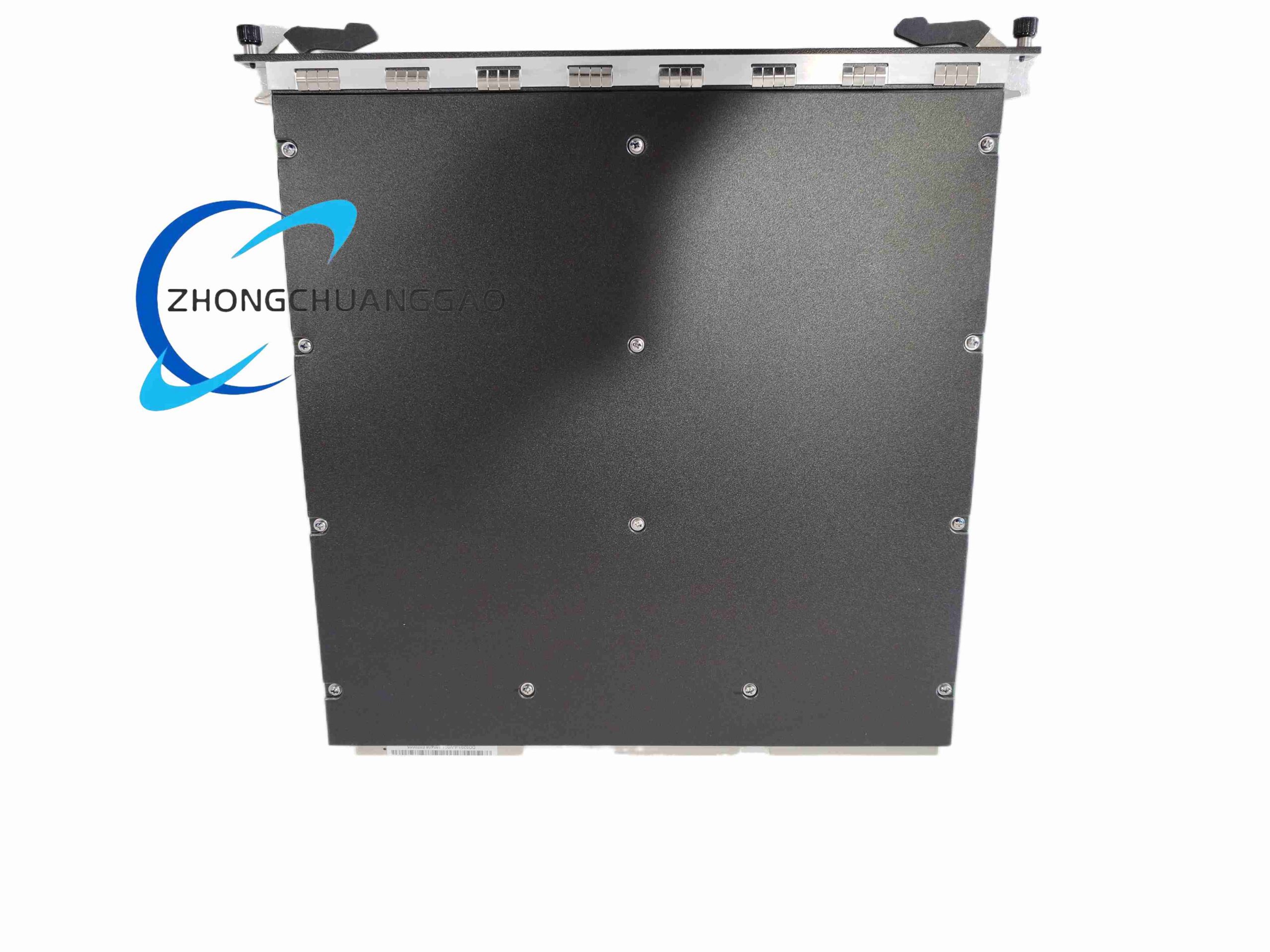

• Outer housing: Extruded black aluminum alloy heat sink casing with vertical rib heat dissipation structure
• Internal circuit substrate: FR4 high-temperature flame-retardant PCB
• Signal isolation components: Polyimide insulation transformers
• Connector terminals: Gold-plated copper alloy anti-oxidation contact pins
• Mounting fasteners: Nickel-plated steel locking slide latches

Structural Features

1. Standard rack-mount single-slot module form factor for Tricon main racks
2. Front panel integrated multi-channel status LED indicator array, fault diagnostic LED group
3. Rear edge card gold-plated backplane connector for rack bus communication
4. Built-in independent galvanic isolation circuit for each output channel
5. Passive ribbed aluminum heat dissipation housing without forced fan cooling
6. Locking slide latch mechanism for anti-vibration rack fixation

Technical Specifications

• Safety Certification Grade: SIL3 (TÜV Rheinland certified)
• Architecture: Triple Modular Redundant (TMR), three independent parallel signal branches with hardware majority voting logic
• Rated Operating Power Supply: 24 VDC industrial safety power
• Module Dimension: 2.2 cm (W) × 35.6 cm (H) × 35 cm (D)
• Net Weight: 1.74 kg
• Output Channel Configuration: 16 isolated digital output channels per module
• Single Channel Rated Load Current: 2 A DC resistive load
• Channel-to-Backplane Isolation Voltage: 2500 VAC dielectric withstand
• Operating Ambient Temperature Range: -40 ℃ ~ +70 ℃
• Storage Temperature Range: -45 ℃ ~ +85 ℃
• Relative Humidity Tolerance: 5% ~ 95% RH, non-condensing
• Vibration Resistance Standard: IEC 60068-2-6, 10–150 Hz, 1 g continuous vibration
• Shock Resistance Standard: IEC 60068-2-27, 15 g peak shock for 11 ms
• MTBF Value: Exceeds 1,200,000 hours under standard industrial operating conditions

Function Features

1. Triple parallel independent signal processing, system maintains full operational capability under single branch hardware failure
2. Hardware majority voting mechanism eliminates false trip and missing trip risks in safety loops
3. Full-channel real-time self-diagnosis circuit; detects open circuit, short circuit, overload and internal branch fault
4. Individual channel galvanic isolation suppresses field interference and ground loop noise
5. Deterministic output response with fixed microsecond-level delay for safety interlock logic execution
6. Front-panel LED real-time display of channel on/off status and module global fault state
7. Supports full data upload to TriStation engineering software for centralized fault logging and asset monitoring
8. Hot-swap compatible with Tricon redundant racks; no system shutdown required for module replacement

Working Principle

Three identical independent circuit branches receive identical digital output logic commands from the Tricon backplane simultaneously. Each branch independently processes signal switching logic and generates output drive signals. A dedicated hardware voting chip compares three branch output states, and only executes the output action when at least two branches output consistent logic levels. All channel fault detection circuits continuously sample output load impedance and voltage; fault signals are transmitted to the controller backplane and trigger front-panel alarm LEDs. The aluminum rib housing dissipates heat generated by isolation transformers and drive circuits through passive convection cooling.

Advantage Highlights

1. SIL3 highest safety integrity level certification, fully compliant with IEC 61508 functional safety standard
2. TMR triple redundant architecture completely eliminates single-point failure of safety output loops
3. Wide temperature and vibration resistance adapts to offshore, petrochemical and power plant harsh environments
4. Hot-swap function minimizes unplanned production downtime during module maintenance
5. Full-channel electrical isolation eliminates cross-channel interference and ground loop damage
6. Integrated comprehensive self-diagnosis system achieves zero-blind-spot fault detection for all output paths
7. Unified compatibility with all Tricon Tricon CX / Tricon V10 / Tricon V11 safety controller racks

Applicable Industries

Petrochemical refining, onshore & offshore oil & gas exploitation, thermal power generation, nuclear auxiliary safety control, chemical hazardous material processing, boiler safety interlock systems, pipeline pressure protection, mining safety shutdown control

Installation Requirements

1. Install only into dedicated Tricon series redundant safety rack slots; strictly prohibit mixing with non-TMR I/O modules
2. Maintain minimum 20 mm vertical ventilation clearance above and below the module rack for passive heat dissipation
3. Field wiring must use shielded twisted-pair cables with cable shielding single-point grounding at the cabinet earth bar
4. Torque for output terminal wiring screws is fixed at 0.6 N·m to avoid terminal pin deformation
5. Cabinet ambient temperature must be controlled within 0 ℃ ~ 60 ℃ during long-term continuous operation
6. Rack cabinet must reach IP54 minimum protection grade to prevent dust and condensate ingress

Usage Precautions

1. Forbid connecting inductive loads without surge absorption diodes to output channels; inductive back EMF will damage internal drive chips
2. All maintenance operations must be executed under safety isolation lockout/tagout procedures per site functional safety rules
3. Do not remove the module while the rack backplane power supply is live without activating hot-swap permission via TriStation software
4. Regularly calibrate module fault diagnosis function every 12 months via official TriStation diagnostic tool
5. Avoid exposing the module to chemical vapor, salt fog and corrosive gas environments without sealed cabinet protection
6. Replace modules with factory-original DO3201 parts only; third-party substitute modules invalidate SIL3 safety certification
