Product Short Description
Product Overview

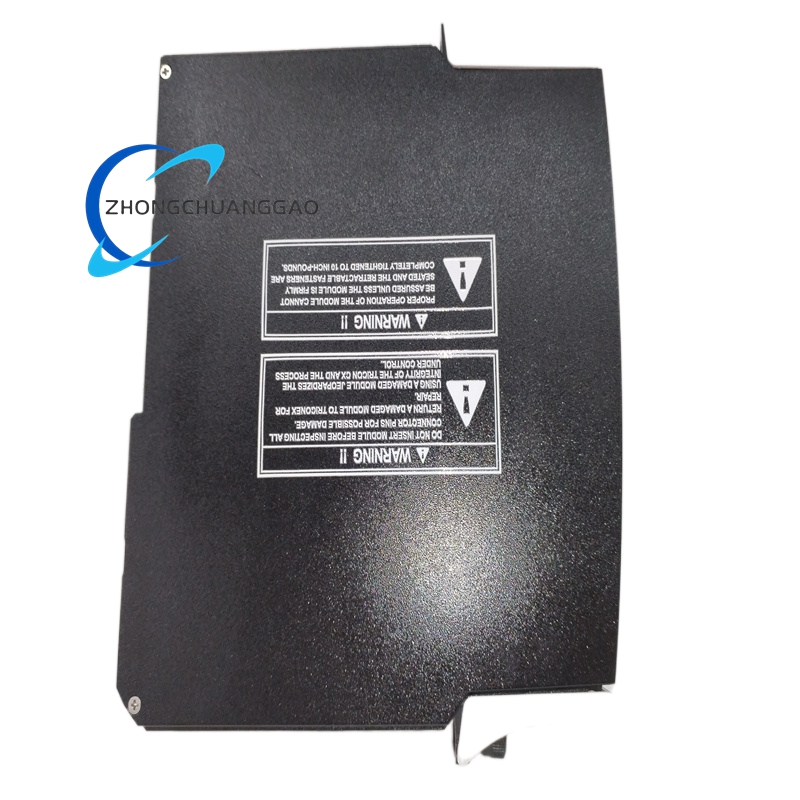

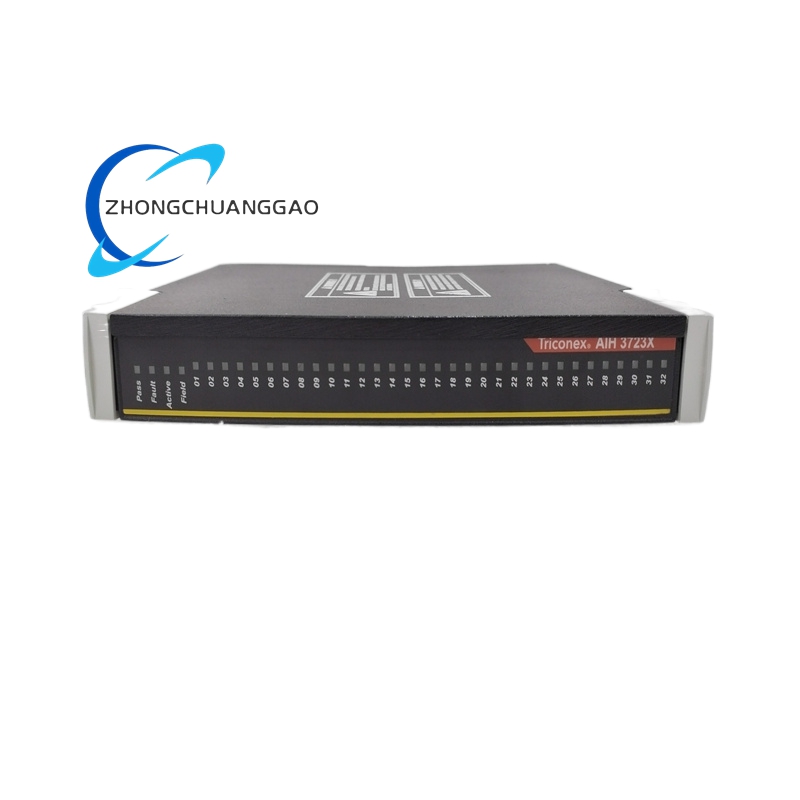

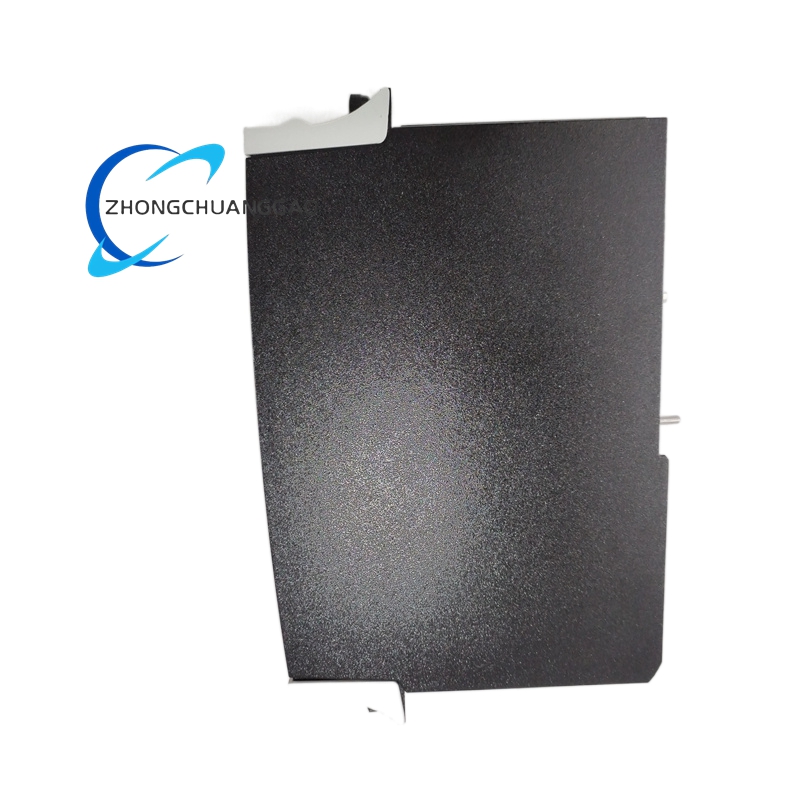

TRICONEX AIH3273X is a high-integrity safety-grade high-density analog input module manufactured by Schneider Electric TRICONEX. It belongs to the Trident/Tricon Triple Modular Redundancy (TMR) safety control system platform. This module performs high-speed, high-precision acquisition of 4–20 mA analog current signals from on-site pressure transmitters, temperature transmitters, flow transmitters, level transmitters and continuous process measurement sensors in safety-critical industrial sites.
Description
Basic Hardware & Safety Parameters
- Manufacturer: Schneider Electric TRICONEX
- Product Type: Safety High-Density Isolated Analog Input (AI) Module
- Compatible System Series: TRICONEX Trident / Tricon TMR Safety Control System
- Redundancy Architecture: Full hardware Triple Modular Redundancy (TMR) independent acquisition architecture
- Safety Integrity Level: SIL3 Certified (IEC 61508, IEC 61511)
- Certification: CE, UL, ATEX Hazardous Area Certified
- Rated Operating Power Supply: 24 V DC
- Operating Voltage Range: 18 V DC to 32 V DC
- Maximum Power Consumption: 5.2 W
- Total Analog Input Channels: 32 fully isolated independent channels
- Installation Mode: Direct slot insertion into Trident/Tricon system standard safety backplane
- Hot Swap Function: Complete hot plug and hot swap, system continuous operation without power-off during module replacement
Input Signal & Precision Electrical Specifications
- Standard Input Signal Type: 4–20 mA DC current signal
- Input Resolution: 16-bit high resolution
- Input Accuracy: ±0.15% Full Scale (FS)
- Input Impedance: 250 Ω standard industrial transmitter matching impedance
- Maximum Allowable Input Current: 25 mA DC
- Input Response Update Time: ≤8 ms deterministic cycle
- Channel Isolation: 2500 V DC galvanic isolation between each input channel, system bus and field circuits
- Built-in Detection Function: Real-time input loop open circuit detection, short circuit detection, signal drift monitoring, sensor fault detection for all channels
- Signal Filtering: Digital adaptive anti-noise filtering circuit
Communication & Bus Specifications
- Backplane Bus Connection: TRICONEX Tribus high-speed redundant safety backplane bus
- Internal System Protocol: TRICONEX proprietary high-integrity safety communication protocol
- External Protocol Support: Modbus RTU
- Data Update Cycle: Fixed deterministic 8 ms safety acquisition cycle
- Transmission Verification: 32-bit CRC parity check and data consistency verification
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +70 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Module Dimensions: 262 mm × 138 mm × 92 mm
- Module Net Weight: 1.62 kg
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
- Anti-vibration Performance: Meets heavy-duty industrial anti-vibration and anti-shock standards
Diagnosis & Fault Response Specifications
- Diagnosis Mode: Real-time continuous full-channel online self-diagnosis
- Fault Detection Coverage: Input loop open circuit, short circuit, signal overrange, signal drift, sensor abnormality, hardware circuit fault, communication anomaly
- Fault Response Time: ≤200 ms
- Fault Processing Mechanism: Automatic faulty channel isolation, TMR median voting filters abnormal input data, normal channels maintain continuous analog signal acquisition
- Fault Management: Automatic fault recording, SOE event storage, active fault alarm upload to upper HMI system
- Fail-safe Mechanism: Automatically switches input channel to predefined safe 4 mA state when critical fault occurs
Functional Characteristics
1. Independent TMR Triple Redundancy Acquisition Architecture
Three completely independent acquisition circuits collect the same field analog signal simultaneously. Built-in 2oo3 majority median voting logic filters abnormal data from single faulty channel. Single channel or single acquisition circuit fault does not cause signal misjudgment or safety function loss. The module achieves zero single-point failure performance for analog input acquisition.
2. Ultra-high Density 32 Channels High-Precision Acquisition
32 independent isolated analog input channels realize centralized large-scale process parameter monitoring. 16-bit high resolution and ±0.15%FS high accuracy maintain stable precision under wide temperature fluctuations and eliminate temperature drift deviation. Fully meets high-precision monitoring requirements of safety-critical industrial processes.
3. Full-channel Input Loop Comprehensive Diagnosis Function
Each input channel integrates independent open circuit, short circuit, signal drift and sensor fault detection circuits. Module automatically monitors field transmitter loop status in real time, locates exact faulty channel position and isolates fault immediately. Normal channels operate continuously without interruption.
4. Complete High-voltage Galvanic Isolation & Anti-interference Design
Adopts channel-to-channel 2500 V DC isolated power supply, isolated signal circuits and surge protection circuits. Effectively resists industrial electromagnetic interference, voltage fluctuation and field electrical noise. Ensures stable high-precision analog signal acquisition in severe industrial electrical environments.
5. Standardized Universal 4–20 mA Signal Compatibility
Supports standard industrial 4–20 mA current input, perfectly matches all mainstream pressure, temperature, flow, level process transmitters. Widely adapts to various field analog measurement devices without additional signal conversion modules.
6. Strict SIL3 Compliant Fail-safe Safety Design
Strictly follows IEC 61508 safety standards. Module immediately triggers predefined safe 4 mA input state when detecting critical faults. Effectively prevents dangerous false analog input signals and guarantees process safety under fault conditions.
7. Hot-swappable & Easy Maintenance Performance
Standard modular structure with full hot swap function. Fully compatible with all TRICONEX Trident/Tricon series CPU modules, interface modules and backplanes. Simple wiring, convenient configuration and fast on-site debugging.
8. High Stability Long Service Life
All solid-state circuit design without mechanical moving parts. Extremely low failure rate, meets more than 20 years long-term continuous operation requirements of industrial safety control systems.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform large-scale process parameter centralized analog signal acquisition, onshore oil and gas gathering station pressure/temperature/flow transmitter signal monitoring, oilfield ESD emergency shutdown system analog input collection, fire and gas detection multi-point analog signal acquisition.
Petrochemical & Chemical Processing Industry
Used for reactor temperature/pressure/flow/level multi-point safety monitoring analog input acquisition, pipeline process parameter transmitter centralized signal collection, flare system safety measurement analog input processing, large chemical plant SIS safety instrumented system high-density analog input monitoring.
Power Generation Industry
Applied to steam turbine process parameter multi-point analog signal acquisition, boiler BMS burner management system measurement transmitter input monitoring, power unit safety interlock process parameter centralized collection, auxiliary equipment process state analog input monitoring.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline multi-section pressure/temperature analog signal acquisition, large compressor station process parameter transmitter centralized monitoring, leakage emergency shutdown system analog input collection, gas distribution station multi-point process safety measurement input processing.
Metallurgy & Heavy Industry
Applied to smelting furnace high-temperature pressure multi-point analog signal acquisition, production line process parameter transmitter centralized monitoring, high-risk pressure equipment safety measurement analog input collection.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, industrial water treatment safety process analog signal centralized acquisition, large industrial compressor unit multi-point safety monitoring analog input, and all industrial occasions requiring SIL3 level high-density, high-precision 4–20 mA analog safety signal acquisition.
