Product Short Description
Product Overview

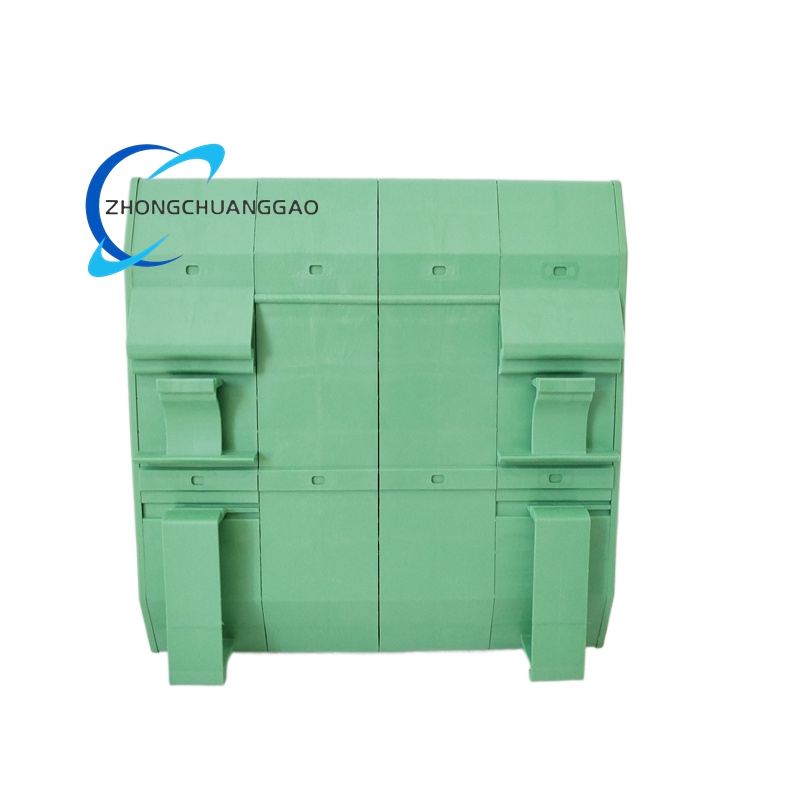

TRICONEX 9771-210F is a factory fully pre-assembled safety-grade spring-clamp field termination panel manufactured by Schneider Electric TRICONEX. It belongs to the Tricon Triple Modular Redundancy (TMR) safety control system platform. This product acts as the exclusive field wiring transition interface between TRICONEX 24VDC supervised digital output DO safety modules and on-site solenoid valves, power relays, actuator drivers, emergency shutdown execution devices and field load equipment.
Description
Basic Hardware & Safety Parameters
- Manufacturer: Schneider Electric TRICONEX
- Product Type: Safety Spring-Clamp Digital Output Termination Assembly Panel
- Compatible System Series: TRICONEX Tricon V9/V10 / Trident TMR Safety Control System
- Matching Modules: TRICONEX standard 24VDC supervised digital output DO safety modules
- Safety Integrity Level: SIL3 Certified (IEC 61508, IEC 61511)
- Certification: CE, UL, ATEX Hazardous Area Certified
- Rated Operating Voltage: 24 V DC
- Operating Voltage Range: 18 V DC to 32 V DC
- Total Digital Output Channels: 16 independent isolated commoned channels
- Single Channel Maximum Rated Load Current: 2 A continuous
- Peak Surge Load Current: 10 A (10 ms maximum)
- Assembly Structure: Factory fully pre-assembled integrated terminal panel
- Installation Mode: Standard DIN rail mounting
- Matching Cable: Dedicated shielded twisted-pair signal cable with TRICONEX dedicated system connectors
Terminal & Electrical Isolation Specifications
- Terminal Connection Type: Industrial screw-free spring-clamp push-in quick terminal
- Terminal Contact Material: Brass with nickel plating and anti-corrosion gold flash coating
- Applicable Wire Gauge: AWG 16 to AWG 22 solid and stranded wires, 0.5 mm² to 2.5 mm² conductors
- Channel Isolation: 2500 V DC galvanic isolation between output channels, system side backplane and field load side
- Built-in Protection: Independent channel fuse protection, overvoltage protection, surge protection, anti-static protection, inductive load flyback suppression circuits
- Built-in Detection: Real-time output loop connection status monitoring, load open circuit detection
- Built-in Indication: Independent LED status indicator for each output channel
- Signal Transmission Delay: ≤0.1 ms, no signal distortion during transmission
- Minimum Load Current: 10 mA
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +70 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Anti-vibration Performance: 5–500 Hz, 5 g heavy-duty industrial anti-vibration and anti-shock standards
- Panel Overall Dimensions: 175 mm × 92 mm × 48 mm
- Complete Assembly Kit Net Weight: 1.08 kg
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
Diagnosis & Safety Response Specifications
- Diagnosis Mode: Real-time continuous output loop and wiring status online monitoring
- Fault Detection Coverage: Field load open circuit, wiring loose connection, short circuit, fuse blowout, overcurrent abnormality, inductive load surge fault
- Fault Response Time: ≤150 ms
- Fault Processing Mechanism: Transmits output loop fault status to TRICONEX safety controller in real time, system executes corresponding safety interlock logic according to fault signal
- Fail-safe Mechanism: Maintains predefined safe off output state when critical fault occurs, prevents dangerous uncontrolled output to field loads
Functional Characteristics
1. Full SIL3 Safety Integrity Matching Design
Terminal panel fully adapts TMR triple redundancy safety architecture of TRICONEX system. Signal transmission process maintains complete SIL3 safety level, does not reduce system safety integrity, and realizes end-to-end safety digital output transmission from safety controller to field execution loads.
2. Advanced Screw-Free Spring-Clamp Quick Terminal Structure
Adopts industry-leading push-in spring-clamp terminals without screwdriver operation. Realizes fast plug-and-play wiring, greatly improves on-site construction efficiency, eliminates terminal loosening risks caused by long-term vibration and temperature cycling.
3. Independent Channel Fuse & Inductive Load Protection
Each output channel is equipped with independent fuse protection and flyback voltage suppression circuits. Effectively protects DO safety modules and terminal panel from damage caused by field inductive solenoid valve surge, short circuit and overcurrent faults.
4. Complete Factory Pre-assembled Integrated Structure
Full factory assembly including terminal panel, spring terminals, dedicated connectors, shielded cable assembly, fuse protection and installation accessories. No on-site secondary assembly required, ensures consistent wiring quality and safety reliability.
5. High-performance Galvanic Isolation & Surge Protection
Adopts 2500 V DC high-voltage isolation design, integrates independent surge protection and EMC filtering circuits for each channel. Effectively isolates industrial common-mode interference, lightning surge and electrostatic interference, ensures stable 24VDC output control in harsh electrical environments.
6. Full Channel Output Loop Diagnosis & Status Indication
Built-in real-time load loop monitoring circuit detects wiring open circuit, short circuit and fuse faults. Independent channel LED indicators realize intuitive on-site fault viewing; fault information is automatically uploaded to safety controller and HMI system for transparent fault management.
7. Excellent Anti-vibration & Long-term Operational Stability
Spring-clamp contact structure maintains stable electrical connection under continuous vibration and wide temperature fluctuations. Industrial-grade materials and anti-corrosion contacts ensure more than 20 years long service life without performance degradation.
8. Full System Compatibility & Plug-and-play Performance
Fully compatible with all TRICONEX Tricon/Trident series 24VDC supervised digital output DO modules, backplanes and safety controllers. Direct plug-and-play connection, no additional configuration and conversion required, seamless integration with existing safety instrumented systems.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform safety solenoid valve group wiring transition, onshore oil and gas gathering station ESD execution load terminal connection, oilfield emergency shutdown system field output interface, fire and gas system safety valve output terminal transmission.
Petrochemical & Chemical Processing Industry
Used for reactor safety interlock solenoid valve terminal wiring, pipeline emergency shutdown valve load transition panel, flare system safety execution device field wiring interface, large chemical plant SIS safety instrumented system unified digital output terminal assembly.
Power Generation Industry
Applied to steam turbine ESD emergency shutdown valve output terminal wiring, boiler BMS burner management system fuel valve execution load transition panel, power unit safety interlock device output interface, auxiliary equipment emergency stop safety terminal connection.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline pressure interlock valve terminal wiring, large compressor station safety execution load field transition panel, leakage emergency shutdown system output wiring interface, gas distribution station safety valve unified terminal assembly.
Metallurgy & Heavy Industry
Applied to smelting furnace high-temperature pressure safety solenoid valve terminal wiring, production line emergency stop execution device field transition panel, high-risk pressure equipment safety output wiring interface.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, industrial water treatment safety interlock output terminal wiring, large industrial compressor unit safety execution load field interface, and all industrial occasions requiring SIL3 level spring-clamp 24VDC safety digital output field wiring transition and isolated load control.
