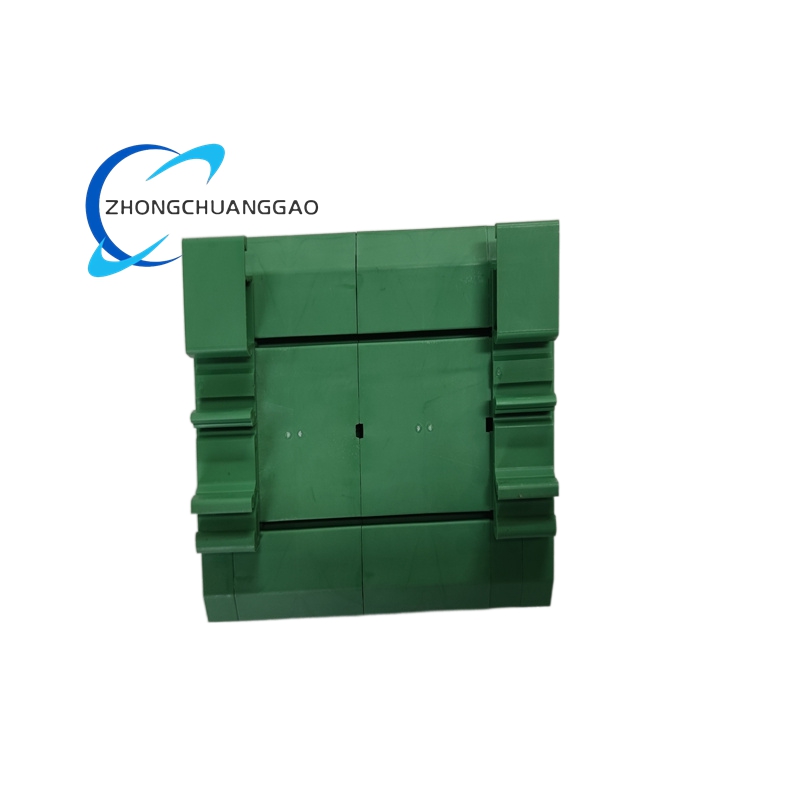

TRICONEX 9753-1XX is a full series factory-assembled safety-grade spring-clamp termination panel manufactured by Schneider Electric TRICONEX. It belongs to the Tricon Triple Modular Redundancy (TMR) safety instrumented system platform. This product series acts as the universal field wiring transition interface between TRICONEX safety DI/DO/AI/AO I/O modules and on-site field sensors, switches, solenoid valves, actuators and transmitters. The 1XX suffix represents customized channel quantity, signal type, voltage grade and protection configuration variants within the unified 9753-1XX hardware platform.
Description
Basic Hardware & Safety Parameters
- Manufacturer: Schneider Electric TRICONEX
- Product Type: Universal Safety Spring-Clamp Field Termination Assembly Series
- Compatible System Series: TRICONEX Tricon V9/V10 / Trident TMR Safety Control System
- Matching Modules: All TRICONEX standard digital input DI, digital output DO, analog input AI, analog output AO safety I/O modules
- Safety Integrity Level: SIL3 Certified (IEC 61508, IEC 61511)
- Certification: CE, UL, ATEX Hazardous Area Certified
- Rated Voltage Range: 24 V DC / 48 V DC / 0–10 V DC / 4–20 mA configurable (defined by 1XX suffix variant)
- Maximum Rated Voltage: 300 V AC/DC
- Single Channel Maximum Rated Current: 10 A
- Total Channels: Customized 8/16/32 channels (defined by 1XX suffix variant)
- Terminal Type: Industrial spring-clamp quick connection terminal (screw-free design)
- Assembly Structure: Factory fully pre-assembled integrated terminal panel
- Installation Mode: Standard DIN rail mounting
- Matching Cable: Dedicated shielded twisted-pair signal cable with TRICONEX dedicated system connectors
Terminal & Electrical Isolation Specifications
- Terminal Connection Method: Spring-clamp push-in quick connection, screw-free operation
- Terminal Contact Material: Brass with nickel and anti-corrosion gold plating
- Applicable Wire Gauge: 0.5 mm² to 2.5 mm² solid and stranded wires (AWG 22 to AWG 14)
- Channel Isolation: 2500 V DC galvanic isolation between signal channels, system side and field side
- Built-in Protection: Channel-level surge protection, overvoltage protection, anti-static protection, EMC electromagnetic filtering circuits
- Built-in Function: Wiring status monitoring, signal conditioning, impedance matching
- Signal Transmission Delay: ≤0.1 ms, no signal distortion during transmission
- Input Impedance: ≥1 MΩ for analog voltage channels
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +85 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Anti-vibration Performance: 5–500 Hz, 5 g heavy-duty industrial anti-vibration and anti-shock standards
- Panel Dimensions: Unified compact size series, customized by channel quantity
- Assembly Kit Net Weight: 0.8 kg to 1.6 kg (variant by channel quantity)
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
Diagnosis & Safety Response Specifications
- Diagnosis Mode: Real-time continuous wiring connection status monitoring
- Fault Detection Coverage: Field wiring open circuit, loose connection, short circuit, overvoltage abnormality, wiring distortion
- Fault Response Time: ≤150 ms
- Fault Processing Mechanism: Transmits wiring fault status to TRICONEX safety system in real time, system executes corresponding safety logic according to fault signal
- Fail-safe Mechanism: Maintains predefined safe signal state when wiring fault occurs, prevents dangerous false signal transmission
Functional Characteristics
1. Full SIL3 Safety Integrity Matching Design
Terminal series fully adapts TMR triple redundancy safety architecture of TRICONEX system. Signal transmission process maintains complete SIL3 safety level, does not reduce system safety integrity, and realizes end-to-end safety signal transmission from field devices to safety controller.
2. Universal 1XX Customized Variant Platform
Unified hardware base with flexible 1XX customized configuration. Supports different channel counts, 24VDC/48VDC digital signals, 4–20mA/0–10VDC analog signals, fuse protection and status indication options. Meets all field wiring interface requirements of TRICONEX safety systems.
3. Advanced Spring-Clamp Push-in Terminal Design
Adopts screw-free spring-clamp quick connection terminals. Realizes fast wiring insertion without screwdriver operation, greatly improves on-site wiring efficiency, reduces wiring loosening risks caused by vibration and thermal cycling.
4. Complete Factory Pre-assembled Integrated Structure
Full factory assembly including terminal panel, spring terminals, dedicated connectors, shielded cable assembly and installation accessories. No on-site secondary assembly required, ensures consistent wiring quality and safety reliability.
5. High-performance Galvanic Isolation & Surge Protection
Adopts 2500 V DC high-voltage isolation design, integrates independent surge protection and EMC filtering circuits for each channel. Effectively isolates industrial common-mode interference, lightning surge and electrostatic interference, protects safety I/O modules and field instruments from damage.
6. Real-time Wiring Status Diagnosis Function
Built-in independent wiring monitoring circuit realizes real-time detection of field wiring open circuit, loose connection and short circuit. Fault information is uploaded to safety controller and HMI system automatically, realizes transparent wiring fault management.
7. Excellent Anti-vibration & Long-term Stability
Spring-clamp structure maintains stable connection under long-term vibration and temperature fluctuation. Industrial-grade materials and anti-corrosion contacts ensure stable operation in harsh industrial environments and more than 20 years service life.
8. Full System Compatibility & Plug-and-play Performance
Fully compatible with all TRICONEX Tricon/Trident series DI/DO/AI/AO safety modules, backplanes and controllers. Direct plug-and-play connection, no additional configuration and conversion required, seamless integration with existing safety instrumented systems.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform universal safety field wiring transition, onshore oil and gas gathering station instrument terminal connection, oilfield ESD emergency shutdown system field wiring interface, fire and gas detector unified signal terminal transmission.
Petrochemical & Chemical Processing Industry
Used for reactor safety interlock instrument wiring terminal connection, pipeline valve position feedback and process parameter signal transition panel, flare system safety device field wiring interface, large chemical plant SIS safety instrumented system unified terminal wiring assembly.
Power Generation Industry
Applied to steam turbine ESD emergency shutdown system field terminal wiring, boiler BMS burner management system instrument signal transition panel, power unit safety interlock device wiring interface, auxiliary equipment safety signal terminal connection.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline pressure interlock instrument terminal wiring, large compressor station safety device field transition panel, leakage emergency shutdown system wiring interface, gas distribution station safety instrument unified terminal assembly.
Metallurgy & Heavy Industry
Applied to smelting furnace high-temperature pressure safety instrument terminal wiring, production line emergency stop device field transition panel, high-risk pressure equipment safety signal wiring interface.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, industrial water treatment safety instrument terminal wiring, large industrial compressor unit safety device field interface, and all industrial occasions requiring SIL3 level universal spring-clamp safety field wiring transition and isolated signal transmission.
