Product Short Description
Product Introduction

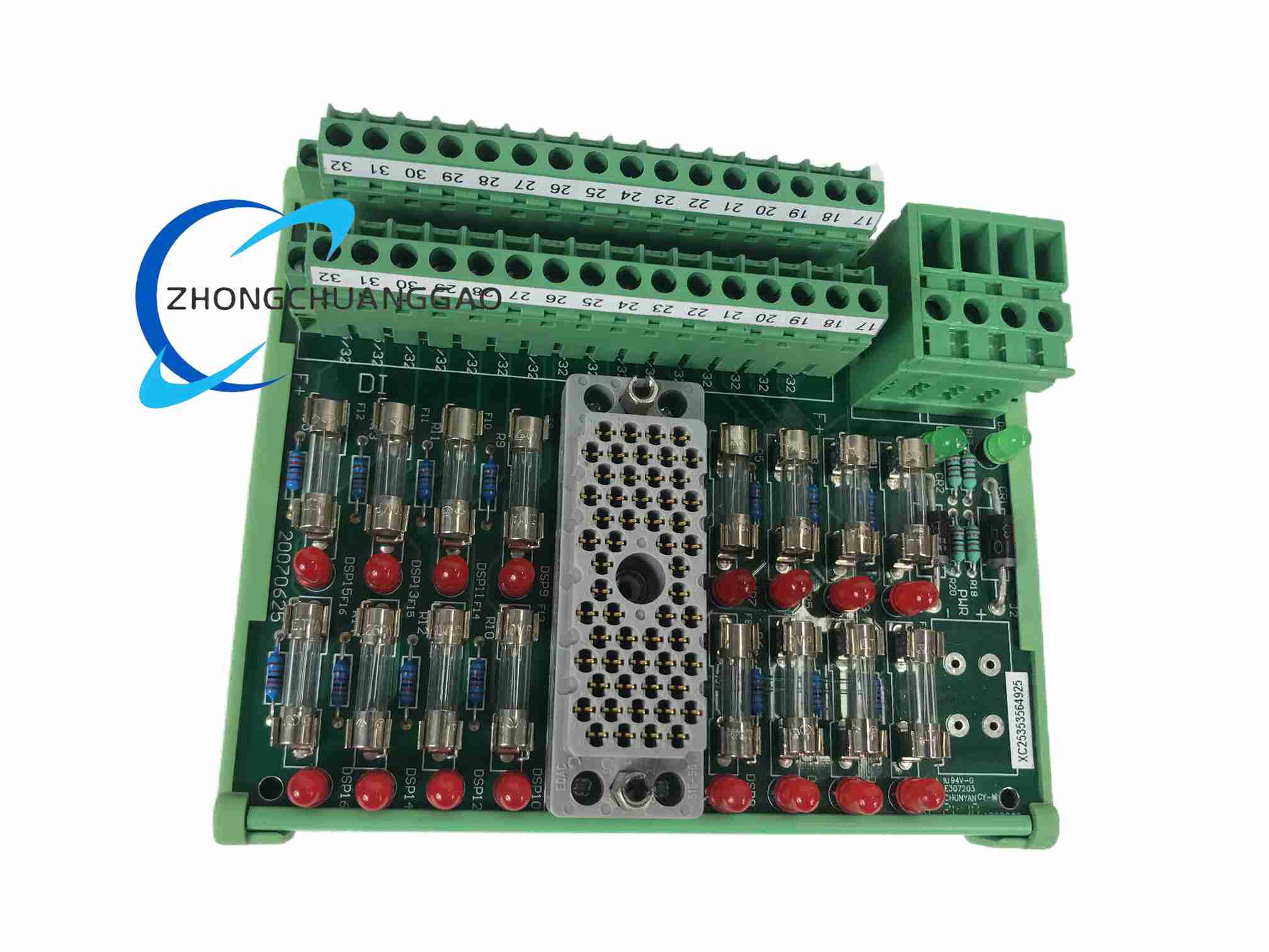

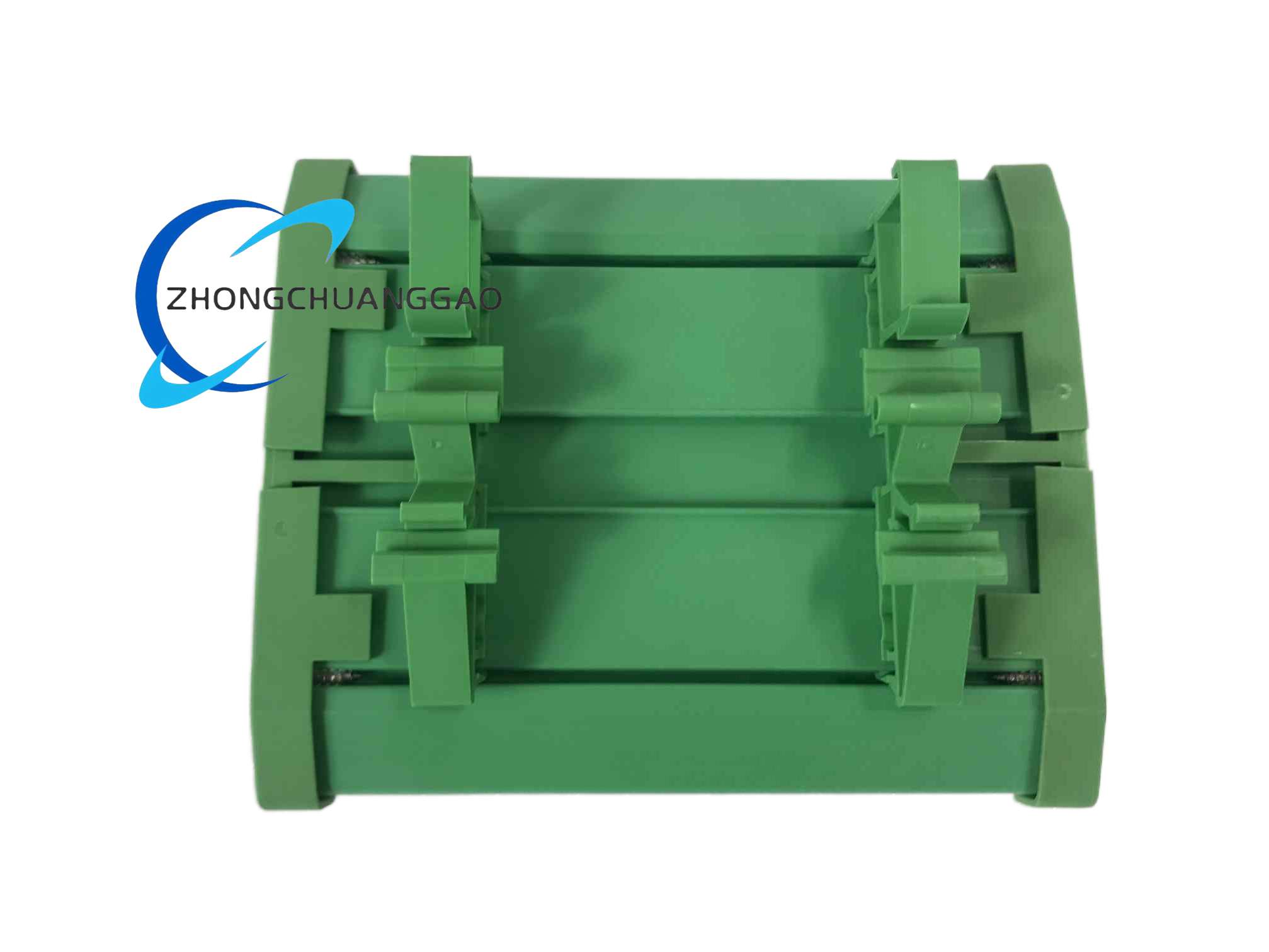

The TRICONEX 9563-810 is a digital input terminal board designed for the Triconex redundant safety system. It connects field switches and sensors, acquires digital signals, and transmits them to the Tricon controller for processing. The board implements triple modular redundant (TMR) architecture with built-in self-test for high-reliability safety applications.
Description
Technical Specifications
-
Channels: 32 digital input channels
-
Input Voltage: 24 V DC (24 V AC/DC, grouped in sets of 8)
-
Input Current: 2.5 mA typical, 3.3 mA maximum
-
Fuse: 1 A slow-blow per group
-
Architecture: TMR with self-test
-
Response Time: <15 ms typical
-
Isolation: 1500 V AC channel-to-channel and channel-to-system
-
Operating Temperature: 0 °C to 60 °C
-
Safety Certification: SIL 3 per IEC 61508 and IEC 61511
-
Hot Swappable: Yes
Functional Features
-
32-point high-density digital input acquisition.
-
TMR architecture with 2-out-of-3 voting eliminates single-point failure.
-
Comprehensive diagnostics: field wire break detection, field power monitoring, short-circuit detection, and hardware fault detection.
-
Automatic majority voting for output determination.
-
Continuous online testing and event sequence recording.
Application Scenarios
Safety interlock monitoring, emergency stop circuits, safety gate monitoring, and critical shutdown system inputs in oil & gas, chemical, and power generation industries.
Working Principle
Field contact states are sensed as 24 V DC sinking inputs. Each channel signal is processed by three independent input circuits; the Tricon controller votes on the three readings. Wire breaks, short circuits, and field power anomalies are detected through continuous diagnostics.
Installation Requirements
-
Mount in the Triconex Tricon safety system I/O rack.
-
Wire field devices (dry contacts or active 24 V DC sources) to the terminal block.
-
Group connections in sets of 8; each group shares a 1 A slow-blow fuse.
-
Verify external 24 V DC field supply is in the 19.2–30 V DC operating range.
Usage Precautions
-
Ensure correct polarity and voltage; do not exceed 30 V DC.
-
Replace fuses only with same type and rating (1 A slow-blow).
-
Perform online replacement only when the system supports hot swap and area is non-hazardous.
-
Regularly verify field wire integrity through diagnostic reports.
