Product Short Description
Overview:

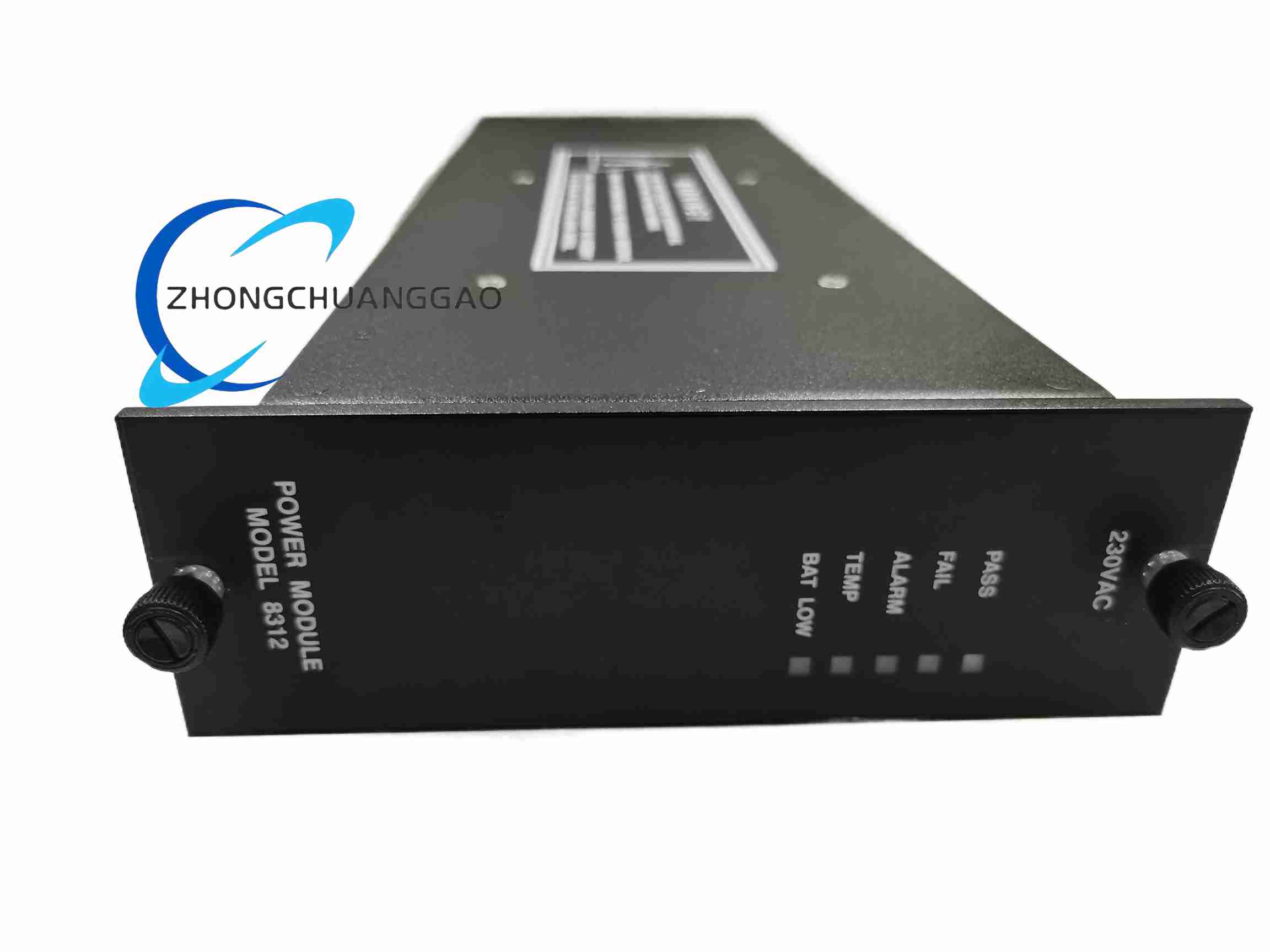

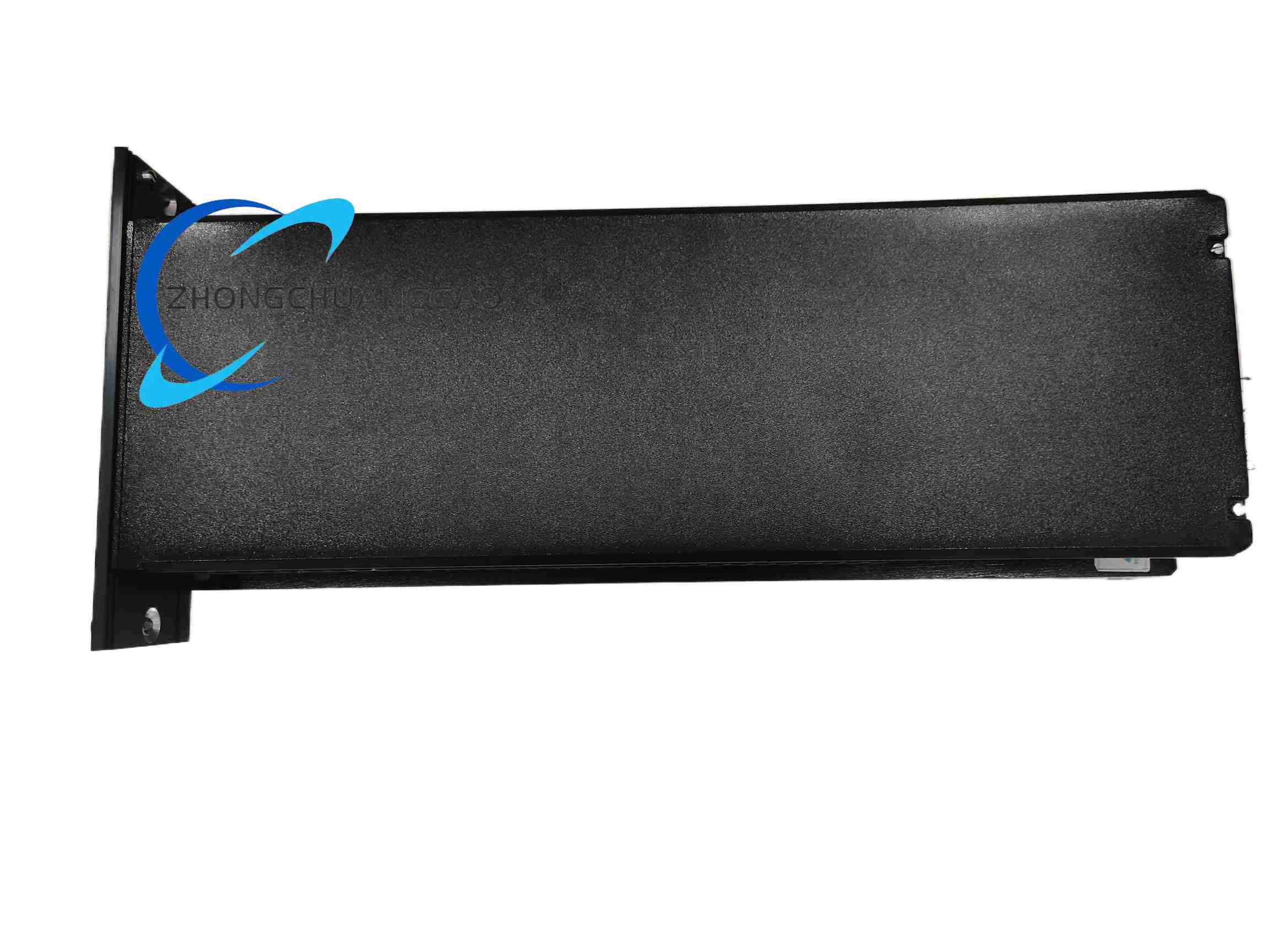

The TRICONEX 8312 is a 230 VAC input, 175 W redundant power supply module designed for the Schneider Electric Triconex Tricon TMR (Triple Modular Redundancy) Safety Instrumented System. It converts 230 VAC mains power into a stable 24 VDC (nominally 6.5 VDC chassis bus) supply for the Tricon chassis backplane, powering processors, I/O modules, and communication modules. It is built for SIL 3-rated ESD, F&G, and BMS applications.
Description
Technical Specifications:
-
Manufacturer: Triconex (Schneider Electric)
-
Series: Tricon TMR SIS (v9/v10/v11 compatible)
-
Input Voltage: 100–240 VAC wide-range auto-adaptive, 47–63 Hz
-
Input Protection: 2.5 A time-delay fuse, reverse-polarity and surge protection
-
Output Voltage: 6.5 VDC ± 1 % (chassis bus) / 24 VDC, 7.3 A equivalent
-
Rated Output Power: 175 W at 60 °C ambient
-
Max. Output Current: 27 A
-
Redundancy: 1+1 redundant configuration, seamless transfer < 10 ms
-
Isolation Voltage: 3000 VAC input/output (some sources cite 1500 VDC)
-
Protection Functions: Over-voltage, over-current, over-temperature, short-circuit
-
Hot-swap: Supported (online replacement without shutdown)
-
Operating Temperature: 0 °C to +60 °C (some sources state -20 to +60 °C)
-
Storage Temperature: -40 °C to +85 °C
-
Relative Humidity: 5 % to 95 % RH non-condensing
-
Certifications: TÜV SIL 3, FM, CSA
-
LED Indicators: PASS (green – normal), FAULT (yellow – fault), TEMP (yellow – over-temp > 83 °C), BATT LOW (backup battery low)
Key Features:
-
1+1 redundancy with < 10 ms seamless transfer ensures zero downtime
-
Wide-range 100–240 VAC input simplifies global spare parts logistics
-
Comprehensive electrical protection (OVP, OCP, OTP, SCP)
-
3000 VAC isolation prevents external surge propagation to backplane
-
Hot-swappable for online maintenance
-
N+1 parallel capability – multiple units share load; single failure causes no interruption
-
SIL 3 certified for safety-related power supply
Application Scenarios:
Petrochemical ESD (Emergency Shutdown) systems, Fire & Gas (F&G) systems, oil & gas extraction platforms, power plant protection systems, BMS (Burner Management Systems).
Installation & Notes:
Install in the Tricon chassis dedicated power slot. For full redundancy, populate two slots with 8312 modules. The module can be hot-swapped, but verify the redundant unit is healthy before removing a faulty one. Ensure mains wiring complies with local electrical codes; the 2.5 A time-delay fuse protects against input-side faults. Monitor the TEMP and BATT LOW LEDs during operation – an illuminated TEMP LED indicates internal temperature > 83 °C, suggesting inadequate ventilation.
