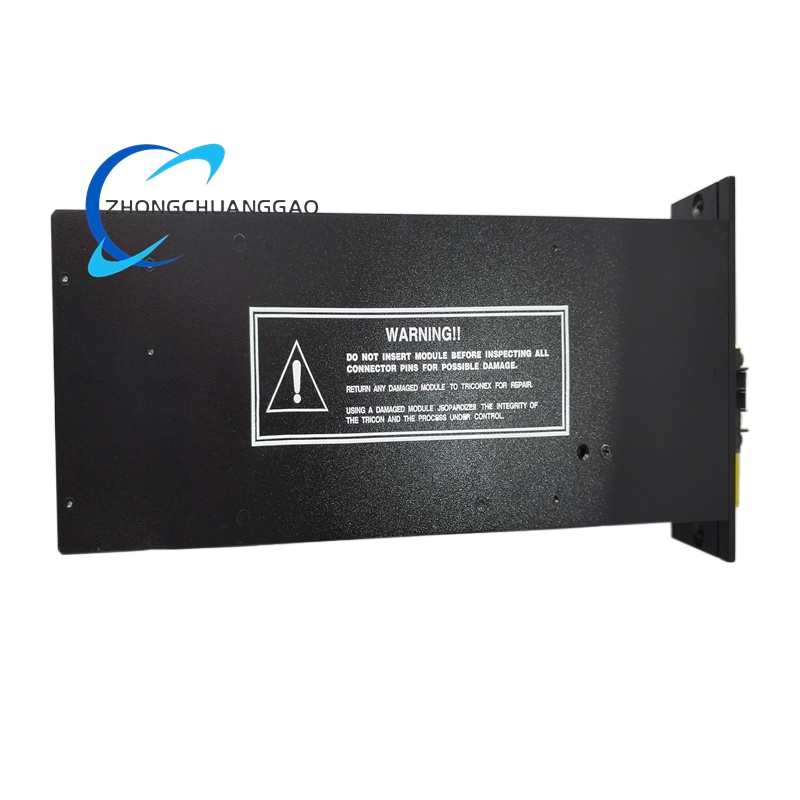

Triconex 8307A Extended/RXM Rack Integrated Power Supply Module

Description

Basic Product Specifications

• Manufacturer: Triconex (Schneider Electric Industrial Automation)
• Product Series: Tricon TMR Safety Instrumented System
• Product Type: Integrated Extended Rack Power Supply + RXM I/O Backplane Assembly
• System Architecture: Full TMR Triple Modular Redundancy Power Architecture
• Compatible Equipment: All Tricon series I/O modules, remote RXM extended chassis
• Installation Mode: Standard cabinet mounted fixed installation, rack plug-in module slots
• Origin: USA
• Assembly Part Number: 7400127-610 Rev.B1
• Basic Rack Model: 2553 / 2652

Electrical Technical Specifications

Input Specifications

• Standard AC Input Voltage: 230 VAC Single Phase
• AC Input Voltage Range: 187 VAC ~ 264 VAC
• AC Input Frequency: 47 Hz ~ 63 Hz
• Rated AC Input Current: 2 A
• Maximum Input Surge Current: 30 A
• Alternative DC Input Version: 115 VAC / 120 VDC / 24 VAC/DC compatible

Output Specifications

• Main Rated DC Output Voltage: 24 VDC System Field Power
• Auxiliary Logic Output Voltage: 5 VDC Backplane Logic Power
• Rated Total Output Current: 8 A (24 VDC)
• Output Voltage Ripple: ＜1% Peak-to-Peak
• Output Regulation Accuracy: ±2% Full Scale
• Functional Isolation Voltage (Input to Output): 2500 VAC
• Channel-to-Chassis Isolation Voltage: 250 VDC

Protection & Electrical Parameters

• Built-in Full Protection: Overvoltage Protection, Overcurrent Protection, Short-Circuit Protection, Reverse Polarity Protection, Surge Protection
• Surge Withstand Voltage: 1500 V
• Power Efficiency: ＞85% Full Load
• MTBF (Mean Time Between Failures): ≥800,000 Hours

Environmental Specifications

• Operating Ambient Temperature: 0 °C ~ +60 °C (+140 °F)
• Storage Temperature: -40 °C ~ +85 °C
• Operating Relative Humidity: 5% ~ 95% Non-Condensing
• Anti-Vibration Performance: Compliant with IEC 60068-2-6 Industrial Standard
• Anti-Shock Performance: Compliant with IEC 60068-2-27 Industrial Standard
• Safety Certification: IEC 61508 SIL 3 Safety Certification, CE Certified, UL Certified

Mechanical Specifications

• Assembly Dimensions: Standard Tricon RXM extended rack size
• Net Weight: 34.7 kg ~ 37.3 kg
• Shell Structure: Industrial heavy-duty anti-corrosion steel enclosure
• Backplane Slots: Standard multiple Tricon module plug-in slots
• Terminal Configuration: Independent anti-loosening high-current power wiring terminals
• Mounting: Standard DIN rail / cabinet fixed mounting

Functional Characteristics

1. Integrated Power Supply + Backplane Design

   Integrates AC/DC power converter and RXM extended I/O backplane into one unit, eliminates separate power supply and rack wiring, simplifies system installation and wiring layout.
2. Full TMR Redundant Power Architecture

   Adopts triple independent redundant power conversion channels with 2oo3 voting logic. Single power channel fault completes automatic isolation and failover without system power outage, eliminates single-point power failure risk.
3. High-Stability Isolated Power Output

   Provides clean low-ripple 24VDC field power and 5VDC logic power, fully isolates high-voltage AC input from safety DC control system, prevents electromagnetic interference and fault voltage intrusion.
4. Multi-Level Complete Circuit Protection

   Equipped with overvoltage, overcurrent, short-circuit, reverse polarity and surge protection, fully protects internal power circuits, backplane and connected I/O modules from fault damage.
5. Real-Time Power Status Diagnosis & Indication

   Integrates input voltage monitoring, output current monitoring, temperature monitoring and fault self-diagnosis. Front panel includes POWER OK, INPUT FAULT, OUTPUT FAULT, OVERTEMP LED indicators; fault data uploads to Tricon main controller in real time for alarm and safety interlock.
6. Full Compatibility with Tricon Ecosystem

   Perfectly matches all Tricon digital input/output, analog input/output, communication and remote extension modules; completely retains original TMR safety integrity, diagnosis and fail-safe functions.
7. High-Reliability Industrial Heavy-Duty Structure

   Adopts heavy-duty steel enclosure, anti-vibration, anti-corrosion and dustproof design, supports 24-hour continuous stable operation in harsh industrial sites.

Application Scenarios

1. Oil & Gas Industry

   Offshore platform remote wellhead ESD system power supply, onshore gathering station distributed extended I/O rack power supply, long-distance pipeline safety monitoring system remote rack power supply.
2. Petrochemical & Refining Industry

   Large refinery plant area distributed extended safety I/O power supply, reactor area remote BMS burner management system rack power supply, distillation unit remote safety interlock system power supply.
3. Power Generation Industry

   Power plant boiler-turbine auxiliary area remote safety rack power supply, generator protection system extended I/O power supply, water treatment plant distributed safety system power supply.
4. Fire & Gas Detection System (FGS)

   Plant-wide distributed fire and gas detection remote rack centralized power supply, hazardous area safety monitoring extended system power supply.
5. Chemical Processing & Metallurgy Industry

   Large chemical plant regional distributed safety rack power supply, smelting furnace remote safety interlock system power supply, mine area long-distance safety extension system power supply.
6. General Large-Scale Distributed Safety Control

   All SIL 3 safety-level remote extended RXM I/O rack power supply occasions, suitable for large industrial plants with scattered field devices requiring stable TMR safety power infrastructure.
