Product Short Description
Product Overview

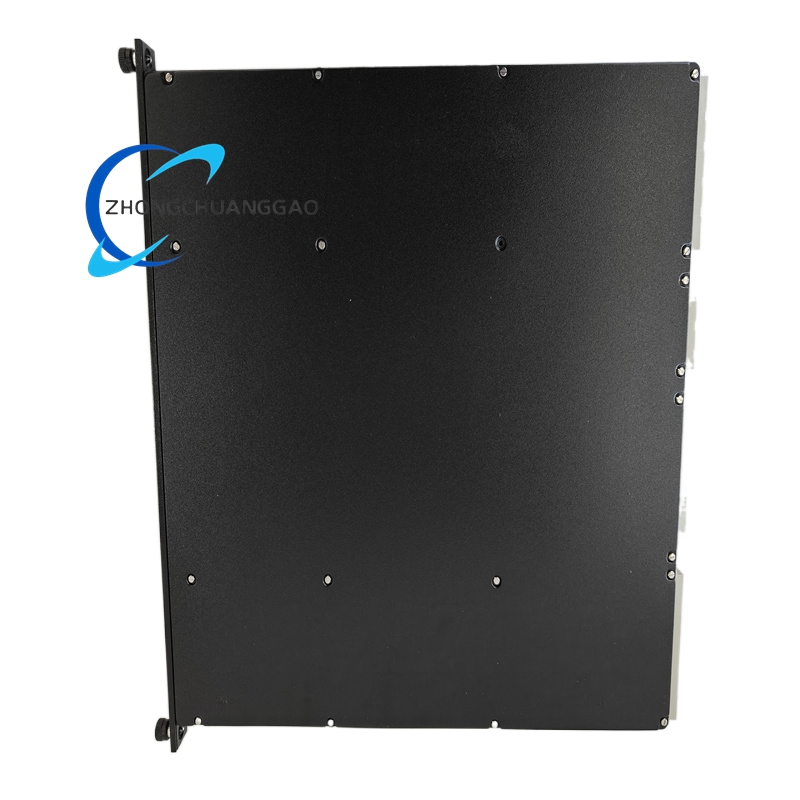

TRICONEX 3664 is a professional safety-grade digital output module manufactured by Schneider Electric TRICONEX. It belongs to the Tricon Triple Modular Redundancy (TMR) safety control system platform. This module receives safety logic control instructions from the main CPU controller, converts them into isolated 24 VDC switching digital output signals, and directly drives field solenoid valves, relays, motor starters, actuators and emergency shutdown execution equipment. It adopts full hardware independent TMR triple redundancy architecture with 2oo3 majority voting logic, integrates full-channel online loopback diagnosis, short-circuit protection, fault isolation and complete fail-safe mechanisms.
Description
Basic Hardware & Safety Parameters
- Manufacturer: Schneider Electric TRICONEX
- Product Type: Safety Supervised Digital Output (DO) Module
- Compatible System Series: TRICONEX Tricon / Trident TMR Safety Control System
- Redundancy Architecture: Full hardware Triple Modular Redundancy (TMR) independent output architecture
- Safety Integrity Level: SIL3 Certified (IEC 61508, TÜV Rheinland)
- Certification: CE, UL, ATEX Hazardous Area Certified
- Rated Operating Power Supply: 24 V DC
- Operating Voltage Range: 16 V DC to 30 V DC
- Absolute Maximum Withstand Voltage: 36 V DC
- Total Power Consumption: ≤10 W (load-dependent)
- Total Digital Output Channels: 32 commoned fully supervised isolated channels
- Installation Mode: Direct slot insertion into standard Tricon system safety backplane
- Hot Swap Function: Complete hot plug and hot swap, system continuous operation without power-off during module replacement
Output Electrical & Load Specifications
- Output Signal Type: 24 VDC active switching transistor output
- Single Channel Rated Output Current: 2 A continuous
- Peak Surge Current: 10 A for maximum 10 ms (adaptive to inductive solenoid load inrush current)
- Minimum Required Load Current: 10 mA
- Maximum Load Leakage Current: 2 mA
- Output Voltage Drop: Typical <1.5 V DC
- Channel Isolation: 1500 V DC galvanic isolation between output channels, backplane bus and field circuits
- Built-in Detection Function: Real-time output loopback voltage diagnosis, short-circuit detection, overcurrent protection, load disconnection detection for all channels
- Output Response Time: ≤1 ms
- Fault Detection Response Time: ≤10 ms
Communication & Bus Specifications
- Backplane Bus Connection: TRICONEX Tribus high-speed redundant safety backplane bus
- Internal System Protocol: TRICONEX proprietary high-integrity safety communication protocol
- External Protocol Support: Modbus RTU
- Safety Control Update Cycle: Fixed deterministic 8 ms cycle
- Transmission Verification: 32-bit CRC parity check and data consistency verification
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +70 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Module Dimensions: 260 mm × 193 mm × 56 mm
- Module Net Weight: 1.8 kg
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
- Anti-vibration Performance: Meets heavy-duty industrial anti-vibration and anti-shock standards
Diagnosis & Fault Response Specifications
- Diagnosis Mode: Real-time continuous full-channel online loopback self-diagnosis
- Fault Detection Coverage: Output short circuit, overcurrent, load open circuit, output abnormal state, hardware circuit fault, communication anomaly
- Fault Response Time: ≤10 ms
- Fault Processing Mechanism: Automatic faulty channel isolation, TMR voting filters abnormal output data, normal channels maintain continuous safety output
- Fault Management: Automatic fault recording, SOE event storage, active fault alarm upload to upper HMI system
- Fail-safe Mechanism: Automatically switches all faulty channels to predefined safe off state when critical fault occurs
Functional Characteristics
1. Full Hardware TMR Triple Redundancy Output Architecture
Three completely independent output circuits execute control instructions simultaneously. Built-in 2oo3 majority voting logic filters abnormal output data from single faulty channel. Single channel or single output circuit fault does not cause dangerous false output or safety function loss. The module achieves zero single-point failure performance for safety digital output control.
2. High-Capacity 32 Channels & High Current Drive Ability
32 commoned output channels realize centralized control of large-scale field safety execution equipment. 2A continuous output and 10A surge current capacity directly drive high-power inductive loads including large solenoid valves and motor starters without external relay expansion.
3. Full Channel Loopback Diagnosis & Active Protection
Each output channel integrates independent loopback voltage monitoring function. Module automatically detects output loop status, short circuit, overcurrent and load disconnection in real time, locates exact faulty channel position and isolates fault immediately. Built-in self-protection circuit prevents module damage caused by field load faults.
4. Complete Electrical Isolation & High Anti-interference Design
Adopts channel-to-channel isolated power supply, isolated signal circuits and surge protection circuits. Effectively resists industrial electromagnetic interference, voltage fluctuation and field electrical noise. Ensures stable output control in severe industrial electrical environments.
5. Ultra-fast Fault Response & Strict Fail-safe Safety Design
≤10 ms fault detection response time quickly identifies dangerous output faults. Strictly follows IEC 61508 SIL3 safety standards. Module immediately triggers predefined safe off state when detecting critical faults. Effectively prevents dangerous uncontrolled output and guarantees process safety under fault conditions.
6. Hot-swappable & Efficient Maintenance Performance
Standard modular structure with full hot swap function. Fully compatible with all TRICONEX Tricon/Trident series CPU modules, interface modules and backplanes. Simple wiring, convenient configuration and fast on-site debugging; module replacement completes within 5 minutes without system shutdown.
7. Excellent Environmental Adaptability & Long Service Life
Wide operating temperature range, all solid-state circuit design without mechanical moving parts. Extremely low failure rate, meets more than 20 years long-term continuous operation requirements of industrial safety control systems.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform large-scale safety valve centralized output control, onshore oil and gas gathering station solenoid valve group control, oilfield ESD emergency shutdown system high-power output execution, fire and gas system safety interlock output control.
Petrochemical & Chemical Processing Industry
Used for reactor safety interlock valve group output control, pipeline emergency shutdown valve centralized control, flare system safety execution output control, large chemical plant SIS safety instrumented system high-density digital safety output control.
Power Generation Industry
Applied to steam turbine ESD emergency shutdown valve output control, boiler BMS burner management system fuel valve interlock control, power unit safety interlock execution output control, auxiliary equipment emergency stop safety control.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline pressure interlock valve centralized output control, large compressor station safety execution control, leakage emergency shutdown high-power output control, gas distribution station safety valve group control.
Metallurgy & Heavy Industry
Applied to smelting furnace high-temperature pressure safety interlock output control, production line large-scale emergency stop execution control, high-risk pressure equipment safety valve centralized control.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, industrial water treatment safety interlock output control, large industrial compressor unit safety execution control, and all industrial occasions requiring SIL3 level high-current, high-density, high-reliability digital safety output control.
