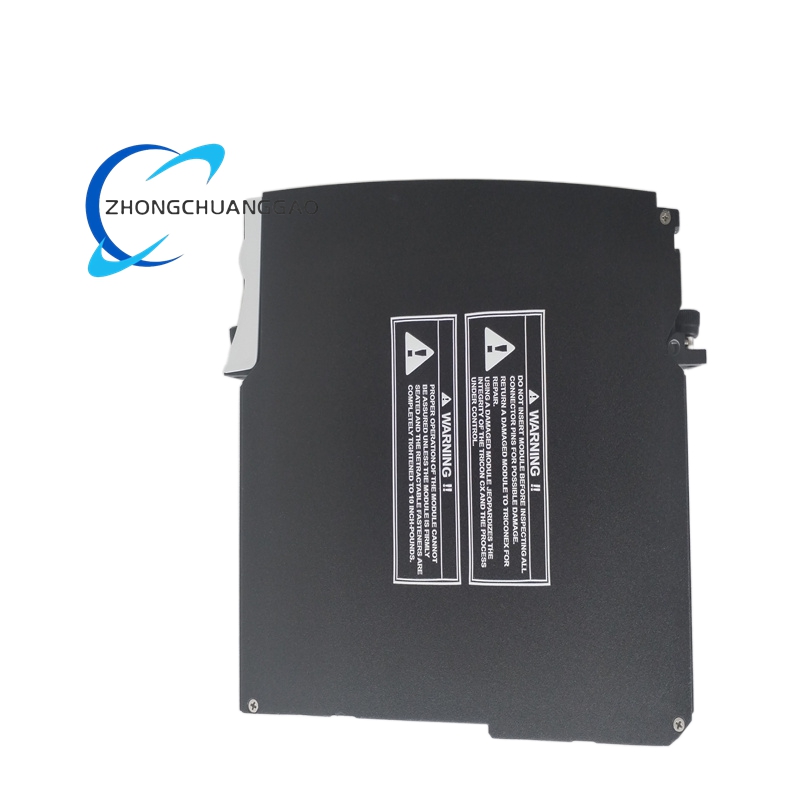

Triconex 3626X 16-Channel 24VDC Relay Digital Output Module

Description

Basic Product Specifications

• Manufacturer: Triconex (Schneider Electric Industrial Automation)
• Product Series: Tricon TMR Safety Instrumented System
• Product Type: Relay Digital Output Discrete Control Module
• Output Channels: 16 Independent Isolated Dry-Contact Relay Channels
• System Architecture: Full TMR Triple Modular Redundancy 2oo3 Voting Architecture
• Compatible System: Tricon main chassis, expansion chassis and matched output baseplates
• Installation Mode: Standard slot plug-in, hot-swappable online installation
• Communication Bus: Proprietary Triconex TriBus high-speed redundant communication bus

Electrical Technical Specifications

• Nominal Field Output Voltage: 24 VDC
• Operating Output Voltage Range: 18 VDC ~ 30 VDC
• Maximum Resistive Load Current per Channel: 2 A
• Maximum Continuous Switching Current per Channel: 0.5 A
• Maximum Switching Frequency: 10 Hz
• Contact Form: Normally Open Dry Contact (Isolated Relay Output)
• Channel-to-Channel Isolation: Complete independent isolation
• Field-to-Logic Isolation Voltage: 1500 VAC
• Functional-to-Protective-Earth Isolation Voltage: 500 VDC
• Built-in Surge Protection Voltage: 1500 V
• Built-in Full Channel Short-Circuit Protection & Overload Protection
• Internal Logic Power Supply: 5 VDC System Backplane Power
• Total Module Power Consumption: ＜3 W
• Output Response Time: ≤ 10 ms

Environmental Specifications

• Operating Ambient Temperature: -40 °C ~ +70 °C
• Storage Temperature: -40 °C ~ +85 °C
• Operating Relative Humidity: 5% ~ 95% Non-Condensing
• Anti-Vibration Performance: 5g (10–2000Hz), compliant with IEC 60068-2-6 standard
• Anti-Shock Performance: Compliant with IEC 60068-2-27 industrial standard
• Safety Certification: IEC 61508 SIL 3 Safety Certification, CE Certified, UL Certified, ATEX Certified

Mechanical Specifications

• Module Dimensions: 140 mm × 99 mm × 64 mm
• Module Net Weight: 0.5 kg
• Shell Structure: Industrial anti-corrosion flame-retardant metal composite shell
• Terminal Configuration: Independent anti-loosening field wiring terminals
• Mounting: Hot-swappable plug-and-play slot installation

Functional Characteristics

1. Full TMR Fault-Tolerant Safety Architecture

   Three independent output execution channels perform synchronous output and 2oo3 majority voting logic. Single channel fault completes automatic isolation without system shutdown, eliminates single-point failure risk and maintains continuous safe control operation.
2. 16 Independent Isolated Relay Dry Contact Outputs

   Each channel adopts complete relay isolation design, fully isolates field harsh electromagnetic interference and fault voltage from internal safety system, prevents fault propagation between channels and improves output safety stability.
3. Advanced Real-Time Loop-Back Diagnosis Function

   Integrates full-channel contact status detection, load fault detection, short-circuit fault detection, field power loss detection and module self-diagnosis. All fault statuses are displayed by front-panel LEDs and uploaded to Tricon controller in real time for alarm and safety interlock actions.
4. Multi-Level Circuit Protection Design

   Equipped with surge protection, short-circuit protection, overload protection and reverse polarity protection, fully protects module internal circuits and field devices from fault damage.
5. Low-Switching-Frequency High-Reliability Relay Output

   10Hz maximum switching frequency, suitable for long-life safety interlock switching control rather than high-frequency dynamic control, ensures stable contact action and long service life in safety-critical applications.
6. Hot-Swappable & Maintenance-Friendly Design

   Supports online module replacement without powering down the entire safety system, greatly reduces system downtime and maintenance difficulty.
7. Intuitive Status Visual Indication

   Front panel integrated MODULE OK, FAULT, ACTIVE LED indicators and individual channel status indicators, realizes intuitive on-site status monitoring and rapid fault troubleshooting.

Application Scenarios

1. Oil & Gas Industry

   Wellhead emergency shutdown (ESD) solenoid valve control, pipeline safety interlock actuator control, gas compressor safety shutdown output, oil-gas gathering station safety sequence interlock control.
2. Petrochemical & Refining Industry

   Reactor emergency shutdown output control, furnace burner management system (BMS) relay actuator control, distillation column safety interlock valve control, flare system safety output control.
3. Fire & Gas Detection System (FGS)

   Fire alarm interlock relay output control, hazardous gas leakage emergency shutdown control, fire fighting equipment safety actuation control.
4. Power Generation Industry

   Boiler safety interlock relay output control, steam turbine auxiliary equipment shutdown control, generator protection system emergency output control, water pump/fan safety shutdown control.
5. Chemical Processing & Metallurgy Industry

   Smelting furnace emergency shutdown control, production line safety interlock relay output control, pressure relief valve safety actuation control, hazardous chemical equipment safety control.
6. General High-Hazard Process Industry

   All SIL 3 safety-level discrete safety control occasions requiring isolated dry-contact output, including solenoid valve control, relay actuation, emergency stop output, and all critical safety interlock control systems.
